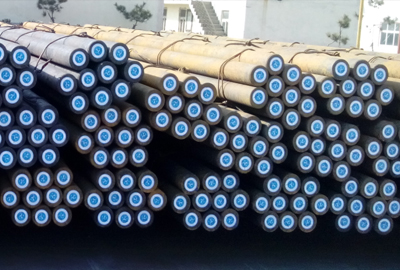

1.5122, DIN 37MnSi5 Bar Manufacturer , Supplier , Exporter

1.5122, DIN 37MnSi5 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Brand Name Ravne No. Mat. No. DIN EN AISI VMS135 707 1.5122 37MnSi5 - - Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.37 1.25 1.25 - - - - - - DescriptionStructural steel. Parts of high core stability and good toughness like gear parts etc.  ApplicationsLow and moderately stressed components for vehicles, machines and engines. Physical properties (avarage values) at ambient temperatureModulus of elasticity [103 x N/mm2]: 21...

Send email to usDownload as PDF

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 Structural steel. Parts of high core stability and good toughness like gear parts etc.

Applications
 Low and moderately stressed components for vehicles, machines and engines.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 210
 Density [g/cm³]: 7.85
 Thermal conductivity [W/m.K]: 25.0

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram



Soft Annealing
 Heat to 680-720^oC, cool slowly. This will produce a maximum Brinell hardness of 217.

Normalizing
 Temperature: 860-890^oC.

Stress Relieving
 Stress relieving to remove machining stresses should be carried out by heating to 120-200^oC, holding for one hour at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

Hardening
 Harden from a temperature of 820-850^oC followed by water or oil quenching. Hardneess after quenching is 52-54 HRC.

Tempering
 Tempering temperature: 480-60^oC, air.

Forging
 Hot forming temperature: 1050-850^oC.

Machinability
 Machining is best done with this alloy in the annealed or normalized and tempered condition. It can be machined by all conventional methods.

Corrosion Resistance
 This is a low alloy steel and not a corrosion resistant alloy. Protective coating should be used.

Welding
 The alloy can be fusion or resistance welded. Preheat and post heat weld procedures should be followed when welding this alloy by established methods.

Cold working
 The VMS135 alloy may be cold worked, in the annealed condition, by conventional methods and tooling. It has good ductility.

Forms manufactured: Please see the Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
