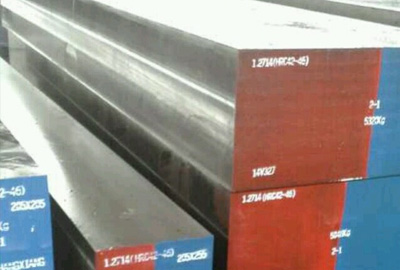

1.2714, DIN 56NiCrMoV7 Bar Manufacturer , Supplier , Exporter

1.2714, DIN 56NiCrMoV7 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Mat. No. DIN EN AISI 1.2714 56NiCrMoV7 55CrMo8 - Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.55 0.25 0.75 1.10 0.45 1.65 0.10 - - Description Nickel hot work tool steel with good hardenability. Uniform hardness over section also at great dimensions. Resistance under impact loadings. Very good strength and thougness. Good tempering resistance and dimensional stability. Tools can be water or air cooled. Applications Forging tools, di...

·FOB Price:US $0.5 - 9,999 / Piece

·Min.Order Quantity:100 Piece/Pieces

·Supply Ability:10000 Piece/Pieces per Month

·Port: Mumbai

·Payment Terms:L/C,D/A,D/P,T/T

Send email to usDownload as PDF

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 Nickel hot work tool steel with good hardenability. Uniform hardness over section also at great dimensions. Resistance under impact loadings. Very good strength and thougness. Good tempering resistance and dimensional stability. Tools can be water or air cooled.

Applications
 Forging tools, dies of all sorts, shapes and sizes, hot forging and pressing tools for steel and metal. Moulds, bushings, piercers etc.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 215
 Density [g/cm³]: 7.84
 Thermal conductivity [W/m.K]: 36.0
 Electric resistivity [Ohm mm²/m]: 0.30
 Specific heat capacity[J/g.K]: 0.46

Thermal conductivity [W/m.K]

Electric resistivity [Ohm mm²/m]

Specific heat capacity[J/g.K]

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram

Soft Annealing
 Heat to 650-700^oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 248.

Stress Relieving
 Stress relieving to remove machining stresses should be carried out by heating to 650^oC, holding for one hour at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

Hardening
 Oil: Harden from a temperature of 830-870^oC followed by oil quenching. Hardness after quenching is 58 HRC.
 Air: Harden from a temperature of 830-900^oC followed by air quenching. Hardness after quenching is 56 HRC.

Tempering
 Tempering temperature: See the data bellow.

Quenching in oil:
 Tempering Temperature (^oC) vs. Hardness (HRC)vvs. Hardness (HRC) vs. Tensile Stregth (N/mm²)

Quenching in air:
 Tempering Temperature (^oC) vs. Hardness (HRC) vs. Hardness (HRC) vs. Tensile Stregth (N/mm²)

Tempering Diagram

Diagram Tempering Temperature – Mechanical Properties

Diagram Tempering Temperature – Mechanical Properties

Forging
 Hot forming temperature: 1050-850^oC.

Machinability
 The machinability rating of D3 is roughly 25 % that of free machining carbon steel 1018. Due to its abrasion resistant nature, machining in the hardened condition should be limited to finish grinding.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
