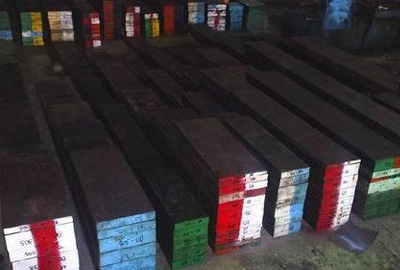

1.2601, DIN X165CrMoV12 Bar Manufacturer , Supplier , Exporter

1.2601, DIN X165CrMoV12 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

  Designation by Standards   Mat. No. DIN EN AISI 1.2601 X165CrMoV12 X160CrMoV121 -   Chemical Composition (in weight %)   C Si Mn Cr Mo Ni V W Others 1.65 0.33 0.30 11.50 0.60 - 0.30 0.50 -   Description Ledeburitic Cr-steel for high performance cutting tools, toughness better than D3, possibility of nitriding. This alloy possesses a very high compressive strength and is deep hardening. Applications Cutting tools, stamping, woodworking, drawing, deep ...

·FOB Price: US $0.5 - 9,999 / Piece

·Min. Order Quantity:100 Piece/Pieces

·Supply Ability:10000 Piece/Pieces per Month

·Port: Mumbai

·Payment Terms: L/C,D/A,D/P,T/T

Send email to usDownload as PDF

2

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 Ledeburitic Cr-steel for high performance cutting tools, toughness better than D3, possibility of nitriding. This alloy possesses a very high compressive strength and is deep hardening.

Applications
 Cutting tools, stamping, woodworking, drawing, deep drawing and pressing tools, cold working rolls, measuring tools.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 210
 Density [g/cm³]: 7.70
 Thermal conductivity [W/m.K]: 20.0
 Electric resistivity [Ohm mm²/m]: 0.65
 Specific heat capacity[J/g.K]: 0.46

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram

Time-Temperature Transformation (TTT) Diagram

Soft Annealing
 Heat to 800-840^oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 255.

Stress Relieving
 Stress relieving to remove machining stresses should be carried out by heating to 650^oC, holding for one hour at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

Hardening
 Harden from a temperature of 980-1010^oC followed by oil, air quenching or warm bath quenching. Hardness after quenching is 63-65 HRC.

Tempering
 Tempering temperature: 150-400^oC.

Tempering Temperature (^oC) vs. Hardness (HRC)

Tempering Diagram

Forging
 Hot forming temperature: 1050-850^oC.

Machinability
 The machinability rating of OCR12EX is roughly 20-25% that of free machining carbon steel 1018. Due to its abrasion resistant nature, machining in the hardened condition should be limited to finish grinding.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
