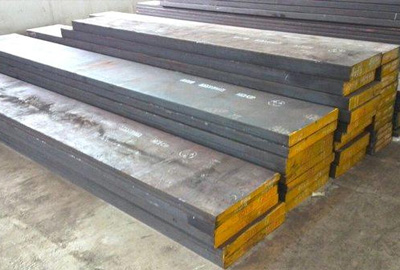

1.2510, DIN 100MnCrW4, O1 Bar Manufacturer , Supplier , Exporter

1.2510, DIN 100MnCrW4, O1 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

  Designation by Standards   Mat. No. DIN EN AISI 1.2510 100MnCrW4 95MnWCr5 O1   Chemical Composition (in weight %)   C Si Mn Cr Mo Ni V W Others 0.95 0.25 1.20 0.48 - - 0.13 0.55 -   Description This alloy is one of the cold work, oil hardening type tool steels. It is relatively inexpensive containing small amounts of manganese, tungsten and chromium. Hardening by oil quench minimizes distortion and cracking. Applications Applications include short ru...

·FOB Price:US $0.5 - 9,999 / Piece

·Min.Order Quantity:100 Piece/Pieces

·Supply Ability:10000 Piece/Pieces per Month

·Port: Mumbai

·Payment Terms:L/C,D/A,D/P,T/T

Send email to usDownload as PDF

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 This alloy is one of the cold work, oil hardening type tool steels. It is relatively inexpensive containing small amounts of manganese, tungsten and chromium. Hardening by oil quench minimizes distortion and cracking.

Applications
 Applications include short run tooling for blanking dies, cold forming dies and cutting tools operating at ambient temperature. For working tools, cutting blades, sizing and stamping tools.

Physical properties (avarage values) at ambient temperature
 Density [g/cm³]: 7.85
 Thermal conductivity [W/m.K]: 30.0

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram

Soft Annealing
 Heat to 740-770^oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 230.

Hardening
 Harden from a temperature of 780-820^oC followed by oil, warm bath (180-220^oC) quenching. Hardness after quenching is 64 HRC.

Tempering
 Tempering temperature: See the data bellow.

Tempering Temperature (^oC) vs. Hardness (HRC)

Tempering Diagram

Forging
 Hot forming temperature: 1037-875^oC.

Machinability
 Machinability of this alloy is very good. It has a rating of 90% that of the W group water hardening low alloy tool steels.

Corrosion Resistance
 This is a relatively simple steel alloy and does not resist ordinary corrosion. It will rust unless protected.

Welding
 This alloy is weldable by standard means. Consult the alloy supplier for details and procedures.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
