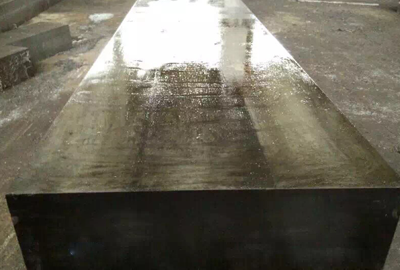

1.2367, DIN X38CrMoV5-3 Bar Manufacturer , Supplier , Exporter

1.2367, DIN X38CrMoV5-3 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Mat. No. DIN EN AISI 1.2367 X38CrMoV5-3 - - Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.38 0.40 0.40 5.00 2.95 - 0.50 - - Description Hot work tool steel. Secondary hardening steel with high strength and wear resistance in hot. Good tempering resistance. High hardenability and thoughness. Tools can be water cooled. Applications Wear resisting tools, pressure die casting tools, pressing tools for light and heavy metal. For the highe...

·FOB Price:US $0.5 - 9,999 / Piece

·Min.Order Quantity:100 Piece/Pieces

·Supply Ability:10000 Piece/Pieces per Month

·Port: Mumbai

·Payment Terms:L/C,D/A,D/P,T/T

Send email to usDownload as PDF

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 Hot work tool steel. Secondary hardening steel with high strength and wear resistance in hot. Good tempering resistance. High hardenability and thoughness. Tools can be water cooled.

Applications
 Wear resisting tools, pressure die casting tools, pressing tools for light and heavy metal. For the highest requirements we recommend UTOPMO7 ESR EFS.

Physical properties (avarage values) at ambient temperature
 Density [g/cm³]: 7.83
 Thermal conductivity [W/m.K]: 25.0

Thermal conductivity [W/m.K]

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram

Time-Temperature Transformation (TTT) Diagram

Soft Annealing
 Heat to 800-840^oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 235.

Stress Relieving
 Stress relieving to remove machining stresses should be carried out by heating to 650^oC, holding for one hour at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

Hardening
 Harden from a temperature of 1030-1080^oC followed by air, oil or warm bath (500-550^oC) quenching. Hardness after quenching is 53-57 HRC.

Tempering
 Tempering temperature: See the table bellow.

Tempering Temperature (^oC) vs. Hardness (HRC) vs. Tensile Stregth (N/mm²)

Tempering Diagram

Diagram Tempering Temperature – Mechanical Properties

Diagram Tempering Temperature – Mechanical Properties

Diagram Tempering Temperature – Mechanical Properties

Forging
 Hot forming temperature: 1080-900^oC.

Machinability
 No data.

Forms manufactured: Please see the  Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
