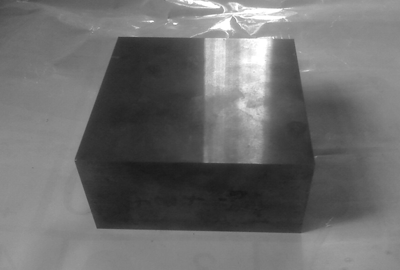

1.2345, DIN X50CrVMo51, AISI Approx. H11 Bar Manufacturer , Supplier , Exporter

1.2345, DIN X50CrVMo51, AISI Approx. H11 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Mat. No. DIN EN AISI 1.2345 X50CrVMo51 - Approx. H11 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.51 0.95 0.30 5.00 1.35 - 0.90 - - Description UTOPMO4 is a 5% chromium hot work tool steel designed particularly for applications requiring extreme toughness combined with good red hardness. It provides an extra margin of safest in tools subject to heavy hammer blows, and those tools containing deep recesses or sharp corners. While UTOP...

·FOB Price:US $0.5 - 9,999 / Piece

·Min.Order Quantity:100 Piece/Pieces

·Supply Ability:10000 Piece/Pieces per Month

·Port: Mumbai

·Payment Terms:L/C,D/A,D/P,T/T

Send email to usDownload as PDF

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 UTOPMO4 is a 5% chromium hot work tool steel designed particularly for applications requiring extreme toughness combined with good red hardness. It provides an extra margin of safest in tools subject to heavy hammer blows, and those tools containing deep recesses or sharp corners. While UTOPMO4 has been designed primarily as a hot work tool steel, it has been used in many cold work applications where extra toughness is required at the sacrifice of some wear resistance.

Applications
 UTOPMO4 has been used primarily for tools requiring resistance to softening at elevated temperatures. Such tools include forging dies and punches, die-casting dies, aluminum extrusion dies, hot heading dies, piercing and forming punches, etc.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 215
 Density [g/cm³]: 7.70
 Thermal conductivity [W/m.K]: 25.0
 Electric resistivity [Ohm mm²/m]: 0.52
 Specific heat capacity[J/g.K]: 0.46

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram

.

Time-Temperature Transformation (TTT) Diagram

Soft Annealing
 Heat to 760-820^oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 250.

Stress Relieving
 To relieve machining strains for greater accuracy in hardening, first rough machine, then anneal below the critical 649/677^oC a minimum of one hour at temperature, and cool very slowly, followed by finish machining.

Hardening
 Harden from a temperature of 1000-1040^oC followed by air, oil warm bath (450-550^oC) quenching. Hardness after quenching is 54-58 HRC.

Tempering
 Tempering temperature: See the diagram bellow.

Tempering Temperature (^oC) vs. Hardness (HRC) vs. Tensile Stregth (N/mm²)

Tempering Diagram

Forging
 Heat slowly and uniformly to a temperature of between 1093/1135^oC and forge. Do not work the steel below 927^oC. Reheat as often as necessary.

Machinability
 The machinability of UTOPMO4 may be rated between 55% and 65% of a 1% carbon water hardening tool steel, or about 40% to 50% of B1112.

Weldability
 To salvage tools and dies by welding, preheat to 538^oC in a furnace and weld with uncoated arc equipment (atomic hydrogen or heliarc). Keep the temperature of the die above 316^oC at all times by reheating until the welding is completed. Upon completion of the weld, return the work piece to the preheating furnace, equalize, and cool in the furnace. Welding should be performed in the annealed condition. However, if welding is performed in the hardened condition, the tool should be retempered at 538^oC after hardening. The electrode material used in the weld rod should be of similar analysis to the base material.

Forms manufactured: Please see the  Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
