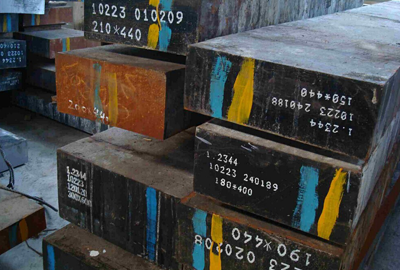

1.2344, DIN X40CrMoV51, AISI H13 Bar Manufacturer , Supplier , Exporter

1.2344, DIN X40CrMoV51, AISI H13 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Mat. No. DIN EN AISI 1.2344 X40CrMoV51 X40CrMoV51 H13 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.39 1.00 0.38 5.15 1.35 - 1.00 - - Description This alloy is one of the hot work, chromium type tool steels. It also contains molybdenum and vanadium as strengthening agents. The chromium content assists this alloy to resist softening if used at higher temperatures. Secondary hardening steels with good tempering reistance. It maintains ...

·FOB Price:US $0.5 - 9,999 / Piece

·Min.Order Quantity:100 Piece/Pieces

·Supply Ability:10000 Piece/Pieces per Month

·Port: Mumbai

·Payment Terms:L/C,D/A,D/P,T/T

Send email to usDownload as PDF

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 This alloy is one of the hot work, chromium type tool steels. It also contains molybdenum and vanadium as strengthening agents. The chromium content assists this alloy to resist softening if used at higher temperatures. Secondary hardening steels with good tempering reistance. It maintains high hardness and strength at elevated temperatures. Good resistance to thermal fatigue, erosion and wear. Steel with very high thoughness and good ductilityand hardenability. Tools can be water cooled.

Applications
 H13 finds applications for hot die work, die casting and extrusion dies, wear resisting tools, pressure die casting tools, pressing tools for light and heavy metal. For the highest requirements we recommended UTOPMO2 ESR EFS.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 215
 Density [g/cm³]: 7.78
 Thermal conductivity [W/m.K]: 25.0
 Electric resistivity [Ohm mm²/m]: 0.52
 Specific heat capacity[J/g.K]: 0.46

Thermal conductivity [W/m.K]M

Density [g/cm³]

Electric resistivity [Ohm mm²/m]

Specific heat capacity[J/g.K]

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram

Soft Annealing
 Heat to 760-810^oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 229.

Hardening
 Harden from a temperature of 1020-1060^oC followed by oil, air quenching or warm bath (450-550^oC). Hardness after quenching is 52-56 HRC.

Tempering
 Tempering temperature: See the diagram bellow.

Tempering Temperature (^oC) vs. Hardness (HRC) vs. Tensile Stregth (N/mm²)

Tempering Diagram

Diagram Tempering Temperature – Mechanical Properties

Forging
 Hot forming temperature: 1100-900^oC.

Machinability
 Machinability of H13 is medium to good. It rates as 75 % that of the W group water hardening tool steels which are low alloy and of generally good machinability.

Corrosion Resistance
 This alloy has some corrosion resistance due to its chromium content. However it is still a steel and will rust unless given protective coating.

Welding
 This alloy is weldable. Contact the alloy supplier for information on welding procedures.

Forms manufactured: Please see the  Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
