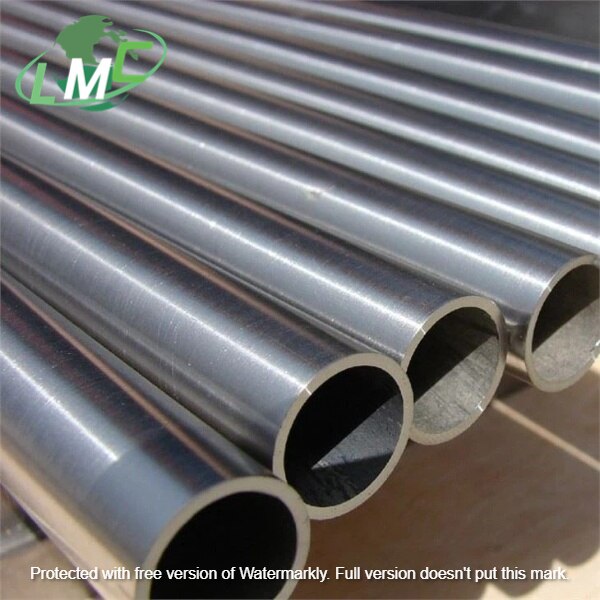

Name: Titanium Pipe
Availability: instock

Product Name: Titanium Pipe Standard: ASTM B861, ASTM B862 Material: Gr7 Type: Welded/Seamless Shape: Round Outer Diameter: 3-114mm or as customized Wall Thickness: 0.5-7mm or as customized Length: Max 12000mm Surface: Bright Product Information of Grade 7 Titanium Pipe Material: Gr7 Standard: ASTM B861, ASTM B862 OD: 3-114mm or as customized WT: 0.5-7mm or as customized Length: Max 12m Type: Welded/Seamless Surface: Polishing, Pickling Grade 7 Titanium Grade 7 titanium has physical and mechanical properties equivalent to Grade 2 titanium (CP3). It has excellent welding and fabrication properties and is extremely resistant to corrosion, especially from reducing acids.

Send Message

Titanium Racks

Product Name: Titanium racks Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished

Send Message

Titanium PIPE

Product Name: Gr12 titanium pipe Standard: astm b861 Material: Gr12 Unit Price: $ 80-85usd/kg Type: Seamless Shape: Round Outer Diameter: 1/2"-24". Wall Thickness: 1-10mm Length: Max 6000mm Surface: Bright Product Introduction ASTM B861 Gr12 titanium tube Gr12 Titanium (Ti-0.3Mo-0.8Ni) Titanium alloy is a corrosion-resistant titanium alloy, a near-alpha alloy developed to improve the crevice corrosion performance of pure titanium. The alloy is strengthened, and it has good crevice corrosion resistance to high temperature, low pH chloride or weakly reducing acid, and its corrosion resistance is significantly better than pure titanium and close to Gr9 alloy. Gr12 alloy also has good process plasticity and welding performance, and has been widely used in the chemical industry. The alloy can be used in the annealed state. Used:chemical industry Wall thickness:1.0mm to 10.0mm Length:6000mm Outside Diameters:21.3mm to 609.6mm Wall thickness tolerance: +/- 12.5% Length tolerance: +5mm Chemical requirements N C H Fe O Al V Pd Mo Ni Ti Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal Tensile requirements Grade Tensile strength(min) Yield strength(min) Elongation(%) ksi M Pa ksi M Pa 12 70 438 50 345 18
