Half Round Tube Shield Half Round Tube Shields by Ladhani Metal Corporation are purpose-built components designed to extend the life of boiler, heat exchanger, and process tubes by offering robust protection from erosion, scaling, and thermal impact. These shields are essential for maintaining system performance and reducing unscheduled downtime in industries that operate under demanding thermal and mechanical conditions. SS 420 Half Round Tube Shield The SS 420 Half Round Tube Shield is a semi-cylindrical protector fabricated from martensitic stainless steel grade 420. Known for its high hardness, wear resistance, and moderate corrosion resistance, SS 420 is ideally suited for applications where abrasion and mechanical stress are predominant concerns. The half-round configuration ensures a secure fit over existing tubes, creating a physical barrier against direct exposure to high-velocity gases, fly ash, and thermal shocks. Its ability to retain strength at elevated temperatures makes it suitable for use in utility boilers, air preheaters, and other high-wear process systems. Chemical Composition of SS 420 – Martensitic Stainless Steel • Carbon (C): 0.15 – 0.40% • Manganese (Mn): ≤ 1.00% • Phosphorus (P): ≤ 0.040% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 12.0 – 14.0% • Nickel (Ni): ≤ 0.75% • Iron (Fe): Balance Uses • Boiler Tube Protection – Provides abrasion resistance in flue gas paths, soot blower zones, and areas exposed to particulate erosion in industrial boilers. • Heat Exchanger Shielding – Minimizes mechanical damage caused by turbulent flow and particulate-laden fluids, preserving heat transfer efficiency. • Furnace Tube Guarding – Protects furnace and kiln tubes from thermal scale buildup and flame impingement in harsh operating zones. • Steam and Condensate Systems – Shields tubes from vibration, pressure cycling, and moderate steam-induced corrosion. • Ash and Gas Flow Zones – Ideal for protecting tubes in areas of fly ash impact or high-speed combustion gas flow in WTE and biomass plants. Features • High Surface Hardness – Excellent resistance to surface wear, impact, and mechanical abrasion due to its high carbon and martensitic structure. • Moderate Corrosion Resistance – Withstands oxidizing and mildly corrosive conditions up to 650°C, suitable for moderate industrial atmospheres. • Structural Integrity – Maintains strength under pressure and temperature cycling, offering long service life in mechanical protection roles. • Easy Installation – The half-round design enables fast application in the field with minimal disruption to tube layout or operation. • Finishing Options – Available in bright annealed, pickled, or passivated surfaces depending on operational requirements. • Custom Built – Offered in varied lengths, diameters, thicknesses, and attachment styles (clamp-on or weld-on) to match specific installations. Applications • Thermal and Biomass Power Stations – Used to protect boiler tubes from ash erosion and gas turbulence in high-velocity flue paths. • Cement and Steel Industries – Shields kiln and heat recovery tubes from particulate impact, slag, and high-temperature dust environments. • Waste-to-Energy Plants – Guards tubes in combustion chambers and economizers where gas stream erosion and soot buildup are persistent issues. • Oil Refineries – Applied in heat exchangers and preheater tubes exposed to abrasive flow or moderate corrosion risk. • Pulp and Paper Mills – Used in black liquor recovery boilers and steam generators handling fibrous or corrosive waste products. • Air Preheaters – Ideal for tubes located in dust-laden environments requiring protection against wear and gas abrasion. Conclusion The SS 420 Half Round Tube Shield from Ladhani Metal Corporation offers a high-performance, wear-resistant solution for tube protection in mechanically aggressive and thermally intensive environments. Its martensitic structure provides outstanding surface hardness, making it especially effective in soot blower zones, high-velocity ducts, and areas subject to abrasive particle flow. While not intended for severe chemical environments, SS 420 delivers exceptional value where mechanical durability is the top priority. With full customization options and precision manufacturing, Ladhani Metal Corporation ensures durable, reliable shielding products tailored to your plant’s exact operational needs. For technical consultations, order customization, or to request a quotation, please contact Ladhani Metal Corporation.

Product name: Titanium pipe coil/ titanium coil tube Grade: Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12 Standard: ASTM B338/ASME B338 Dimention: OD 3-88.9mm*WT0.5-5mm*L Shape: Coiled Tubes, "U" Shape,Or as customer’s drawing Titanium pipes and plates are rapidly gaining popularity in the industry due to their exceptional advantages. Firstly, titanium pipes and plates possess superior strength and durability, making them suitable for use in numerous projects where high-performance abilities are necessary. Additionally, these materials are lightweight, which makes them easy to handle and transport, reducing labor costs considerably. Moreover, titanium pipes and plates exhibit excellent corrosion resistance properties, even in the most corrosive environments. They are suitable for use in seawater applications, chemical processing plants, and other harsh conditions. With minimal maintenance, titanium pipes and plates can last for many years, saving the industry significant costs on replacement and repair. Finally, titanium pipes and plates have high-temperature resistance abilities, which make them ideal for various high-temperature applications, including exhaust systems, heat exchangers, and furnace components. Their high melting point and thermal stability make them a perfect choice for extreme temperatures. In conclusion, titanium pipes and plates offer a range of exceptional benefits such as strength, durability, lightweight, corrosion resistance, and high-temperature resistance, which make them the preferred choice for numerous industrial applications. Product name.:Titanium coil pipe,titanium coil tube,titanium tube coil,titanium coil tubing Type:Seamless, welded Technique: Cold Drawn Material: Titanium Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12 Standard: ASTM B338/ASME B338 Surface Treatment:Polish Dimention: OD 3-88.9mm*WT0.5-5mm*L Shape and dimension: As per the drawing ;as Per The Clients Usage:Pipeline Transport Section Shape:Round Origin:China Following is the material grade of Titanium Coiled Tubes that we could do: Ti CP - Grade 1 R50250 3.7025 Ti CP - Grade 2 R50400 3.7035 Ti CP - Grade 3 Ti-0.7Pd Grade 7 Ti 3Al2.5V Grade 9 R56320 3.7194 Ti 0.3Mo 0.8Ni Grade 12 Chemical composition N C H Fe O Al V Pd Mo Ni Ti Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal Grade 2 0.03 0.08 0.015 0.30 0.25 Grade 3 0.05 0.08 0.015 0.30 0.35 Grade 7 0.03 0.08 0.015 0.30 0.25 / / 0.12-0.25 / / Bal Grade 9 0.05 0.08 0.015 0.25 0.12 2.0-3.5 1.5-3.0 Grade 12 0.03 0.08 0.015 0.25 0.15 / / / 0.2-0.4 0.6-0.9 Bal

Product Name: Titanium Pipe Standard: ASTM B861, ASTM B862 Material: Gr7 Type: Welded/Seamless Shape: Round Outer Diameter: 3-114mm or as customized Wall Thickness: 0.5-7mm or as customized Length: Max 12000mm Surface: Bright Product Information of Grade 7 Titanium Pipe Material: Gr7 Standard: ASTM B861, ASTM B862 OD: 3-114mm or as customized WT: 0.5-7mm or as customized Length: Max 12m Type: Welded/Seamless Surface: Polishing, Pickling Grade 7 Titanium Grade 7 titanium has physical and mechanical properties equivalent to Grade 2 titanium (CP3). It has excellent welding and fabrication properties and is extremely resistant to corrosion, especially from reducing acids.

Product Name: Titanium racks for aluminum anodizing Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Type : Titanium racks / Titanium Jigs Dimenstion and shape : Customized, as customer's drawings Finishing : Polished Material : Pure Titanium(gr1 gr2) Condition : New Application : Electroplating, anodizing etc Color : Sliver.Grey Features : Anti-corrosion, good elasticity, smooth surface, dustproof, strong structure, good quality, fine surface We provide various titanium plating rack jigs. These ranges of jigs are available in different sizes to maximize customer satisfaction. Also, these jigs are provided at very affordable prices. Our technique can adapt jigs to the most suitable parts and materials, so that the product has higher durability and strength. Our production system reduces the entrainment of impurities and liquids between tanks and improves the passage of current, as well as its uniform distribution throughout the whole rack. The continuous availability of raw materials, laser cutting machines, folding and automatic welding machines makes our products the most competitive in the market and able to complete tasks within very tight deadlines. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Bright Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25 Features of our company's titanium welding wire: 　　1. Manufactured by a non-oxidized roll mold cold drawing process 　　2, the welding wire has uniform structure and fine grains 　　3, high dimensional accuracy, no defects, excellent follow-up processing performance 　　4, the composition of various elements in the material and the mechanical properties of the material can be effectively controlled

Product:Titanium stud m8 Material: Gr2 Gr5 Size: M3-M52*Length, or as customers' drawings Surface: Polished Technique: CNC Machined, Forged Titanium bolts are widely used in various industries such as automobiles,chemical industry. Different from welding and riveting, the biggest feature of bolts is that they can be easily removed even after tightening and can be reused by re-tightening Item name: Titanium Stud Bolt Material: GR2 GR5 Size: M3-M52 Pitch: 1.25/1.5mm Length: total length 5-300mm, the length of thread at both ends is based on your requirements Technique: CNC/Forged Surface: Polished Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Al V Bal Grade2 0.3 0.25 0.03 0.1 0.015 - - Ti Grade 5 0.3 0.2 0.05 0.08 0.015 5.5-6.75 3.5-4.5 Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 35A -CP1 58 400 40 275 20 Grade 5 Ti6Al4V 130 895 120 825 10

Product Name: Gr7 Titanium sheet Standard: ASTM B265 Material: Gr7 Unit Price: $222.5usd/kg-$285.7usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Gr7 titanium sheet is high palladium content, and it is very resistant to corrosion. For example, titanium grade 7 is resistant to salt water and is also suitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impacts. plate usually used for Pressure vessel, fastener, frame, Aerospace vehicle, Chemical industry, ocean engineering etc. Product Name: Gr7 Titanium sheet Standard: ASTM B265 Material: Grade 7 (Ti-0.2Pd) Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Quality inspections: Flaw detection, eddy current test, etc Grade Chemicai composition(WT%) (Ti) (Fe) (C) (N) (H) (O) (Pd) (Al) (Sn) Others Each Total Gr7 Ti-0.2Pd Remainder ≤0.30 ≤0.08 ≤0.03 ≤0.015 ≤0.25 0.12～0.25 / / ≤0.1 ≤0.4

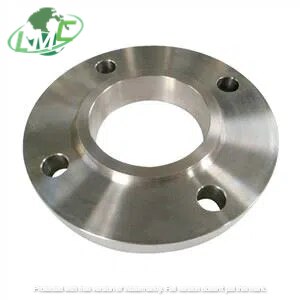

Product Name: Titanium Gr 2 flanges Standard: ASME B16.5 Material: Gr2 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Grade 2 titanium is the most commonly requested in the pipeline valve and fittings industry, with high strength and corrosion resistance. Titanium is generally used in applications that require high temperature and high pressure service but are lighter in weight. Some good examples are components in the aerospace industry (airframe frames) and state-of-the-art equipment in the military. Given its excellent corrosion resistance in marine and chloride applications, titanium flanges are also popular as offshore drilling components and heat exchanger components. When you need a metal with good overall formability and workability, please choose titanium. It has the capability of hot or cold forming while maintaining its excellent mechanical properties. For transportation to your work site, it is good to know that titanium is much lighter than regular steel (about 40-45% lighter). Although not as light as aluminum, our titanium flanges and fittings are easier to handle during welding and installation. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 64 440 46 320 18

Product Name: Titanium Gr 5 flanges Standard: ASME B16.5 Material: Gr5 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Titanium Gr 5 Flanges Product name: Titanium flange,titanium wn flange,titanium blind flange, titanium so flange, titanium alloy flange, titanium flange in stock,ANSI B16.5 titanium flange Material: Gr5 Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628 Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) . Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB. Sealing Surface: RF, FF, TG, RJ etc. Technique: Forged and CNC Machined Inspection: UT% , PT% Certificate: ISO9001, TUV etc. Chemical composition (Wt%) Grade Ti C Fe H N O Al V Ti Grade5 90 min – 0.25 max – – 0.2 max 6 min 4 min Physical Properties (Min) Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %
