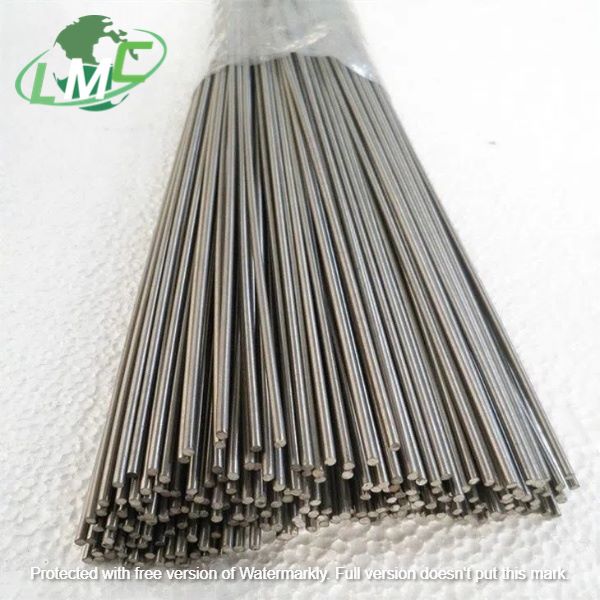

Product Name: Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Bright Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25 Features of our company's titanium welding wire: 　　1. Manufactured by a non-oxidized roll mold cold drawing process 　　2, the welding wire has uniform structure and fine grains 　　3, high dimensional accuracy, no defects, excellent follow-up processing performance 　　4, the composition of various elements in the material and the mechanical properties of the material can be effectively controlled

Product Name: Titanium Rod Standard: ASTM B348 AMS 4928 Material: Grade 5 Unit Price: $15usd/kg- $30usd/kg Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: Max 6000mm Surface: Bright Product Introduction Grade 5 Titanium Rod Product Information of Grade 5 Titanium Rod Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23 Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: Max 6000mm Surface: Polishing, Pickling Condition: Annealed Feature: 1. Polished surface without any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Sizes of Grade 5 Titanium Rod in stock Dia 2mm 2.5mm 3.0mm 3.5mm 4.0mm 5.0mm 6.0mm 7.0mm 8mm 9mm 10mm 12mm 15mm 16mm 18mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 100mm 105mm 110mm 120mm

Product name:Titanium grade 7 welding wire Standard : AWS a5.16 , ASME SFA 5.16 Grade : GR7 (ErTi-7,Ti-0.2Pd ) Diameter : 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm etc. Shape : Coil,spool,straight. Surface : Pickling surface/bright surface Application :Welding Description Gr7 Titanium Welding Wire Product Gr7 titanium welding wire/ gr7 titanium tig wire Size Straight: Dia.: 1.0mm-5.0mm (0.04"-0.02", tolerance: +/-0.05mm, +/-0.002") 3000mm (118") max length Coiled: Dia.: 0.5mm-5.0mm (0.02", tolerance: +/-0.05mm, +/-0.002") Spool diameter: around 300mm (12") Material Grade 7 titanium Standard AWS 5.16, etc. Surface Black, Pickled, Polished (for dia. >1mm) Shape Straight or Coiled Grade 7 (Ti-0.2Pd) titanium wire Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Product Introduction Titaniu plates and titanium alloy plates are mainly used to manufacture various containers, reactors, heat exchangers, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as a titanium cathode and condenser in power stations, as well as environmental pollution control devices. The hardness of steel is higher than that of titanium plate, but the specific strength or tensile strength of titanium alloy is higher than that of high-quality steel. Titanium alloy has good heat resistance, low temperature toughness and fracture toughness, so it is mostly used as aircraft engine parts and rocket and missile structural parts. Titanium alloy can also be used as fuel and oxidant storage tanks and high-pressure vessels. There are already automatic rifles, mortar seat plates and recoilless gun launch tubes made of titanium alloy. Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Thickness: 0.5-60mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Status and specifications of titanium plates Grade Technique Status Thickness Gr1 Gr2 Gr3 Gr4 (pure titanium plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.3-4mm Gr5 Gr7 Gr12 etc. (Titanium alloy plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.8-4.0mm

Product Name: titanium welding wire Standard: AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing Titanium welding wire is usually used for Aerospace industry, shipbuilding industry, metallurgical industry, pharmaceutical industry, sports equipment, daily necessities and other fields. We have a plenty of titanium welding wire in stock, and can send goods in 5-7 days. Welcome to contact us in any time! Material grade: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 (ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5,ERTi-7,ERTi-12 Standard: AWS A5.16 Specification: Coil wire：Diameter 1.0, 1.2, 1.6mm Circle wire：Diameter 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0mm Straight wire：Diameter 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0, 6.0mm Length: 1000mm, or as customers' requets Surface treatment: pickling, polishing Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, thorns, scars and inclusions. Slight local scratches, abrasions, spots and pits;do not exceed the allowable tolerance of the wire diameter are allowed. Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Permissible Variations in Thickness of Cold Rolled Titanium Plate Thickness(mm) Permissible thickness tolerance(mm) (3.71 to 4.76), excl 0.36 3.33 to 3.68 0.31 2.92 to 3.30 0.25 2.51 to 2.90 0.23 2.13 to 2.49 0.2 1.85 to 2.11 0.18 1.50 to 1.83 0.15 1.04 to 1.47 0.13 0.69 to 1.02 0.1 0.43 to 0.66 0.08 0.20 to 0.41 0.05 0.15 to 0.18 0.04 0.13 0.03 Permissible Variations in Width and Length of Cold Rolled Titanium Plate Specified width.in.(mm) for Thickness under3/16 in Permissible Variations in width,in.(mm) 24 to 48（610 to 1220）excl 48(1220) and over 1/16(+1.60),-0 1/8(+3.20),-0 Specified length ft(m) Permissible Variations in length,in.(mm) Up to 10(3) Over 10 to 20(3 to 6) 1/4(+6.35),-0 1/2(+12.7),-0

Product Name: Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Bright Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25 Features of our company's titanium welding wire: 　　1. Manufactured by a non-oxidized roll mold cold drawing process 　　2, the welding wire has uniform structure and fine grains 　　3, high dimensional accuracy, no defects, excellent follow-up processing performance 　　4, the composition of various elements in the material and the mechanical properties of the material can be effectively controlled

Product Name: titanium welding wire Standard: AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing Titanium welding wire is usually used for Aerospace industry, shipbuilding industry, metallurgical industry, pharmaceutical industry, sports equipment, daily necessities and other fields. We have a plenty of titanium welding wire in stock, and can send goods in 5-7 days. Welcome to contact us in any time! Material grade: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 (ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5,ERTi-7,ERTi-12 Standard: AWS A5.16 Specification: Coil wire：Diameter 1.0, 1.2, 1.6mm Circle wire：Diameter 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0mm Straight wire：Diameter 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0, 6.0mm Length: 1000mm, or as customers' requets Surface treatment: pickling, polishing Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, thorns, scars and inclusions. Slight local scratches, abrasions, spots and pits;do not exceed the allowable tolerance of the wire diameter are allowed. Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18

Product name:Titanium grade 7 welding wire Standard : AWS a5.16 , ASME SFA 5.16 Grade : GR7 (ErTi-7,Ti-0.2Pd ) Diameter : 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm etc. Shape : Coil,spool,straight. Surface : Pickling surface/bright surface Application :Welding Description Gr7 Titanium Welding Wire Product Gr7 titanium welding wire/ gr7 titanium tig wire Size Straight: Dia.: 1.0mm-5.0mm (0.04"-0.02", tolerance: +/-0.05mm, +/-0.002") 3000mm (118") max length Coiled: Dia.: 0.5mm-5.0mm (0.02", tolerance: +/-0.05mm, +/-0.002") Spool diameter: around 300mm (12") Material Grade 7 titanium Standard AWS 5.16, etc. Surface Black, Pickled, Polished (for dia. >1mm) Shape Straight or Coiled Grade 7 (Ti-0.2Pd) titanium wire Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25
