Product name:Titanium sheet Grades: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Standard: ASTM B265/ASME B265 AMS 4911 ASTM F67 ASTM F136 Dimension： Thickness*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case. MTC: EN10204.3.1 certificate There is Grade 1, Grade 2, Grade 3, Grade4, Grade5, Grade 7, Grade 12 titanium plates in stock. Titanium plate is widely used in various fields, including metallurgy, electronics, medical, chemical, petroleum, medicine, aerospace, etc.. We offer competitive prices online, available incutting size as customers' requets. 1, Specifications Thickness range: 0.5mm-200mm Titanium coil plate/titanium coil strip: 0.1mm-0.5mm thick *1m/1.2m/1.5m wide. Standard plate: 0.5mm-20mm thick *1m*2m. Cold rolled plate: 1mm-4mm*1m*2m hot rolled plate: above 4mm thick wide and thick plate: above 5mm *2m*6m is a common specification, and specific specifications can also be customized according to customer requirements. 2, Material TA1 (Grade 1), TA2 (Grade 2), TA9 (Grade 7), TA10 (Grade 12), TA18 TC4 (Grade 5), TC6 and TC11 3.Standard dimension in stock: 1000 mm Width * 2000 mm Length 1500 mm Width* 6000 mm Length 2000 mm Width* 6000 mm Length 4,Surface:Pickled, polished, sand-blasted

Product name:Titanium sheet for knife making Grades: Gr5(Ti6Al4V) Standard: ASTM B265/ASME B265 Dimension： Thickness*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case Usually, the titanium alloy plate used for knife is Grade 5 (Ti6Al4V). This grade titanium material is one of the most widely used materials in titanium alloys. It has the same advantages as pure titanium: corrosion resistance, non-toxic, light weight, etc. There are also many of other advantages over pure titanium: higher hardness, tensile strength, yield strength and elongation. Can meet the needs of making knife. Titanium is a good material for knives if your main concern is light weight and corrosion resistance. Titanium knives are ideal for anyone who spends a lot of time around water or performs jobs that require frequent blade cleaning. Product name:Titanium sheet for knife making Grades: Gr5(Ti6Al4V) Standard: ASTM B265/ASME B265 Dimension： Thickness1-150mm*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case. MTC: EN10204.3.1 certificate MOQ : 10kgs Titanium plate applications

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Dish Head Product Information Other Names: Titanium Elliptical Head, Titanium Spherical Head, Titanium Elliptical End, Titanium Elliptical Cap, Titanium Dished Elliptical Head, Titanium Spherical End, Titanium Elliptical Cap, Titanium Dished Spherical Head etc. Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc. Grade: GR1, GR2, GR5, GR7, GR12 OD: 300-2500mm Thickness: 2-300mm Production Process: Cold Forming, Hot Forming Surface Treatment: Sand Blasting, Pickling, Coating etc. Application: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing

Porduct name : Gr 2 Titanium Tube Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr 2 Titanium Tube Sheet The two ends of the fixed tube-plate heat exchanger are connected with the shell by welding method. Heat exchange tube can be light tube or low fin tube. Its simple structure, low manufacturing cost, can get a small shell diameter, tube can be divided into various, shell can also be divided into multiple longitudinal partition, wide range of specifications, so it is widely used in engineering. Tubeplate is very widely used in dead tube heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other industries, it is mainly used in some chemical vessels, play a role of supporting fixed tube, metal material makes it not only has strong rigidity but also has great thermal conductivity. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Porduct name : Titanium Explosive Clad Steel Plate / Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Explosive Clad Steel Plate / Sheet Tube plate in different working environment have different application material, general tube plate use Q345R container board, this is, of course, in the absence of corrosive medium under the condition of flow and pressure, and in some high pressure high temperature corrosion environment we will recommend that users use stainless steel when tubesheet machining, 16 mn or titanium alloy wear resistant material. EXPLOSIVE CLAD PLATES : Description Clad material Base Material Size(mm) Standard Application Titanium Steel clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) 516GR-70 A216 A210-C (1-10/5-120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chemical, chloral-alkali, food, fertilizer, wet metallurgy, Electroplating, Vacuum Salting Making Titanium Stainless steel clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) SUS410 SUS304 (1-6/5120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chloral-alkali, aerospace, aviation, low temperature, food, light industry, medicine Titanium Aluminum clad material GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) L, Ly, LF (1-10/5-50)thk ×(≤2000)width ×(≤8000)length ASTMB-898 aerospace, cookware, chemical, industry, ship, special brazing filler Titanium Copper clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) T1, T2, T3, T4 (1-10/5-50)thk ×(≤2000)width ×(≤8000)length ASTMB-432 Power plant, electrolysis, cook ware, wet metallurgy Titanium Nickel clad material GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) N2, N4, N6 (1-10/5-50)thk ×(≤2000)width ×(≤8000)length Reference to ASTMB-898 Metallurgy Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 170-310 240 Grade 2 0.3 0.25 0.03 0.1 0.015 20 275-450 345-480 Grade 3 0.25 0.3 0.05 0.1 0.015 18 360-480 480-700 Grade 4 0.5 0.4 0.05 0.1 0.015 15 500-530 600-680 Grade 5 0.4 0.2 0.05 0.1 0.015 5.5-6.7 10 800-1100 890-1400 Grade 6 0.1 16 780-820 820-860 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 275-450** 345 Grade 9 0.25 0.15 0.02 0.05 0.015 2,5-3,05 15 550 650 Grade 11 0.2 0.18 0.03 0.1 0.015 0.12-0.25 24 170-310** 240 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 25 414-460 499-600

Porduct name : Titanium clad stainless steel tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad stainless steel tube sheet Titanium composite steel plate tube-sheet is a single or double-sided composite plate made of ordinary grade TA1 or TA2 (composite metal) and carbon steel or alloy steel by explosion, explosion + rolling or hot rolling. Titanium metal has excellent corrosion resistance, widely used in flue gas desulfurization equipment, power plant chimneys, chemical reactors, heat exchangers, pressure vessels, etc. But its disadvantage is high cost, titanium composite steel plate tubesheet has the corrosion resistance of titanium metal and the structural strength of steel, can greatly reduce the project cost. At present, the production method of titanium composite steel tubesheet is as follows: 1. Weld compound 2. Rolling compound 3. Explosive welding 4. Explosive welding + rolling Baoji Lihua uses explosive welding and rolling and combines the two processes. This method can overcome the disadvantages of small area and complex rolling process of explosive composite plate, give full play to their respective advantages, and produce titanium steel composite plate with large area and small thickness. It is more efficient and cheaper. Technological parameters and shear strength of explosive welding of Titanium clad stainless steel plate tube sheet 1 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 293 200 392 179 266 The substrate is generally polished. σf 247 208 113 92 165 σt 447 530 460 441 444 The substrate is polished. σf 403 200 363 322 σt 139 105 203 205 163 The substrate is generally polished. σf 231 345 286 287 285 σt 407 410 263 407 372 The substrate is polished. σf 498 571 513 527 Losive welding of Titanium clad stainless steel plate tube sheet 2 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 392 87 240 18 The substrate is generally polished. σf 345 92 157 12 σt 530 279 402 5 The substrate is polished. σf 403 200 321 3 σt 339 60 230 18 The substrate is generally polished. σf 287 149 233 11 σt 571 513 541 2 The substrate is polished.

Porduct name : Titanium Forged Clad Tube Sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc Titanium Forged Clad Tube Sheet Titanium is a new kind of metal, with low density, corrosion resistance, high and low temperature. High strength and other excellent performance. It is an important structural material in aviation, aerospace, chemical, Marine, electric power, metallurgy and other fields. In order to save titanium resources, reduce the cost and promote the application of this new metal material in civil industry, titanium steel composite plate came into being. Titanium steel composite tube plate have the same effect as pure titanium tube plate, but also very good cost saving, widely used in pressure vessels, heat exchangers, urban sewage treatment containers, water storage containers and nuclear waste treatment containers, chemical distillation tanks and so on.

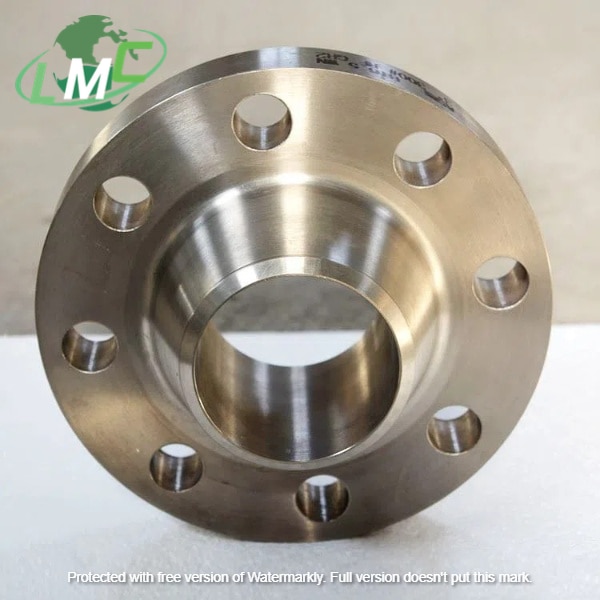

Product Name: Titanium Weld Neck Flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Application: Chemical industry Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 3 Pressure: Class 300 Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Available Flange types a.Slip On Flange b.Welding Neck Flange c.Threaded Flange(Screwed Flange) d.Plain Flange e.Blind Flange f.Lap Joint Flange g.Wocket Welding Flange h. welded flange i. titanium large-diameter flange Specification Titanium Weld Neck Flange Class 300 Nom. Pipe Size Flange Dia. Flange Thick. Hub Dia. At Base Raised Face Dia. Hub Dia. At Weld Point No. of Holes Dia. Of Bolts Dia. Of Bolt Circle Bore Dia. Length Thru Hub 1/2 3-3/4 9/16 1-1/2 1-3/8 0.84 4 2-5/8 1/2 0.62 2-1/16 3/4 4-5/8 5/8 1-7/8 1-11/16 1.05 4 3-1/4 5/8 0.82 2-1/4 1 4-7/8 11/16 2-1/8 2 1.32 4 3-1/2 5/8 1.05 2-7/16 1-1/4 5-1/4 3/4 2-1/2 2-1/2 1.66 4 3-7/8 5/8 1.38 2-9/16 1-1/2 6-1/8 13/16 2-3/4 2-7/8 1.90 4 4-1/2 3/4 1.61 2-11/16 2 6-1/2 7/8 3-5/16 3-5/8 2.38 8 5 5/8 2.07 2-3/4 2-1/2 7-1/2 1 3-15/16 4-1/8 2.88 8 5-7/8 3/4 2.47 3 3 8-1/4 1-1/8 4-5/8 5 3.50 8 6-5/8 3/4 3.07 3-1/8 Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.
