Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr2 Titanium Tubesheet Product Description In the process of titanium tubesheet inspection, the main inspection indicators are hole position, hole diameter tolerance, hole finish, presence or absence of burrs, and groove position. For double tubesheets, more attention should be paid to the location of the holes during the inspection process, and the degree of coordination of the holes is very important. Usually, it can be guaranteed with a CNC drilling machine. Compared with thick plates, the verticality of holes above 300mm is very important. These large-diameter thick plates require more sophisticated tools and equipment.

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium pipe is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium pipes as standard pipes for their units

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Wall thickness tolerance: +/- 10% Length tolerance: +3.2mm Surface: Bright Although the investment cost of titanium welded tube is higher than that of common fluid transportation pipelines, its cost is lower than that of titanium seamless tubes. Based on the analysis of the service life and maintenance cycle of titanium welded tubes, the investment cost of titanium welded tubes can be compensated in use. , The use of titanium welded tubes in piping systems can reduce production costs by reducing the number of regular maintenance, reducing downtime, improving product quality, and increasing pipeline life. Advantages of titanium welded tube over titanium seamless tube 1. The mechanical properties of titanium welded tube and titanium seamless tube are basically the same. 2. The appearance and quality of titanium welded tube are better than titanium seamless tube 3. The cost and environmental protection advantages of titanium welded tubes are outstanding Common Sizes OD WT L 12.7 1.0 4000 15.9 0.5 6000 15.9 0.7 3000 19.1 0.7 6000 19.1 0.7 7000 19.1 1.2 4000 19.1 1.4 5500 19.1 1.4 6000 19.1 1.4 4000 19.1 1.5 4000 21.7 3.0 4000 25.4 0.5 6000 25.4 1.0 4000 25.4 1.2 4000 25.4 2.0 4000 27.2 2.0 4000 31.75 1.2 6000 34.0 2.0 4000

Product name: Gr2 Titanium welded Tube Standard:ASTM B338 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube Titanium welded pipe is produced by automatic continuous production line, using titanium strip coil with uniform wall thickness through cold bending forming, welding, online heat treatment, sizing straightening, non-destructive testing and air tightness test and other procedures. From sponge titanium to welded pipe, the material utilization rate is usually about 80%, if the titanium strip coil as the raw material, its material utilization rate is more than 95%. With the rapid development of titanium industry and mature welding technology, the titanium tube welding will also greatly enhance production efficiency, quality stability, consistency, and the production efficiency will be higher, can according to customer request length cut into the required length, short delivery time, high material utilization, cost per unit is seamless tube will be lower. Product name: Gr2 Titanium welded Tube Standard:ASTM B338 ASTMB 862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled MOQ:100kgs Titanium welded pipe production process: titanium with open book - shearing butt - looping the loading - titanium belt cleaning - type pipe forming and welding to eddy current flaw detection, the predetermined diameter - online annealing - pure sizing/straightening to eddy current flaw detection, laser caliper - online printing - scale cutting and ultrasonic testing to fine scale/flat head, air tightness test to the finished product inspection, packaging warehousing.

Product name: Gr2 Titanium Welded pipe Standard:ASTM B338 ASTM B862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube With the progress of titanium welded pipe welding and heat treatment technology, the titanium thin wall welded pipe widely used single or multiple gun gun TIG/PAW from fusion welding, after welding using on-line heat treatment process, through optimizing welding, annealing process, make the parent metal, weld and heat affected zone microstructure close, basically eliminate the welding stress at the same time, make the weld microstructure of homogenization. By comparison, it is found that the weld composition of the titanium welded pipe is basically the same as that of the base metal, and the mechanical properties and anti-corrosion properties of the weld are the same as those of the base metal. Widely used in petrochemical industry, exhaust pipe industry, machinery industry and so on. Product Name Titanium welded tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr7, Gr12, etc. Length ≤16000mm Size(mm) Diameter 10-914mm Section shape Round Certification ISO9001:2015 Surface Treatment pickling, polished, bright finish etc. Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity In order to study the application technology of ultra-thin wall titanium welded pipe in the distillation seawater desalination, experts have studied and analyzed the heat exchange performance, mechanical performance, corrosion performance, preventing microbial adhesion and precipitation of non-condensible gas of ultra-thin wall titanium welded pipe, and compared with copper pipe, stainless steel pipe. The results show that the ultra-thin wall titanium welded pipe is the core component of distillation seawater desalination equipment, its wall thickness has been used in batches of 0.4mm, or even thinner, the product has excellent heat exchange performance, mechanical properties, corrosion resistance, is the preferred material of distillation seawater desalination heat exchange tube.

Product name:Gr2 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr2 Titanium Hemispherical Head Hemispherical Head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy, food and pharmaceutical industries. Diameter: 250mm-3000mm Thickness: 2mm-20mm Height: 30mm --- 50mm Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Generally, molding and spinning are used for processing. The bottom flatness of molded flat bottom head is high, the blanking size is large and the cost is high, which is suitable for equipment with high requirements; With the spinning process, the flat bottom of the produced flat bottom head is slightly worse, the blanking size is smaller, and the cost is lower, but it does not affect the use of general equipment. The characteristics of spinning head are: a large workpiece can be formed with a small deformation force; The use of equipment is relatively simple, small and medium-sized sheet metal parts can be spun by ordinary lathe; The mold is simple, only one core mold is needed, and the material requirements are low. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa

Product name: Gr2 titanium tubes 19mm Standard:ASTM B338 Material:Titanium Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc. Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 titanium tubes 19mm Titanium tube has been widely used in chemical industry, petroleum, petrochemical, vacuum salt, preparation, ocean engineering, electric power and other industries. Titanium is widely used in corrosive media due to its good corrosion resistance, such as ionic membrane caustic soda, propylene oxide and so on. Titanium materials have been widely used in equipment and pipelines. Product media are also used in formic acid, methane chloride and other projects to solve the problem of pipeline corrosion. Product Name Titanium tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc Size(mm) Diameter 5-914*Wall thcikness 0.5*10mm*L max 16000mm Section shape Round Certification ISO9001 Surface Treatment Pickling, polished, bright finish Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity Corrosion of titanium tubes is a serious destructive factor in industrial development. According to relevant media reports, the annual steel loss caused by corrosion is more than 10,000 tons, and the product transportation has damage and corrosive media, with dangerous factors. Therefore, the higher the requirements for titanium alloy pipe fittings. Titanium has the advantages of high strength, light weight, good heat transfer performance and corrosion resistance, and has been widely used in chemical industry. Titanium of these features make it a solution to the problem of chemical related engineering relative economic method, although the investment cost is higher than the general performance of titanium material, but titanium has been widely used in the field of chemical industry, based on life cycle analysis, can use it by reducing maintenance, shorten downtime, increase product quality and increase the product life to reduce the cost of production. Chemical Composition Grade N C H Fe O Al V Pa Mo Ni Ti Gr1 0.03 0.08 0.015 0.2 0.18 / / / / / bal Gr2 0.03 0.08 0.015 0.3 0.25 / / / / / bal Gr3 0.05 0.08 0.015 0.3 0.35 / / / / / bal Gr4 0.05 0.08 0.015 0.5 0.4 / / / / / Gr5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal Gr7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal Gr12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 bal

Product name: Gr2 Titanium Tubes 25.4mm Standard:ASTM B338 Material:Titanium Gr2 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium Tubes 25.4mm Titanium pipe/titanium alloy pipe has excellent strength, hardness, small density, light weight, high temperature resistance, low temperature resistance, good machining performance, excellent corrosion resistance, non-magnetic non-toxic, good heat exchange performance. It also has memory and superconductivity. Hydrogen storage performance is very outstanding, the products are widely used in: navigation, aerospace, vacuum salt, automotive industry, medical sports, paper and textile industry, electric power industry, metallurgy industry, chlor-alkali industry, chemical fertilizer industry, seawater desalination industry. 1.Shape: round tube, square tube, spiral tube, coil tube, 2. Standard: ASTM B337, ASTM B338, ASTM B861, ASTM B862 3. Srand: Titanium GR2 4. Specifications: ф (3-159) x (0.2-10.0) x L(500-9000) ф (30-1000) x (0.5-12.0) x L(500-15000) Extruded tube (M state) ф (45-219) x (5.0-30.0) x L 5. Production method: cold rolling, extrusion 6. Testing: ultrasonic testing, eddy current testing, water pressure testing, airtight testing Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa

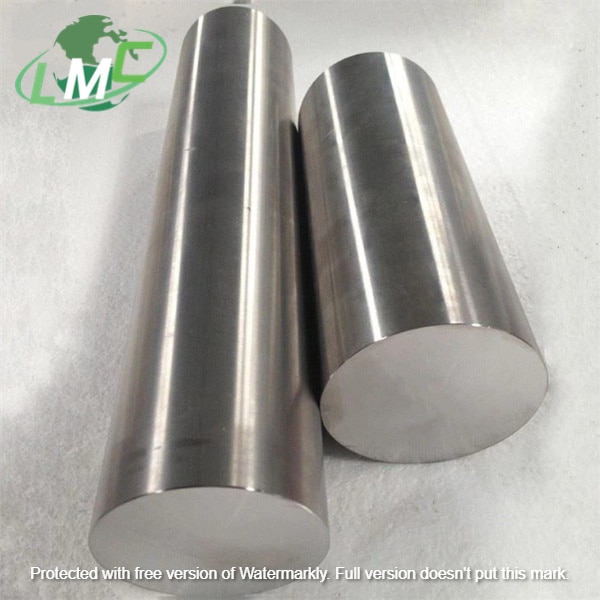

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc. Russian Grade: BT1-100,BT1-0,BT6 etc. Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: R/M/Y Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc. Size(mm) Tolerance(mm) Ovality(mm) 6.35 to 7.94 ±0.13 0.20 7.94 to 11.11 ±0.15 0.23 11.11 to 15.88 ±0.18 0.25 15.88 to 22.22 ±0.20 0.30 22.22 to 25.40 ±0.23 0.33 25.40 to 28.58 ±0.25 0.38 28.58 to 31.75 ±0.28 0.41 31.75 to 34.92 ±0.30 0.46 34.92 to 38.10 ±0.36 0.53 38.10 to 50.80 ±0.40 0.58 50.80 to 63.50 +0.79, − 0 0.58 63.50 to 88.90 +1.19, − 0 0.89 88.90 to 114.30 +1.59, − 0 1.17
