'titanium gr 2 pipe standard'

Product Name: Titanium gr 2 pipe Standard: ASTM B861, ASTM B862, ASTM B338 Material: Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless/Welded Shape: Round

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Features of Gr1 titanium pipe: 1. Gr1 titanium pipe has plasticity. The elongation rate of the high-purity titanium pipe can reach 50-60%, and the reduction of area can reach 70-80%. Although the strength of high-purity titanium pipe is low, the pure industrial titanium contains a small amount of impurities and the addition of alloying elements can significantly strengthen its mechanical properties, making its strength comparable to high strength. This means that as long as the industrial pure titanium pipe contains a small amount of interstitial impurities and other metal impurities, it can make it have both high strength and appropriate plasticity. 2. The specific strength (strength to weight ratio) of industrial pure titanium pipe is very high in metal structural materials. Its strength is equivalent to steel, but its weight is only 57% of steel. 3. Gr1 titanium pipe has strong heat resistance, and can still maintain good strength and stability in the atmosphere at 500°C. 4. Titanium pipe also has good low temperature resistance. Even at the ultra-low temperature of -250℃, it still has high impact strength and can withstand high pressure and vibration. 5. Strong corrosion resistance, this is because it has a particularly large affinity for oxygen, and can form a dense oxide film on its surface, which can protect titanium from corrosion by the medium. Therefore, titanium has good stability in acidic, alkaline, neutral salt solutions and oxidizing media, and has better corrosion resistance than existing stainless steel and other non-ferrous metals. Chemical Composition (Wt%) ASTMNo. Femax O max Nmax Cmax Hmax Pd Al Bal Grade1 0.2 0.18 0.03 0.1 0.015 - - Ti Physical Properties(Min) ASTMGrade AlloyComposition TensileStrength YieldStrength Elongation min % ksi Mpa ksi Mpa Grade 1 UnalloyedTi("Pure")35A-CP1 35 240 20 138 24

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright Characteristics Sufficient mechanical strength Good electrical conductivity Light weight Sturdiness and durability Convenient loading and unloading of parts Appropriate loading

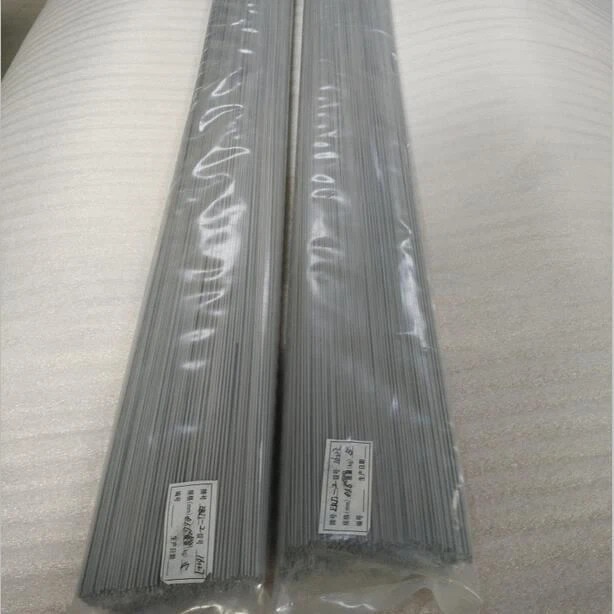

Product Name: Titanium mig welding wire Standard: AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium pipe is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium pipes as standard pipes for their units

Product name:Gr2 titanium dome dish heads Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr2 titanium dome dish heads A dish head is a part of a container that is welded to the cylinder. According to the different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, vertebral shell and cap. The sphere, the ellipse,disc head is also referred to as convex head. In the welding way is divided into butt welding head, socket welding head, used for all kinds of container equipment, such as storage tanks, heat exchanger, tower, reactor, boiler and separation equipment. Materials are carbon steel, stainless steel, alloy steel, aluminum, titanium, copper, nickel and nickel alloy etc Dish head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy and food and pharmaceutical industries. Standard: ASME VIII-I, DIN28013 Thickness:5-100mm Size: Customized Material: GR1, GR2, GR7, GR12 High temperature resistant:100-1000°℃ Resistance to high pressure:0.25-100kg Application:Pressure vessel equipment Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

Product Name: Titanium gr 2 pipe Standard: ASTM B861, ASTM B862, ASTM B338 Material: Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless/Welded Shape: Round

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium pipe is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium pipes as standard pipes for their units

Product name: Gr2 Titanium Welded pipe Standard:ASTM B338 ASTM B862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube With the progress of titanium welded pipe welding and heat treatment technology, the titanium thin wall welded pipe widely used single or multiple gun gun TIG/PAW from fusion welding, after welding using on-line heat treatment process, through optimizing welding, annealing process, make the parent metal, weld and heat affected zone microstructure close, basically eliminate the welding stress at the same time, make the weld microstructure of homogenization. By comparison, it is found that the weld composition of the titanium welded pipe is basically the same as that of the base metal, and the mechanical properties and anti-corrosion properties of the weld are the same as those of the base metal. Widely used in petrochemical industry, exhaust pipe industry, machinery industry and so on. Product Name Titanium welded tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr7, Gr12, etc. Length ≤16000mm Size(mm) Diameter 10-914mm Section shape Round Certification ISO9001:2015 Surface Treatment pickling, polished, bright finish etc. Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity In order to study the application technology of ultra-thin wall titanium welded pipe in the distillation seawater desalination, experts have studied and analyzed the heat exchange performance, mechanical performance, corrosion performance, preventing microbial adhesion and precipitation of non-condensible gas of ultra-thin wall titanium welded pipe, and compared with copper pipe, stainless steel pipe. The results show that the ultra-thin wall titanium welded pipe is the core component of distillation seawater desalination equipment, its wall thickness has been used in batches of 0.4mm, or even thinner, the product has excellent heat exchange performance, mechanical properties, corrosion resistance, is the preferred material of distillation seawater desalination heat exchange tube.
