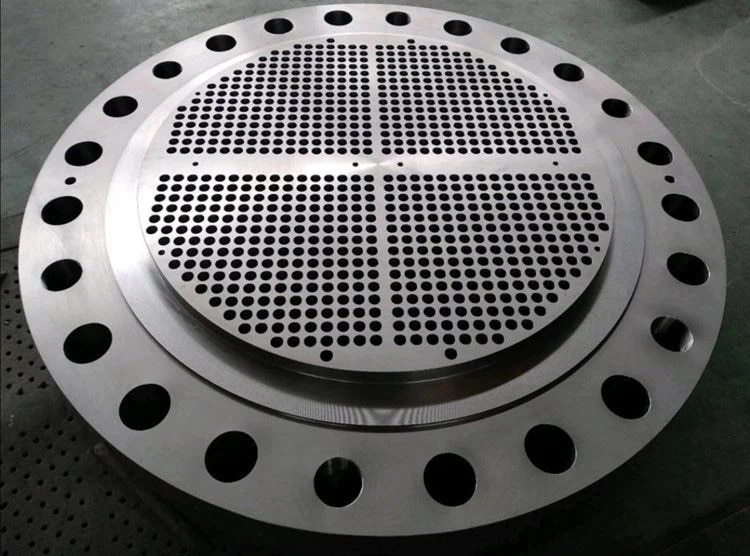

Porduct name : Titanium Clad Steel Tube plates Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Clad Steel Tube plates Titanium clad metal can reduce equipment costs exponentially and avoid many defects. The equipment made of titanium steel plate is well resistant to corrosion due to its inner titanium layer and also has strong strength due to its outer steel layer. Two layers of bonding, with good thermal conductivity, overcome thermal stress, thermal fatigue resistance, so that it can work in more severe conditions. Titanium steel clad tube sheet / plate is widely used in storage tanks, towers, heat exchangers and pipelines in petrochemical industry due to its good corrosion resistance and high temperature resistance, which improves the service life of equipment. Compared with the traditional welding method, the heat exchanger made of titanium steel composite tube plate and titanium tube has incomparable advantages. Product name Titanium Clad Steel Tube plates Size Customized Cladding metal: AISI 405,410,410S,429,430,304,309,316 ,321,06Cr13,06Cr13A1, 022Cr17Ti, 06Cr19Ni10, 06Cr18Ni11Ti etc. Base metal: Titanium Gr1 Gr2 Gr3 Gr7 Gr12 Production code ASTM B898, ASME SB898 Edge Treatment Waterjet cutting Applications Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc. Packing Standard export packing

Porduct name : Titanium Clad Steel Tube Sheets Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Clad Steel Tube Sheets The Titanium tube plate is drilling the pipes holes on the circular. Titanium steel Clad plate to be slightly larger than the outer diameter of the tube. It is widely used in Heat Exchanger area,play the role of fix pipe and a sealing medium in the heat exchanger. Standards: ASTM B898, ASME SB898, etc. Base materials: Carbon steel: Q235, 516GR-70, A216, A210-C, Stainless steel: SUS304, SUS316, SUS410, etc. duplex stainless steel: 2507, S32750, F53, etc. Aluminum: L, Ly ,LF, etc. Nickel: N2, N4, N6, etc. Copper: T1, T2, T3, T4, etc. Zirconium: R60702 Clad materials : Titanium GR1, GR2, GR7, GR12, GR16, GR17, etc. Sizes(clad/base): (0.5-20)/(0.5-200) x W(max W 6000) x L(max L 8000) Applications: power station chimney, vacuum salt making facility, pressure vessel, petrochemical, chemical, crystallizer, evaporator, heat exchanger, TDA tower, condenser, reactor, etc. We can supply: Titanium clad steel plates Titanium Clad Titanium clad tube sheet Titanium tube sheet Titanium clad steel tube sheet

Porduct name : Titanium steel clad tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium steel clad tube sheet The tubesheet is in contact with both fluids and must therefore be corrosion-resistant and have metal-metallurgical and electrochemical properties suitable for fluid and velocity. Titanium is a good material to meet this, it has a good corrosion resistance to salt water and chromic acid. Tubesheet is widely used in tubular heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other industries. Tubeplate is mainly used in chemical vessels, such as tubular heat exchanger, pressure vessel, boiler, condenser, central air conditioning, evaporator, seawater desalination, to support the role of fixed tube, metal material makes it not only has strong rigidity, but also has great heat conduction performance.

Porduct name : Titanium Steel Clad Tube plate Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr12 Titanium Tube plate Heat exchanger tube plate generally adopts titanium steel composite material, titanium thickness is generally: 5.0mm 6.0mm 8.0mm 10 mm material: titanium Gr1,Gr2,Gr12, the thickness of the steel plate is :20,25, 30, 35, 40,45,50,60,80,100 mm, the thicker the thickness of the corresponding heat exchanger tube plate diameter is larger. The titanium steel composite tubesheet provided by our company is mainly used for heater and heat exchanger tubesheet in evaporating crystallization industry. It can be processed and punched according to customers' drawings. Customers only need to purchase and assemble it.

Porduct name : Titanium steel clad tube sheet for hear exchanger Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium steel clad tube sheet for hear exchanger Porduct name : Gr2 titanium tube plate Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Tube plate material: according to the need to use different environment, the use of different materials, carbon steel material generally use Q345R container plate, such as first and second pressure vessels, no corrosive medium flow, the use of carbon steel composite plate. In the case of strong acid, high pressure and high temperature, nuclear energy and other environments, stainless steel, 16 manganese, titanium alloy and other corrosion-resistant materials are needed. The application of new synthetic materials brings new vitality to tube-sheet products. With high pressure environment, but also to the case of corrosion resistance, considering the use of cost, generally choose high strength steel and corrosion resistant materials of composite material structure.

Porduct name : Titanium steel clad tube sheet for hear exchanger Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium steel clad tube sheet for hear exchanger Tub sheet flanges are mainly used in tubular heat exchangers, boilers, pressure vessels and steam turbines and other industries. In our daily application, tubesheet flanges are also used in large central air conditioning in office buildings. Tubesheet flanges play a role in supporting the fixed pipe, which requires metal tubesheet flanges not only to have high rigidity but also to have good thermal conductivity. Products Processing Standard Grade Size Tube Sheet & Explosion Cladding Tube Sheet For Shell & Tube Heat Exchanger (Other: Titanium Clad Aluminum/ Copper/Nickel/Zirconium Plate, etc.) ASTM B898 Titanium GR1, GR2, Steel SA516 GR70, GR60, SUS304, 316L, F53, 2205, 2207, etc. Thickness: Titanium (0.04”- 0.315”) Base Plate (0.473”- 3.15”) Width: 3.3 feet – 10 feet Length: 6.6 feet – 26 feet Stainless steel / steel clad material (Explosive-rolling clad metal technology) Titanium Stainless steel material SUS410, SUS430, SUS304, 304L, 316L, 3211Cr 18Ni 9Ti, 0Cr 18Ni 9Ti Q235 516GR-70 A216 A210-C (1-10/4-120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chemical, Vacuum salt making, fertilizer, paper making, beer, wet metallurgy

Porduct name : Titanium Forged Clad Tube Sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc Titanium Forged Clad Tube Sheet Titanium is a new kind of metal, with low density, corrosion resistance, high and low temperature. High strength and other excellent performance. It is an important structural material in aviation, aerospace, chemical, Marine, electric power, metallurgy and other fields. In order to save titanium resources, reduce the cost and promote the application of this new metal material in civil industry, titanium steel composite plate came into being. Titanium steel composite tube plate have the same effect as pure titanium tube plate, but also very good cost saving, widely used in pressure vessels, heat exchangers, urban sewage treatment containers, water storage containers and nuclear waste treatment containers, chemical distillation tanks and so on.

Porduct name : Titanium clad stainless steel tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad stainless steel tube sheet Titanium composite steel plate tube-sheet is a single or double-sided composite plate made of ordinary grade TA1 or TA2 (composite metal) and carbon steel or alloy steel by explosion, explosion + rolling or hot rolling. Titanium metal has excellent corrosion resistance, widely used in flue gas desulfurization equipment, power plant chimneys, chemical reactors, heat exchangers, pressure vessels, etc. But its disadvantage is high cost, titanium composite steel plate tubesheet has the corrosion resistance of titanium metal and the structural strength of steel, can greatly reduce the project cost. At present, the production method of titanium composite steel tubesheet is as follows: 1. Weld compound 2. Rolling compound 3. Explosive welding 4. Explosive welding + rolling Baoji Lihua uses explosive welding and rolling and combines the two processes. This method can overcome the disadvantages of small area and complex rolling process of explosive composite plate, give full play to their respective advantages, and produce titanium steel composite plate with large area and small thickness. It is more efficient and cheaper. Technological parameters and shear strength of explosive welding of Titanium clad stainless steel plate tube sheet 1 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 293 200 392 179 266 The substrate is generally polished. σf 247 208 113 92 165 σt 447 530 460 441 444 The substrate is polished. σf 403 200 363 322 σt 139 105 203 205 163 The substrate is generally polished. σf 231 345 286 287 285 σt 407 410 263 407 372 The substrate is polished. σf 498 571 513 527 Losive welding of Titanium clad stainless steel plate tube sheet 2 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 392 87 240 18 The substrate is generally polished. σf 345 92 157 12 σt 530 279 402 5 The substrate is polished. σf 403 200 321 3 σt 339 60 230 18 The substrate is generally polished. σf 287 149 233 11 σt 571 513 541 2 The substrate is polished.

Porduct name : Titanium Steel Composite Tube plate Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium steel composite tube plate Name Clad Metal Base Metal Specification Standard Application Titanium-Steel Cladding plate TA1, TA2, TA9, TA10 Q235, Q245R Q345R Coating metal thickness: 0.5~50mm Base material thickness: 0.5~500mm ASME, ASTM petrochemical, vacuum salt making, Chlor-alkali, food, fertilizer, hydrometallurgy, electroplate and etc. Main applications: Titanium clad steel plate tube sheet is mainly used in two aspects: heat exchanger tube sheet and processing container plate. The total thickness of the tube sheet is 75-100mm and the thickness of the coating is 12-15mm. The total thickness of the processing vessel plate is 19-25mm and the coating thickness is 2-3mm. Titanium-steel clad plate has a good application prospect in the manufacture of heat exchanger tube sheet, large diameter (1800 mm) seamless head and reactor. Titanium clad steel plate tube sheet is used more in the reactor and terephthalic acid plant equipment, as well as ethylene glycol, maleic acid and rust remover production equipment. Some reservoirs have operating temperatures up to 200℃, internal pressure of 9 MPa, equipment diameters of 700 mm, length of 1080 mm, and composite plate thickness of (2 + 15) mm.For petrochemical equipment operating at ordinary high pressures and temperatures, the lining must provide good heat conduction and must withstand heat cycles, pressure differences and other pressures. Therefore, loose lining or spot welding additional lining is not satisfactory, but the titanium-steel clad plate can meet the above requirements. Titanium clad steel plates tube sheets are used not only in pressure vessels, heat exchangers and tubesheets, but also in the following applications: A. containers for municipal sewage treatment, which contain larger chloride. B. chemical distillation tanks for high temperature applications. C. water storage containers and containers for nuclear waste disposal
