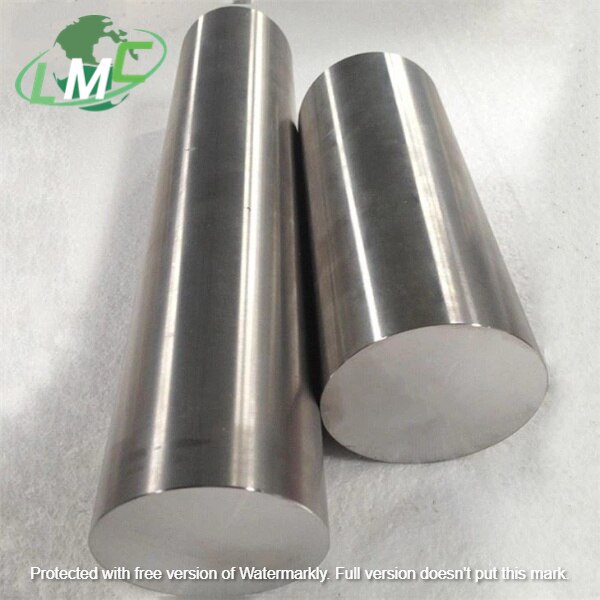

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Pure titanium bar in stock,grade 2 titaium bar, grade 1 titanium bar, grade 3 titanium bar, grade 4 titanium bar;China titanium bar factory,Titanium bar manufacturer,Titanium bar price. Grade: GR1, GR2, GR3, GR4 Standard: ASTM B348, ASTM F67 Shape: Round, Square, Flat, Hex Diameter: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm ...Max 500mm Length: Max 6000mm , Can be cut as customer's request length. Tolerance: As standard, or as per your requirements Surface: Polished Condition: R/M/Y Application:Chemical, industry,medical etc. Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Chemical composition N C H Fe O Al V Pd Mo Ni Ti Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal Grade 2 0.03 0.08 0.015 0.30 0.25 / / / / / Bal Grade 3 0.05 0.08 0.015 0.30 0.35 / / / / / Bal Grade 4 0.05 0.08 0.015 0.50 0.40 / / / / / /

Product name: Titanium bars for industrial Standard : ASTM B348 Material:Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12 etc. Size: Dia 5--200mm * Max L6000mm Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished titanium bar in stock titanium bar h tolerance

Product name: Titanium bars for industrial Standard : ASTM B348 Material:Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12 etc. Size: Dia 5--200mm * Max L6000mm Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished titanium bar in stock titanium bar h tolerance

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Grade 7 Titanium Round Bar Product Information Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21 Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22 Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: Annealed Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Chemical Composition Element Titanium Grade 7 Pd 0.12-0.25 Ti Bal Fe 0.30 max C 0.08 max N 0.05 max H 0.015 max O 0.2 max Mechanical Properties Element Titanium Grade 7 Density 4.51g/cm³ Melting Point 1668 ℃ Tensile Strength(Mpa) 370 Yield Strength(Mpa) 250 Elongation(%) 20 Reduction of area(%) 25

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Our machined titanium round bar is in accordance with ASTM B348. Such as Ti-6Al-4V, Ti-0.2PD grade 7, Ti-15V-3Cr-3Sn-3Al bar. Titanium is a synonym for titanium alloy products with high tensile strength, lightweight and excellent corrosion resistance. Our machined titanium round bar used in a variety of high-tech and high-performance applications. Chemical, aerospace, racing and automobile all benefit from the unique chemical and mechanical properties provided by titanium. We provide a comprehensive rod blanking service internally. We cut your titanium rod products to precise lengths or into manageable blanks. Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21 Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22 Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: Annealed Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

Product Name: Grade 12 Titanium alloy Bar 30mm Standard: ASTM B348 Material: GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Unit price:$21.5-$34.9/kg Product Description Product Grade 12 Titanium Alloy Bar 30mm Technique Rolled, Forged Grade GR12 titanium Russian Grade BT1-00,BT1-0,BT1-2 Standard ASTM B348, AMS 4928 Shape Round, Square, Flat, Hex Diameter 3-350mm Length up to 6000mm Surface Bright Product Certificate En10204/3.1 Company certificate ISO 9001:2015 gr12 titanium bar Other grade titanium bar: Gr1 titanium bar/rod Gr2 titanium bar/rod Gr3 titanium bar/rod Gr4 titanium bar/rod Gr5 titanium bar/rod Gr7 titanium bar/rod etc.

Product name: Titanium bars for industrial Standard : ASTM B348 Material:Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12 etc. Size: Dia 5--200mm * Max L6000mm Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished titanium bar in stock titanium bar h tolerance

Product Name: Titanium Gr 5 flanges Standard: ASME B16.5 Material: Gr5 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Titanium Gr 5 Flanges Product name: Titanium flange,titanium wn flange,titanium blind flange, titanium so flange, titanium alloy flange, titanium flange in stock,ANSI B16.5 titanium flange Material: Gr5 Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628 Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) . Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB. Sealing Surface: RF, FF, TG, RJ etc. Technique: Forged and CNC Machined Inspection: UT% , PT% Certificate: ISO9001, TUV etc. Chemical composition (Wt%) Grade Ti C Fe H N O Al V Ti Grade5 90 min – 0.25 max – – 0.2 max 6 min 4 min Physical Properties (Min) Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %
