Name: Titanium Vessel
Availability: instock

Product Name: Gr9 Titanium Vessel Standard: ASTM B265 Material: Gr9 Unit Price: $222.5usd/kg-$285.7usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting

Titanium Racks

Product Name: Titanium racks Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished

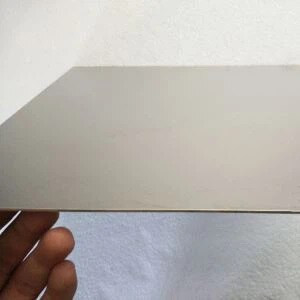

Titanium Plate

Product name:Titanium grade 12 plate Unit price:$15.5-$36.9/kg Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM/ASME B265 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Product Introduction Titanium grade 12 plate Grades:Titanium alloy Grades 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM B265 / ASME SB265 Thickness: 0.02"-3.9"(0.5-100mm) Width: 19.5"-118" (500-3000mm) Length: 19.5"-236"(500*6000mm) Or as customers' requests ASTM No. Fe max O max N max C max H max Mo Ni Bal Grade 12 0.30 0.25 0.015 0.08 0.015 0.2-0.4 0.6-0.9 Ti ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 12 Unalloyed Ti ("Pure") 50A -CP2 70 485 50 345 18

Titanium Plate

Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Product Introduction Titaniu plates and titanium alloy plates are mainly used to manufacture various containers, reactors, heat exchangers, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as a titanium cathode and condenser in power stations, as well as environmental pollution control devices. The hardness of steel is higher than that of titanium plate, but the specific strength or tensile strength of titanium alloy is higher than that of high-quality steel. Titanium alloy has good heat resistance, low temperature toughness and fracture toughness, so it is mostly used as aircraft engine parts and rocket and missile structural parts. Titanium alloy can also be used as fuel and oxidant storage tanks and high-pressure vessels. There are already automatic rifles, mortar seat plates and recoilless gun launch tubes made of titanium alloy. Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Thickness: 0.5-60mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Status and specifications of titanium plates Grade Technique Status Thickness Gr1 Gr2 Gr3 Gr4 (pure titanium plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.3-4mm Gr5 Gr7 Gr12 etc. (Titanium alloy plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.8-4.0mm

ASTM B348 Titanium Bar

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright ASTM B348 Titanium Bar ASTM B348 Standard Specification for Titanium and Titanium Alloy Bars and Billets. Due to their high strength and light weight, they are widely used in the components for high-temperature environment, including aircraft equipment, petrochemical and chemical industries.

6mm Titanium Plate

Product name:6mm Titanium plate Unit price:$14-$36.9/kg Material: Titanium grade 1 grade 2 grade 3 grade 4 Grade 5 (Ti6al4v),grade 7,grade 12 etc. Standard: ASTM/ASME B265 AMS 4911 ASTM F136 ASTM F67 etc. Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) A Thin Titanium Sheet is slow to react with water and air at ambient temperatures. Since, on exposure to both mediums, the Titanium Alloy Plate forms a passive oxide coating or coating which protects the bulk metal from further oxidation. Titanium Sheets Suppliers note that Atmospheric passivation gives Titanium Foil Sheet excellent resistance to corrosion. Though, as a metal Titanium Alloy Sheet is capable of withstanding attack by dilute sulfuric acid and hydrochloric acids, chloride solutions, as well as most organic acids ; However, Titanium Sheet Metal can be corroded by concentrated acids. Material Pure Titanium plate and titanium alloy plate Standard ASTM B265, ASME SB265, AMS 4900, AMS 4901, AMS 4902 Type Clad Plate, Rolling Plate, Flat Shim, Plain Sheet, Rolling Sheet Rolls, Foils, Coils, Plate, Strip, Sheet, Flats, Blank (Circle), ,Flat Sheet, Shim Sheet, soft annealed, descaled, sheared, annealed, Checker Plate, tread plate ASTM B265 Titanium Plate surface Hot rolled plate (HR), Cold rolled sheet (CR), No.1 finish hot rolled ASTM B265 Titanium Plate, BA, No.3, No.4, No.6, No.1, No. 2D, No. 2B, BA NO(8), No.7, 2B, 2D, SATIN (Met with Plastic Coated), 2B, 1D, No.4, 8K, BA, hairline, brush, satin, mirror etc. ASTM B265 Titanium Plate Length 0-12mm or as required Titanium Plate Thickness 0.3 to 1200 mm or as required Titanium Alloy Plate Width 0-3000mm or as required Titanium alloy Plate Process Hot/ Cold Rolled ASTM B265 Titanium Grade 2 Sheet ASTM B265 Titanium Grade 5 Sheet ASTM B265 Titanium Grade 12 Sheet Sizes T(0.5-60) x 1000 x 2000mm Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18

Titanium Hot Rolled Plate

Name: Titanium plate Standard: ASTM B265 Grade: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Thickness: 8mm Titanium sheet has found favour in industries such as aerospace, power generation, petrochemical and automotive. Offering extra-high strength and low weight, the alloys high tensile strength combined with low heat transfer make it highly suitable for a range of engineering applications. Titanium sheet is an excellent material for high-volume production of components by stamping or waterjet cutting. However, the alloy must be cold cut if chemical characteristics are to be maintained since titanium is reactive to heat.

Titanium Explosive Clad Steel Plate / Sheet

Porduct name : Titanium Explosive Clad Steel Plate / Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Explosive Clad Steel Plate / Sheet Tube plate in different working environment have different application material, general tube plate use Q345R container board, this is, of course, in the absence of corrosive medium under the condition of flow and pressure, and in some high pressure high temperature corrosion environment we will recommend that users use stainless steel when tubesheet machining, 16 mn or titanium alloy wear resistant material. EXPLOSIVE CLAD PLATES : Description Clad material Base Material Size(mm) Standard Application Titanium Steel clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) 516GR-70 A216 A210-C (1-10/5-120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chemical, chloral-alkali, food, fertilizer, wet metallurgy, Electroplating, Vacuum Salting Making Titanium Stainless steel clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) SUS410 SUS304 (1-6/5120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chloral-alkali, aerospace, aviation, low temperature, food, light industry, medicine Titanium Aluminum clad material GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) L, Ly, LF (1-10/5-50)thk ×(≤2000)width ×(≤8000)length ASTMB-898 aerospace, cookware, chemical, industry, ship, special brazing filler Titanium Copper clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) T1, T2, T3, T4 (1-10/5-50)thk ×(≤2000)width ×(≤8000)length ASTMB-432 Power plant, electrolysis, cook ware, wet metallurgy Titanium Nickel clad material GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) N2, N4, N6 (1-10/5-50)thk ×(≤2000)width ×(≤8000)length Reference to ASTMB-898 Metallurgy Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 170-310 240 Grade 2 0.3 0.25 0.03 0.1 0.015 20 275-450 345-480 Grade 3 0.25 0.3 0.05 0.1 0.015 18 360-480 480-700 Grade 4 0.5 0.4 0.05 0.1 0.015 15 500-530 600-680 Grade 5 0.4 0.2 0.05 0.1 0.015 5.5-6.7 10 800-1100 890-1400 Grade 6 0.1 16 780-820 820-860 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 275-450** 345 Grade 9 0.25 0.15 0.02 0.05 0.015 2,5-3,05 15 550 650 Grade 11 0.2 0.18 0.03 0.1 0.015 0.12-0.25 24 170-310** 240 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 25 414-460 499-600

Titanium Disc Forged

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing Product Information Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Standard: ASTM / ASME SB381 Shape: Round or according to your requirements Technique: Forged, CNC Machined Available Sizes: Diameter:50-200mm*Height 2-140mm Diameter:200-400mm*Height 25-150mm Diameter:400-600*Height 30-110mm Tolerance Diameter or Thickness Allowable Deviation(mm) Hot forged disc Titanium disc is forged, as the standard of ASTM B381 >7~15 —— >15~25 —— >25~40 0, +0.5 >40~60 0, +0.5 >60~90 0, +0.5 >90~120 0, +0.8 >120~160 0, +1.0 >160~200 0, +1.2 >200~230 0, +1.5 Deviation of length(mm): L<500, +1max; L>500, +2max
