Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Grade 7 Titanium Tubes Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Dimension and Tolerance of titanium tube Outside diameter, in.(mm) Diameter tolerance, in.(mm) Permissible variations , wall thinckness, t, % in.(mm) <1 (25.4) ±0.004( ± 0.012) ±10 1-1½(25.4-38.1) ±0.005( ±0.127 ) ±10 1½-2(38.1-50.8) ±0.006( ± 0.152) ±10 2-2½(50.8-63.5) ±0.007( ± 0.178) ±10 2½-3½(63.5-88.9) ±0.010( ± 0.254) ±10 Grade 7 (Ti-0.2Pd) titanium tube Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25 The density of titanium alloy is generally about 4.51g/ cubic centimeter, only 60 of steel, the strength of pure titanium is close to the strength of ordinary steel, some high strength titanium alloy exceeds the strength of many alloy structural steel. Therefore, the specific strength (strength/density) of titanium alloy is much higher than that of other metal structural materials, as shown in Table 7-1. It can produce components with high unit strength, good rigidity and light weight. At present, titanium alloy is used for engine components, skeleton, skin, fasteners and landing gear. High thermal strength The use temperature is several hundred degrees higher than aluminum alloy, can still maintain the required strength at moderate temperature, can work for a long time at 450500 temperature these two titanium alloys still have high specific strength in the range of 150500, and aluminum alloy at 150 than the strength decreased significantly. Titanium alloys operate at temperatures up to 500, while aluminum alloys operate below 200. Good resistance to corrosion The corrosion resistance of titanium alloy is much better than that of stainless steel when working in humid atmosphere and seawater medium. Resistance to pitting corrosion, acid corrosion, stress corrosion is particularly strong; Excellent corrosion resistance to alkali, chloride, chlorine organic articles, nitric acid, sulfuric acid and so on. But titanium has poor corrosion resistance to reducing oxygen and chromite medium. Good low temperature performance Titanium alloy can keep its mechanical properties at low temperature and ultra low temperature. Titanium alloys with good low temperature performance and very low gap elements, such as TA7, can maintain certain plasticity at -253. Therefore, titanium alloy is also an important low temperature structural material.

Product name: ASTM B338 titanium Seamless Tubes for Condensers Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled ASTM B338 titanium Seamless Tubes for Condensers ASTM B338 Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers ASTM B338 covers 28 grades of seamless and welded titanium alloy tubes for surface condensers, evaporators, and heat exchangers. Standard: ASTM B338, ASME SB338 Regular Grade: Grade 1 Grade 2 Outer Diameter: 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc. Wall thickness: 0.9mm/1.0mm/1.2mm/1.5mm Length: 3000 - 6000mm or other economical lengths Finish: Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF Form: Straight titanium Pipe, Coiled titanium tube Type: Seamless, ERW, EFW, Welded, Fabricated End: Plain End, Beveled End, Treaded Marking: Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.) Application: Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger Value Added Service: Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. Test Certificate: Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2 Precautions for titanium pipe processing: During the deformation process, titanium pipe will gradually reduce wall and diameter with the rotation and feeding of the rolling mill. The pipe size required by the process can be obtained only after 5 ~ 10 rolling and finishing in one rolling pass. The cold rolling pipe mill can carry out large diameter reduction and wall reduction, but the dimensional accuracy is low after rolling, and the pipe end is prone to cracking, uneven concave convex and other phenomena. The cracking phenomenon can be solved mainly by grinding and leveling before pipe blank processing; For the uneven pipe end, similar to the "fish mouth" phenomenon, flat head treatment is required in the subsequent processing process, otherwise it will cause the plug stuffy accident. Therefore, this paper analyzes from the aspects of process, tooling and equipment, in order to find out the causes of uneven concave convex of pipe end and take effective measures to solve it. LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

Product Name: Titanium Anode Basket Material: Gr1, Gr2 Size: Customized Application: Anodizing Electroplating Plating Shape: Rectangular, round and spiral etc.

Ladhani Metal Corporation is a trusted manufacturer and exporter of DIN 2565 super duplex flanges, engineered for high-performance, corrosion-resistant, and high-strength piping connections in low-pressure systems. Manufactured according to DIN 2565 standards and available with a PN 6 pressure rating, these flanges are ideal for threaded piping systems where welding is not required. Made from super duplex stainless steel, these flanges offer a balanced microstructure of austenite and ferrite, delivering superior mechanical strength along with excellent resistance to stress corrosion cracking, pitting, and crevice corrosion. They are widely used in critical environments that demand both durability and longevity. Flange Types: • Threaded (Screwed) Flanges: Enable easy assembly and disassembly without welding; ideal for systems with frequent maintenance needs. • Raised Face (RF) Flanges: Enhances gasket compression for improved leak prevention under low-pressure conditions. • Flat Face (FF) Flanges: Preferred in systems with non-metallic gaskets and where mating with cast iron components is common. • Forged Threaded Flanges: Forged construction provides superior mechanical properties and structural integrity. • Custom-Machined Flanges: Available in special dimensions and configurations to meet project-specific requirements. Super Duplex Steel Grade and Chemical Composition: Super Duplex 2507 (UNS S32750) Chromium (Cr): 24.0 – 26.0% Nickel (Ni): 6.0 – 8.0% Molybdenum (Mo): 3.0 – 5.0% Nitrogen (N): 0.24 – 0.32% Iron (Fe): Balance Applications: Designed for use in extremely corrosive conditions including offshore oil rigs, chemical processing plants, and desalination systems. Offers outstanding resistance to chloride-induced corrosion and exceptional mechanical strength. Applications of DIN 2565 Super Duplex Flanges: • Offshore Oil & Gas Platforms: High corrosion resistance against seawater and chloride stress. • Desalination and Water Treatment: Superior performance in brine and high-salinity environments. • Chemical and Petrochemical Plants: Suitable for aggressive chemicals and high-pressure systems. • Power Generation: Used in condensers, cooling systems, and high-pressure steam systems. • Marine Engineering: Ideal for underwater and shipboard piping systems. Key Features: • Manufactured to DIN 2565 specifications with PN 6 pressure rating • Exceptional strength and corrosion resistance in chloride-rich and acidic environments • Excellent resistance to stress corrosion cracking, pitting, and crevice corrosion • Non-magnetic and highly durable in extreme conditions • Available with full traceability, test reports, and third-party inspection certificates Conclusion: DIN 2565 super duplex flanges from Ladhani Metal Corporation provide a reliable, high-strength solution for critical applications in corrosive and demanding environments. Combining advanced metallurgical properties with precision manufacturing, these flanges are the ideal choice for industries where performance, durability, and safety are non-negotiable. For more information, technical support, pricing, or to place a bulk order, contact Ladhani Metal Corporation today.

Product name: Titanium alloy Tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Because stainless steel and other materials are inefficient in many cases, titanium tubes are increasingly used in various occasions. A common titanium grinding product is titanium tube. Because of its superior corrosion resistance and strength weight ratio, titanium tube is used in various products. The development of many different alloys has expanded the application of titanium in industry, chemical processing and power generation. Commodity Titanium Alloy Tube /Pipe/Tubing,titanium alloy seamless tube/pipe,titanium alloy welded tube pipe,ASTM B338 titanium tube,Titanium pipe price per kg Tube Shape Round Square Flat Coil Material Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7,Gr9,Gr11,Gr12,Gr23(Ti-6Al-4V Eli) Standard ASTM B337 ASTM B338 ASTM B861 ASTM B862 Type Seamless Welded ERW Fabricated OD 5-914mm or as customized Wall Thickness 0.5-50mm or as customized Length Max 16000mm End Plain End, Beveled End, Threaded Certificate EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc Application Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry Titanium alloy tubes can be divided into three categories according to phase composition: α Alloy（ α+β) Alloy and β alloy 1. α Stability of alloy containing a certain amount α The element of phase, in equilibrium, is mainly composed of α Phase composition. α The alloy has small specific gravity, good thermal strength, good weldability and excellent corrosion resistance. Its disadvantage is low strength at room temperature. It is usually used as heat-resistant and corrosion-resistant materials. α Alloys can usually be divided into complete alloys α Alloy (Gr7), near α Alloy (ti-8al-1mo-1v) and alloy with a small amount of compounds α Alloy (Ti-2.5Cu). 2. ( α+β) Stability of alloy containing a certain amount α Phase harmony β Phase elements, and the microstructure of the alloy in equilibrium is α Phase harmony β Phase. ( α+β) The alloy has medium strength and can be strengthened by heat treatment, but its weldability is poor. ( α+ β) Alloys are widely used, and the output of Ti-6Al-4V Alloy accounts for more than half of all titanium materials. 3. β The alloy contains a large amount of stable β Phase elements can be used at high temperature β All phases were retained to room temperature. β Alloys can usually be divided into heat treatable alloys β Alloy (metastable) β Alloy and near metastable β Alloy) and thermal stability β Alloy. Heat treatable β The alloy has excellent plasticity in quenched state, and the tensile strength can reach 130 ~ 140kgf / mm2 by aging treatment. β Alloys are usually used as high strength and high toughness materials. The disadvantages are large ratio, high cost, poor welding performance and difficult machining.

Product name: Titanium alloy Tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Titanium alloy Tubes Because stainless steel and other materials are inefficient in many cases, titanium tubes are increasingly used in various occasions. A common titanium grinding product is titanium tube. Because of its superior corrosion resistance and strength weight ratio, titanium tube is used in various products. The development of many different alloys has expanded the application of titanium in industry, chemical processing and power generation. Commodity: Titanium Alloy Tube /Pipe/Tubing,titanium alloy seamless tube/pipe,titanium alloy welded tube pipe,ASTM B338 titanium tube,Titanium pipe price per kg Tube Shape: Round Square Flat Coil Material: Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7,Gr9,Gr11,Gr12,Gr23(Ti-6Al-4V Eli) Standard: ASTM B337 ASTM B338 ASTM B861 ASTM B862 Type: Seamless Welded ERW Fabricated OD: 5-914mm or as customized Wall Thickness: 0.5-50mm or as customized Length: Max 16000mm End: Plain End, Beveled End, Threaded Certificate: EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc Application: Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry Titanium alloy tubes can be divided into three categories according to phase composition: α Alloy（ α+β) Alloy and β alloy 1. α Stability of alloy containing a certain amount α The element of phase, in equilibrium, is mainly composed of α Phase composition. α The alloy has small specific gravity, good thermal strength, good weldability and excellent corrosion resistance. Its disadvantage is low strength at room temperature. It is usually used as heat-resistant and corrosion-resistant materials. α Alloys can usually be divided into complete alloys α Alloy (Gr7), near α Alloy (ti-8al-1mo-1v) and alloy with a small amount of compounds α Alloy (Ti-2.5Cu). 2. ( α+β) Stability of alloy containing a certain amount α Phase harmony β Phase elements, and the microstructure of the alloy in equilibrium is α Phase harmony β Phase. ( α+β) The alloy has medium strength and can be strengthened by heat treatment, but its weldability is poor. ( α+ β) Alloys are widely used, and the output of Ti-6Al-4V Alloy accounts for more than half of all titanium materials. 3. β The alloy contains a large amount of stable β Phase elements can be used at high temperature β All phases were retained to room temperature. β Alloys can usually be divided into heat treatable alloys β Alloy (metastable) β Alloy and near metastable β Alloy) and thermal stability β Alloy. Heat treatable β The alloy has excellent plasticity in quenched state, and the tensile strength can reach 130 ~ 140kgf / mm2 by aging treatment. β Alloys are usually used as high strength and high toughness materials. The disadvantages are large ratio, high cost, poor welding performance and difficult machining. LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

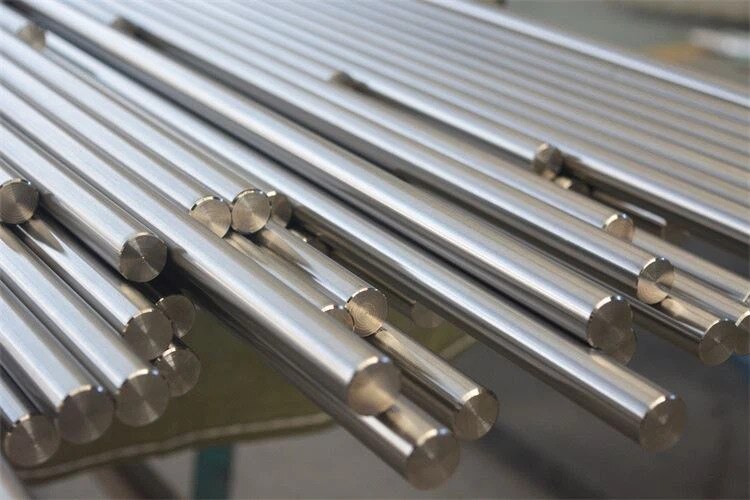

Product name: Titanium bar ams 4928 Standard : AMS 4928 Size: Dia 5--200mm * Max L6000mm Applications :Aerospace etc. Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished Description AMS 4928 is the avaition standard titanium bar with material similar to GR5 (Ti6Al4V). This standard titanium rod is much highe quality requirements than ordinary industrial titanium rod. The maximum size can be 3000*6000mm. We can manufacture titanium bar by the standard strictly. In the same time,ensure good surface, meeting the standard of high quality aviation titanium plate, and meet the applications requirements of customers. Standard AMS 4928 Material GR5 (Ti6Al4V) Diameter 5--200mm Length Max L6000mm,as customers' requests MOQ 50KGS Stock We have more than 80 Ton normal size titanium and titanium alloy bar in stock Delivery time If goods in stock, 5-7 days, if need production, 15-20 days Raw material We make sure the raw material is high quality titanium sponge, We refuse to add any waste Certifictae supply the 3.1MTC and Third-party inspection（SGS,TUV,BV etc.）

DIN 2566 super duplex flanges PN 16 are engineered for superior mechanical strength and excellent corrosion resistance in medium-pressure threaded piping systems. These flanges are manufactured in accordance with DIN 2566 standards and are designed for use in harsh environments where conventional stainless steel flanges may not perform reliably. With a threaded, non-welded design, they are ideal for systems that require ease of installation and frequent maintenance access. Ladhani Metal Corporation is a reputed manufacturer and exporter of super duplex stainless steel flanges, offering high-performance products with excellent dimensional accuracy, strength, and resistance to pitting, crevice corrosion, and stress corrosion cracking. These flanges are well-suited for demanding industries such as oil and gas, desalination, chemical processing, and offshore engineering. Flange Types: • Threaded (Screwed) Flanges: Quick and easy to install without welding; ideal for systems that require regular disassembly or adjustments. • Raised Face (RF) Flanges: Enhances gasket compression by focusing pressure on a smaller surface area for improved sealing. • Flat Face (FF) Flanges: Used in systems with flat-sealing surfaces, especially in low-pressure or brittle material connections. • Forged Threaded Flanges: Manufactured through precision forging to achieve superior strength, tight tolerances, and impact resistance. • Custom-Machined Flanges: Available in custom sizes, pressure ratings, and face types as per project specifications. Available Super Duplex Grade and Composition: 1. Super Duplex 2507 (UNS S32750) • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 6.0 – 8.0% • Molybdenum (Mo): 3.0 – 5.0% • Nitrogen (N): 0.24 – 0.32% • Carbon (C): ≤ 0.030% • Manganese (Mn): ≤ 1.2% • Silicon (Si): ≤ 0.80% Applications: Super Duplex 2507 is used in highly corrosive environments where strength and corrosion resistance are paramount. Typical applications include subsea and offshore structures, chemical process systems, high-salinity water handling, pressure vessels, and marine components. Applications of DIN 2566 Super Duplex Flanges: • Offshore Oil & Gas: Withstands harsh subsea conditions and sour service • Desalination and Water Treatment: Excellent in brine and chlorinated environments • Chemical and Petrochemical Industries: Handles aggressive process chemicals with ease • Marine and Shipbuilding: High durability in saltwater and humid environments • Structural and High-Pressure Piping: Suitable for critical load-bearing and high-stress systems Key Features: • Manufactured to DIN 2566 standard with PN 16 pressure rating • Exceptional corrosion resistance, especially against chlorides and sulfides • Very high tensile and yield strength • Threaded connection for fast and weld-free installation • Outstanding resistance to stress corrosion cracking and erosion • Supplied with material test certificates, third-party inspection (if required), and traceability documentation Conclusion: DIN 2566 super duplex flanges PN 16 from Ladhani Metal Corporation provide unmatched performance in extreme environments where both high strength and superior corrosion resistance are essential. Engineered for long service life with minimal maintenance, these flanges are the preferred solution for the most demanding industrial and marine applications. For inquiries, technical specifications, or project-based customization, contact Ladhani Metal Corporation today.

Ladhani Metal Corporation is a leading manufacturer and exporter of DIN 2565 duplex flanges, designed for reliable, high-strength connections in low-pressure piping systems. Manufactured in accordance with DIN 2565 standards and typically offered with a PN 6 pressure rating, these flanges are ideal for threaded pipe joints where welding is not required. Duplex flanges are crafted from duplex stainless steel, known for its dual-phase microstructure that combines the strength of ferritic steel with the corrosion resistance of austenitic steel. This makes them an excellent choice for applications where both mechanical performance and resistance to harsh environments are critical. Flange Types: • Threaded (Screwed) Flanges: Designed for easy installation and disassembly without welding, suitable for systems requiring frequent maintenance. • Raised Face (RF) Flanges: Enhances gasket sealing capabilities, ensuring leak-proof performance in pressurized systems. • Flat Face (FF) Flanges: Commonly used in low-pressure piping systems, especially with non-metallic gaskets. • Forged Threaded Flanges: Manufactured through forging for improved toughness, impact resistance, and pressure-handling capabilities. Duplex Steel Grades and Composition: Duplex 2205 (UNS S31803 / S32205) o Chromium (Cr): 22.0 – 23.0% o Nickel (Ni): 4.5 – 6.5% o Molybdenum (Mo): 3.0 – 3.5% o Nitrogen (N): 0.14 – 0.20% o Iron (Fe): Balance Applications: Ideal for chemical processing, marine applications, and high-chloride environments due to excellent pitting and crevice corrosion resistance. Applications of DIN 2565 Duplex Flanges: • Chemical and Petrochemical Industries: Withstand acidic and chloride-rich environments. • Marine and Offshore Structures: Resistant to seawater corrosion and stress corrosion cracking. • Oil & Gas Industry: Used in pressure vessels, heat exchangers, and subsea pipelines. • Pulp and Paper Industry: Excellent resistance to sulfide and chloride attack. • Desalination Plants: Long-lasting performance in salt-heavy environments. Key Features: • Compliant with DIN 2565 standard and PN 6 pressure rating • Superior strength and stress resistance compared to standard stainless steels • Excellent resistance to pitting, crevice, and stress corrosion cracking • Available in Duplex 2205 and Super Duplex 2507 grades • Delivered with full traceability and third-party inspection certificates Conclusion: DIN 2565 duplex flanges from Ladhani Metal Corporation are engineered for optimal performance in environments demanding both strength and corrosion resistance. Their robust construction, advanced metallurgy, and precise engineering make them ideal for industries where reliability and safety are paramount. For technical specifications, pricing, or bulk order inquiries, reach out to Ladhani Metal Corporation today.
