Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, Gr3,Gr4 GR5, GR7, GR12,GR23 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting ASTM B265 covers annealed titanium and titanium alloy strips, sheets and plates. ASTM B265 Ti and Ti-based alloy plates are widely used in equipment for high-temperature environment, including aircraft equipment, petroleum and petrochemical, biological materials, marine and chemical industries, such as: blades, storage tanks, targets, pipes and heat exchanger equipment. Product Titanium sheet Standard ASTM B265 Material GR1, GR2, GR3,GR4 GR5, GR7, GR12,GR23 Surface Pickling, Polishing, Sand blasting etc. Application Industry Size The size of standard sheet is usually Thickness × Width 1000mm × Length 2000mm. We can also cut it as you require. Type Sheet, plate, foil; Straight & roll Certificate Certificate of Origin, Material Test Certificate as per EN10204.3.1 and 10204.3.2 are all available

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Polished Titanium vs Aluminum Anodizing is another name for electroplating. It means using another metal to coat or design another. Aluminum is used because it is cheap and can do the work at hand, but titanium is better because it can refuse to have to strip off films formed after every process. Aluminum is cheap when you compare it to titanium. However, when you crosscheck the amount of money saved during the process and its persistence and durability, you will find that the high cost is negligible. Anodizing is a key subject that requires caution, expertise, and experience. Our advice is, in most cases, preferably titanium. Product Information of Titanium Anodizing Fixtures Material: Gr1 Gr2 Dimension: Customized, as customer's requests Surface:Pickled, polished Applications: Electroplating, Anodizing

Product name:Titanium sheet Grades: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Standard: ASTM B265/ASME B265 AMS 4911 ASTM F67 ASTM F136 Dimension： Thickness*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case. MTC: EN10204.3.1 certificate There is Grade 1, Grade 2, Grade 3, Grade4, Grade5, Grade 7, Grade 12 titanium plates in stock. Titanium plate is widely used in various fields, including metallurgy, electronics, medical, chemical, petroleum, medicine, aerospace, etc.. We offer competitive prices online, available incutting size as customers' requets. 1, Specifications Thickness range: 0.5mm-200mm Titanium coil plate/titanium coil strip: 0.1mm-0.5mm thick *1m/1.2m/1.5m wide. Standard plate: 0.5mm-20mm thick *1m*2m. Cold rolled plate: 1mm-4mm*1m*2m hot rolled plate: above 4mm thick wide and thick plate: above 5mm *2m*6m is a common specification, and specific specifications can also be customized according to customer requirements. 2, Material TA1 (Grade 1), TA2 (Grade 2), TA9 (Grade 7), TA10 (Grade 12), TA18 TC4 (Grade 5), TC6 and TC11 3.Standard dimension in stock: 1000 mm Width * 2000 mm Length 1500 mm Width* 6000 mm Length 2000 mm Width* 6000 mm Length 4,Surface:Pickled, polished, sand-blasted

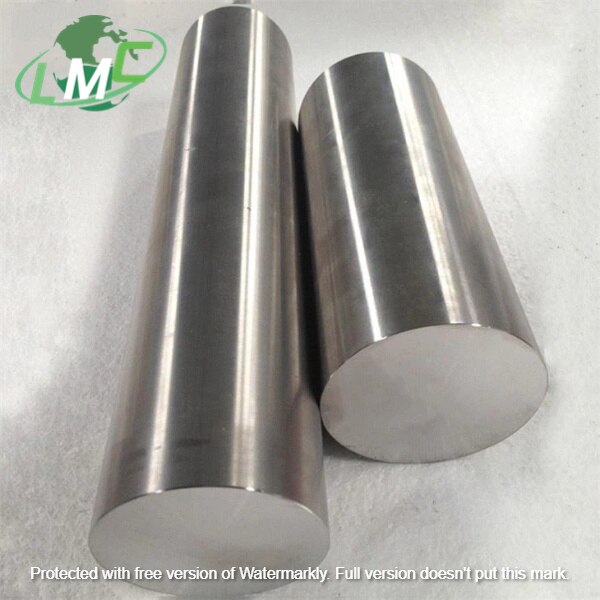

Product Name: Titanium bar for dental implants Standard: ASTM F136,ISO 5832-2, ISO 5832-3, ISO 5832-11 Material: Gr5 ELI, Ti6Al4V ELI,Gr23 Unit Price: $23.5 usd/kg- $37.5 usd/kg Application: Medical use Shape: Round Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc. Length: 1000mm, 3000mm, 6000mm or as per your request Surface: Bright Titanium Bar For Dental Implants Titanium bar used as dental implant material，be able to create a variety of strip structures, and the implant can be directly nailed to the titanium strip structure, so as to obtain the appropriate strength and support. It is non-toxic to humans, easy to maintain and does not cause damage to surrounding tissues. As a dental material, titanium alloy material is more durable and strong than other materials.It can keeps the tissue healthy, looking natural and aesthetic

Product name:6mm Titanium plate Unit price:$14-$36.9/kg Material: Titanium grade 1 grade 2 grade 3 grade 4 Grade 5 (Ti6al4v),grade 7,grade 12 etc. Standard: ASTM/ASME B265 AMS 4911 ASTM F136 ASTM F67 etc. Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) A Thin Titanium Sheet is slow to react with water and air at ambient temperatures. Since, on exposure to both mediums, the Titanium Alloy Plate forms a passive oxide coating or coating which protects the bulk metal from further oxidation. Titanium Sheets Suppliers note that Atmospheric passivation gives Titanium Foil Sheet excellent resistance to corrosion. Though, as a metal Titanium Alloy Sheet is capable of withstanding attack by dilute sulfuric acid and hydrochloric acids, chloride solutions, as well as most organic acids ; However, Titanium Sheet Metal can be corroded by concentrated acids. Material Pure Titanium plate and titanium alloy plate Standard ASTM B265, ASME SB265, AMS 4900, AMS 4901, AMS 4902 Type Clad Plate, Rolling Plate, Flat Shim, Plain Sheet, Rolling Sheet Rolls, Foils, Coils, Plate, Strip, Sheet, Flats, Blank (Circle), ,Flat Sheet, Shim Sheet, soft annealed, descaled, sheared, annealed, Checker Plate, tread plate ASTM B265 Titanium Plate surface Hot rolled plate (HR), Cold rolled sheet (CR), No.1 finish hot rolled ASTM B265 Titanium Plate, BA, No.3, No.4, No.6, No.1, No. 2D, No. 2B, BA NO(8), No.7, 2B, 2D, SATIN (Met with Plastic Coated), 2B, 1D, No.4, 8K, BA, hairline, brush, satin, mirror etc. ASTM B265 Titanium Plate Length 0-12mm or as required Titanium Plate Thickness 0.3 to 1200 mm or as required Titanium Alloy Plate Width 0-3000mm or as required Titanium alloy Plate Process Hot/ Cold Rolled ASTM B265 Titanium Grade 2 Sheet ASTM B265 Titanium Grade 5 Sheet ASTM B265 Titanium Grade 12 Sheet Sizes T(0.5-60) x 1000 x 2000mm Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium welded pipe is formed by rolling a cold-rolled titanium strip into a tube shape and then using tungsten inert gas shielded welding to weld the gap. Due to its excellent seawater corrosion resistance, it has become the first choice for various types of condensers and heat exchangers to replace stainless steel and copper tubes as heat exchange tubes since it was developed. Therefore, it has been widely used in the manufacture of coastal power plants, nuclear power plants, Condensers and heat exchangers that require sea water as a cooling medium in seawater desalination and petrochemical industries.

Product name: Gr2 Titanium welded Tube Standard:ASTM B338 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube Titanium welded pipe is produced by automatic continuous production line, using titanium strip coil with uniform wall thickness through cold bending forming, welding, online heat treatment, sizing straightening, non-destructive testing and air tightness test and other procedures. From sponge titanium to welded pipe, the material utilization rate is usually about 80%, if the titanium strip coil as the raw material, its material utilization rate is more than 95%. With the rapid development of titanium industry and mature welding technology, the titanium tube welding will also greatly enhance production efficiency, quality stability, consistency, and the production efficiency will be higher, can according to customer request length cut into the required length, short delivery time, high material utilization, cost per unit is seamless tube will be lower. Product name: Gr2 Titanium welded Tube Standard:ASTM B338 ASTMB 862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled MOQ:100kgs Titanium welded pipe production process: titanium with open book - shearing butt - looping the loading - titanium belt cleaning - type pipe forming and welding to eddy current flaw detection, the predetermined diameter - online annealing - pure sizing/straightening to eddy current flaw detection, laser caliper - online printing - scale cutting and ultrasonic testing to fine scale/flat head, air tightness test to the finished product inspection, packaging warehousing.

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright Generally, titanium jigs/racks have a long life because they do not consume chemicals and they do not need to be stripped after anodizing. They can specially design all kinds of fingers, clips and other contact points and be sized to maximize the volume of parts. Titanium jigs can also be designed to keep parts superior to rinsing and drainage, and protect parts from damage during travel. Therefore, a well-designed shelf is an effective way to improve the processing capacity (i.e. better quality). The finishing cost is reduced by increasing the utilization rate of the tank and avoiding the stripping requirements. When designing the fast shelf and disassembly tools, the load is increased to the greatest extent, so as to produce faster turnover time. The problem is that these titanium racks for anodizing can be very expensive considering the cost of materials and the special cutting and welding processes used to build them. Generally speaking, the recovery period of titanium stent is about [500 uses]. The delivery time of titanium alloy rack is usually about 8 weeks after the design is completed, so the use of titanium rack also needs some planning. The design of titanium anodising jigs should consider the shape of the part, the nature of the plating solution, the production method, the distance and position between the anodes, and the number of workpieces, to ensure that the power lines of the parts in the bath are evenly distributed, the thickness of the coating is uniform, and the process requirements are met. The function of titanium anodising jigs is to suspend or fix various parts to connect them with the cathode. During anodizing and electroplating, they are connected with the anode to conduct current to the parts to achieve plating or other processing purposes. Titanium anodising jigs are of great significance for improving product quality, reducing manufacturing costs, reducing labor intensity and safe operation.

Product Name: Titanium Jigs for coating Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Titanium jigs for plating Any project to anodize requires a reliable hanger/jig/rack, first to prevent it from falling to the bottom of the anodizing tank, and second to allow the current to be safely transferred from the jig to the workpiece. Anodic oxidation clamps are usually made of aluminum or titanium. Aluminum fixtures must of course be anodized and must be chemically stripped. Continuous anodizing and stripping can result in short service life, so there is no need to strip titanium after the anodizing process. Item Name: titanium jig for coating Size:Customized size is welcomed Material: Titanium Gr1, Gr2 Application,Electroplating industry Surface:Sand Blasting, Acid Washing Parameter:Current density≤2000A/M2 Temperature:<65°C PH: 0.1~14 Max content of Fluoride ion is 200PPM Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
