Porduct name : Titanium Clad Steel Tube plates Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Clad Steel Tube plates Titanium clad metal can reduce equipment costs exponentially and avoid many defects. The equipment made of titanium steel plate is well resistant to corrosion due to its inner titanium layer and also has strong strength due to its outer steel layer. Two layers of bonding, with good thermal conductivity, overcome thermal stress, thermal fatigue resistance, so that it can work in more severe conditions. Titanium steel clad tube sheet / plate is widely used in storage tanks, towers, heat exchangers and pipelines in petrochemical industry due to its good corrosion resistance and high temperature resistance, which improves the service life of equipment. Compared with the traditional welding method, the heat exchanger made of titanium steel composite tube plate and titanium tube has incomparable advantages. Product name Titanium Clad Steel Tube plates Size Customized Cladding metal: AISI 405,410,410S,429,430,304,309,316 ,321,06Cr13,06Cr13A1, 022Cr17Ti, 06Cr19Ni10, 06Cr18Ni11Ti etc. Base metal: Titanium Gr1 Gr2 Gr3 Gr7 Gr12 Production code ASTM B898, ASME SB898 Edge Treatment Waterjet cutting Applications Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc. Packing Standard export packing

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright Characteristics Sufficient mechanical strength Good electrical conductivity Light weight Sturdiness and durability Convenient loading and unloading of parts Appropriate loading

Product name:Titanium Elliptical Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Hemispherical Dish Head Brand name LHTi Product name Titanium Hemispherical Dish Head Material Titanium & titanium alloy (Grade 1 Grade 2 Grade 7 Grade 12 etc.) Size DN - 100mm : 6000mm (customized size avaliable) Wall Thickness 3mm ~ 300mm (customized thickness available) Process Type Hot pressing, cold pressing, cold spinning Connection Type Butt-welded or threaded Edge Type Bevel, Plain or as required Process of depression Once the plate is cut into a circle (using a circular cutter, laser, plasma or other methods), the resulting plate is formed under the press and will be crowned with the plate by multiple impacts on the whole surface. In order to make different types and diameters of disc ends, a disc press must be equipped with a set of molds with different radii. The serving process is quite slow. Depending on the size and material of the plate, it usually takes several hours. This process can be automated by using a CNC manipulator. It is possible to find a press with CNC, which can handle more than 10 shafts and can run automatically for several hours. In addition to automation, another important factor in the disk making process is speed. The two speed press can greatly increase the output. The punch presses the workpiece continuously. This means that the structure of disc press is easily affected by material fatigue; Therefore, the life of the press designed to save cost may be very short, showing the first crack of the structure in a very short time. The press designed with HPT has better fatigue resistance. This design consists of four main parts: upper beam, lower beam and two columns. The two beams are connected with the column through the hydraulic preload pull rod. Compared with seam welding or bolts, these tie rods can better resist continuous stress, so as to provide more elasticity to the structure. Dished multi center end A special dished end is widely used in truck can body manufacturers: multi center dished end. These disc-shaped ends are usually made of aluminum or stainless steel and are usually made of thin plates up to 6 mm. This thickness allows the formation of multi center dished ends using a technique called hydroforming.

Product Name: Titanium Anode Basket Material: Gr1, Gr2 Size: Customized Application: Anodizing Electroplating Plating Shape: Rectangular, round and spiral etc.

Aka CAS No. 13463-67-7, Titanium (VI) oxide, Titania, Rutile, Anatase, Brookite Titanium Dioxide Chemical Titanium Dioxide, also referred to Titania, has a molecular formula of Ti02 and this mineral compound – a white colored, odorless solid – is available in three different forms. Rutile titanium dioxide is the most common naturally occurring form followed by the anatase form but titanium dioxide can also be produced synthetically. Titanium dioxide is produced from either ilmenite, rutile or titanium slag. The titanium pigment is extracted by using either sulphuric acid (sulphate process) or chlorine (chloride route). The sulphate process employs simpler technology while the chloride route produces a purer product. Titanium Dioxide – classified by CAS No. 13463-67-7 – is mined as a mineral in magmatic rocks. It is non-flammable, non-explosive and titanium dioxide is the most widely used pigment because of its brightness and refractive index. Bulk Chemicals Pallate Over 4 million tons of titanium dioxide are used worldwide every year for a wide array of common applications like paint, coatings, plastics, papers, ink, food (it’s often used to whiten skim milk and to enhance the flavor of nuts, seeds, soup and beer), medicine and toothpaste. Titanium Dioxide is also used in cosmetics and skin care products as a pigment, in sunscreen and sunblock as a thickener to protect the skin from ultraviolet light. Titanium Dioxide, believe it or not, is used to mark the white lines on the tennis courts at Wimbledon. Indeed, titanium dioxide accounts for 70% of the total production of pigments worldwide because “titanium white,” as it’s often called, is one of the whitest materials known to exist on Earth. In fact, titanium dioxide is even more reflective than diamonds!

Porduct name : Titanium clad stainless steel tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad stainless steel tube sheet Titanium composite steel plate tube-sheet is a single or double-sided composite plate made of ordinary grade TA1 or TA2 (composite metal) and carbon steel or alloy steel by explosion, explosion + rolling or hot rolling. Titanium metal has excellent corrosion resistance, widely used in flue gas desulfurization equipment, power plant chimneys, chemical reactors, heat exchangers, pressure vessels, etc. But its disadvantage is high cost, titanium composite steel plate tubesheet has the corrosion resistance of titanium metal and the structural strength of steel, can greatly reduce the project cost. At present, the production method of titanium composite steel tubesheet is as follows: 1. Weld compound 2. Rolling compound 3. Explosive welding 4. Explosive welding + rolling Baoji Lihua uses explosive welding and rolling and combines the two processes. This method can overcome the disadvantages of small area and complex rolling process of explosive composite plate, give full play to their respective advantages, and produce titanium steel composite plate with large area and small thickness. It is more efficient and cheaper. Technological parameters and shear strength of explosive welding of Titanium clad stainless steel plate tube sheet 1 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 293 200 392 179 266 The substrate is generally polished. σf 247 208 113 92 165 σt 447 530 460 441 444 The substrate is polished. σf 403 200 363 322 σt 139 105 203 205 163 The substrate is generally polished. σf 231 345 286 287 285 σt 407 410 263 407 372 The substrate is polished. σf 498 571 513 527 Losive welding of Titanium clad stainless steel plate tube sheet 2 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 392 87 240 18 The substrate is generally polished. σf 345 92 157 12 σt 530 279 402 5 The substrate is polished. σf 403 200 321 3 σt 339 60 230 18 The substrate is generally polished. σf 287 149 233 11 σt 571 513 541 2 The substrate is polished.

Product name:Gr2 titanium dome dish heads Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr2 titanium dome dish heads A dish head is a part of a container that is welded to the cylinder. According to the different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, vertebral shell and cap. The sphere, the ellipse,disc head is also referred to as convex head. In the welding way is divided into butt welding head, socket welding head, used for all kinds of container equipment, such as storage tanks, heat exchanger, tower, reactor, boiler and separation equipment. Materials are carbon steel, stainless steel, alloy steel, aluminum, titanium, copper, nickel and nickel alloy etc Dish head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy and food and pharmaceutical industries. Standard: ASME VIII-I, DIN28013 Thickness:5-100mm Size: Customized Material: GR1, GR2, GR7, GR12 High temperature resistant:100-1000°℃ Resistance to high pressure:0.25-100kg Application:Pressure vessel equipment Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

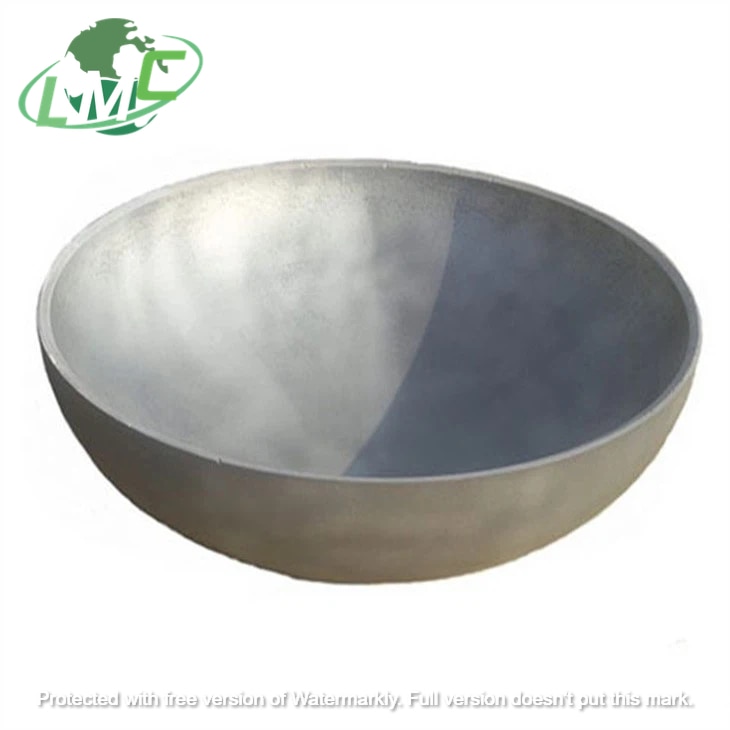

Product name:Gr2 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr2 Titanium Hemispherical Head Hemispherical Head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy, food and pharmaceutical industries. Diameter: 250mm-3000mm Thickness: 2mm-20mm Height: 30mm --- 50mm Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Generally, molding and spinning are used for processing. The bottom flatness of molded flat bottom head is high, the blanking size is large and the cost is high, which is suitable for equipment with high requirements; With the spinning process, the flat bottom of the produced flat bottom head is slightly worse, the blanking size is smaller, and the cost is lower, but it does not affect the use of general equipment. The characteristics of spinning head are: a large workpiece can be formed with a small deformation force; The use of equipment is relatively simple, small and medium-sized sheet metal parts can be spun by ordinary lathe; The mold is simple, only one core mold is needed, and the material requirements are low. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa

Product name:Titanium Elliptical Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Hemispherical Dish Head Brand name LHTi Product name Titanium Hemispherical Dish Head Material Titanium & titanium alloy (Grade 1 Grade 2 Grade 7 Grade 12 etc.) Size DN - 100mm : 6000mm (customized size avaliable) Wall Thickness 3mm ~ 300mm (customized thickness available) Process Type Hot pressing, cold pressing, cold spinning Connection Type Butt-welded or threaded Edge Type Bevel, Plain or as required Process of depression Once the plate is cut into a circle (using a circular cutter, laser, plasma or other methods), the resulting plate is formed under the press and will be crowned with the plate by multiple impacts on the whole surface. In order to make different types and diameters of disc ends, a disc press must be equipped with a set of molds with different radii. The serving process is quite slow. Depending on the size and material of the plate, it usually takes several hours. This process can be automated by using a CNC manipulator. It is possible to find a press with CNC, which can handle more than 10 shafts and can run automatically for several hours. In addition to automation, another important factor in the disk making process is speed. The two speed press can greatly increase the output. The punch presses the workpiece continuously. This means that the structure of disc press is easily affected by material fatigue; Therefore, the life of the press designed to save cost may be very short, showing the first crack of the structure in a very short time. The press designed with HPT has better fatigue resistance. This design consists of four main parts: upper beam, lower beam and two columns. The two beams are connected with the column through the hydraulic preload pull rod. Compared with seam welding or bolts, these tie rods can better resist continuous stress, so as to provide more elasticity to the structure. Dished multi center end A special dished end is widely used in truck can body manufacturers: multi center dished end. These disc-shaped ends are usually made of aluminum or stainless steel and are usually made of thin plates up to 6 mm. This thickness allows the formation of multi center dished ends using a technique called hydroforming.
