Product name:Titanium Shell and Tube Heat Exchangers Materials: stainless stainll Shell/gr2 titanium shell + Gr2 Pure Titanium Tube Special Use: Cooling, Evaporator Net Weight: Customizable Application: High temperature and pressure corrode fluids,seawater,saltwater,brine water etc. Titanium Shell and Tube Heat Exchangers Shell and tube heat exchanger, It is an inter wall heat exchanger with the wall of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger is simple in structure and reliable in operation. It can be made of various structural materials (mainly metal materials)It is composed of tube plate, shell, tube bundle and other parts. and can be used under high temperature and high pressure. It is the most widely used type at present -this is mainly due to their versatility. Applicable Industry: it plays an important role in chemical, petroleum, power, food and many other industrial production. In chemical production, it can be used as heater, cooler, condenser, evaporator and reboiler. Titanium Shell and Tube Heat Exchangers 17 Dimension(L*W*H) Customized Set Tempreture Customized Transport Package Wooden Packing Takeover Diameter Customized Liquid Flow Customized Plate Material Titanium/Stainless steel etc. Plate Thickness Heat exchange tube Customized A heat exchanger system facilitates the transfer of heat energy from one system to another. You can use them for both heating and cooling processes. Although you can make heat exchangers from different metals, these systems are made from titanium metal. Unlike the other predecessors, titanium heat exchangers are totally immune to corrosion. However, to work at full efficiency the device requires more surface area and a higher fluid flow rate. In most cases, you will find coil patterns. This is because they maximize the surface area of the tubes.

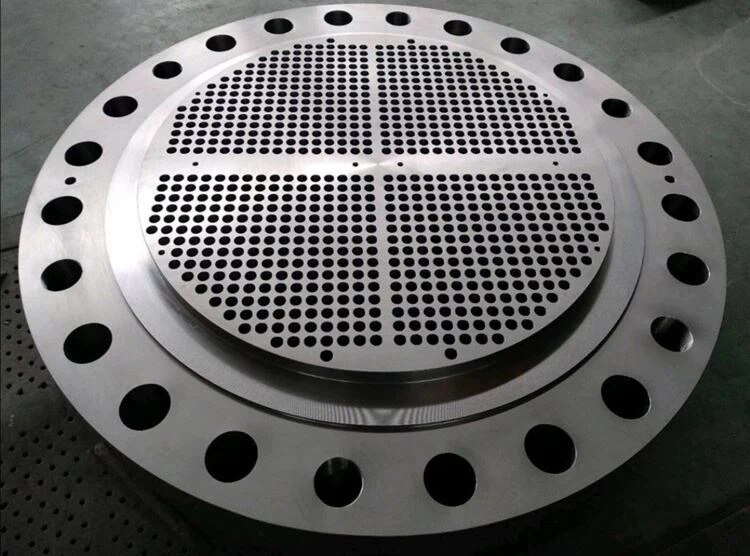

Porduct name : Grade 2 Titanium Tube Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Grade 2 Titanium Tube Sheet Titanium tubesheet / titanium tube sheet is to drill a hole slightly larger than the outer diameter of the tube on the circular titanium plate. It is a component in the titanium heat exchanger that plays the role of fixing the tube and sealing medium. It is a kind of fitting that penetrates the pipe into the tube plate and is welded and fixed. The accuracy of tubesheet processing, especially the pipe hole spacing and pipe diameter tolerance, perpendicularity and finish, greatly affect the assembly and service performance of the chemical equipment listed above. In the environment of strong acid, high pressure, high temperature and nuclear energy, corrosion-resistant materials such as titanium alloy, stainless steel and 16 manganese are needed. The application of new synthetic materials brings new vitality to tubesheet products.

Porduct name : Gr 2 Titanium Tube Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr 2 Titanium Tube Sheet The two ends of the fixed tube-plate heat exchanger are connected with the shell by welding method. Heat exchange tube can be light tube or low fin tube. Its simple structure, low manufacturing cost, can get a small shell diameter, tube can be divided into various, shell can also be divided into multiple longitudinal partition, wide range of specifications, so it is widely used in engineering. Tubeplate is very widely used in dead tube heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other industries, it is mainly used in some chemical vessels, play a role of supporting fixed tube, metal material makes it not only has strong rigidity but also has great thermal conductivity. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Titanium U-tube heat exchanger Material:Gr1 Gr2 Gr7 Gr12 titanium Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Titanium U-tube heat exchanger U-shaped tube heat exchanger, is a shell and tube heat exchanger, it is composed of tube-plate, shell, tube bundle and other parts. Under the same diameter, the heat transfer area of u-tube heat exchanger is the largest. It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and lowest cost under high temperature and high pressure; U-tube heat exchanger has only one tube plate, good thermal compensation performance, strong bearing capacity, suitable for high temperature and high pressure operating conditions. Name: Titanium U-tube heat exchanger Material: Gr1 Gr2 Gr7 Gr12 titanium Structure: tube box, barrel, head, heat exchange tube, etc Advantages: simple structure, low cost Disadvantages: High rejection rate Application: Suitable for high temperature and high pressure corrosive fluid Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

Product Name: 20mm Titanium Round Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright 20mm Titanium Round Bar Titanium rod is our main product. Unique titanium alloy manufactures and supplies titanium rods/rods in round, square and hexagonal bar forms. Available sizes from diameter 2.0 to diameter 400mm×L, length can reach 6m or cut to any size required by customers. For small diameter titanium rods (ф <18mm), we can make the tolerance H7. The production capacity reaches 100 tons per month. In addition, we have a large stock of bars as well as a large number of titanium ingots/blanks, which allows us to complete orders with minimal lead times.

Porduct name : Gr 1 Titanium Tube Sheet Material: Gr1 Titanium +steel,Gr1 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr 1 Titanium Tube Sheet U-shaped expansion joint is commonly used in fixed tubesheet heat exchanger. It has the advantages of compact and simple structure, good compensation and low price. With the large-scale of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with diameter of 4m-5m is very common. Large tubesheet is characterized by large number of tube holes, dense, small diameter, deep, high precision and finish requirements.

Porduct name : Gr 2 Titanium Tube Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr 2 Titanium Tube Sheet The two ends of the fixed tube-plate heat exchanger are connected with the shell by welding method. Heat exchange tube can be light tube or low fin tube. Its simple structure, low manufacturing cost, can get a small shell diameter, tube can be divided into various, shell can also be divided into multiple longitudinal partition, wide range of specifications, so it is widely used in engineering. Tubeplate is very widely used in dead tube heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other industries, it is mainly used in some chemical vessels, play a role of supporting fixed tube, metal material makes it not only has strong rigidity but also has great thermal conductivity. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Titanium U-tube heat exchanger Material:Gr1 Gr2 Gr7 Gr12 titanium Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Titanium U-tube heat exchanger U-shaped tube heat exchanger, is a shell and tube heat exchanger, it is composed of tube-plate, shell, tube bundle and other parts. Under the same diameter, the heat transfer area of u-tube heat exchanger is the largest. It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and lowest cost under high temperature and high pressure; U-tube heat exchanger has only one tube plate, good thermal compensation performance, strong bearing capacity, suitable for high temperature and high pressure operating conditions. Name: Titanium U-tube heat exchanger Material: Gr1 Gr2 Gr7 Gr12 titanium Structure: tube box, barrel, head, heat exchange tube, etc Advantages: simple structure, low cost Disadvantages: High rejection rate Application: Suitable for high temperature and high pressure corrosive fluid Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

Half Round Tube Shield Half Round Tube Shields by Ladhani Metal Corporation are precision-engineered components designed to safeguard boiler and heat exchanger tubes from erosion, scaling, and thermal degradation. These shields are essential for industrial systems subjected to high-temperature flue gases, particulate abrasion, and corrosive atmospheres. The half-round design allows for simple installation over both straight and curved tube surfaces, enhancing tube longevity and reducing unplanned maintenance. SS 420 U Type Outer Half Round Tube Shield The SS 420 U Type Outer Half Round Tube Shield is manufactured from SS 420, a high-carbon martensitic stainless steel offering excellent hardness, strength, and moderate corrosion resistance. This outer U-type shield is designed specifically to protect the outer arc of U-bend tubes, where direct exposure to flame, slag, and abrasive gas streams accelerates wear. SS 420’s heat resistance and hard surface make it well-suited for shielding critical tube areas in high-wear, high-temperature applications. • Outer U Type Half Round Tube Shield – Provides robust coverage for the external curve of U-bend tubes, defending against mechanical erosion, scaling, and thermal fatigue. Ladhani Metal Corporation is a prominent manufacturer, supplier, and exporter of SS 420 U Type Outer Half Round Tube Shields, delivering reliable protection in harsh industrial operating environments. Chemical Composition of SS 420 – High-Carbon Martensitic Stainless Steel • Carbon (C): 0.15 – 0.40% • Manganese (Mn): ≤ 1.00% • Phosphorus (P): ≤ 0.040% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 12.0 – 14.0% • Iron (Fe): Balance Applications: Best suited for high-temperature, abrasive environments where mechanical strength and surface durability are critical, with moderate corrosion exposure. Uses • Protection of U-bend outer surfaces in superheaters, reheaters, and economizers in thermal power plants • Shielding external curves in gas heaters, exhaust systems, and flue ducts prone to slag or particulate erosion • Applied in return bends of waste heat recovery systems and HRSGs to guard against high-velocity gas wear • Ideal for industrial furnaces, incinerators, and heat exchangers operating in high-heat and abrasive zones • Suitable for applications where resistance to scaling, mechanical stress, and oxidation is required Features • High hardness and wear resistance – Martensitic steel structure offers excellent protection against abrasion and mechanical impact • Thermal durability – Performs well under high-temperature conditions with good resistance to scaling and thermal fatigue • Outer arc shielding – Specifically designed to guard the most exposed curvature of U-bend tubes from direct flame and gas stream contact • Precision-engineered – Fabricated to exact tube radius and diameter for secure, vibration-resistant installation • Simple installation – Easily mounted using clamps, tack welds, or stainless banding without system disassembly • Cost-efficient protection – Provides a durable solution with a balance of strength and corrosion resistance at an economical price Applications • thermal power stations – Used to shield outer curves of U-bend tubes from flame impingement and gas erosion • industrial boilers and furnaces – Protects return bends in high-heat, high-wear zones prone to slag accumulation and scale formation • waste heat recovery boilers – Installed in WHRB and HRSG systems to extend tube life under hot gas and particulate exposure • chemical and petrochemical industries – Suitable for heaters and exchangers where thermal stress and gas impact degrade surfaces • process heating systems – Applied in equipment handling high-velocity gas or steam that contributes to tube wear and surface damage Conclusion The SS 420 U Type Outer Half Round Tube Shield by Ladhani Metal Corporation—manufacturer, supplier, and exporter—is a dependable and rugged solution for protecting the outer arcs of U-bend tubes in boilers, heat exchangers, and high-temperature processing systems. Its high strength, excellent wear resistance, and thermal durability make it ideal for applications where erosion and mechanical damage are frequent. Customizable and easy to install, it supports long-term reliability and reduced operational downtime in demanding industrial conditions. For technical consultation, custom orders, or quotations, please contact Ladhani Metal Corporation.
