Product Name: Titanium Gr 2 flanges Standard: ASME B16.5 Material: Gr2 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Grade 2 titanium is the most commonly requested in the pipeline valve and fittings industry, with high strength and corrosion resistance. Titanium is generally used in applications that require high temperature and high pressure service but are lighter in weight. Some good examples are components in the aerospace industry (airframe frames) and state-of-the-art equipment in the military. Given its excellent corrosion resistance in marine and chloride applications, titanium flanges are also popular as offshore drilling components and heat exchanger components. When you need a metal with good overall formability and workability, please choose titanium. It has the capability of hot or cold forming while maintaining its excellent mechanical properties. For transportation to your work site, it is good to know that titanium is much lighter than regular steel (about 40-45% lighter). Although not as light as aluminum, our titanium flanges and fittings are easier to handle during welding and installation. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 64 440 46 320 18

Porduct name : Titanium Tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Tube sheet The titanium tube plate/Titanium clad steel tube plates is a round sheet drilled with circular throught holes. The titanium steel composite plate shall be slightly larger than the outer diameter of the pipe. It is widely used in the field of heat exchanger and plays the role of fixing pipeline and sealing medium in heat exchanger.

Porduct name : Gr 1 Titanium Tube Sheet Material: Gr1 Titanium +steel,Gr1 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr 1 Titanium Tube Sheet U-shaped expansion joint is commonly used in fixed tubesheet heat exchanger. It has the advantages of compact and simple structure, good compensation and low price. With the large-scale of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with diameter of 4m-5m is very common. Large tubesheet is characterized by large number of tube holes, dense, small diameter, deep, high precision and finish requirements.

Porduct name : Titanium Clad Steel Tube Sheets Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Clad Steel Tube Sheets The Titanium tube plate is drilling the pipes holes on the circular. Titanium steel Clad plate to be slightly larger than the outer diameter of the tube. It is widely used in Heat Exchanger area,play the role of fix pipe and a sealing medium in the heat exchanger. Standards: ASTM B898, ASME SB898, etc. Base materials: Carbon steel: Q235, 516GR-70, A216, A210-C, Stainless steel: SUS304, SUS316, SUS410, etc. duplex stainless steel: 2507, S32750, F53, etc. Aluminum: L, Ly ,LF, etc. Nickel: N2, N4, N6, etc. Copper: T1, T2, T3, T4, etc. Zirconium: R60702 Clad materials : Titanium GR1, GR2, GR7, GR12, GR16, GR17, etc. Sizes(clad/base): (0.5-20)/(0.5-200) x W(max W 6000) x L(max L 8000) Applications: power station chimney, vacuum salt making facility, pressure vessel, petrochemical, chemical, crystallizer, evaporator, heat exchanger, TDA tower, condenser, reactor, etc. We can supply: Titanium clad steel plates Titanium Clad Titanium clad tube sheet Titanium tube sheet Titanium clad steel tube sheet

Product Name: titanium grade 2 elbows Standard: ASME B16.9 Material: Titanium Gr2 Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded Titanium grade 2 elbows An elbow is a pipe fitting used at the turn of a pipe. Among all the pipe fittings used in the pipeline system, the proportion is the largest, about 80%. Generally, different forming processes are selected for elbows with different materials or wall thickness. PRODUCT TYPE Long radious elbow(LR elbow), short radious elbow(SR elbow), seamless elbow, butt welding elbow, carbon steel elbow(CS elbow), mild steel elbow(MS elbow), alloy steel elbow(AS elbow),stainless steel elbow(SS elbow), ( 15deg, 30deg, 45deg, 90deg, 180deg) SIZE: NPS1/2”-120”(DN15-3000) WALL THICKNESS: SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP……. MATERIAL: Titanium Gr2 STANDARD: ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 etc… We can also produce according to drawing by customers. SURFACE TREATMENT: Pickled PACKING: plywood cases, pallets, nylon bags or according to the customers' requirements TRADE TERM: FOB, CNF&CFR, CIF APPLICATION: Chemical industry, petroleum industry, construction industry, power industry, gas industry, shipbuilding ,domestic installation and other CERTIFICATES: ISO-9001:2015 LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

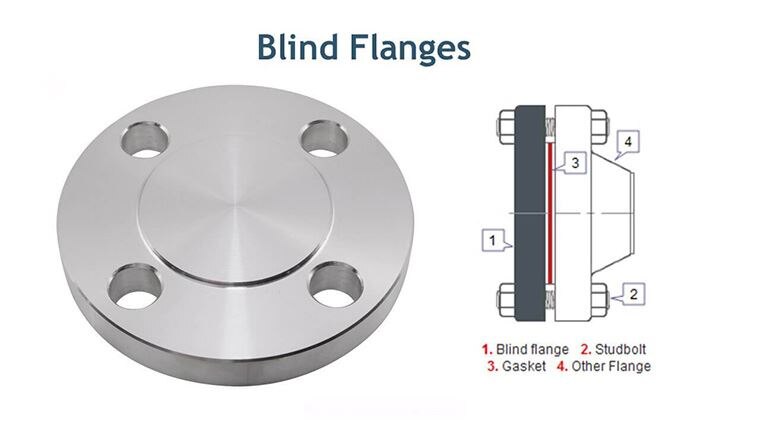

Product Name: Titanium Blind Flange Standard: ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc.

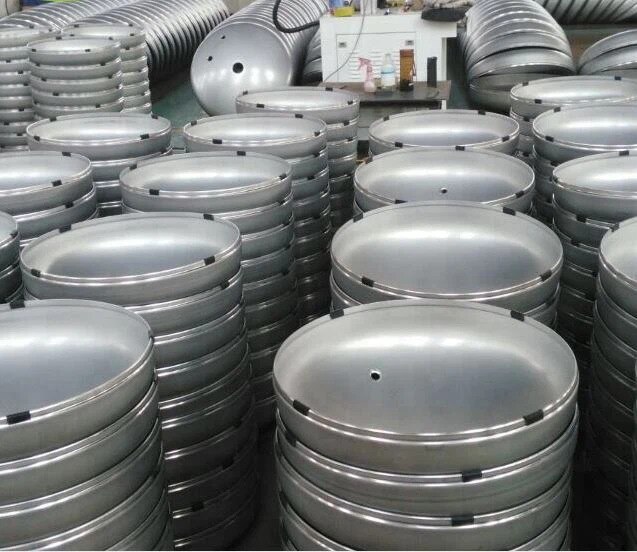

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Hemispherical heads Titanium Spherical Heads ,aso called Titanium dish head,Titanium Elliptical Heads.It is a kind of boiler part in pressure vessel. It is usually used at both ends of pressure vessels. Then there is a welding pipe fitting product used for plugging at the end of the pipe. There are many forms. The head is a part of the container and is welded to the barrel. According to the different geometric shapes, it can be divided into spherical, elliptical, disc, spherical crown, cone shell and cover, among which spherical, elliptical, disc and spherical crown head are collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head. Used in various vessels and equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc. Products Processing Standard Grade Size Titanium Elliptical & Spherical Heads According to ASME VIII-I Standard or DIN28013 GR1, GR2, GR7, GR12, etc. Process: Cold forming and hot forming Inspection: 100% Ultrasonic Test and PT test after forming. (As per requirement.) Applications Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military. (Titanium dish head )DIN28013: D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s 300 4-10 3.5 78 1,0 1550 5-15 483 403 22.5 350 4-10 5.6 91 1.3 1600 5-15 532 416 23.9 400 4-10 8.3 104 1,7 1650 5-15 585 429 25,4 450 4-10 11.8 117 2,1 1700 5-15 640 442 27.0 500 4-10 16.1 130 2.6 1750 5-15 700 455 28.5 550 3-12 21,6 143 3,1 1800 5-15 760 468 30 600 3-12 28,0 156 3.6 1850 5-15 825 481 31.5 650 3-12 36.0 169 4,2 1900 5-15 890 494 33 700 3-12 44,5 182 4,8 1950 5-15 965 507 36 750 3-12 54.5 195 5,5 2000 6-15 1040 520 37 800 3-13 66.5 203 6.2 2050 6-15 1120 533 38.5 850 3-13 79,5 221 7,0 2100 6-15 1200 546 40.5 900 3-13 94 234 乙8 2150 6-15 1290 559 42,5 950 3-13 111 247 8.6 2200 6-15 1380 572 44.5 1000 4-16 130 260 9.5 2250 6-15 1480 685 46.5 1050 4-13 150 273 10,4 2300 6-15 1580 598 46 5 1100 4-13 173 286 11,1 2350 6-15 1690 611 51 1150 4-13 198 299 12.5 2400 6-15 1800 624 53 1200 4-13 225 312 13.6 2450 6-15 1910 637 55 1250 4-13 254 325 14,7 2500 6-15 2030 660 57

Porduct name : Grade 2 Titanium Tube Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Grade 2 Titanium Tube Sheet Titanium tubesheet / titanium tube sheet is to drill a hole slightly larger than the outer diameter of the tube on the circular titanium plate. It is a component in the titanium heat exchanger that plays the role of fixing the tube and sealing medium. It is a kind of fitting that penetrates the pipe into the tube plate and is welded and fixed. The accuracy of tubesheet processing, especially the pipe hole spacing and pipe diameter tolerance, perpendicularity and finish, greatly affect the assembly and service performance of the chemical equipment listed above. In the environment of strong acid, high pressure, high temperature and nuclear energy, corrosion-resistant materials such as titanium alloy, stainless steel and 16 manganese are needed. The application of new synthetic materials brings new vitality to tubesheet products.

Porduct name : Titanium Clad Steel Tube Sheets Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Clad Steel Tube Sheets The Titanium tube plate is drilling the pipes holes on the circular. Titanium steel Clad plate to be slightly larger than the outer diameter of the tube. It is widely used in Heat Exchanger area,play the role of fix pipe and a sealing medium in the heat exchanger. Standards: ASTM B898, ASME SB898, etc. Base materials: Carbon steel: Q235, 516GR-70, A216, A210-C, Stainless steel: SUS304, SUS316, SUS410, etc. duplex stainless steel: 2507, S32750, F53, etc. Aluminum: L, Ly ,LF, etc. Nickel: N2, N4, N6, etc. Copper: T1, T2, T3, T4, etc. Zirconium: R60702 Clad materials : Titanium GR1, GR2, GR7, GR12, GR16, GR17, etc. Sizes(clad/base): (0.5-20)/(0.5-200) x W(max W 6000) x L(max L 8000) Applications: power station chimney, vacuum salt making facility, pressure vessel, petrochemical, chemical, crystallizer, evaporator, heat exchanger, TDA tower, condenser, reactor, etc. We can supply: Titanium clad steel plates Titanium Clad Titanium clad tube sheet Titanium tube sheet Titanium clad steel tube sheet
