Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Product Introduction Titaniu plates and titanium alloy plates are mainly used to manufacture various containers, reactors, heat exchangers, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as a titanium cathode and condenser in power stations, as well as environmental pollution control devices. The hardness of steel is higher than that of titanium plate, but the specific strength or tensile strength of titanium alloy is higher than that of high-quality steel. Titanium alloy has good heat resistance, low temperature toughness and fracture toughness, so it is mostly used as aircraft engine parts and rocket and missile structural parts. Titanium alloy can also be used as fuel and oxidant storage tanks and high-pressure vessels. There are already automatic rifles, mortar seat plates and recoilless gun launch tubes made of titanium alloy. Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Thickness: 0.5-60mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Status and specifications of titanium plates Grade Technique Status Thickness Gr1 Gr2 Gr3 Gr4 (pure titanium plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.3-4mm Gr5 Gr7 Gr12 etc. (Titanium alloy plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.8-4.0mm

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Hemispherical heads Titanium Spherical Heads ,aso called Titanium dish head,Titanium Elliptical Heads.It is a kind of boiler part in pressure vessel. It is usually used at both ends of pressure vessels. Then there is a welding pipe fitting product used for plugging at the end of the pipe. There are many forms. The head is a part of the container and is welded to the barrel. According to the different geometric shapes, it can be divided into spherical, elliptical, disc, spherical crown, cone shell and cover, among which spherical, elliptical, disc and spherical crown head are collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head. Used in various vessels and equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc. Products Processing Standard Grade Size Titanium Elliptical & Spherical Heads According to ASME VIII-I Standard or DIN28013 GR1, GR2, GR7, GR12, etc. Process: Cold forming and hot forming Inspection: 100% Ultrasonic Test and PT test after forming. (As per requirement.) Applications Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military. (Titanium dish head )DIN28013: D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s 300 4-10 3.5 78 1,0 1550 5-15 483 403 22.5 350 4-10 5.6 91 1.3 1600 5-15 532 416 23.9 400 4-10 8.3 104 1,7 1650 5-15 585 429 25,4 450 4-10 11.8 117 2,1 1700 5-15 640 442 27.0 500 4-10 16.1 130 2.6 1750 5-15 700 455 28.5 550 3-12 21,6 143 3,1 1800 5-15 760 468 30 600 3-12 28,0 156 3.6 1850 5-15 825 481 31.5 650 3-12 36.0 169 4,2 1900 5-15 890 494 33 700 3-12 44,5 182 4,8 1950 5-15 965 507 36 750 3-12 54.5 195 5,5 2000 6-15 1040 520 37 800 3-13 66.5 203 6.2 2050 6-15 1120 533 38.5 850 3-13 79,5 221 7,0 2100 6-15 1200 546 40.5 900 3-13 94 234 乙8 2150 6-15 1290 559 42,5 950 3-13 111 247 8.6 2200 6-15 1380 572 44.5 1000 4-16 130 260 9.5 2250 6-15 1480 685 46.5 1050 4-13 150 273 10,4 2300 6-15 1580 598 46 5 1100 4-13 173 286 11,1 2350 6-15 1690 611 51 1150 4-13 198 299 12.5 2400 6-15 1800 624 53 1200 4-13 225 312 13.6 2450 6-15 1910 637 55 1250 4-13 254 325 14,7 2500 6-15 2030 660 57

Porduct name : Titanium Forged Clad Tube Sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc Titanium Forged Clad Tube Sheet Titanium is a new kind of metal, with low density, corrosion resistance, high and low temperature. High strength and other excellent performance. It is an important structural material in aviation, aerospace, chemical, Marine, electric power, metallurgy and other fields. In order to save titanium resources, reduce the cost and promote the application of this new metal material in civil industry, titanium steel composite plate came into being. Titanium steel composite tube plate have the same effect as pure titanium tube plate, but also very good cost saving, widely used in pressure vessels, heat exchangers, urban sewage treatment containers, water storage containers and nuclear waste treatment containers, chemical distillation tanks and so on.

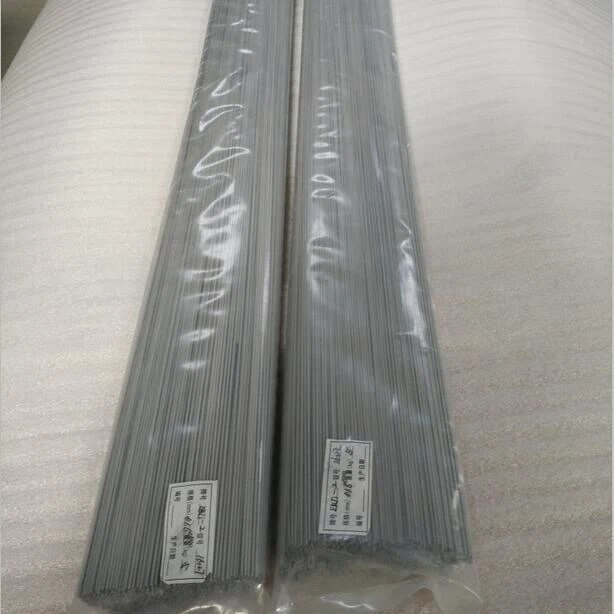

Product Name: Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Bright Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25 Features of our company's titanium welding wire: 　　1. Manufactured by a non-oxidized roll mold cold drawing process 　　2, the welding wire has uniform structure and fine grains 　　3, high dimensional accuracy, no defects, excellent follow-up processing performance 　　4, the composition of various elements in the material and the mechanical properties of the material can be effectively controlled

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet Product Information Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet.

Product name: Gr1 Titanium seamless tube Standard:ASTM B338 Material:Grade 1 titanium Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr1 Titanium seamless tube The production process of titanium seamless pipe is complex. Three roll or multi roll rolling mill and drawing machine are usually used to roll or draw a certain specification of pipe blank through multiple passes, and finally produce seamless pipe after reducing diameter and wall. The production efficiency and yield of this process are low. Titanium seamless pipe from sponge titanium to pipe, through rolling or drawing, the material waste is large, the yield is only about 50%, and can not achieve mass production, and the production cycle is relatively long. Product name Titanium seamless tube Standard ASTM B861, ASTM B337, ASTM B338 Size OD5.0-114.0mmxWT0.5-7.0mmx1000-12000mm OD55mm-914mmxWT1.0-10.0mmx1000-6000mm Or according customer’s requirement. Material Titanium(Gr1, Gr2, Gr5, Gr7,Gr9,GR12) Technique Rolled Status Annealled Surface Acid wash,bright Application Exhaust pipe; exhaust pipe, petroleum pipeline;Sea farming; electroplating equipment;Fluid Transportation Piping etc. Certificate ISO9001:2008, TUV, EN10204.3.1 Types Out diameter Sizes Length NB Sizes (in stock) .0035” ~ 8” 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6" Cut to length Titanium Seamless Tube (Custom Sizes) 6.35 mm OD To 101.6 mm OD As per requirement Cut to length Titanium seamless pipe features: 1. The thicker the wall thickness is, the more economical and practical it is. The thinner the wall thickness is, the higher its processing cost will be 2. The process of titanium seamless pipe determines its limited performance. Generally, the precision of seamless steel pipe is low, the wall thickness is uneven, the brightness of the inner and outer surface of the pipe is low, the sizing cost is high, and there are pockmarks and black spots on the inner and outer surface, which are not easy to remove 3. Its detection and shaping must be processed offline. Therefore, it embodies its advantages in high pressure, high strength and mechanical structure materials.

DIN 2633 duplex steel flanges PN 16 are precision-manufactured weld neck flanges designed according to the DIN 2633 standard, ideal for medium-pressure piping systems operating up to 16 bar (232 psi). These flanges are crafted from duplex stainless steels that combine the benefits of austenitic and ferritic microstructures, offering excellent mechanical strength, superior resistance to stress corrosion cracking, and enhanced durability in aggressive chemical and chloride-containing environments. They are ideal for applications where both corrosion resistance and high strength are essential. Ladhani Metal Corporation is a leading global manufacturer and supplier of duplex steel flanges, recognized for high-quality production, dimensional accuracy, and strict compliance with international standards. All flanges undergo rigorous inspection and testing to ensure reliable performance in challenging industrial conditions. Pressure Rating: • PN 16 (16 bar / 232 psi): Suitable for medium-pressure pipelines requiring corrosion resistance and increased mechanical integrity. Flange Type: • Weld Neck Flanges These flanges feature a long tapered hub for improved flow characteristics and reduced mechanical stress at the weld area, ensuring stable and secure connections. • Flat Face (FF) Flanges Designed to provide a consistent sealing surface, especially effective when used with soft gaskets or when connecting to cast components. Duplex Steel Grades and Full Composition: Duplex 2205 (UNS S31803/S32205) • Chromium (Cr): 21.0 – 23.0% • Nickel (Ni): 4.5 – 6.5% • Molybdenum (Mo): 2.5 – 3.5% • Nitrogen (N): 0.08 – 0.20% • Manganese (Mn): ≤ 2.0% • Silicon (Si): ≤ 1.0% • Carbon (C): ≤ 0.03% • Phosphorus (P): ≤ 0.03% • Sulfur (S): ≤ 0.02% • Iron (Fe): Balance Applications: Widely used in desalination plants, chemical process vessels, marine environments, and pulp and paper industries due to high strength and resistance to localized corrosion. Super Duplex 2507 (UNS S32750) • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 6.0 – 8.0% • Molybdenum (Mo): 3.0 – 5.0% • Nitrogen (N): 0.24 – 0.32% • Manganese (Mn): ≤ 1.2% • Silicon (Si): ≤ 0.8% • Carbon (C): ≤ 0.03% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.02% • Iron (Fe): Balance Applications: Preferred in highly corrosive offshore, oil and gas, chemical, and high-chloride environments where superior strength and corrosion resistance are essential. Applications of DIN 2633 Duplex Steel Flanges PN 16: • Chemical and Petrochemical Plants Provides strong and corrosion-resistant connections for chemical reactors, storage tanks, and acid-handling systems. • Marine and Offshore Engineering Suitable for submerged systems, seawater cooling, and ballast water piping due to excellent resistance to chloride-induced corrosion. • Pulp and Paper Industry Performs reliably in bleaching and chemical recovery processes where both chemical resistance and strength are required. • Desalination and Water Treatment Ideal for high-salinity water systems and reverse osmosis pipelines requiring durable, corrosion-resistant components. • Oil and Gas Refineries Used in pipelines, pressure vessels, and heat exchangers subjected to sour gas and high-pressure operating environments. Key Features: • Manufactured to DIN 2633 standard • PN 16 pressure class for medium-pressure service • Weld neck configuration supports vibration resistance and proper alignment • Available in Duplex 2205 and Super Duplex 2507 grades • High resistance to stress corrosion cracking, pitting, and crevice corrosion • Excellent mechanical strength and fatigue resistance • Custom sizes, finishes, and specifications available upon request Conclusion: DIN 2633 duplex steel flanges PN 16 from Ladhani Metal Corporation offer an optimal combination of strength, corrosion resistance, and reliability for use in harsh industrial conditions. With high-performance duplex and super duplex materials, these flanges are the preferred choice for applications in chemical processing, offshore platforms, and desalination plants. For detailed technical support, customized configurations, or pricing, contact Ladhani Metal Corporation today.

DIN 2628 Duplex steel flanges PN 250 are high-strength weld neck flanges designed according to the DIN 2628 standard for use in high-pressure systems up to 250 bar (3625 psi). Fabricated from Duplex stainless steels, these flanges offer an ideal balance of strength and corrosion resistance, combining the beneficial properties of both austenitic and ferritic stainless steels. Their robust mechanical performance, excellent resistance to stress corrosion cracking, and superior weldability make them well-suited for critical applications in aggressive service environments. Ladhani Metal Corporation manufactures and exports premium-grade Duplex steel flanges that meet stringent international standards for quality, reliability, and performance. Our DIN 2628 PN 250 Duplex steel weld neck flanges are widely used in sectors such as oil and gas, desalination, petrochemical processing, pulp and paper, and marine industries. With precision engineering and consistent quality, these flanges are designed to withstand high pressure, corrosive media, and mechanical stress. Pressure Rating: • PN 250 (250 bar / 3625 psi): Suitable for high-pressure systems requiring excellent structural integrity, corrosion resistance, and reliable sealing in dynamic conditions. Flange Type: • Weld Neck Flanges These flanges feature a tapered neck, offering high fatigue resistance by reducing stress concentration at the weld area. Ideal for applications with high pressure, high temperature, or repeated thermal cycling. • Flat Face (FF) Flanges Flat face design provides uniform gasket loading, minimizing the risk of flange deformation. Suitable for systems using brittle materials or low-pressure cast components. Duplex Steel Grades and Composition: Duplex 2205 (UNS S32205 / S31803) • Chromium (Cr): 21.0 – 23.0% • Nickel (Ni): 4.5 – 6.5% • Molybdenum (Mo): 2.5 – 3.5% • Nitrogen (N): 0.14 – 0.20% • Iron (Fe): Balance • Manganese (Mn): ≤ 2.0% • Silicon (Si): ≤ 1.0% • Carbon (C): ≤ 0.03% Applications: Offers excellent corrosion resistance, particularly to chloride-induced stress corrosion cracking and pitting. Commonly used in offshore oil rigs, chemical tanks, heat exchangers, and pressure vessels. Applications of DIN 2628 Duplex Steel Flanges PN 250: • Oil and Gas Exploration Resistant to sour gas, chloride attack, and high mechanical loads in subsea and topside environments. • Chemical Processing Plants Used in aggressive chemical systems, reactors, and storage vessels requiring high corrosion resistance. • Marine and Offshore Structures Reliable in saltwater applications, such as ballast systems, risers, and flowlines. • Pulp and Paper Industry Withstands acidic and alkaline process chemicals used in bleaching and pulping operations. • Water Treatment and Desalination Ideal for handling brine and high-chloride content fluids in RO and thermal desalination systems. Key Features: • Conforms to DIN 2628 standards • PN 250 pressure rating for high-pressure, heavy-duty systems • Weld neck configuration for excellent mechanical support and minimal stress concentration • Flat face variant ensures even gasket loading and leak-proof operation • Available in Duplex 2205 and Super Duplex 2507 grades • Excellent resistance to chloride stress corrosion, pitting, and crevice corrosion • High tensile and yield strength for demanding industrial conditions • Custom sizes, pressure ratings, and surface finishes available upon request Conclusion: DIN 2628 Duplex Steel Flanges PN 250 from Ladhani Metal Corporation are the optimal solution for applications requiring superior corrosion resistance, high mechanical strength, and reliable sealing performance under extreme pressure. Available in Duplex 2205 and Super Duplex 2507, these flanges offer outstanding performance across various aggressive industrial environments. For detailed technical specifications or to request a customized quotation, please contact Ladhani Metal Corporation.

DIN 2628 Inconel flanges PN 250 are high-strength weld neck flanges manufactured in accordance with the DIN 2628 standard. Designed to operate in high-pressure systems up to 250 bar (3625 psi), these flanges offer outstanding performance in extreme environments involving high temperatures, corrosive chemicals, and mechanical stress. Made from Inconel superalloys, they provide excellent resistance to oxidation, thermal fatigue, and pitting, making them ideal for critical applications in demanding industries. Ladhani Metal Corporation is a globally trusted manufacturer and exporter of premium Inconel flanges. Our DIN 2628 PN 250 Inconel weld neck flanges are widely used in sectors such as chemical processing, offshore drilling, aerospace, power generation, and marine engineering. Known for precision engineering, reliability, and resistance to harsh service conditions, these flanges are a preferred choice in pressure-intensive and corrosion-prone systems. Pressure Rating: • PN 250 (250 bar / 3625 psi): Suitable for high-pressure pipelines requiring superior sealing, thermal resistance, and structural integrity. Flange Type: • Weld Neck Flanges Designed with a tapered hub to reduce stress concentration at the weld point. Ideal for high-pressure and high-temperature environments. • Flat Face (FF) Flanges Flat face design ensures even gasket compression, preventing flange warping and providing secure sealing, especially when used with cast or brittle materials. Inconel Grades and Composition: Inconel 600 (UNS N06600) • Nickel (Ni): ≥ 72.0% • Chromium (Cr): 14.0 – 17.0% • Iron (Fe): 6.0 – 10.0% • Carbon (C): ≤ 0.15% • Manganese (Mn): ≤ 1.0% • Silicon (Si): ≤ 0.5% Applications: Excellent resistance to heat and corrosion by acids and chlorides. Commonly used in heat exchangers, reactors, and high-temperature furnace parts. Inconel 625 (UNS N06625) • Nickel (Ni): ≥ 58.0% • Chromium (Cr): 20.0 – 23.0% • Molybdenum (Mo): 8.0 – 10.0% • Niobium (Nb) + Tantalum (Ta): 3.15 – 4.15% • Iron (Fe): ≤ 5.0% • Carbon (C): ≤ 0.10% • Manganese (Mn): ≤ 0.50% • Silicon (Si): ≤ 0.50% Applications: Exceptional corrosion resistance in chloride-bearing environments. Ideal for offshore oil and gas, marine exhaust systems, and chemical plants. Inconel 718 (UNS N07718) • Nickel (Ni): 50.0 – 55.0% • Chromium (Cr): 17.0 – 21.0% • Iron (Fe): Balance • Niobium (Nb) + Tantalum (Ta): 4.75 – 5.50% • Molybdenum (Mo): 2.80 – 3.30% • Titanium (Ti): 0.65 – 1.15% • Aluminum (Al): 0.20 – 0.80% • Carbon (C): ≤ 0.08% Applications: A precipitation-hardened superalloy with outstanding strength, creep resistance, and corrosion resistance at temperatures up to 700°C. Widely used in aerospace turbine engines, nuclear reactors, and high-pressure chemical systems. Applications of DIN 2628 Inconel Flanges PN 250: • Chemical and Petrochemical Plants Ideal for piping systems exposed to aggressive chemicals, high pressures, and temperature fluctuations. • Power Generation Used in nuclear, thermal, and gas-fired power plants where heat and pressure resistance are critical. • Aerospace and Jet Engine Systems 718-grade flanges are suitable for turbine casings, fuel lines, and other high-temperature aircraft components. • Marine and Offshore Engineering Highly corrosion-resistant in saltwater environments, suitable for subsea manifolds, pipelines, and ballast systems. • Heat Treatment and Thermal Processing Used in furnaces, reactors, and pressure vessels subjected to rapid thermal cycling and oxidation. Key Features: • Manufactured according to DIN 2628 standards • PN 250 pressure rating for high-pressure system integrity • Weld neck design ensures optimal strength and flow performance • Available in Inconel 600, 625, and 718 grades • Flat face option for uniform sealing and safety in brittle systems • Excellent resistance to high temperatures, oxidation, and chlorides • Suitable for extreme chemical, thermal, and marine environments • Custom sizes, pressure classes, and finishes available upon request Conclusion: DIN 2628 Inconel Flanges PN 250 from Ladhani Metal Corporation offer the ideal solution for industries demanding high-performance materials under extreme conditions. With options in Inconel 600, 625, and 718, these weld neck flanges combine corrosion resistance, strength, and thermal stability for reliable operation across a wide range of high-pressure applications. Contact Ladhani Metal Corporation for detailed specifications, technical assistance, or to request a tailored quotation.
