Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting MOQ:50kgs Product Information Grade 7 titanium sheet (Ti-0.2pd) is a d-type titanium alloy sheet made from industrial pure titanium by adding a small amount of precious metal Pd. The addition of Pd not only significantly improves the corrosion resistance of the alloy in reducing medium, but also improves its corrosion resistance in oxidizing medium. In various chlorine-containing media at high temperature and high concentration, the crevice corrosion resistance of grade 7 titanium alloy sheet is the best. Grade 7 titanium sheet also has the best resistance to crevice corrosion. Other grades of titanium sheets have similar properties, so this alloy sheet is widely used in the chemical industry. Grade 7 Because the addition of Pd increases the cost of titanium, when industrial pure titanium cannot meet the conditions of use, grade 7 titanium sheets are often used. Material: GR1, GR2, GR4, GR5, GR7, GR12 Russia Grade: BT1-100,BT1-0,BT6 etc. Standard: ASTM B265 Thickness: 0.5-100mm The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require. Surface: Pickling, Polishing, Sand blasting etc. Type: Sheet, plate, foil; Straight & roll State: R/Y/M Chemical Compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical Properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 400 275 20 25

Price: 0 | Payment Type: | Available: False | COD Available: False | KYC Status: FAILED

Price: 0 | Payment Type: | Available: False | COD Available: False | KYC Status: FAILED

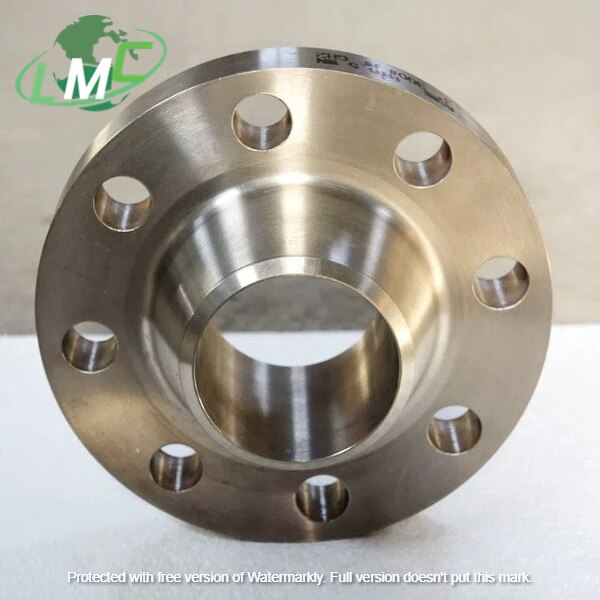

Product Name: Titanium Weld Neck Flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Application: Chemical industry Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 3 Pressure: Class 300 Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Available Flange types a.Slip On Flange b.Welding Neck Flange c.Threaded Flange(Screwed Flange) d.Plain Flange e.Blind Flange f.Lap Joint Flange g.Wocket Welding Flange h. welded flange i. titanium large-diameter flange Specification Titanium Weld Neck Flange Class 300 Nom. Pipe Size Flange Dia. Flange Thick. Hub Dia. At Base Raised Face Dia. Hub Dia. At Weld Point No. of Holes Dia. Of Bolts Dia. Of Bolt Circle Bore Dia. Length Thru Hub 1/2 3-3/4 9/16 1-1/2 1-3/8 0.84 4 2-5/8 1/2 0.62 2-1/16 3/4 4-5/8 5/8 1-7/8 1-11/16 1.05 4 3-1/4 5/8 0.82 2-1/4 1 4-7/8 11/16 2-1/8 2 1.32 4 3-1/2 5/8 1.05 2-7/16 1-1/4 5-1/4 3/4 2-1/2 2-1/2 1.66 4 3-7/8 5/8 1.38 2-9/16 1-1/2 6-1/8 13/16 2-3/4 2-7/8 1.90 4 4-1/2 3/4 1.61 2-11/16 2 6-1/2 7/8 3-5/16 3-5/8 2.38 8 5 5/8 2.07 2-3/4 2-1/2 7-1/2 1 3-15/16 4-1/8 2.88 8 5-7/8 3/4 2.47 3 3 8-1/4 1-1/8 4-5/8 5 3.50 8 6-5/8 3/4 3.07 3-1/8 Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

Price: 0 | Payment Type: | Available: False | COD Available: False | KYC Status: FAILED

Product Name: Titanium Weld Neck Flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Application: Chemical industry Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 3 Pressure: Class 300 Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Available Flange types a.Slip On Flange b.Welding Neck Flange c.Threaded Flange(Screwed Flange) d.Plain Flange e.Blind Flange f.Lap Joint Flange g.Wocket Welding Flange h. welded flange i. titanium large-diameter flange Specification Titanium Weld Neck Flange Class 300 Nom. Pipe Size Flange Dia. Flange Thick. Hub Dia. At Base Raised Face Dia. Hub Dia. At Weld Point No. of Holes Dia. Of Bolts Dia. Of Bolt Circle Bore Dia. Length Thru Hub 1/2 3-3/4 9/16 1-1/2 1-3/8 0.84 4 2-5/8 1/2 0.62 2-1/16 3/4 4-5/8 5/8 1-7/8 1-11/16 1.05 4 3-1/4 5/8 0.82 2-1/4 1 4-7/8 11/16 2-1/8 2 1.32 4 3-1/2 5/8 1.05 2-7/16 1-1/4 5-1/4 3/4 2-1/2 2-1/2 1.66 4 3-7/8 5/8 1.38 2-9/16 1-1/2 6-1/8 13/16 2-3/4 2-7/8 1.90 4 4-1/2 3/4 1.61 2-11/16 2 6-1/2 7/8 3-5/16 3-5/8 2.38 8 5 5/8 2.07 2-3/4 2-1/2 7-1/2 1 3-15/16 4-1/8 2.88 8 5-7/8 3/4 2.47 3 3 8-1/4 1-1/8 4-5/8 5 3.50 8 6-5/8 3/4 3.07 3-1/8 Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

Price: 0 | Payment Type: | Available: False | COD Available: False | KYC Status: FAILED

Product Name: Titanium Weld Neck Flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 3 Pressure: Class 300 Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Name Titanium flange,Titanium alloy flange Material Grade Gr1,Gr2,Gr5,Gr7,Gr12 Certificate EN10204/3.1 Standard EN1092-1 Size DN10-3600 Pressure PN0.6-PN100 Technique Forged and CNC Machined Type WNRF,SORF,BLIND,SW,PL Flange surface FF,RF,TG,RJ etc. Application Boiler pressure vessels,v chemical,petroleum,shipbuilding,pharmaceutical,metallurgy,machinery Advantage 1,Long servise lif 2,corrosion-resistant 3,High yeiled strength and tensilestrength Available Flange types a.Slip On Flange b.Welding Neck Flange c.Threaded Flange(Screwed Flange) d.Plain Flange e.Blind Flange f.Lap Joint Flange g.Wocket Welding Flange h. welded flange i. titanium large-diameter flange LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

Price: 0 | Payment Type: | Available: False | COD Available: False | KYC Status: FAILED

Ladhani Metal Corporation is a trusted manufacturer, supplier, and exporter of high-quality Threaded Hastelloy Ball Valves. A threaded Hastelloy ball valve is a compact, corrosion-resistant flow control device designed for reliable performance in pipelines handling aggressive fluids and gases. It features precision-engineered threaded ends that allow easy installation, tight sealing, and maintenance-free operation in low to medium pressure systems. Constructed from Hastelloy alloy, the valve offers exceptional resistance to strong acids, oxidizers, reducing agents, and chloride-induced corrosion, making it ideal for use in highly corrosive and demanding environments. Functions The main functions of a threaded Hastelloy ball valve include: • Controlling and isolating the flow of liquids and gases. • Providing bubble-tight shut-off with minimal torque. • Offering smooth and efficient quarter-turn operation. • Ensuring precise throttling control in compact systems. • Reducing pressure drop while maintaining steady flow. • Delivering long-term corrosion resistance and mechanical strength. Grades Available Threaded Hastelloy ball valves are available in multiple grades to suit different industrial requirements: • Hastelloy C-22 – Excellent resistance to oxidizing and reducing agents, chlorides, and hot acids. • Hastelloy C-4 – Superior high-temperature stability and oxidation resistance. • Hastelloy C-276 – Exceptional resistance to strong oxidizers, wet chlorine, and aggressive chemicals. Material Characteristics Hastelloy alloys are nickel-chromium-molybdenum-based materials that provide outstanding resistance to pitting, crevice corrosion, and stress-corrosion cracking. They maintain superior strength and ductility under high pressure and temperature, ensuring durability in harsh environments. Their excellent weldability and toughness make them ideal for chemical, marine, and process industry applications. Applications / Uses Threaded Hastelloy ball valves are used in a wide range of industries requiring corrosion-resistant and compact flow control solutions: • Chemical and petrochemical processing plants. • Power generation and energy facilities. • Marine and offshore engineering systems. • Pharmaceutical and biotechnology industries. • Acid production and fertilizer plants. • Desalination and wastewater treatment facilities. • Pollution control and waste management systems. • Pulp and paper manufacturing. Conclusion Threaded Hastelloy ball valves provide excellent corrosion resistance, easy installation, and dependable flow control for critical process applications. Their threaded design ensures secure sealing and compact installation in space-constrained systems, while Hastelloy construction guarantees long-lasting performance even in harsh chemical environments. For any requirement or orders, contact Ladhani Metal Corporation (LMC), a trusted manufacturer, supplier, and exporter of premium Threaded Hastelloy Ball Valves. #Mumbai #Pune #Chennai #Hyderabad #Ahmedabad #Vadodara #Surat #Rajkot #Ankleshwar #Vapi #NaviMumbai #Thane #Kolhapur #Nagpur #Indore #Bhopal #Delhi #Noida #Gurgaon #Faridabad #Kolkata #Howrah #Bhubaneswar #Rourkela #Jamshedpur #Ranchi #Patna #Visakhapatnam #Vijayawada #Bengaluru #Mangalore #Kochi #Coimbatore #Tiruchirappalli #Hosur #Tuticorin #Jamnagar #Bharuch #Dahej #Gandhidham #Mundra #Panipat #Ludhiana #Chandigarh #Amritsar #Jaipur #Udaipur #Kanpur #Lucknow #Haridwar #Dehradun #Silvassa#HastelloyBallValve #HastelloyBallValveManufacturer #HastelloyBallValveSupplier #HastelloyBallValveExporter #HastelloyBallValveIndia #IndustrialHastelloyBallValve #HastelloyC22BallValve #HastelloyC276BallValve #HastelloyC4BallValve #FlangedHastelloyBallValve #ThreadedHastelloyBallValve #HighPerformanceHastelloyBallValve #CorrosionResistantHastelloyBallValve #ChemicalProcessHastelloyBallValve #MarineGradeHastelloyBallValve #OffshoreHastelloyBallValve #OilAndGasHastelloyBallValve #DesalinationHastelloyBallValve #PharmaceuticalHastelloyBallValve #BiotechHastelloyBallValve #IndustrialFlowControlHastelloyBallValve #AcidResistantHastelloyBallValve #HighTemperatureHastelloyBallValve #NickelAlloyHastelloyBallValve #PneumaticHastelloyBallValve #ElectricActuatedHastelloyBallValve #ManualHastelloyBallValve #HydraulicHastelloyBallValve #ANSIStandardHastelloyBallValve #ASMEStandardHastelloyBallValve #Class150HastelloyBallValve

Price: 0 | Payment Type: | Available: False | COD Available: False | KYC Status: FAILED

Ladhani Metal Corporation is a trusted manufacturer, supplier, and exporter of high-quality Flanged Hastelloy Ball Valves. A flanged Hastelloy ball valve is a robust and corrosion-resistant flow control device designed for handling highly aggressive fluids and gases in demanding industrial processes. Built with durable flanged ends, it ensures secure, leak-proof connections and easy installation in high-pressure and high-temperature systems. The valve’s quarter-turn operation allows quick and reliable shut-off, while its Hastelloy alloy construction provides exceptional resistance to oxidizing and reducing chemicals, acids, and chlorides, ensuring long service life and consistent performance. Functions The main functions of a flanged Hastelloy ball valve include: • Regulating and isolating the flow of liquids and gases. • Providing tight shut-off with minimal operating torque. • Ensuring smooth flow with low pressure loss. • Offering quick quarter-turn operation for fast control. • Maintaining excellent corrosion resistance in aggressive chemical environments. • Supporting reliable sealing even under high pressure and temperature conditions. Grades Available Flanged Hastelloy ball valves are available in various grades to meet specific industrial requirements: • Hastelloy C-22 – Provides superior resistance to oxidizing and reducing media, acids, and chlorides. • Hastelloy C-4 – Offers excellent high-temperature stability and oxidation resistance. • Hastelloy C-276 – Known for its outstanding resistance to strong oxidizers, reducing agents, and wet chloride gases. Material Characteristics Hastelloy alloys are nickel-chromium-molybdenum-based materials that offer outstanding corrosion resistance in both oxidizing and reducing environments. They are highly resistant to pitting, crevice corrosion, and stress-corrosion cracking. Their strength and stability under extreme temperature and pressure conditions make them ideal for severe service applications in chemical, marine, and power industries. Applications / Uses Flanged Hastelloy ball valves are widely used in industries where chemical resistance, high performance, and reliability are essential: • Chemical and petrochemical processing plants. • Power generation and energy facilities. • Desalination and water treatment plants. • Marine and offshore systems. • Pharmaceutical and biotechnology industries. • Acid manufacturing and fertilizer plants. • Pollution control and waste management systems. • Pulp and paper manufacturing. Conclusion Flanged Hastelloy ball valves deliver superior performance, durability, and corrosion resistance in the most demanding industrial environments. Their flanged-end design provides secure, leak-proof connections ideal for high-pressure applications, while Hastelloy construction ensures long-lasting reliability in harsh chemical conditions. For any requirement or orders, contact Ladhani Metal Corporation (LMC), a trusted manufacturer, supplier, and exporter of premium Flanged Hastelloy Ball Valves. #Mumbai #Pune #Chennai #Hyderabad #Ahmedabad #Vadodara #Surat #Rajkot #Ankleshwar #Vapi #NaviMumbai #Thane #Kolhapur #Nagpur #Indore #Bhopal #Delhi #Noida #Gurgaon #Faridabad #Kolkata #Howrah #Bhubaneswar #Rourkela #Jamshedpur #Ranchi #Patna #Visakhapatnam #Vijayawada #Bengaluru #Mangalore #Kochi #Coimbatore #Tiruchirappalli #Hosur #Tuticorin #Jamnagar #Bharuch #Dahej #Gandhidham #Mundra #Panipat #Ludhiana #Chandigarh #Amritsar #Jaipur #Udaipur #Kanpur #Lucknow #Haridwar #Dehradun #Silvassa#HastelloyBallValve #HastelloyBallValveManufacturer #HastelloyBallValveSupplier #HastelloyBallValveExporter #HastelloyBallValveIndia #IndustrialHastelloyBallValve #HastelloyC22BallValve #HastelloyC276BallValve #HastelloyC4BallValve #FlangedHastelloyBallValve #ThreadedHastelloyBallValve #HighPerformanceHastelloyBallValve #CorrosionResistantHastelloyBallValve #ChemicalProcessHastelloyBallValve #MarineGradeHastelloyBallValve #OffshoreHastelloyBallValve #OilAndGasHastelloyBallValve #DesalinationHastelloyBallValve #PharmaceuticalHastelloyBallValve #BiotechHastelloyBallValve #IndustrialFlowControlHastelloyBallValve #AcidResistantHastelloyBallValve #HighTemperatureHastelloyBallValve #NickelAlloyHastelloyBallValve #PneumaticHastelloyBallValve #ElectricActuatedHastelloyBallValve #ManualHastelloyBallValve #HydraulicHastelloyBallValve #ANSIStandardHastelloyBallValve #ASMEStandardHastelloyBallValve #Class150HastelloyBallValve

Price: 0 | Payment Type: | Available: False | COD Available: False | KYC Status: FAILED

Ladhani Metal Corporation is a trusted manufacturer, supplier, and exporter of high-quality Hastelloy Ball Valves. A Hastelloy ball valve is a precision-engineered shut-off and flow control device designed for use in corrosive, high-temperature, and high-pressure environments. It features a spherical closure element (ball) that allows or restricts flow by a simple quarter-turn operation, ensuring smooth, leak-proof, and reliable performance. Manufactured from Hastelloy alloys, these valves provide exceptional resistance to strong oxidizing and reducing chemicals, acids, and chlorides, making them suitable for highly aggressive industrial applications. Functions The main functions of a Hastelloy ball valve include: • Regulating, isolating, and controlling the flow of liquids and gases. • Providing tight shut-off with minimal operating torque. • Ensuring bubble-tight sealing in both directions of flow. • Reducing pressure drop for efficient fluid handling. • Offering smooth and reliable quarter-turn operation. • Maintaining excellent corrosion resistance in oxidizing and reducing environments. Grades Available Hastelloy ball valves are manufactured in different grades to suit a variety of industrial applications: • Hastelloy C-22 – Outstanding resistance to oxidizing and reducing agents, ferric and cupric chlorides, and hot contaminated acids. • Hastelloy C-4 – Exceptional stability and strength at high temperatures with excellent oxidation resistance. • Hastelloy C-276 – Superior resistance to strong oxidizers, reducing acids, and chloride-induced corrosion. Material Characteristics Hastelloy alloys are nickel-chromium-molybdenum-based materials designed for superior corrosion resistance in severe environments. They perform exceptionally well in both oxidizing and reducing conditions and resist localized corrosion such as pitting, crevice corrosion, and stress-corrosion cracking. Their strength, toughness, and weldability make them ideal for demanding industrial processes. Types of Hastelloy Ball Valves • Flanged Hastelloy Ball Valve – Designed with flanged ends available in Class 150, Class 300, and Class 600, ensuring secure, leak-free, and high-pressure performance in corrosive environments. • Threaded Hastelloy Ball Valve – Compact and easy to install, suitable for small and medium-sized pipelines requiring precise shut-off and corrosion resistance. Applications / Uses Hastelloy ball valves are used in a wide range of industries where corrosion resistance and durability are critical: • Chemical and petrochemical processing plants. • Power generation and energy facilities. • Marine and offshore engineering systems. • Desalination and water treatment plants. • Pharmaceutical and biotechnology industries. • Acid manufacturing and fertilizer plants. • Pollution control and waste management systems. • Pulp and paper manufacturing units. Conclusion Hastelloy ball valves offer unmatched corrosion resistance, superior sealing performance, and long-term reliability in the harshest chemical and industrial environments. Available in both flanged and threaded configurations, these valves provide secure, maintenance-free flow control across a wide range of applications. For any requirement or orders, contact Ladhani Metal Corporation (LMC), a trusted manufacturer, supplier, and exporter of premium Hastelloy Ball Valves. Mumbai, Pune, Chennai, Hyderabad, Ahmedabad, Vadodara, Surat, Rajkot, Ankleshwar, Vapi, Navi Mumbai, Thane, Kolhapur, Nagpur, Indore, Bhopal, Delhi, Noida, Gurgaon, Faridabad, Kolkata, Howrah, Bhubaneswar, Rourkela, Jamshedpur, Ranchi, Patna, Visakhapatnam, Vijayawada, Bengaluru, Mangalore, Kochi, Coimbatore, Tiruchirappalli, Hosur, Tuticorin, Jamnagar, Bharuch, Dahej, Gandhidham, Mundra, Panipat, Ludhiana, Chandigarh, Amritsar, Jaipur, Udaipur, Kanpur, Lucknow, Haridwar, Dehradun, Silvassa.#HastelloyBallValve #HastelloyBallValveManufacturer #HastelloyBallValveSupplier #HastelloyBallValveExporter #HastelloyBallValveIndia #IndustrialHastelloyBallValve #HastelloyC22BallValve #HastelloyC276BallValve #HastelloyC4BallValve #FlangedHastelloyBallValve #ThreadedHastelloyBallValve #HighPerformanceHastelloyBallValve #CorrosionResistantHastelloyBallValve #ChemicalProcessHastelloyBallValve #MarineGradeHastelloyBallValve #OffshoreHastelloyBallValve #OilAndGasHastelloyBallValve #DesalinationHastelloyBallValve #PharmaceuticalHastelloyBallValve #BiotechHastelloyBallValve #IndustrialFlowControlHastelloyBallValve #AcidResistantHastelloyBallValve #HighTemperatureHastelloyBallValve #NickelAlloyHastelloyBallValve #PneumaticHastelloyBallValve #ElectricActuatedHastelloyBallValve #ManualHastelloyBallValve #HydraulicHastelloyBallValve #ANSIStandardHastelloyBallValve #ASMEStandardHastelloyBallValve #Class150HastelloyBallValve #Class300HastelloyBallValve #Class600HastelloyBallValve #IndustrialGradeHastelloyBallValve #HastelloyBallValveForChemicalIndustry

Price: 0 | Payment Type: | Available: False | COD Available: False | KYC Status: FAILED

Ladhani Metal Corporation is a trusted manufacturer, supplier, and exporter of high-quality Threaded Hastelloy Butterfly Valves. A threaded Hastelloy butterfly valve is a compact and corrosion-resistant flow control device designed for use in pipelines that handle aggressive and hazardous media. Equipped with precision-engineered threaded ends, it ensures easy installation, tight sealing, and reliable performance in low to medium pressure systems. Manufactured from Hastelloy alloys, this valve offers excellent resistance to strong oxidizers, reducing agents, acids, and chlorides, making it ideal for chemical, marine, and industrial applications. Functions The main functions of a threaded Hastelloy butterfly valve include: • Controlling and isolating the flow of liquids, gases, and corrosive chemicals. • Providing leak-proof shut-off with minimal torque. • Allowing accurate throttling for precise flow regulation. • Reducing pressure loss while maintaining efficient flow. • Offering reliable performance under varying pressure and temperature conditions. • Ensuring easy assembly and maintenance in confined or compact pipeline systems. Grades Available Threaded Hastelloy butterfly valves are available in multiple grades to meet diverse industrial needs: • Hastelloy C-22 – Excellent resistance to oxidizing and reducing agents. • Hastelloy C-4 – Superior thermal stability and oxidation resistance. • Hastelloy C-276 – Exceptional resistance to strong oxidizers, acids, and chlorides. Material Characteristics Hastelloy alloys are nickel-chromium-molybdenum-based materials that provide outstanding resistance to localized corrosion, including pitting and crevice corrosion. They maintain superior mechanical strength and structural integrity under extreme chemical exposure, making them highly suitable for critical industrial applications. Applications / Uses Threaded Hastelloy butterfly valves are used across industries requiring durable, corrosion-resistant, and compact flow control solutions: • Chemical and petrochemical processing plants. • Power generation and energy industries. • Marine and offshore systems. • Desalination and water treatment plants. • Pharmaceutical and biotechnology facilities. • Acid manufacturing, fertilizer, and chlorination plants. • Pollution control and waste treatment systems. • Pulp and paper processing units. Conclusion Threaded Hastelloy butterfly valves combine corrosion resistance, compact design, and reliable flow control for demanding chemical and industrial applications. Their threaded connections ensure easy installation and maintenance, while Hastelloy construction guarantees long service life under harsh conditions. Available in multiple grades such as C-22, C-4, and C-276, these valves deliver excellent performance across a variety of corrosive environments. For any requirement or orders, contact Ladhani Metal Corporation (LMC), a trusted manufacturer, supplier, and exporter of premium Threaded Hastelloy Butterfly Valves. Mumbai, Pune, Chennai, Hyderabad, Ahmedabad, Vadodara, Surat, Rajkot, Ankleshwar, Vapi, Navi Mumbai, Thane, Kolhapur, Nagpur, Indore, Bhopal, Delhi, Noida, Gurgaon, Faridabad, Kolkata, Howrah, Bhubaneswar, Rourkela, Jamshedpur, Ranchi, Patna, Visakhapatnam, Vijayawada, Bengaluru, Mangalore, Kochi, Coimbatore, Tiruchirappalli, Hosur, Tuticorin, Jamnagar, Bharuch, Dahej, Gandhidham, Mundra, Panipat, Ludhiana, Chandigarh, Amritsar, Jaipur, Udaipur, Kanpur, Lucknow, Haridwar, Dehradun, Silvassa. #HastelloyButterflyValve #HastelloyButterflyValveManufacturer #HastelloyButterflyValveSupplier #HastelloyButterflyValveExporter #HastelloyButterflyValveIndia #IndustrialHastelloyButterflyValve #HastelloyC22ButterflyValve #HastelloyC276ButterflyValve #HastelloyC4ButterflyValve #FlangedHastelloyButterflyValve #ThreadedHastelloyButterflyValve #HighPerformanceHastelloyButterflyValve #CorrosionResistantHastelloyButterflyValve #ChemicalProcessHastelloyButterflyValve #MarineGradeHastelloyButterflyValve #OffshoreHastelloyButterflyValve #OilAndGasHastelloyButterflyValve #DesalinationHastelloyButterflyValve #PharmaceuticalHastelloyButterflyValve #BiotechHastelloyButterflyValve #IndustrialFlowControlHastelloyButterflyValve #AcidResistantHastelloyButterflyValve #HighTemperatureHastelloyButterflyValve #NickelAlloyHastelloyButterflyValve #PneumaticHastelloyButterflyValve #ElectricActuatedHastelloyButterflyValve #ManualHastelloyButterflyValve #HydraulicHastelloyButterflyValve #ANSIStandardHastelloyButterflyValve #ASMEStandardHastelloyButterflyValve #Class150HastelloyButterflyValve #Class300HastelloyButterflyValve #Class600HastelloyButterflyValve #IndustrialGradeHastelloyButterflyValve #HastelloyButterflyValveForChemicalIndustry #HastelloyButterflyValveForMarineApplication #HastelloyButterflyValveForOilAndGas #HastelloyButterflyValveForPharmaIndustry #HastelloyButterflyValveManufacturerIndia #HastelloyButterflyValveExportersIndia
