Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting MOQ:50kgs Product Information Grade 7 titanium sheet (Ti-0.2pd) is a d-type titanium alloy sheet made from industrial pure titanium by adding a small amount of precious metal Pd. The addition of Pd not only significantly improves the corrosion resistance of the alloy in reducing medium, but also improves its corrosion resistance in oxidizing medium. In various chlorine-containing media at high temperature and high concentration, the crevice corrosion resistance of grade 7 titanium alloy sheet is the best. Grade 7 titanium sheet also has the best resistance to crevice corrosion. Other grades of titanium sheets have similar properties, so this alloy sheet is widely used in the chemical industry. Grade 7 Because the addition of Pd increases the cost of titanium, when industrial pure titanium cannot meet the conditions of use, grade 7 titanium sheets are often used. Material: GR1, GR2, GR4, GR5, GR7, GR12 Russia Grade: BT1-100,BT1-0,BT6 etc. Standard: ASTM B265 Thickness: 0.5-100mm The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require. Surface: Pickling, Polishing, Sand blasting etc. Type: Sheet, plate, foil; Straight & roll State: R/Y/M Chemical Compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical Properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 400 275 20 25

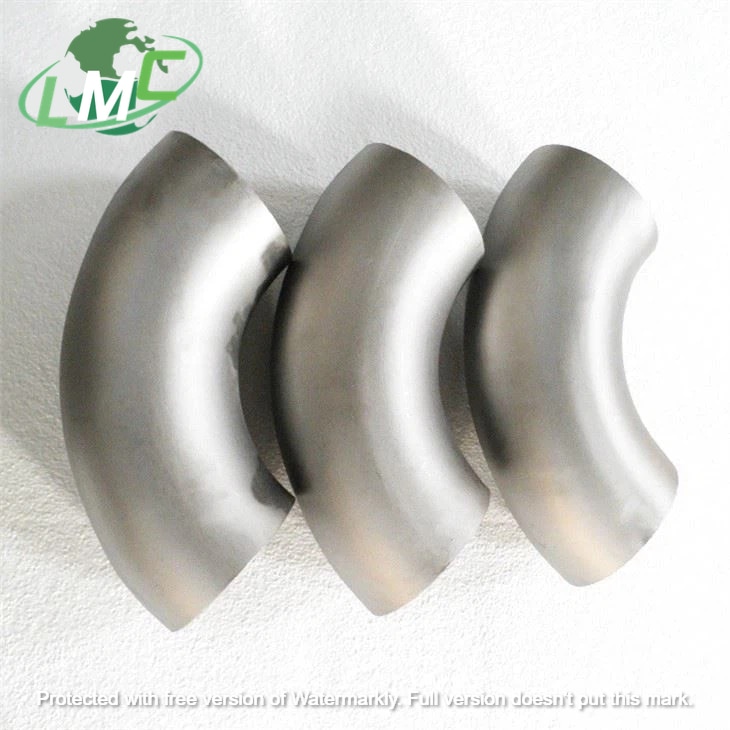

Product Name: Titanium welded Elbows Standard: ASME B16.9 Material: Gr1, Gr2, Gr7, Gr12 Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded Titanium welded Elbows Titanium elbow is a pipe fitting used to change the direction of the pipeline, with 45 degrees, 90 degrees, 180 degrees, and other non-standard angle elbows according to engineering needs. Titanium elbows can be classified as welding elbows, stamping elbows, casting elbows, butt welding elbows, etc. Titanium welded elbow features: high temperature resistance, corrosion resistance, pressure resistance, light weight, non-magnetic, non-toxic, strong stability, long life Product: Titanium elbow Type: Long Pattern Short Pattern Material: Pure titanium or Titanium alloy Gr1, GR2, GR3, GR4, GR7, GR9, GR12 Specifications- Outer diameter: DN15-1200 NPS 1/2"-48" Wall thickness: 1-15MM Sch5s-Sch160 Standard: ASTM B363, ASME B16.9, ASME SB363, ANSI B16.9 Technique: Welded, Forged, Rolled, Seamless Surface finished: Sand blasting, Polishing, Pickling Quality control: 100% of the X-ray detection (RT) 100% of Surface penetrant inspection (PT) Application: Chemical, Petroleum, Machinery, Industry, etc. Other products Caps, flingers, socket welding fittings, valves available Technical requirement: 1. Since most pipe fittings are used for welding, in order to improve the welding quality, the ends are turned into grooves, with a certain angle and a certain edge. This requirement is also strict. There are regulations on the thickness of the edge, the angle and the deviation range. The surface quality and mechanical properties are basically the same as those of pipes. For the convenience of welding, the steel grade of pipe fittings and connected pipes is the same 2. Packaging requirements: for small pipe fittings, such as export, wooden boxes need to be made, about 1m3. It is stipulated that the number of elbows in such boxes cannot exceed one ton. The standard allows suits, that is, large sets and small sets, but the total weight generally cannot exceed 1 ton. For large pieces, a single package is required, such as 24 ″ Must be packaged individually. Another is the packaging mark, which should indicate the size, material, batch number, manufacturer's trademark, etc. LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

Product Name: Titanium grade 1 elbows Standard: ASME B16.9 Material: Titanium Gr1 Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded Titanium grade 1 elbows Material: GR1 Ti Standard: ASTM B363, EN 10253, DIN 2065 Bend Degrees: 30, 45, 60, 90, 120, 180 degrees bend Type: R=1.0D, R=1.5D, R=3D Surface Treatment: Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing Classification of elbows: 1.Butt welding elbow can be divided into long radius butt welding elbow and short radius butt welding elbow according to its radius of curvature. The radius of curvature of long radius butt welding elbow is equal to 1.5 times the outer diameter of the pipe, i.e. r = 1.5D. The radius of curvature of short radius butt welding elbow is equal to the outer diameter of the pipe, i.e. r = 1D. Where D is the diameter of butt welding elbow and R is the radius of curvature. Unless otherwise specified, 1.5D elbow is generally selected. 2.According to the pressure level, there are: sch5s, sch10s, sch10, sch20, sch30, sch40s, STD, sch40, sch60, sch80s and XS; Sch80、Sch100、Sch120、Sch140、Sch160、XXS 3.According to the angle of elbow, there are 45 degree butt welding elbow, 90 degree butt welding elbow, 180 degree butt welding elbow and other elbows with different angles. LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

Being one of the leading organization in the market, highly involved in offering a broad range of Dished Ends as per DIN 28011 And DIN28013 to our esteemed customers. Our offered products are manufactured suing utmost quality raw material which is obtained from the authentic vendor if the supplier. Moreover, these products are accessible in different sizes and dimensions to suit the varied demands and needs of our customers.We Manufacture and Export Types Of Dishends / Endcaps / Heads ELLIPSOIDAL HEAD HEMISPHERICAL HEAD. TORISPHERICAL HEAD KLÖPPER HEAD KORBBOGEN HEAD Semi ellipsoidal head DIN28013 Flat dished heads Standard Flat dished heads Flat heads Convex Discs Plate Type Heads Diffuser Heads Cone , Bulk & Tank Vehicle Heads Weld Counstriction Special Pressed part Experienced In Making Grades Like Carbon steel,P265-GH, 16Mo3,15NiCuMoNb5, CrMo(V), Alloy steel, 10CrMo9-10,13CrMo4-5,ASME SA 387 Gr.11,Gr12,ASME SA 387 Gr.91,P355-Gh,-NH,-NL1,-NL2,ASME SA 516 Gr.60 , Gr.70,Stainless steel 1.4301,1.4307,1.4404,1.4541,1.4571,1.4539,1.4501,Stainless steel ASME SA240 304,304L,316,316l,321,321H,316Ti,904L,2205,Super Duplex 1.4462 , cr25,Nickel alloys Alloy 20,59,200,MONEL 400,INCONEL 600,601,625,INCOLOY 800,825, 825,Copper,Titanium Grade 2,Grade 5, Aluminium Test method: Impact -Test acc. to DIN EN 10045-2 Tensile test acc to DIN EN 10002-1 , ISO 6892-1 , ASTM A 370 Hot tensile test acc to DIN EN 10002-5 until 900°C Hardness Test acc. to Brinell and DIN EN ISO 6506-1 Testing of intercrystalline corrosion acc to ISO 3651-2 (A) , ASTM A 262 Pract. E X – Ray -Examination acc. to EN 1435 , ISO 5817 , ASME V Art.2 , VIII Div.1 § UW -51 UT - Ultrasonic testing acc. to EN 10160 , EN 10307 , ASME SA-578 , ASME SA-435 PT - Penetrant testing acc. to EN 571 , ASME V Art.6 , ASME VIII Div.1 App.8 MT- Magnetic particle testing acc. to EN 1291 , ASME V Art.7 , ASMEVIII Div.1 App.6 Certificate: Certificate acc. to EN 10204 - 3.1 and 3.2 from independent organization

Product Name: Titanium Jigs for coating Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Titanium jigs for plating Any project to anodize requires a reliable hanger/jig/rack, first to prevent it from falling to the bottom of the anodizing tank, and second to allow the current to be safely transferred from the jig to the workpiece. Anodic oxidation clamps are usually made of aluminum or titanium. Aluminum fixtures must of course be anodized and must be chemically stripped. Continuous anodizing and stripping can result in short service life, so there is no need to strip titanium after the anodizing process. Item Name: titanium jig for coating Size:Customized size is welcomed Material: Titanium Gr1, Gr2 Application,Electroplating industry Surface:Sand Blasting, Acid Washing Parameter:Current density≤2000A/M2 Temperature:<65°C PH: 0.1~14 Max content of Fluoride ion is 200PPM Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Titanium grade 7 elbows Standard: ASME B16.9 Material: Gr1, Gr2, Gr7, Gr12 Unit Price: $10usd/pc-$200usd/pc Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded Functions and features: 1. Elbow is used to install between two sections of pipe or pipe allowing direction change. 2. Save space, reduce weight, with sealing function. 3. Economic reliability. Production methods of titanium elbow: 1.Hot push forming The hot pushing elbow forming process is a process of heating, expanding and bending the blank sleeved on the die under the push of the pushing machine by using a special elbow pushing machine, core die and heating device. 2.Stamping forming Stamping forming elbow is the first forming process used in batch production of seamless elbow. It has been replaced by hot pushing method or other forming processes in the production of common specifications of elbow. However, it is still used in some specifications of elbow due to special requirements for products with small production quantity, too thick or too thin wall thickness. The pipe blank equal to the outer diameter of the elbow is used for the stamping forming of the elbow, and the press is used to press directly in the die. 3.Medium plate welding Use the medium plate to make half of the elbow section with a press, and then weld the two sections together. This process is generally used for elbows above DN700. Grade 7 (Ti-0.2Pd) titanium elbow Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

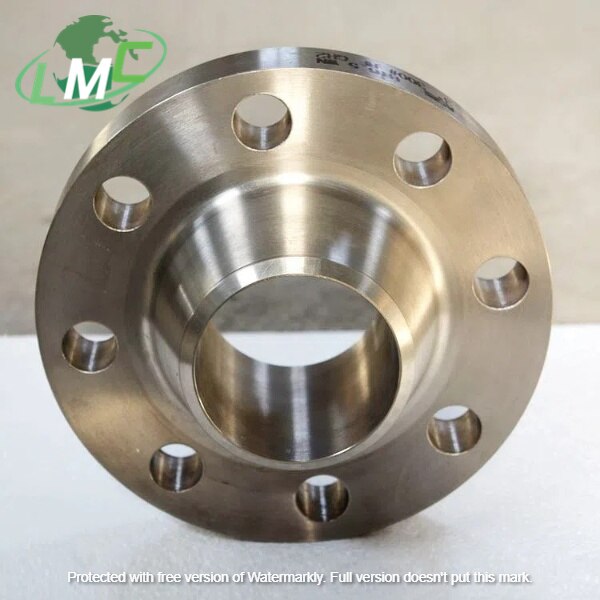

Product Name: Titanium Weld Neck Flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Application: Chemical industry Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 3 Pressure: Class 300 Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Available Flange types a.Slip On Flange b.Welding Neck Flange c.Threaded Flange(Screwed Flange) d.Plain Flange e.Blind Flange f.Lap Joint Flange g.Wocket Welding Flange h. welded flange i. titanium large-diameter flange Specification Titanium Weld Neck Flange Class 300 Nom. Pipe Size Flange Dia. Flange Thick. Hub Dia. At Base Raised Face Dia. Hub Dia. At Weld Point No. of Holes Dia. Of Bolts Dia. Of Bolt Circle Bore Dia. Length Thru Hub 1/2 3-3/4 9/16 1-1/2 1-3/8 0.84 4 2-5/8 1/2 0.62 2-1/16 3/4 4-5/8 5/8 1-7/8 1-11/16 1.05 4 3-1/4 5/8 0.82 2-1/4 1 4-7/8 11/16 2-1/8 2 1.32 4 3-1/2 5/8 1.05 2-7/16 1-1/4 5-1/4 3/4 2-1/2 2-1/2 1.66 4 3-7/8 5/8 1.38 2-9/16 1-1/2 6-1/8 13/16 2-3/4 2-7/8 1.90 4 4-1/2 3/4 1.61 2-11/16 2 6-1/2 7/8 3-5/16 3-5/8 2.38 8 5 5/8 2.07 2-3/4 2-1/2 7-1/2 1 3-15/16 4-1/8 2.88 8 5-7/8 3/4 2.47 3 3 8-1/4 1-1/8 4-5/8 5 3.50 8 6-5/8 3/4 3.07 3-1/8 Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

DIN 2527 Carbon Steel (C.S.) Blind Flanges are designed to seal the ends of pipes or vessels in industrial piping systems where no further connection is required. These blind flanges are made from carbon steel, which is known for its strength, durability, and cost-effectiveness. The DIN 2527 standard ensures that these flanges meet precise dimensional and mechanical requirements for reliability under various industrial conditions. Material Composition of Carbon Steel (C.S.) Blind Flanges: The material used in DIN 2527 carbon steel blind flanges typically includes carbon steel grades like St 37, St 52, or A105, which are commonly used for pressure-containing parts in piping systems. The general composition of carbon steel includes: Carbon (C): 0.05% to 0.25% – Provides strength and hardness. Manganese (Mn): 0.30% to 0.90% – Enhances toughness and strength. Silicon (Si): 0.10% to 0.60% – Adds strength and hardness. Phosphorus (P): Up to 0.04% – Ensures better toughness and workability. Sulfur (S): Up to 0.05% – Keeps the material ductile and machinable. Iron (Fe): The remainder of the material – Makes up the base composition. These carbon steel grades provide excellent mechanical properties, such as strength, ductility, and weldability, making them suitable for a wide range of applications in moderate temperature and pressure environments. Key Features of DIN 2527 Carbon Steel Blind Flanges: Temperature and Pressure Resistance: Operating Temperature: Carbon steel can withstand temperatures up to 400°C (752°F) without significant degradation. It is ideal for moderate temperature applications. Pressure Tolerance: DIN 2527 carbon steel blind flanges come with pressure ratings such as PN6, PN10, PN16, PN25, and higher, ensuring they can safely handle pressure in piping systems. Corrosion Resistance: Carbon steel is not highly resistant to corrosion, especially in moisture, chlorides, or acidic environments. To enhance the corrosion resistance, these flanges can be galvanized or coated (with zinc or paint), which helps in increasing their durability in mildly corrosive environments. Strength and Durability: Carbon steel offers high strength and good toughness under moderate stress and pressure conditions. It is stronger than mild steel, providing a reliable seal for general industrial use. Dimensional Accuracy and Pressure Class: The DIN 2527 standard ensures precise dimensional accuracy, enabling easy and reliable installation. Carbon steel blind flanges come in different pressure ratings like PN6, PN10, PN16, and PN25, providing flexibility based on the system's pressure requirements. Design and Types of DIN 2527 Carbon Steel Blind Flanges: Standard Blind Flange (Type A): A solid circular flange used for general isolation of pipeline sections where no further connection is needed. Flat-Faced Blind Flange: This flange features a flat sealing surface, making it suitable for low-pressure systems or applications where a tight seal is not required. Raised Face Blind Flange: Has a raised surface for a better seal in medium-to-high-pressure systems, where the flange is bolted to a matching raised face of another flange. Ring-Type Joint (RTJ) Blind Flange: Used in high-pressure systems, this flange has a groove that holds an RTJ gasket, offering a superior seal under high-pressure conditions. Long Weld Neck Blind Flange: Features an extended neck for welding to the pipe, providing additional strength and making it suitable for high-pressure or high-stress applications. Nominal Diameter: Available in a wide range of nominal diameters (e.g., DN10, DN50, DN150, DN600), ensuring compatibility with different pipe sizes and system requirements.

DIN 2527 Titanium Blind Flanges are specialized components used to seal the open ends of pipes, vessels, or other equipment in industrial systems where no further connection is required. Made from Titanium alloys, these flanges offer a combination of high strength, excellent corrosion resistance, and light weight, making them an ideal choice for applications in demanding environments. Manufactured according to the DIN 2527 standard, these flanges ensure high levels of dimensional accuracy, pressure tolerance, and mechanical strength, which are critical for maintaining the integrity of piping systems. Material Composition of Titanium Alloys: Titanium alloys used for DIN 2527 Blind Flanges typically include: Grade 2 Titanium (Commercially Pure Titanium): Titanium (Ti): 99.2% min Iron (Fe): 0.30% max Oxygen (O): 0.25% max Carbon (C): 0.08% max Nitrogen (N): 0.03% max Hydrogen (H): 0.015% max Grade 5 Titanium (Ti-6Al-4V): Titanium (Ti): 90.0% min Aluminum (Al): 6.0% - 7.0% Vanadium (V): 3.5% - 4.5% Iron (Fe): 0.25% max Oxygen (O): 0.20% max Carbon (C): 0.10% max Nitrogen (N): 0.05% max Hydrogen (H): 0.015% max Key Features of DIN 2527 Titanium Blind Flanges: Corrosion Resistance: Titanium is highly resistant to corrosion, especially in chloride, seawater, and acidic environments, making Titanium Blind Flanges ideal for use in marine, chemical, and offshore applications. Titanium alloys offer superior resistance to pitting, crevice corrosion, and stress corrosion cracking, even in extreme environments like high salinity and acidic conditions. High Strength-to-Weight Ratio: Titanium has an excellent strength-to-weight ratio, making it significantly stronger than many steel alloys while being much lighter. This is particularly beneficial in industries where weight reduction is essential, such as aerospace and marine industries. Temperature Resistance: Titanium alloys can withstand high temperatures, with Grade 2 Titanium performing well at up to 400°C (752°F) and Grade 5 Titanium being suitable for continuous service at up to 400°C (752°F) as well, with intermittent exposure to even higher temperatures. Dimensional Accuracy and Pressure Class: DIN 2527 Titanium Blind Flanges are manufactured to precise dimensions, ensuring a secure seal within the piping system. Available in different pressure classes such as PN6, PN10, PN16, etc., ensuring compatibility with a wide range of piping systems. Design Options: Standard Blind Flange (Type A): A solid, circular disc used to seal the end of a pipe or vessel. Commonly used in general applications. Flat-Faced Blind Flange: Features a flat sealing surface, ideal for low-pressure systems. Raised Face Blind Flange: Includes a raised area around the center for improved sealing in higher pressure systems. Ring-Type Joint (RTJ) Blind Flange: Designed with a groove to accommodate a ring-type joint gasket, used for high-pressure applications, particularly in the oil and gas industry. Long Weld Neck Blind Flange: Features an extended neck for welding, providing additional strength and stability, commonly used in high-pressure or high-stress systems. Nominal Diameter: DIN 2527 Titanium Blind Flanges are available in a variety of nominal diameters (DN), typically ranging from DN10 (1/2 inch) up to DN600 (24 inches) or more, based on the application needs.
