Product Name: Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Bright Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25 Features of our company's titanium welding wire: 　　1. Manufactured by a non-oxidized roll mold cold drawing process 　　2, the welding wire has uniform structure and fine grains 　　3, high dimensional accuracy, no defects, excellent follow-up processing performance 　　4, the composition of various elements in the material and the mechanical properties of the material can be effectively controlled

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet Product Information Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tube Plate for Heat Exchanger Product Description Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet. Grade: GR1, GR2, GR5, GR7, GR12 etc. OD: 150-2500mm Thickness: 30-250mm Physical Properties

Titanium jigs for plating Any project to anodize requires a reliable hanger/jig/rack, first to prevent it from falling to the bottom of the anodizing tank, and second to allow the current to be safely transferred from the jig to the workpiece. Anodic oxidation clamps are usually made of aluminum or titanium. Aluminum fixtures must of course be anodized and must be chemically stripped. Continuous anodizing and stripping can result in short service life, so there is no need to strip titanium after the anodizing process. Item Name: titanium jig for coating Size:Customized size is welcomed Material: Titanium Gr1, Gr2 Application,Electroplating industry Surface:Sand Blasting, Acid Washing Parameter:Current density≤2000A/M2 Temperature:<65°C PH: 0.1~14 Max content of Fluoride ion is 200PPM Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

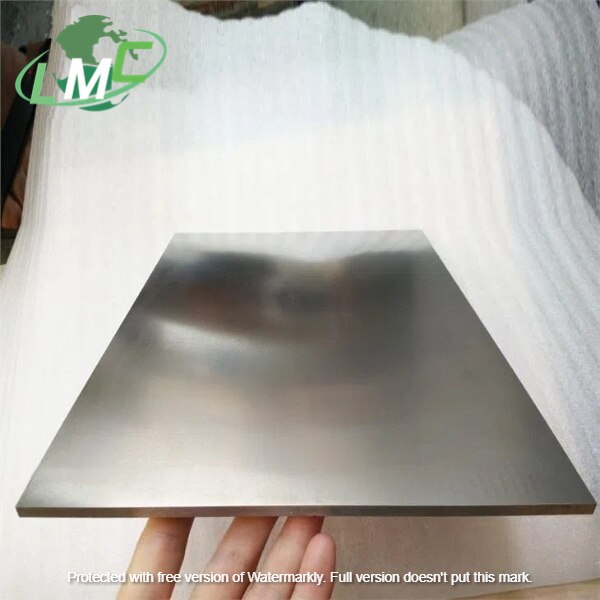

Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Product Introduction Titaniu plates and titanium alloy plates are mainly used to manufacture various containers, reactors, heat exchangers, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as a titanium cathode and condenser in power stations, as well as environmental pollution control devices. The hardness of steel is higher than that of titanium plate, but the specific strength or tensile strength of titanium alloy is higher than that of high-quality steel. Titanium alloy has good heat resistance, low temperature toughness and fracture toughness, so it is mostly used as aircraft engine parts and rocket and missile structural parts. Titanium alloy can also be used as fuel and oxidant storage tanks and high-pressure vessels. There are already automatic rifles, mortar seat plates and recoilless gun launch tubes made of titanium alloy. Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Thickness: 0.5-60mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Status and specifications of titanium plates Grade Technique Status Thickness Gr1 Gr2 Gr3 Gr4 (pure titanium plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.3-4mm Gr5 Gr7 Gr12 etc. (Titanium alloy plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.8-4.0mm

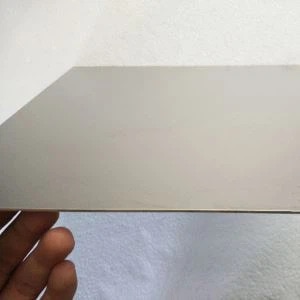

Name: Titanium plate Standard: ASTM B265 Grade: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Thickness: 8mm Titanium sheet has found favour in industries such as aerospace, power generation, petrochemical and automotive. Offering extra-high strength and low weight, the alloys high tensile strength combined with low heat transfer make it highly suitable for a range of engineering applications. Titanium sheet is an excellent material for high-volume production of components by stamping or waterjet cutting. However, the alloy must be cold cut if chemical characteristics are to be maintained since titanium is reactive to heat.

Porduct name : Titanium Tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Tube sheet The titanium tube plate/Titanium clad steel tube plates is a round sheet drilled with circular throught holes. The titanium steel composite plate shall be slightly larger than the outer diameter of the pipe. It is widely used in the field of heat exchanger and plays the role of fixing pipeline and sealing medium in heat exchanger.

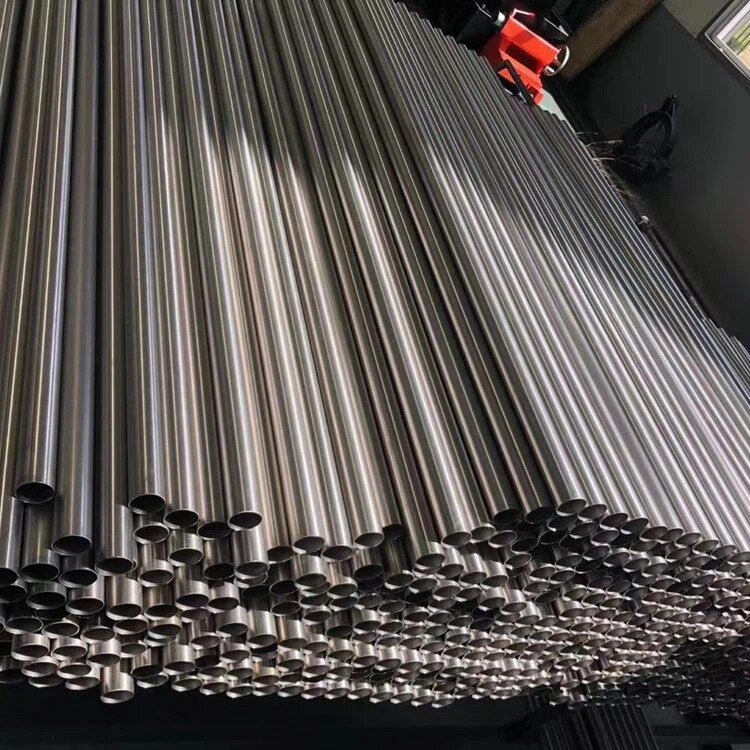

Product name: ASTM B338 titanium Seamless Tubes for Condensers Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled ASTM B338 titanium Seamless Tubes for Condensers ASTM B338 Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers ASTM B338 covers 28 grades of seamless and welded titanium alloy tubes for surface condensers, evaporators, and heat exchangers. Standard ASTM B338, ASME SB338 Regular Grade Grade 1 Grade 2 Outer Diameter 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc. Wall thickness 0.9mm/1.0mm/1.2mm/1.5mm Length 3000 - 6000mm or other economical lengths Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF Form Straight titanium Pipe, Coiled titanium tube Type Seamless, ERW, EFW, Welded, Fabricated End Plain End, Beveled End, Treaded Marking Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.) Application Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger Value Added Service Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. Test Certificate Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2 Precautions for titanium pipe processing: During the deformation process, titanium pipe will gradually reduce wall and diameter with the rotation and feeding of the rolling mill. The pipe size required by the process can be obtained only after 5 ~ 10 rolling and finishing in one rolling pass. The cold rolling pipe mill can carry out large diameter reduction and wall reduction, but the dimensional accuracy is low after rolling, and the pipe end is prone to cracking, uneven concave convex and other phenomena. The cracking phenomenon can be solved mainly by grinding and leveling before pipe blank processing; For the uneven pipe end, similar to the "fish mouth" phenomenon, flat head treatment is required in the subsequent processing process, otherwise it will cause the plug stuffy accident. Therefore, this paper analyzes from the aspects of process, tooling and equipment, in order to find out the causes of uneven concave convex of pipe end and take effective measures to solve it. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Half Round Tube Shield Half Round Tube Shields by Ladhani Metal Corporation are robust, precision-fabricated protective sleeves designed to guard the outer surfaces of tubes in boilers, heat exchangers, incinerators, and high-temperature processing equipment. Engineered to extend the service life of tubes exposed to corrosive gases, abrasive particulates, and elevated temperatures, these shields provide a reliable barrier against mechanical and chemical degradation. The half-round design facilitates easy installation while ensuring a secure, form-fitting layer of defense. 1Cr13 Half Round Tube Shield The 1Cr13 Half Round Tube Shield is a semi-cylindrical component manufactured from martensitic stainless steel containing approximately 13% chromium. Classified under the 1Cr13 grade, this alloy delivers good corrosion resistance, excellent wear performance, and moderate strength at elevated temperatures. It is especially suited for thermal environments that are not extremely oxidizing or carburizing but where erosion and mechanical wear are a concern. With a higher hardness potential through heat treatment and moderate thermal resistance, 1Cr13 shields are ideal for applications involving flue gas exposure, soot-laden atmospheres, and temperature cycling. The shield’s half-round configuration is precision-engineered for optimal tube coverage and long-term durability. It offers a balance of strength, corrosion resistance, and cost-effectiveness, making it suitable for a wide range of industrial processes. Chemical Composition of 1Cr13 – Martensitic Stainless Steel • Carbon (C): 0.15 – 0.20% • Silicon (Si): ≤ 1.00% • Manganese (Mn): ≤ 1.00% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.030% • Chromium (Cr): 12.0 – 14.0% • Nickel (Ni): ≤ 0.60% • Iron (Fe): Balance Uses • Boiler Tube Protection – Shields tube surfaces from flue gas erosion, ash particle abrasion, and soot buildup in economizers and waterwalls. • Heat Exchanger Tubes – Provides an extra layer of wear resistance in zones prone to mechanical stress and fluid turbulence. • Incinerator and Waste Heat Units – Guards tubes exposed to fluctuating temperatures, slag, and particulate deposits. • Cement Plant Piping – Protects tubing and ducts in kiln exhaust systems from abrasive dust and high flow velocity. • Air Preheaters and Recuperators – Enhances the durability of components subjected to temperature variations and corrosive gases. Features • Moderate Oxidation Resistance – Chromium content enables good performance in mildly oxidizing environments and intermittent exposure to high temperatures. • Wear and Abrasion Resistance – Martensitic structure offers high surface hardness and resistance to mechanical wear. • Heat Treatable – Can be hardened to increase durability and resistance to deformation. • Cost-Effective – Provides a lower-cost alternative to austenitic and superalloy shields for moderate service conditions. • High Dimensional Accuracy – Manufactured with tight tolerances to ensure secure fitment and uniform tube coverage. • Convenient Installation – Half-round shape enables quick mounting through welding or clamping techniques. • Versatile Finishing Options – Supplied with pickled or mechanically polished surfaces to improve corrosion resistance and adhesion. Applications • Power Generation – Used in economizer, preheater, and convection sections of boilers to prevent erosion and fouling. • Chemical and Fertilizer Plants – Protects exposed tube surfaces in systems with moderate chemical exposure. • Metallurgical Furnaces – Shields mechanical and flue components exposed to particulate movement and temperature cycling. • Pulp and Paper Industry – Used in recovery boilers and heat exchangers where corrosion resistance and mechanical strength are both required. • Petrochemical Plants – Applied in lower-temperature zones where scaling and erosion are primary concerns. Conclusion The 1Cr13 Half Round Tube Shield by Ladhani Metal Corporation provides an optimal solution for industrial tube protection in moderate temperature and corrosion environments. Its martensitic stainless steel composition ensures excellent wear resistance, good oxidation stability, and structural strength at a competitive cost. Designed for easy installation and reliable performance, these shields are ideal for various applications in power, process, and heat recovery systems. Custom-built to meet specific dimensions, material thicknesses, and finishing preferences, 1Cr13 tube shields offer dependable service life extension for critical heat transfer equipment. For technical specifications, pricing, or customization inquiries, please contact Ladhani Metal Corporation.
