Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Titanium Grade 2 Bar Compared with other commercial pure titanium grades, titanium grade 2 bar has higher iron and oxygen content. This higher content of iron and oxygen gives titanium grade 2 bar excellent formability and moderate tensile strength characteristics, as well as excellent corrosion resistance.

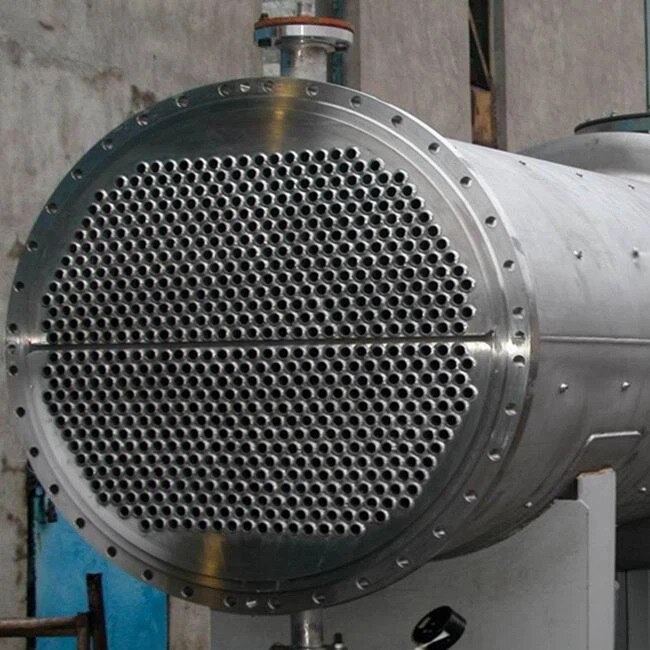

Product name:Titanium Shell and Tube Heat Exchangers Materials: stainless stainll Shell/gr2 titanium shell + Gr2 Pure Titanium Tube Special Use: Cooling, Evaporator Net Weight: Customizable Application: High temperature and pressure corrode fluids,seawater,saltwater,brine water etc. Titanium Shell and Tube Heat Exchangers Shell and tube heat exchanger, It is an inter wall heat exchanger with the wall of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger is simple in structure and reliable in operation. It can be made of various structural materials (mainly metal materials)It is composed of tube plate, shell, tube bundle and other parts. and can be used under high temperature and high pressure. It is the most widely used type at present -this is mainly due to their versatility. Applicable Industry: it plays an important role in chemical, petroleum, power, food and many other industrial production. In chemical production, it can be used as heater, cooler, condenser, evaporator and reboiler. Titanium Shell and Tube Heat Exchangers 17 Dimension(L*W*H) Customized Set Tempreture Customized Transport Package Wooden Packing Takeover Diameter Customized Liquid Flow Customized Plate Material Titanium/Stainless steel etc. Plate Thickness Heat exchange tube Customized A heat exchanger system facilitates the transfer of heat energy from one system to another. You can use them for both heating and cooling processes. Although you can make heat exchangers from different metals, these systems are made from titanium metal. Unlike the other predecessors, titanium heat exchangers are totally immune to corrosion. However, to work at full efficiency the device requires more surface area and a higher fluid flow rate. In most cases, you will find coil patterns. This is because they maximize the surface area of the tubes.

Product Name: 20mm Titanium Round Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright 20mm Titanium Round Bar Titanium rod is our main product. Unique titanium alloy manufactures and supplies titanium rods/rods in round, square and hexagonal bar forms. Available sizes from diameter 2.0 to diameter 400mm×L, length can reach 6m or cut to any size required by customers. For small diameter titanium rods (ф <18mm), we can make the tolerance H7. The production capacity reaches 100 tons per month. In addition, we have a large stock of bars as well as a large number of titanium ingots/blanks, which allows us to complete orders with minimal lead times.

Product name: Titanium Gr. 7 Round Bars Material grade: Grade 7 (Ti-0.2Pd) Standard : ASTM B348 Size: Dia 5--200mm * Max L6000mm Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished

Product Name: Titanium Gr 5 flanges Standard: ASME B16.5 Material: Gr5 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Titanium Gr 5 Flanges Product name: Titanium flange,titanium wn flange,titanium blind flange, titanium so flange, titanium alloy flange, titanium flange in stock,ANSI B16.5 titanium flange Material: Gr5 Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628 Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) . Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB. Sealing Surface: RF, FF, TG, RJ etc. Technique: Forged and CNC Machined Inspection: UT% , PT% Certificate: ISO9001, TUV etc. Chemical composition (Wt%) Grade Ti C Fe H N O Al V Ti Grade5 90 min – 0.25 max – – 0.2 max 6 min 4 min Physical Properties (Min) Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

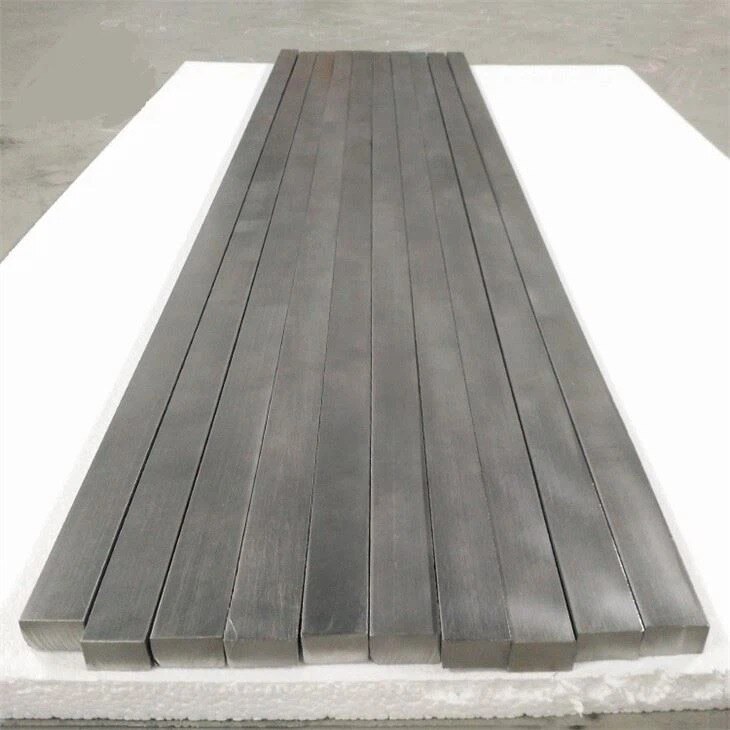

Product name: Grade 5 Titanium Flat Bar Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard : ASTM B348 Size:6.35x6.35*L, 6.35x12.7*L, 9.5x9.5*L, 12.7x12.7xL, 12.7x25.4xL, 19.05x19.05xL, 25.4x25.4*L etc. Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished Grade 5 Titanium flat bar Our company is engaged in the production and supply of Grade 5 Titanium Flat Bar. Our ASTM B348 titanium flat rod has longer service life and durability. Our titanium UNS R50400 is manufactured using the best quality resources in our comprehensive inventory. Nexus Stainless Steel LLC partners is efficient enough to meet a large number of titanium flat orders that meet national and international quality standards. ASTM B348 titanium flat steel we produce varies in size and length and is suitable for many industries. We also accept custom orders and produce a variety of titanium rods according to customer requirements. We tested the product several times before shipment. Some of the tests performed on our ASTM B348 titanium flat rods include hardness tests, flattening tests, micro and macro tests, mechanical tests such as zone tensile and intergranular corrosion (IGC) testsb

Product name: 25mm Titanium Bar Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard : ASTM B348,ASTM B381, ASTM F136, ASTM F67,AMS 4928 Size: Dia 5--200mm * Max L6000mm Applications :Industry, aviation, military etc. Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished MOQ : 10kgs Feature : low density, special strong strength, excellent corrosive resistance 25mm gr5 Titanium Bar Titanium bar has many advantages: 1.Titanium Bright Bar has a low thermal expansion, which puts it at 1/3rd that of aluminium. 2.Titanium Alloy Round Rod is light in weight, which would put the specific gravity of this metal at about 1.7 times that of aluminium. and about 60% of specific gravity of steel. 3.Titanium Alloy Hexagon Bars tend to be non-magnetic in nature. 4.The heat conductivity of Titanium Alloy Square Bar is low, and is nearly the same as grade 18-8 stainless steel. Similarly, the electric conductivity of the alloy is low and the electric conductivity of titanium Cold Finished Bar about 3% of copper. 5.Titanium Polished Bar has high flexibility i.e. its Longitudinal elastic modulus. Which means that the flexibility of ASTM B348 Ti Alloy Hex Bar is one half of iron or stainless steel and it is the same as copper. Product name 25mm Titanium Bar,grade 2 titanium bar , grade 5 titanium bar ,grade 7 titanium bar,titanium bar price per kg Material Titanium, pure titanium Standard ASTM B348, ASTM F136, ASTM F67, ASTM F136, ISO-5832-2(3), AMS4928 etc. Titanium Grade Round Bar Sizes Minimum diameter: 0.040 inch or 1.00 mm Maximum diameter: 14.000 inch or 400.00 mm Type Ti square bar, Ti round bar, Ti hexagonal bar, Ti flat bar, Titanium Alloy Bars, Ti Billets, Forgings, and Forging Stock Condition R/M /Y ASTM B348 Ti Alloy Hex Bar size 2-100mm A/F Titanium Alloy Flat bar size Thickness: 2 -100mm Width: 10 to 500mm Pure Titanium Square bar size 4 to 100mm AMS Specificaton of Titanium Round Bar ASTM B348 (Grade 5), ASTM B348 (Grade 2), ASTM B348 (Grade 4), ASTM B348 (Grade 23), ASTM F67 (Grade 2), ASTM F67 (Grade 4), ASTM F136, ASTM F1472, MIL-T-9047 (6AL-4V), MIL-T-9047 (6AL-4V ELI), MIL-T-9047 (6AL-6V-2SN), MIL-T-9047 (CP-70 GR.4), AMS 6935, AMS 6936, AMS-T-9047 (6AL-4V), AMS-T-9047 (6AL-4V ELI), AMS-T-9047 (6AL-6V-2SN), AMS-T-9047 (CP-70 GR.4), DMS 1570, DMS 1583, AMS 4971, AMS 4921, AMS 4928, AMS 4930, AMS 4965, AMS 4967, AMS 4978, AMS 4979, AMS 6930, AMS 6931 and More. Titanium Angle bar size (in mm) 3*20*20~12*100*100 ASTM B348 Titanium Section 3.0 to 12.0mm thickness Titanium ASTM B348 Channel Bar (in mm) 80 x 40 to 150 x 75 section; 5.0 to 6.0 thickness Pure Titanium Hollow Bar (in mm) 32 OD x 16 ID to 250 OD x 200 ID) Titanium Alloy Billet Size 1/2" to 495mm Diameter ASTM B348 Ti Alloy Rectangles Size 33 x 30mm to 295 x 1066mm ASTM B348 Ti Alloy Round Bar Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black ASTM B348 Ti Round Bar Surface Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline Titanium Round Bar Uses chemical industry, Industrial, medical industry, military industry etc Titanium round bar Condition Hardened & tempered, annealed ASTM B348 Ti Alloy Bar Technique Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod Titanium Alloy Round Bar Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements Alloy Titanium Bar Processing Bar cutting to 650mm Standard Specification : ASTM B348 / ASME SB348 UNS grade Products Grade 1 - UNS R50250Grade 2 - UNS R50400Grade 5 - UNS R56400 Grade 7 - UNS R52400 Grade 9 - UNS R56320 Grade 12 - UNS R53400 Titanium Round Bar Titanium Rod Titanium Hex Bar Titanium Flat Bar Titanium Rods Titanium Square Bar Type SIZES (mm) SIZES (Inches) ISO Tolerance Titanium Alloy Cold Drawn and Polish Round Bar 3.00 – 75.00 1/8" – 3.00" h8-h9-h10-h11 Titanium Cold Drawn and Ground Bar 10.00 – 75.00 5/6" – 2.50" h8-h9-h10-h11 ASTM B348 Ti Alloy Peeled and Polished Round Bar 40.00 – 150.00 1.50" – 6.00" h11, h11-DIN 1013 Titanium Alloy Peeled and Ground Bar 20.00 – 50.00 3/4″ – 2.00" h9-h10-h11 Titanium Alloy Bars Standard lengths of 2000 mm up to 6010 mm. Cut to size on request (tolerance +2/-0 mm).

Tungsten-Copper Industrial Ring is a high-performance component made from an alloy of tungsten (W) and copper (Cu), combining the exceptional properties of both metals. This industrial ring is specifically designed for applications requiring both high strength and excellent thermal and electrical conductivity. The unique characteristics of tungsten-copper alloys make these rings suitable for use in industries such as aerospace, electronics, manufacturing, and energy, where they can withstand extreme conditions. Properties: · Density: Tungsten-copper industrial rings are very dense, with a specific gravity ranging between 17 g/cm³ and 19 g/cm³. The high density of the tungsten gives the ring its strength and mass, making it suitable for applications where weight or stability is important. · Color and Appearance: Tungsten-copper industrial rings generally have a metallic gray or brownish appearance due to the tungsten content, and the copper gives the ring a slightly reddish hue, depending on the specific ratio of the metals. · Size and Shape: These rings are typically available in various diameters and thicknesses depending on the application. Custom dimensions and designs can be produced to meet specific performance or size requirements. The rings can be precisely machined or cast to the desired specifications. · Strength: Tungsten provides the ring with high tensile strength, making it resistant to wear, deformation, and mechanical stress. The copper content improves overall impact resistance, reducing the risk of cracking under extreme conditions. · Hardness: Tungsten has a high level of hardness, which allows the industrial ring to resist abrasions, indentations, and general wear. However, copper improves the machinability of the alloy, enabling more complex shapes and designs. Applications of Tungsten-Copper Industrial Ring: · Heat Shields: Due to their high thermal conductivity and strength, tungsten-copper industrial rings are used in aerospace applications like heat shields and rocket nozzles, which must withstand extreme temperatures during flight. · Counterweights: Tungsten's high density makes it ideal for use in counterweights for aerospace structures or systems where weight distribution is critical. · Electrical Contacts: Tungsten-copper industrial rings are used in high-voltage electrical contacts due to their electrical conductivity and ability to manage heat dissipation. They are found in commutators, switches, and connectors where both conductivity and wear resistance are essential. · Heat Sinks: The thermal conductivity of tungsten-copper alloys makes these rings ideal for heat dissipation in power electronics or LED lights, where managing heat is crucial for performance. · Welding Electrodes: Tungsten-copper industrial rings can also be used in welding electrodes, particularly for arc welding applications where the material must endure extreme temperatures and provide stable electrical conduction.

Product name: Gr.5 titanium alloy bar Material: Ti6al4v (grade 5) Standard : ASTM B348 AMS 4928 ASTM F136 Size: Dia 5--200mm * Max L6000mm Grade 5 titanium rod belongs to α - β alloy, which is the most widely used titanium alloy material. GR5 titanium has good mechanical properties and hardness. Its density is the same with pure titanium: 4.51g/cm3, and its corrosion resistance is as good as that of pure titanium. Widely used in aerospace industry, marine industry, power generation, oil and natural gas, etc. The diameter of titanium rod ranges from 5mm to 500mm, and the length from 50mm to 6000mm. The size can also be customized according to the needs of customers. In addition to the round titanium rod, we also improved other shapes, such as flat titanium rod, square titanium rod and hexagonal titanium rod.
