'heat exchange tube'

Product name:Titanium Shell and Tube Heat Exchangers Materials: stainless stainll Shell/gr2 titanium shell + Gr2 Pure Titanium Tube Special Use: Cooling, Evaporator Net Weight: Customizable Application: High temperature and pressure corrode fluids,seawater,saltwater,brine water etc. Titanium Shell and Tube Heat Exchangers Shell and tube heat exchanger, It is an inter wall heat exchanger with the wall of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger is simple in structure and reliable in operation. It can be made of various structural materials (mainly metal materials)It is composed of tube plate, shell, tube bundle and other parts. and can be used under high temperature and high pressure. It is the most widely used type at present -this is mainly due to their versatility. Applicable Industry: it plays an important role in chemical, petroleum, power, food and many other industrial production. In chemical production, it can be used as heater, cooler, condenser, evaporator and reboiler. Titanium Shell and Tube Heat Exchangers 17 Dimension(L*W*H) Customized Set Tempreture Customized Transport Package Wooden Packing Takeover Diameter Customized Liquid Flow Customized Plate Material Titanium/Stainless steel etc. Plate Thickness Heat exchange tube Customized A heat exchanger system facilitates the transfer of heat energy from one system to another. You can use them for both heating and cooling processes. Although you can make heat exchangers from different metals, these systems are made from titanium metal. Unlike the other predecessors, titanium heat exchangers are totally immune to corrosion. However, to work at full efficiency the device requires more surface area and a higher fluid flow rate. In most cases, you will find coil patterns. This is because they maximize the surface area of the tubes.

FAILED

Product Name: Titanium seamless pipe for heat exchanger Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless Shape: Round Outer Diameter: 21.3mm-609.6mm etc. Wall Thickness: 1.24-30mm Length: Max 16000mm Surface: Bright Titanium seamless pipe for heat exchanger The grade 2 titanium tube consists of commercial pure titanium or Unalloyed titanium. The oxygen content of grade 2 is standard. ASTM b861 GR 2 pipes can be easily welded. It also has excellent strength and ductility. The natural strength of metal is used for applications requiring very high strength, and the corrosion resistance is used for long-term appliances. Although most use cases are in industrial standards, titanium grade 2 seamless pipes can also be used in aesthetic and home applications. Due to the cost of raw materials and production costs, the cost is very high. The content of titanium in commercial pure CP grade 2 titanium welded pipe exceeds 99%. It can be cold drawn into titanium seamless pipe or hot rolled into welded pipe. They are used in high temperature applications, such as titanium 2-stage exhaust pipes, which can maintain their shape due to their high thermal conductivity, low thermal expansion and high oxidation resistance at high temperatures.

FAILED

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet for Heat Exchanger Product Information Tubesheet is a circular plate drilled with holes of the same diameter as the pipe. It is used for the heat exchanger to fix the pipe. An accessory that accomplishes this by passing a pipe through and welding it in place. The precision of tubesheet processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, have a great impact on the assembly and performance of the above-mentioned chemical equipment. With the enlargement of chemical equipment and power stations, the diameter of tubesheets has become larger and larger. Tubesheet with a diameter of 4m-5m is very common. The characteristics of large tubesheet are many tube holes, compactness, small hole diameter, deepness, high precision, and high finish requirements.

FAILED

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tube Plate for Heat Exchanger Product Description Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet. Grade: GR1, GR2, GR5, GR7, GR12 etc. OD: 150-2500mm Thickness: 30-250mm Physical Properties

FAILED

Product Name: Gr1 Titanium Shell & Tube Heat Exchangers Material:Titanium Gr1 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc. Gr1 Titanium Shell & Tube Heat Exchangers Relying on various excellent properties of industrial pure titanium, titanium heat exchanger is widely used in many industries and fields, such as seafood breeding, seawater heat exchange, brine heat exchange, chemical industry, food, metallurgy, refrigeration, light industry, electroplating industry, aluminum oxidation tank, salt making, papermaking, acoustic wave, electronic communication, central heating and so on. Product Name: Gr1 Titanium Shell & Tube Heat Exchangers Core Components:titanium tube, shell Condition:New Structure:Tube Heat Exchanger Maximum Working Pressure:0.1MPa Voltage:design as your need Weight:light in weight Dimension(L*W*H):customized Titanium tube material:gr1 titanium Tube thickness:0.9mm/1.2mm/2mm Shell material:titanium or titanium clad material Tube type:seamless or welded Titanium density:4.51g/cm3 MOQ:1set Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Ordinary Product Warranty of core components:1 Year After Warranty Service:Video technical support Applicable Industries:Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, other

FAILED

Product Name: Shell And Tube Type Gr2 Titanium tube Heat Exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Gr2 Titanium tube Heat Exchanger Titanium heat exchanger is a kind of heat exchanger made of titanium tube, which transfers part of the heat of hot fluid to cold fluid. It has many advantages of industrial pure titanium. It is a common equipment in many industrial departments such as chemical industry, petroleum, electric power, food and so on. Product Name Industrial Titanium tube heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Competitive Advantage 1.ISO9001:2008 2.Timely delivery rate is 99.8%,sometimes in advance. 3.Excellent after sale service. 4.Rapid enquiry reply, within 2 hours. 5.Fair payment term 6.Proffessional technical adviser 7.Material certificate 8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process, surface treatment, inspectation and testing).

FAILED

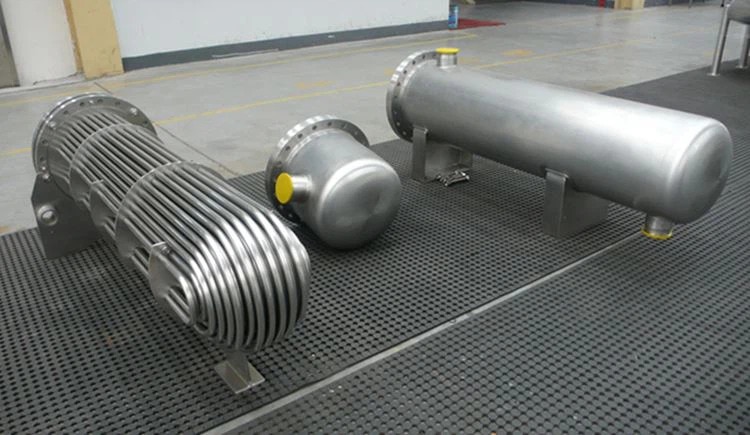

Product Name: Titanium U-tube heat exchanger Material:Gr1 Gr2 Gr7 Gr12 titanium Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Titanium U-tube heat exchanger U-shaped tube heat exchanger, is a shell and tube heat exchanger, it is composed of tube-plate, shell, tube bundle and other parts. Under the same diameter, the heat transfer area of u-tube heat exchanger is the largest. It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and lowest cost under high temperature and high pressure; U-tube heat exchanger has only one tube plate, good thermal compensation performance, strong bearing capacity, suitable for high temperature and high pressure operating conditions. Name: Titanium U-tube heat exchanger Material: Gr1 Gr2 Gr7 Gr12 titanium Structure: tube box, barrel, head, heat exchange tube, etc Advantages: simple structure, low cost Disadvantages: High rejection rate Application: Suitable for high temperature and high pressure corrosive fluid Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

FAILED

Product Name: Titanium anodizing jigs Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished What is a titanium anodizing jigs/titanium jig/titanium rack? Titanium installation in electroplating production is mainly conducted, supported and fixed parts, pendants and electrode connections, so that the current is more evenly transmitted to the parts for electroplating. In some cases, the uniform distribution of the coating can also be compensated by a suspension because the solution properties limit it. Item Anodizing Tianium jig/rack Size Customsed size Material Titanium Size(mm)in Bulk Stock 20/30/50 teeth Can be customized Grade Gr1 Gr2 Performance Corrosion-resisant Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) of Titanium Anodizing Jigs ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

FAILED

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright r2 Titanium Seamless Tube For Heat Exchanger Gr1 Gr2 industrial pure titanium pipe mechanical properties and physical properties are similar to stainless steel pipe. It is good plasticity, easy processing molding,easy stamping, good welding performance. In the atmosphere and seawate ,titanium is with good corrosion resistance.The oxidation resistance is also stronger than stainless steel, but low heat resistance. It is mainly used for stamping parts and corrosion-resistant parts with little force but high plasticity, such as aircraft skeleton, ship pipelines, valves, heat exchangers, distillation towers, cold zone devices, compressor valves and so on. High plasticity parts is required to use Gr1 titanium, and the most widely used is Gr2 for other parts.Gr2 Titanium seamless fube for heat exchanger is based on the standard of ASTM B338,with strict quality and testing requirements. The titanium tubes manufactured by our factory can meet the standards and can be well used in the heat exchanger industry. Detailed Information Material: Gr1, Gr2 Standard: ASTM B338 Size: OD9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc., WT0.5-3.0mm , L Max 12000mm Wall thickness tolerance: +/- 10% Length tolerance: +3.2mm Type: Welded/Seamless Surface: Polishing, Pickling LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

FAILED
