Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Dish Head Product Information Other Names: Titanium Elliptical Head, Titanium Spherical Head, Titanium Elliptical End, Titanium Elliptical Cap, Titanium Dished Elliptical Head, Titanium Spherical End, Titanium Elliptical Cap, Titanium Dished Spherical Head etc. Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc. Grade: GR1, GR2, GR5, GR7, GR12 OD: 300-2500mm Thickness: 2-300mm Production Process: Cold Forming, Hot Forming Surface Treatment: Sand Blasting, Pickling, Coating etc. Application: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Hemispherical heads Titanium Spherical Heads ,aso called Titanium dish head,Titanium Elliptical Heads.It is a kind of boiler part in pressure vessel. It is usually used at both ends of pressure vessels. Then there is a welding pipe fitting product used for plugging at the end of the pipe. There are many forms. The head is a part of the container and is welded to the barrel. According to the different geometric shapes, it can be divided into spherical, elliptical, disc, spherical crown, cone shell and cover, among which spherical, elliptical, disc and spherical crown head are collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head. Used in various vessels and equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc. Products Processing Standard Grade Size Titanium Elliptical & Spherical Heads According to ASME VIII-I Standard or DIN28013 GR1, GR2, GR7, GR12, etc. Process: Cold forming and hot forming Inspection: 100% Ultrasonic Test and PT test after forming. (As per requirement.) Applications Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military. (Titanium dish head )DIN28013: D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s 300 4-10 3.5 78 1,0 1550 5-15 483 403 22.5 350 4-10 5.6 91 1.3 1600 5-15 532 416 23.9 400 4-10 8.3 104 1,7 1650 5-15 585 429 25,4 450 4-10 11.8 117 2,1 1700 5-15 640 442 27.0 500 4-10 16.1 130 2.6 1750 5-15 700 455 28.5 550 3-12 21,6 143 3,1 1800 5-15 760 468 30 600 3-12 28,0 156 3.6 1850 5-15 825 481 31.5 650 3-12 36.0 169 4,2 1900 5-15 890 494 33 700 3-12 44,5 182 4,8 1950 5-15 965 507 36 750 3-12 54.5 195 5,5 2000 6-15 1040 520 37 800 3-13 66.5 203 6.2 2050 6-15 1120 533 38.5 850 3-13 79,5 221 7,0 2100 6-15 1200 546 40.5 900 3-13 94 234 乙8 2150 6-15 1290 559 42,5 950 3-13 111 247 8.6 2200 6-15 1380 572 44.5 1000 4-16 130 260 9.5 2250 6-15 1480 685 46.5 1050 4-13 150 273 10,4 2300 6-15 1580 598 46 5 1100 4-13 173 286 11,1 2350 6-15 1690 611 51 1150 4-13 198 299 12.5 2400 6-15 1800 624 53 1200 4-13 225 312 13.6 2450 6-15 1910 637 55 1250 4-13 254 325 14,7 2500 6-15 2030 660 57

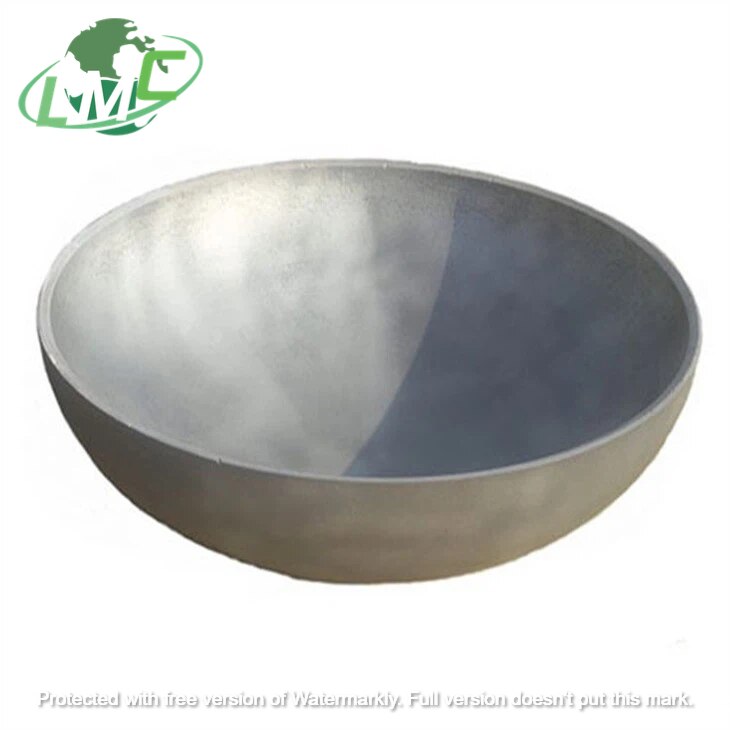

Product name:Gr2 Titanium Hemispherical Heads Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr2 Titanium Hemispherical heads The dish head refers to the element used to close the end of the container so that the internal and external media are isolated, also known as hemispherical heads/dish end/ Elliptical Dish End. The head of a cylindrical container is usually a revolving case. According to the shape of the head surface, it can be divided into convex shape, conical shape, flat shape and combination shape. Convex heads refer to heads with convex outer surface shape, such as hemispherical, oval, disc and unflanged spherical heads. Some gas cylinders use convex inward combined bottom head, which can not only ensure strength, but also meet the needs of safe use. A head is a part of a container that is welded to the cylinder. (As shown below) According to different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, cone shell and cap, among which spherical, oval, disc and spherical crown heads are collectively referred to as convex heads. In the welding is divided into butt welding head, socket welding head. Used for all kinds of container equipment, such as storage tank, heat exchanger, tower, reactor, boiler and separation equipment, etc.

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr2 Titanium Dish Head Product Information Titanium dish head is the end cap on the pressure vessel and is a main pressure-bearing part of the pressure vessel. The role played is the sealing effect. First, the upper and lower bottoms of the tank-shaped pressure vessel are made, and the second is that the pipe is at the end and is not going to extend forward. Then a titanium dish head is used to seal the pipe in the form of welding. There are blind plates and caps that are similar to the functions of titanium dish head, but those two products can be disassembled. After titanium dish head is welded, it cannot be disassembled. So the quality of titanium dish head is directly related to the long-term safe and reliable operation of the pressure vessel. Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc. Grade: GR1, GR2, GR5, GR7, GR12 OD: 300-2500mm Thickness: 2-300mm Production Process: Cold Forming, Hot Forming Surface Treatment: Sand Blasting, Pickling, Coating etc. Applications: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr5 Titanium Dish Head Product Information Titanium dish head refers to the element used to close the end of the container to isolate the internal and external media, also known as end caps.

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr7 Titanium Dish Head Product Information According to the different geometric shapes, titanium dish head can be divided into spherical, elliptical, dish, spherical crown, cone and flat cover, etc., among which spherical, elliptical, dish, spherical crown heads are collectively called convex heads . Titanium dish head is used in various container equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc.

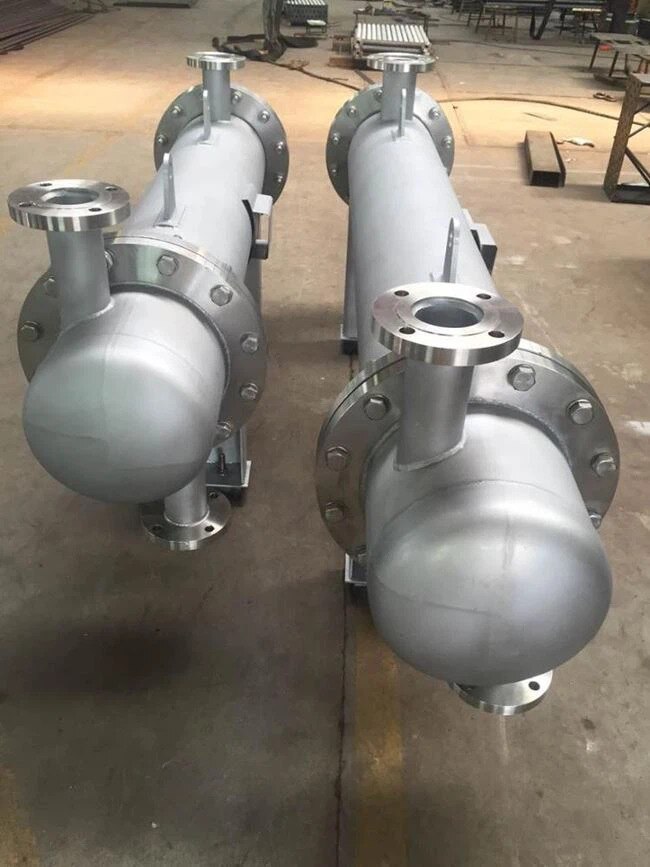

Product Name: Titanium floating head heat exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc. Titanium Tubular heat exchanger One tubeplate of the heat exchanger is connected to the shell with a flange, and the other tubeplate is not connected to the shell, so that the tube is free to expand when heated or cooled. But this tube-plate is connected with a top cover called a floating head. "So this heat exchanger is called a floating head heat exchanger. The advantages are: tube bundle can be pulled out for cleaning; The expansion of the tube bundle is not constrained by the shell, so when both heat transfer when the temperature difference between tube bundle and shell is large, the temperature difference stress will not occur. Its disadvantage is complex structure , high cost. Product Name Titanium floating head heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product name:Gr2 titanium dome dish heads Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr2 titanium dome dish heads A dish head is a part of a container that is welded to the cylinder. According to the different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, vertebral shell and cap. The sphere, the ellipse,disc head is also referred to as convex head. In the welding way is divided into butt welding head, socket welding head, used for all kinds of container equipment, such as storage tanks, heat exchanger, tower, reactor, boiler and separation equipment. Materials are carbon steel, stainless steel, alloy steel, aluminum, titanium, copper, nickel and nickel alloy etc Dish head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy and food and pharmaceutical industries. Standard: ASME VIII-I, DIN28013 Thickness:5-100mm Size: Customized Material: GR1, GR2, GR7, GR12 High temperature resistant:100-1000°℃ Resistance to high pressure:0.25-100kg Application:Pressure vessel equipment Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

Product name: Titanium Elliptical Dish Tank Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Titanium Elliptical Dish Tank Head The Elliptical Dish Tank Head is the lid of the pressure vessel and the main bearing part of the pressure vessel. Its function is to seal. One is an upper and lower pressure vessel consisting of a tank, and the other end is a pipe, which does not extend forward, and is then welded to seal the pipe in the form of a header. The head of the product acts like a blind and a lid, but both can be removed. And the head can not be removed after welding. With support pressure vessels, pipes, flanges, elbows, tees, stone products. The quality of Elliptical Dish Tank Head /dish head is directly related to the long-term safe and reliable operation of pressure vessel. Diameter 300 mm to 2000 mm Shape Round Thickness 1 to 16 mm Process Industrial use Material grade CP4 - level; CP3 - secondary; Titanium contact international.like apply SSDS - level 3; CP1 - level 4; Seven; ; Grade 11 -CP ti-0.15pd; Grade 5 - Titanium 6Al-4V; Grade 6 -- Titanium 5Al-2.5Sn; Grade 9 - Titanium 3Al-2.5V; 12-0.8 Ni Ti - 0.3 - Mo -; Grade 19 - Titanium βC; Grade 23 - Titanium 6Al-4V ELI; 6, 6 v - 2 sn; 6 al zr - 2-2 sn - 4 mo; 6 al zr - 2 sn - 4-6 mo; Mo 8 al - 1-1 v. Fe 10 v - 2-3 al; 15 v - 3 cr - 3 sn - 3 al; Alpha alloy; Beta alloy; Alpha beta alloy Purpose Forging Features Solid construction Smooth Finish High quality Type of disk head/endcaps/head: Ellipsoidal head This is also known as a 2:1 oval head. This head shape is more economical because the height of the head is only a quarter of its diameter. Its radius varies between the major axis and the minor axis. Hemispherical head A sphere is the ideal shape for the head because the pressure in the container is evenly distributed over the surface of the head. The head radius (R) is equal to the radius of the cylindrical part of the container. Torispherical head These have a disc head with a fixed radius (CR), the size of which depends on the type of spherical head. The transition between the cylinder and the plate is called the knuckle. The steering knuckle is circular. Klopper head This is a spherical head. The radius of the plate is equal to the diameter of the cylinder to which it is attached. The radius of the knuckle is equal to one tenth of the diameter of the cylinder. Korbbogen head This is a hemispherical head, also known as a hemispherical head (DIN 28013). The radius of the disk is 80% of the diameter of the cylinder (CR=0.8 x D0.). The radius of the knuckle is (KR= 0.154x D0).
