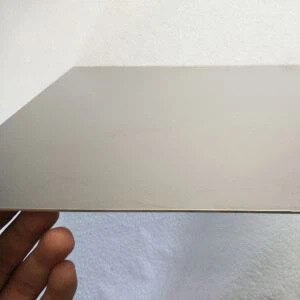

Product name:Titanium grade 12 plate Unit price:$15.5-$36.9/kg Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM/ASME B265 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Product Introduction Titanium grade 12 plate Grades:Titanium alloy Grades 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM B265 / ASME SB265 Thickness: 0.02"-3.9"(0.5-100mm) Width: 19.5"-118" (500-3000mm) Length: 19.5"-236"(500*6000mm) Or as customers' requests ASTM No. Fe max O max N max C max H max Mo Ni Bal Grade 12 0.30 0.25 0.015 0.08 0.015 0.2-0.4 0.6-0.9 Ti ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 12 Unalloyed Ti ("Pure") 50A -CP2 70 485 50 345 18 Titanium plate applications titanium plate quality inspections

Product Name: Titanium rod grade 23 Standard: ASTM F136 Material: Gr23 (Gr5 ELI) Unit Price: $30.5 usd/kg- $52.5 usd/kg Application: Medical use Shape: Round Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc. Length: 1000mm, 3000mm, 6000mm or as per your request Surface: Bright

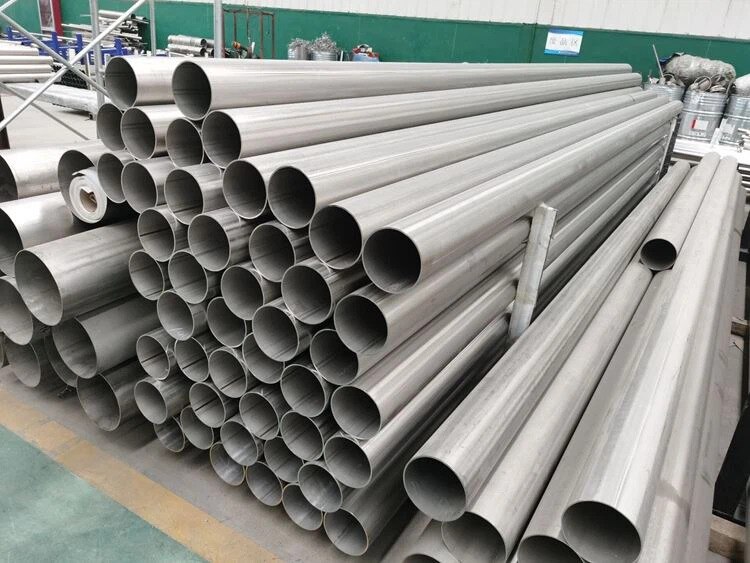

Product Name: Titanium gr 2 pipe Standard: ASTM B861, ASTM B862, ASTM B338 Material: Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless/Welded Shape: Round

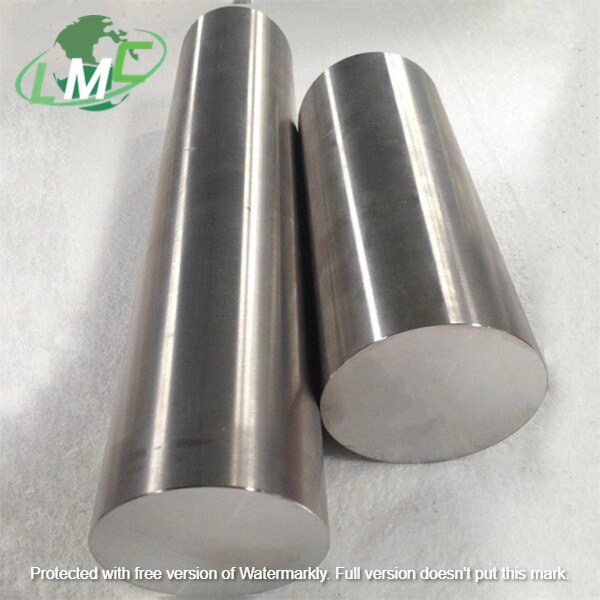

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg- $30usd/kg Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Grade 2 Pure Titanium Rod Product Information Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23 Russian Grade: BT1-00,BT1-0,BT1-2 Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Diameter: 3-350mm Length: up to 6000mm Surface: Polished, Pickled Features: Polished surface with no defects, no cracks and no pitting. Tolerance Diameter(mm) h7 h8 h9 h10 h11 h12 Tolerance precision (um) 3~6 12 18 30 48 75 120 6~10 15 22 36 58 90 150 10~18 18 27 43 70 110 180 "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) Advantages 1. Equipment: We have Trimming machines, milling machines, annealing furnaces, shearing machines, bending machines, straightening machines, sandblasting machines, punching machines and forging hammers etc. 2. Product: We have sufficient inventory and accept customized product. We can also provide you with samples. 3. Quality: We have exported our titanium rod to many countries, including the US, Italy, Korea, Ukraine and Chile etc. The quality of our products is widely recognized. Quality Certificate is available. Third-party testing is also accepted, like TUV, SGS, BV etc. 4. Price: As a leading manufacturer of titanium products for more than 16 years, we know the market very well. We can provide you with competitive prices. 5. Payment: Flexible payment terms. TT, LC, Western Union, Paypal etc. are all acceptable. You can choose any convenient way. 6. Packaging: Usually plywood box for export, ensuring that the goods will not get damaged during the shipment. 7. Shipment: Various shipping methods. EXW, FOB, CIF etc. are all ok for us. 8. Service: Professional team. We have set up a service department.

Product Name: Grade 12 Titanium alloy Bar 30mm Standard: ASTM B348 Material: GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Unit price:$21.5-$34.9/kg Product Description Product Grade 12 Titanium Alloy Bar 30mm Technique Rolled, Forged Grade GR12 titanium Russian Grade BT1-00,BT1-0,BT1-2 Standard ASTM B348, AMS 4928 Shape Round, Square, Flat, Hex Diameter 3-350mm Length up to 6000mm Surface Bright Product Certificate En10204/3.1 Company certificate ISO 9001:2015 gr12 titanium bar Other grade titanium bar: Gr1 titanium bar/rod Gr2 titanium bar/rod Gr3 titanium bar/rod Gr4 titanium bar/rod Gr5 titanium bar/rod Gr7 titanium bar/rod etc.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright

Product name:Titanium sheet metal Unit price:$14-$36.9/kg Material: Titanium grade 1 grade 2 grade 3 grade 4 Grade 5 (Ti6al4v),grade 7,grade 12 etc. Standard: ASTM/ASME B265 AMS 4911 ASTM F136 ASTM F67 etc. Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) Titanium has many obviously superior characteristics: small density (4.5kg/m3), high melting point (1660℃), strong corrosion resistance, high specific strength, good plasticity, but also through alloying and heat treatment methods to produce a variety of alloys with high mechanical properties, is an ideal aerospace engineering structural materials. Titanium sheet metal are commonly used in today's manufacturing industry, and the most commonly used grades are 2 and 5. Grade 2 titanium Grade 2 is commercial pure titanium used in most chemical processing plants and can be cold formed. Ultimate tensile strength of grade 2 plates and sheets up to 40,000 psi and above. Grade 5 titanium Class 5 is an aerospace class that does not allow cold molding and is therefore used more often when molding is not required. Grade 5 aerospace alloys have ultimate tensile strength of 120,000 psi and above. Usually the purpose of using Titanium sheet metal is to really approximate the final size of the part being manufactured. The material is processed to the nearest size of the required parts and the grain structure of the finished product is more uniform. Titanium plates are often used as insulation because titanium prevents heat from being transferred to the rest of the assembly. The titanium plate and titanium plate are bulletproof and provide good protection for the driver during the race. Application example: in addition to the use of industrial pure titanium manufacturing parts, a large number of titanium alloy is used. It is increasingly widely used in aerospace, aerospace, chemical, shipbuilding and other industrial sectors, manufacturing gas turbine components, the production of prosthetic devices and other biological materials

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Titanium Grade 2 Bar Compared with other commercial pure titanium grades, titanium grade 2 bar has higher iron and oxygen content. This higher content of iron and oxygen gives titanium grade 2 bar excellent formability and moderate tensile strength characteristics, as well as excellent corrosion resistance.

Porduct name : Grade 2 Titanium Tube Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Grade 2 Titanium Tube Sheet Titanium tubesheet / titanium tube sheet is to drill a hole slightly larger than the outer diameter of the tube on the circular titanium plate. It is a component in the titanium heat exchanger that plays the role of fixing the tube and sealing medium. It is a kind of fitting that penetrates the pipe into the tube plate and is welded and fixed. The accuracy of tubesheet processing, especially the pipe hole spacing and pipe diameter tolerance, perpendicularity and finish, greatly affect the assembly and service performance of the chemical equipment listed above. In the environment of strong acid, high pressure, high temperature and nuclear energy, corrosion-resistant materials such as titanium alloy, stainless steel and 16 manganese are needed. The application of new synthetic materials brings new vitality to tubesheet products.
