Product Name: Titanium Bar
Standard: ASTM B348
Material: GR1, GR2, GR5, GR7, GR12
Shape: Round, Square, Flat, Hex
Diameter: 6-350mm
Length: Max 6000mm
Surface: Bright
ASTM B348 Titanium Bar
ASTM B348 Standard Specification for Titanium and Titanium Alloy Bars and Billets. Due to their high strength and light weight, they are widely used in the components for high-temperature environment, including aircraft equipment, petrochemical and chemical industries.
Product name:Titanium sheet metal
Unit price:$14-$36.9/kg
Material: Titanium grade 1 grade 2 grade 3 grade 4 Grade 5 (Ti6al4v),grade 7,grade 12 etc.
Standard: ASTM/ASME B265 AMS 4911 ASTM F136 ASTM F67 etc.
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled
Status: Annealed(M)
Titanium has many obviously superior characteristics: small density (4.5kg/m3), high melting point (1660℃), strong corrosion resistance, high specific strength, good plasticity, but also through alloying and heat treatment methods to produce a variety of alloys with high mechanical properties, is an ideal aerospace engineering structural materials.
Titanium sheet metal are commonly used in today's manufacturing industry, and the most commonly used grades are 2 and 5.
Grade 2 titanium
Grade 2 is commercial pure titanium used in most chemical processing plants and can be cold formed. Ultimate tensile strength of grade 2 plates and sheets up to 40,000 psi and above.
Grade 5 titanium
Class 5 is an aerospace class that does not allow cold molding and is therefore used more often when molding is not required. Grade 5 aerospace alloys have ultimate tensile strength of 120,000 psi and above.
Usually the purpose of using Titanium sheet metal is to really approximate the final size of the part being manufactured. The material is processed to the nearest size of the required parts and the grain structure of the finished product is more uniform. Titanium plates are often used as insulation because titanium prevents heat from being transferred to the rest of the assembly. The titanium plate and titanium plate are bulletproof and provide good protection for the driver during the race.
Application example: in addition to the use of industrial pure titanium manufacturing parts, a large number of titanium alloy is used. It is increasingly widely used in aerospace, aerospace, chemical, shipbuilding and other industrial sectors, manufacturing gas turbine components, the production of prosthetic devices and other biological materials
Product name:Titanium Sheet
Unit price:$15.5-$36.9/kg
Material: Titanium Grade 5 (Ti6al4v)
Standard: ASTM/ASME B265 AMS 4911 ASTM F136
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled
Status: Annealed(M)
MTC: EN10204.3.1 certificate
MOQ : 10kgs
Applications : Petroleum ,chemical industry, Marine, medical
Package:Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case.
Customized size welcome.
Hot rolled titanium plate
Titanium plate gr5
Grade 5 titanium plate
titanium alloy plate
Ti6al4v plate
Grade 5 titanium is one of the most commonly used alloys in titanium industry, accounting for 50% of the world titanium consumption. Also known as Ti-6Al-4V (or ti6-4), this name refers to its main chemical composition of 90% titanium, 6% aluminum, 4% vanadium, 0.25% (maximum) iron and 0.2% (maximum) oxygen. It has almost the same high corrosion resistance as pure titanium, but has better strength, low elastic modulus, good weldability and heat treatment. The addition of aluminum and vanadium improves the hardness and physical and mechanical properties of the alloy.
Product name:Titanium Sheet ,grade 5 titanium sheet ,titanium alloy sheet,10mm titanium sheet,5mm titanium sheet,gr5 titanium sheet,6Al4V sheet, Ti6Al4V titanium sheet,Titanium sheet plate price per kg
Material: Titanium Grade 5 (Ti6al4v)
Standard: ASTM/ASME B265, AMS 4911, ASTM F136
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc
Technique : Rolled
Status: Annealed(M)
MTC: EN10204.3.1 certificate
Grade 5 (Ti6Al4V) titanium sheet/plate
Chemical compositions(weight%,<=)
Ti
Al
V
Fe
C
Remainder
5.5-6.75
3.5-4.5
0.30
0.08
N
H
O
Other(total)
0.05
0.015
0.2
0.4
Physical properties(>=)
Σb
Tensile Strength
(Mpa)
σr0.2
Yield Strength
(Mpa)
δL0+50mm
Elongation
(%)
ψ
Reduction of area
(%)
895
830
12
25
Product name:Grade 12 Titanium plate
Unit price:$15.5-$36.9/kg
Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni)
Standard: ASTM/ASME B265
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled
Status: Annealed(M)
GR12 is a titanium alloy containing molybdenum and nickel (Ti-0.3Mo-0.8Ni).Grade 12 titanium plate is high quality and weldability. It is a titanium alloy that has always been very durable, even at high temperatures. In addition, Grade 12 titanium plates have excellent corrosion resistance in reducing and oxidizing environments, and their heat resistance is better than that of pure titanium. Grade 12 titanium sheets generally have few scratches and are not easy to scratch.
Product name:Grade 12 Titanium plate
Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni)
Standard: ASTM/ASME B265
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc
Technique : Rolled
Status: Annealed(M)
MTC: EN10204.3.1 certificate
Applications : Petroleum ,chemical industry, Marine, medical
Package:Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case.
Grade 12 Titanium Plate Equivalent Grades:
STANDARD
WERKSTOFF NO.
UNS
Titanium Grade 12
3.7105
R53400
Titanium ASTM B265 Gr 12 Plate Chemical Composition:
Fe O C H N Mo Ni
≤0.30
≤0.18
≤0.08
≤0.015
≤0.03
0.2 - 0.4
0.6 - 0.9
Titanium Grade 12 Plate Mechanical Properties:
Material
Tensile Strength min
Yield Strength
Elongation in 2" (%)
ksi
Mpa
Max
Min
ksi
Mpa
Ksi
Mpa
Titanium CP Grade12Annealed Sheet
70
483
50
345
-
-
18
Product name:Titanium Sheet
Unit price:$15.5-$36.9/kg
Material: Titanium Grade 5 (Ti6al4v)
Standard: ASTM/ASME B265 AMS 4911 ASTM F136
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled
Status: Annealed(M)
MTC: EN10204.3.1 certificate
MOQ : 10kgs
Applications : Petroleum ,chemical industry, Marine, medical
Package:Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case.
Customized size welcome.
Hot rolled titanium plate
Titanium plate gr5
Grade 5 titanium plate
titanium alloy plate
Ti6al4v plate
Grade 5 titanium is one of the most commonly used alloys in titanium industry, accounting for 50% of the world titanium consumption. Also known as Ti-6Al-4V (or ti6-4), this name refers to its main chemical composition of 90% titanium, 6% aluminum, 4% vanadium, 0.25% (maximum) iron and 0.2% (maximum) oxygen. It has almost the same high corrosion resistance as pure titanium, but has better strength, low elastic modulus, good weldability and heat treatment. The addition of aluminum and vanadium improves the hardness and physical and mechanical properties of the alloy.
Product name:Titanium Sheet ,grade 5 titanium sheet ,titanium alloy sheet,10mm titanium sheet,5mm titanium sheet,gr5 titanium sheet,6Al4V sheet, Ti6Al4V titanium sheet,Titanium sheet plate price per kg
Material: Titanium Grade 5 (Ti6al4v)
Standard: ASTM/ASME B265, AMS 4911, ASTM F136
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc
Technique : Rolled
Status: Annealed(M)
MTC: EN10204.3.1 certificate
Grade 5 (Ti6Al4V) titanium sheet/plate
Chemical compositions(weight%,<=)
Ti
Al
V
Fe
C
Remainder
5.5-6.75
3.5-4.5
0.30
0.08
N
H
O
Other(total)
0.05
0.015
0.2
0.4
Physical properties(>=)
Σb
Tensile Strength
(Mpa)
σr0.2
Yield Strength
(Mpa)
δL0+50mm
Elongation
(%)
ψ
Reduction of area
(%)
895
830
12
25

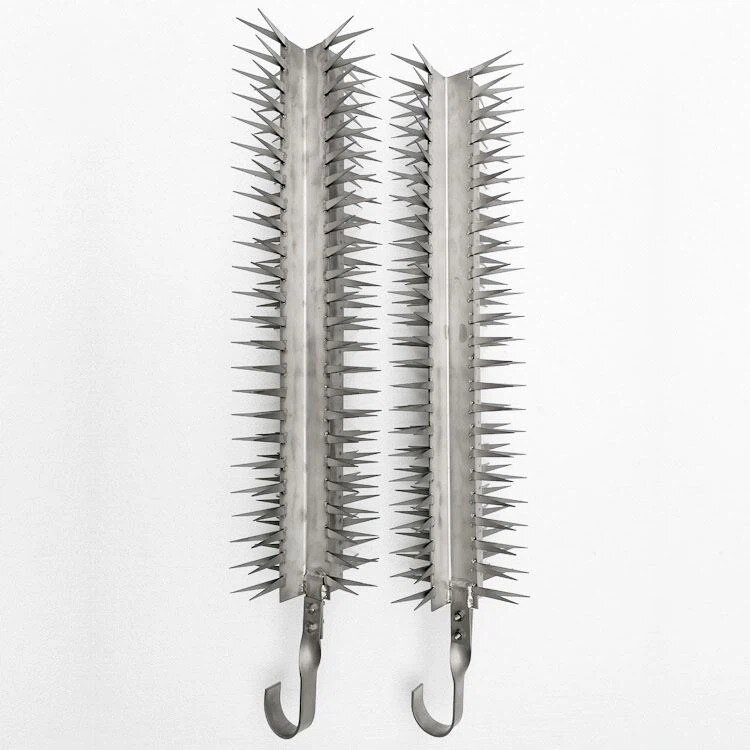

Product Name: Titanium Rack
Material: Gr1, Gr2
Application: Anodizing
Size: Customized
Surface: Polished
Titanium vs Aluminum
Anodizing is another name for electroplating. It means using another metal to coat or design another. Aluminum is used because it is cheap and can do the work at hand, but titanium is better because it can refuse to have to strip off films formed after every process. Aluminum is cheap when you compare it to titanium. However, when you crosscheck the amount of money saved during the process and its persistence and durability, you will find that the high cost is negligible. Anodizing is a key subject that requires caution, expertise, and experience. Our advice is, in most cases, preferably titanium.
Product Information of Titanium Anodizing Fixtures
Material: Gr1 Gr2
Dimension: Customized, as customer's requests
Surface:Pickled, polished
Applications: Electroplating, Anodizing

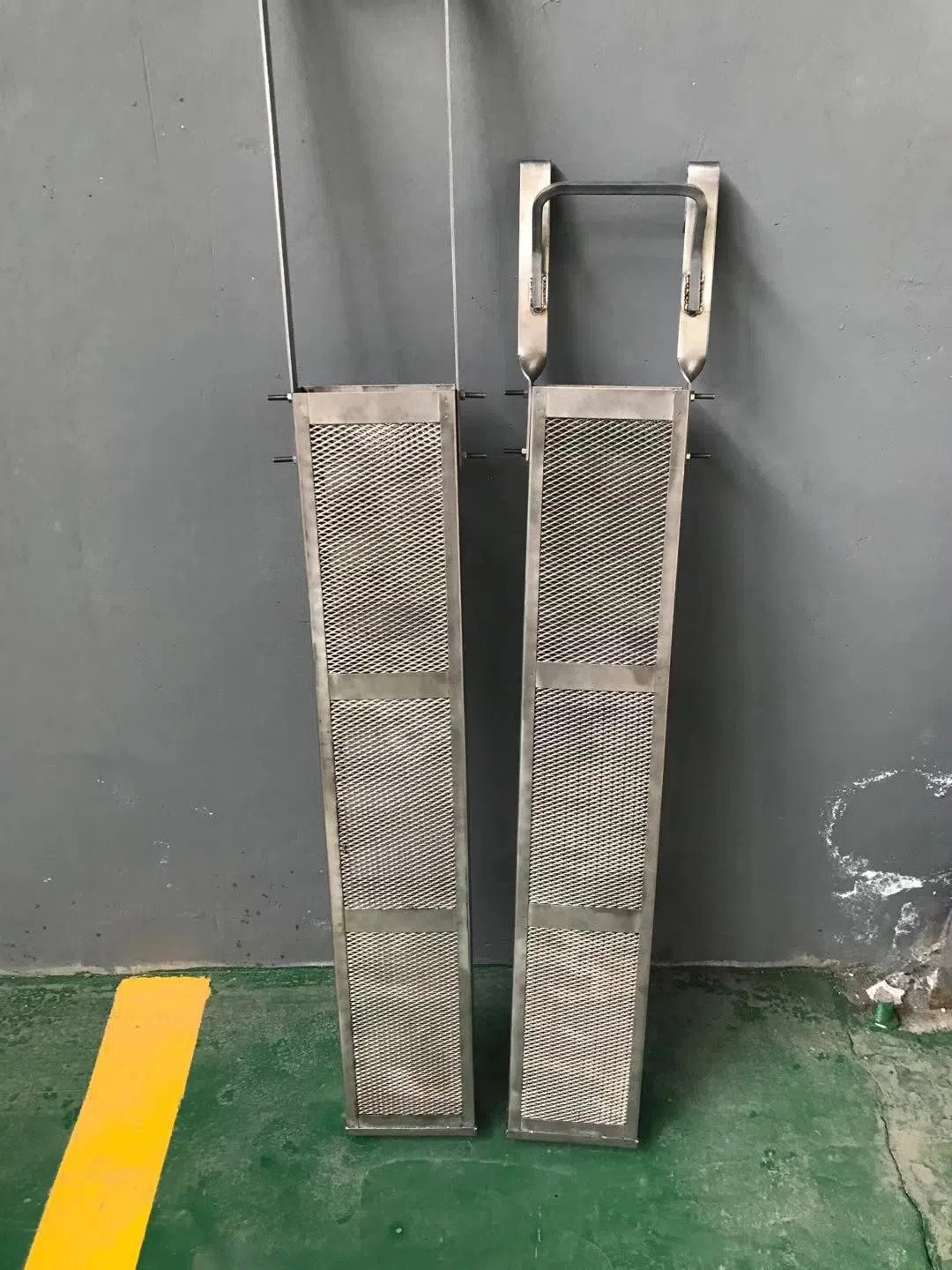

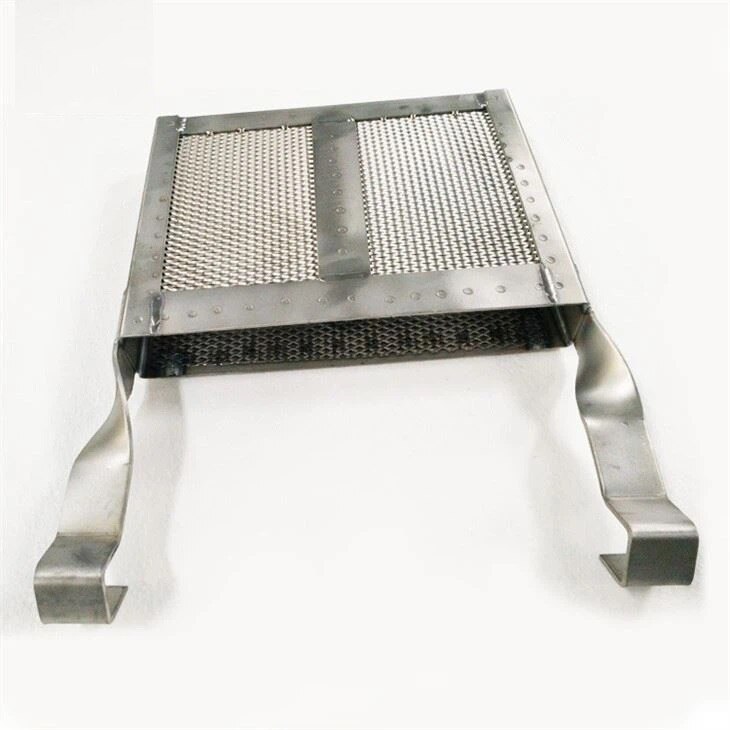

Product Name: Titanium Anode Basket
Material: Gr1, Gr2
Size: Customized
Surface: Sand Blasting, Acid Washing, Brush Coating etc.
Titanium basket is made of titanium mesh and support mesh. It can be used in both gas and liquid environments. Under the action of oxidation, a protective film will form, so titanium basket has good corrosion resistance.
Product Information
Material: Gr1, Gr2
Size: Customized
Surface: Sand Blasting, Acid Washing, Brush Coating etc.
Shape: Rectangular, round and spiral etc.
Application of Titanium Basket
Electroplating
Seawater filtration
Water treatment
Physical Properties (Min)
ASTM Grade
Alloy Composition
Tensile Strength
Yield Strength
Elongation min %
ksi
Mpa
ksi
Mpa
Grade 1
Unalloyed Ti ("Pure") 35A -CP1
35
240
25
170
30
Grade 2
Unalloyed Ti ("Pure") 50A -CP2
58
400
40
275
25
Product Name: Titanium 6al4v plate
Standard: ASTM B265 , AMS 4911 , ASTM F136
Material: Gr5
Unit Price: $19.5usd/kg-$48usd/kg
Thickness: 0.3-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
There are several advantages to using titanium sheet metal:
1. High strength-to-weight ratio: Titanium is known for its high strength-to-weight ratio, which means that it is strong but lightweight. This makes it ideal for use in applications where weight is a concern, such as aerospace and sports equipment.
2. Corrosion resistance: Titanium is highly resistant to corrosion, making it suitable for use in harsh environments where other metals would quickly deteriorate. This makes it ideal for use in marine and chemical processing applications.
3. Biocompatibility: Titanium is biocompatible, meaning that it is not harmful to living tissue. This makes it ideal for use in medical implants and prosthetics.
4. High melting point: Titanium has a high melting point, making it suitable for use in high-temperature applications such as jet engines.
5. Ductility: Titanium is highly ductile, meaning that it can be easily formed into a variety of shapes and sizes without breaking. This makes it ideal for use in complex designs and applications.
Applications: Widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, food, and used to complete vulcanization, nitration, hydrogenation, polymerization, condensation and other technical processes. Such as reverberator, reverberation kettle, differentiation pot, polymerization kettle.
Titanium 6al4v plate
Chemical compositions(weight%,<=)
Ti
Al
V
Fe
C
Remainder
5.5-6.75
3.5-4.5
0.30
0.08
N
H
O
Other(total)
0.05
0.015
0.2
0.4
Physical properties(>=)
Σb
Tensile Strength
(Mpa)
σr0.2
Yield Strength
(Mpa)
δL0+50mm
Elongation
(%)
ψ
Reduction of area
(%)
895
830
8-12
18-30
Titanium 6al4v plates in stock:
Thickness: 1mm 2mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 20mm 25mm
Size: 1000*2000mm 3000*6000mm
The production process of titanium plate:
1. Hot forging:casting skills above the metal recrystallization temperature;
2. Hot rolling:the rolling process performed at a temperature higher than the recrystallization temperature;
3. Cold rolling:the rolling process where the plastic deformation temperature is lower than the recovery temperature;
4. Annealing: slowly heating the metal to a certain temperature, insisting on meeting the time, and then cooling at an appropriate speed a metal heat treatment technology;
5. Pickling: immersing the parts in an aqueous solution such as sulfuric acid to remove the oxide and other thin films on the metal surface. It is the pretreatment or process treatment of electroplating, enamel, rolling and other skills.
