Product name: Titanium Tubes For Heat Exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc. Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Titanium Tubes For Heat Exchanger Titanium tubes are corrosion resistant in seawater and chlorine. It is alloyed with elements such as iron, vanadium, aluminum and molybdenum to produce strong and light alloys for industrial purposes such as chemical industry, seawater desalination plant, petrochemical, papermaking and pulp. The most common dimensions of titanium seamless or titanium welded tubes for heat exchangers and pressure vessels are od0.5 "(12.7mm), 0.63" (16mm), 0.75 "(19.05mm), 1" (25.4mm), 1.25 "(31.75mm), 1.5" (38.1mm), 1.78 "(45mm), 2" (50.8mm), etc., and wt0.02 "(0.5mm), 0.024" (0.6mm), 0.028 "(0.71mm), 0.035" (0.89mm) , 0.049 "(1.24mm), 0.11" (2.77mm), 0.125 "(3.17mm), etc. Product name Titanium tubes for heat exchanger，ASTM B338 titanium tube pipe,Seamless titanium tube,Welded titanium tubes,Titanium tube price per kg Grade Gr1 Gr2 Different types of Titanium heat exchanger tubes Seamless, Welded Standard ASME /ASTM B 338 Straightness of heat exchanger tubes 0.0015 x L. In conversion , 1 meter length OUTER DIAMETER (OD) 0.500 - 3.000 inch heat exchanger tubes manufacturer 12.7 - 76.2 mm WALL THICKNESS (WT) 0.035 - 0.220 inch 0.89 - 5.52 mm Lengths Titanium heat exchanger tubes are delivered in straight lengths up to 16.5 meters (54 ft). Titanium U-bent tubes are available on request. Manufacturing Method Seamless (Cold Drawn/Cold Rolling) Heat exchanger tubes Certified test reports ASTM / ASME A450 EN 10204: for EN 10297 nonspecified testing (only the mandatory tests), 2.2 specified testing – 3.1.B after agreement - 3.1.A, 3.1.C, 3.2 DIN 50049, - 2.2, 3.1. B Pipe Assemby Headers Pigtails Flanged Pipes Longitudinal finned Pipes and Tubes Finned Tubes Special Forgings Special designed parts acc. to drawing Welding together possible Grades of Seamless Titanium Heat Exchanger Tubes ASTM GRADE UNS NO. DIN/ EN MATERIAL CODE Grade 1 R50250 3.7025 Ti 1 Grade 2 R50400 3.7035 Ti 2 Grade 3 R50550 3.7055 Ti 3 Grade 7 R52400 3.7235 Ti 2 Pd Grade 9 R56320 3.7195 Ti Al 3 V 2,5 Grade 11 R52550 3.7225 Ti 1 Pd Grade 12 R53400 3.7105 Ti Ni 0,8 Mo 0,3

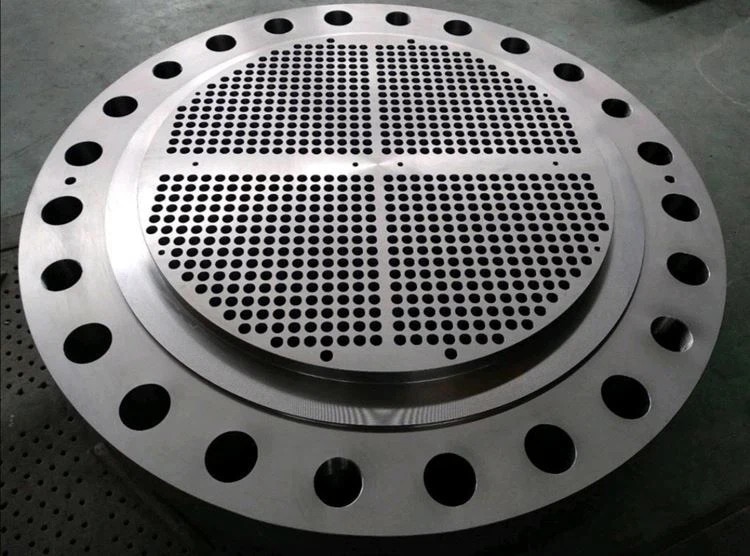

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet for Heat Exchanger Product Information Tubesheet is a circular plate drilled with holes of the same diameter as the pipe. It is used for the heat exchanger to fix the pipe. An accessory that accomplishes this by passing a pipe through and welding it in place. The precision of tubesheet processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, have a great impact on the assembly and performance of the above-mentioned chemical equipment. With the enlargement of chemical equipment and power stations, the diameter of tubesheets has become larger and larger. Tubesheet with a diameter of 4m-5m is very common. The characteristics of large tubesheet are many tube holes, compactness, small hole diameter, deepness, high precision, and high finish requirements.

Product name:Titanium Shell and Tube Heat Exchangers Materials: stainless stainll Shell/gr2 titanium shell + Gr2 Pure Titanium Tube Special Use: Cooling, Evaporator Net Weight: Customizable Application: High temperature and pressure corrode fluids,seawater,saltwater,brine water etc. Titanium Shell and Tube Heat Exchangers Shell and tube heat exchanger, It is an inter wall heat exchanger with the wall of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger is simple in structure and reliable in operation. It can be made of various structural materials (mainly metal materials)It is composed of tube plate, shell, tube bundle and other parts. and can be used under high temperature and high pressure. It is the most widely used type at present -this is mainly due to their versatility. Applicable Industry: it plays an important role in chemical, petroleum, power, food and many other industrial production. In chemical production, it can be used as heater, cooler, condenser, evaporator and reboiler. Titanium Shell and Tube Heat Exchangers 17 Dimension(L*W*H) Customized Set Tempreture Customized Transport Package Wooden Packing Takeover Diameter Customized Liquid Flow Customized Plate Material Titanium/Stainless steel etc. Plate Thickness Heat exchange tube Customized A heat exchanger system facilitates the transfer of heat energy from one system to another. You can use them for both heating and cooling processes. Although you can make heat exchangers from different metals, these systems are made from titanium metal. Unlike the other predecessors, titanium heat exchangers are totally immune to corrosion. However, to work at full efficiency the device requires more surface area and a higher fluid flow rate. In most cases, you will find coil patterns. This is because they maximize the surface area of the tubes.

Porduct name : Titanium clad Tubesheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad tubesheet Product Name Titanium clad tubesheet Base Metal All types of steel and stainless steel ,sopper etc. Clad Metal Titanium GR2 Gr7 Gr9 Gr12 etc. Dimension Customized Standard ASTM Shape Round Certificates ISO9001, Mill Test Report, Certificate 3.1, EN, Ultrasonic Certificate Applied Equipment Pressure Vessels, Boilers, Containers Application Power Generation, Industry Refrigeration, Oil&Gas, Chemical&Petrochemical Exported Countries USA, Australia, Russia, Bahrain, Venezuela, Greece, Korea, Indonesia etc. Explosive Welding Technical Advantage: →no limits of materials shape, thickness and area; →metallurgical bonding with high strength; →high performance of machining process; →improving the materials performance after bonding; →realizing multilayer materials clad;

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet Product Information Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tube Plate for Heat Exchanger Product Description Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet. Grade: GR1, GR2, GR5, GR7, GR12 etc. OD: 150-2500mm Thickness: 30-250mm Physical Properties

Product Name: Shell And Tube Type Gr2 Titanium tube Heat Exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Gr2 Titanium tube Heat Exchanger Titanium heat exchanger is a kind of heat exchanger made of titanium tube, which transfers part of the heat of hot fluid to cold fluid. It has many advantages of industrial pure titanium. It is a common equipment in many industrial departments such as chemical industry, petroleum, electric power, food and so on. Product Name Industrial Titanium tube heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Competitive Advantage 1.ISO9001:2008 2.Timely delivery rate is 99.8%,sometimes in advance. 3.Excellent after sale service. 4.Rapid enquiry reply, within 2 hours. 5.Fair payment term 6.Proffessional technical adviser 7.Material certificate 8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process, surface treatment, inspectation and testing).

Product Name: Gr1 Titanium Shell & Tube Heat Exchangers Material:Titanium Gr1 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc. Gr1 Titanium Shell & Tube Heat Exchangers Relying on various excellent properties of industrial pure titanium, titanium heat exchanger is widely used in many industries and fields, such as seafood breeding, seawater heat exchange, brine heat exchange, chemical industry, food, metallurgy, refrigeration, light industry, electroplating industry, aluminum oxidation tank, salt making, papermaking, acoustic wave, electronic communication, central heating and so on. Product Name: Gr1 Titanium Shell & Tube Heat Exchangers Core Components:titanium tube, shell Condition:New Structure:Tube Heat Exchanger Maximum Working Pressure:0.1MPa Voltage:design as your need Weight:light in weight Dimension(L*W*H):customized Titanium tube material:gr1 titanium Tube thickness:0.9mm/1.2mm/2mm Shell material:titanium or titanium clad material Tube type:seamless or welded Titanium density:4.51g/cm3 MOQ:1set Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Ordinary Product Warranty of core components:1 Year After Warranty Service:Video technical support Applicable Industries:Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, other

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr7 Titanium Tubesheet Product Description In the shell-and-tube heat exchanger, the heat exchange tube and the tubesheet are the only barrier between the tube side and the shell side of the heat exchanger. The connection structure and connection quality between the heat exchange tube and the tubesheet determine the quality of the heat exchanger Pros and cons and service life are a crucial link in the manufacturing process of heat exchangers. Most of the damage and failure of heat exchangers occur at the connection part between the heat exchange tube and the tubesheet. The quality of the connection joint also directly affects the safety and reliability of chemical equipment and equipment. Therefore, for the shell and tube heat exchanger, the connection process between the heat pipe and the tubesheet has become the most critical control link in the heat exchanger manufacturing quality assurance system. At present, in the heat exchanger manufacturing process, the connection between the heat exchange tube and the tubesheet mainly includes welding, expansion, expansion and welding, and gluing and expansion.
