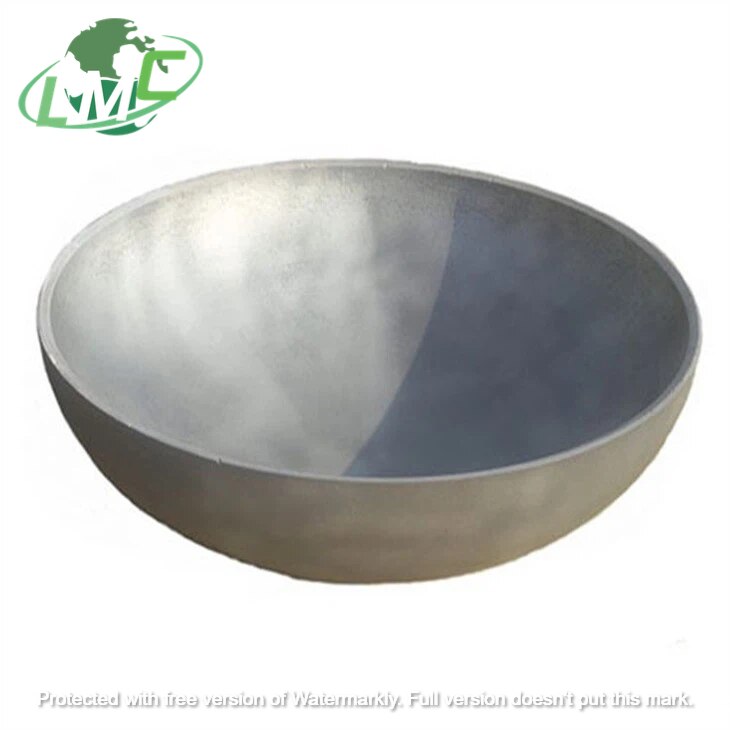

Product name:Titanium Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Dished Head The most common dish heads are the Ellipsoidal head the Hemispherical head. Heads are widely used in heat exchanger/pressure vessel equipment such as power generation, seawater desalination, water treatment, chemical processing and oil and gas exploration industries. Product name: Titanium dished head Standard: According to DIN28013 Grade: GR1, GR2 Quality Inspection: 100% Ultrasonic Test and PT test after forming. Process: Cold forming and Hot forming Fabrication: According to ASME VIII-I standard. Application:Used for Pressure Vessel Equipment Classification of the head Ellipsoid head, hemispherical head and hyperboloid head are three types of ASME pressure vessel disc head. Ellipsoidal head This is also known as a 2:1 oval head. This head shape is more economical because the height of the head is only a quarter of its diameter. Its radius varies between the major axis and the minor axis. Hemispherical head A sphere is the ideal shape for the head because the pressure in the container is evenly distributed over the surface of the head. The head radius (R) is equal to the radius of the cylindrical part of the container. Spherical head of complex surface These have a disc head with a fixed radius (CR), the size of which depends on the type of spherical head. The transition between the cylinder and the plate is called the knuckle. The steering knuckle is circular. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product name:Titanium Elliptical Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Hemispherical Dish Head Brand name LHTi Product name Titanium Hemispherical Dish Head Material Titanium & titanium alloy (Grade 1 Grade 2 Grade 7 Grade 12 etc.) Size DN - 100mm : 6000mm (customized size avaliable) Wall Thickness 3mm ~ 300mm (customized thickness available) Process Type Hot pressing, cold pressing, cold spinning Connection Type Butt-welded or threaded Edge Type Bevel, Plain or as required Process of depression Once the plate is cut into a circle (using a circular cutter, laser, plasma or other methods), the resulting plate is formed under the press and will be crowned with the plate by multiple impacts on the whole surface. In order to make different types and diameters of disc ends, a disc press must be equipped with a set of molds with different radii. The serving process is quite slow. Depending on the size and material of the plate, it usually takes several hours. This process can be automated by using a CNC manipulator. It is possible to find a press with CNC, which can handle more than 10 shafts and can run automatically for several hours. In addition to automation, another important factor in the disk making process is speed. The two speed press can greatly increase the output. The punch presses the workpiece continuously. This means that the structure of disc press is easily affected by material fatigue; Therefore, the life of the press designed to save cost may be very short, showing the first crack of the structure in a very short time. The press designed with HPT has better fatigue resistance. This design consists of four main parts: upper beam, lower beam and two columns. The two beams are connected with the column through the hydraulic preload pull rod. Compared with seam welding or bolts, these tie rods can better resist continuous stress, so as to provide more elasticity to the structure. Dished multi center end A special dished end is widely used in truck can body manufacturers: multi center dished end. These disc-shaped ends are usually made of aluminum or stainless steel and are usually made of thin plates up to 6 mm. This thickness allows the formation of multi center dished ends using a technique called hydroforming.

Product name:Titanium Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Dished Head The most common dish heads are the Ellipsoidal head the Hemispherical head. Heads are widely used in heat exchanger/pressure vessel equipment such as power generation, seawater desalination, water treatment, chemical processing and oil and gas exploration industries. Product name: Titanium dished head Standard: According to DIN28013 Grade: GR1, GR2 Quality Inspection: 100% Ultrasonic Test and PT test after forming. Process: Cold forming and Hot forming Fabrication: According to ASME VIII-I standard. Application:Used for Pressure Vessel Equipment Classification of the head Ellipsoid head, hemispherical head and hyperboloid head are three types of ASME pressure vessel disc head. Ellipsoidal head This is also known as a 2:1 oval head. This head shape is more economical because the height of the head is only a quarter of its diameter. Its radius varies between the major axis and the minor axis. Hemispherical head A sphere is the ideal shape for the head because the pressure in the container is evenly distributed over the surface of the head. The head radius (R) is equal to the radius of the cylindrical part of the container. Spherical head of complex surface These have a disc head with a fixed radius (CR), the size of which depends on the type of spherical head. The transition between the cylinder and the plate is called the knuckle. The steering knuckle is circular. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product name:Titanium Elliptical Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Hemispherical Dish Head Brand name LHTi Product name Titanium Hemispherical Dish Head Material Titanium & titanium alloy (Grade 1 Grade 2 Grade 7 Grade 12 etc.) Size DN - 100mm : 6000mm (customized size avaliable) Wall Thickness 3mm ~ 300mm (customized thickness available) Process Type Hot pressing, cold pressing, cold spinning Connection Type Butt-welded or threaded Edge Type Bevel, Plain or as required Process of depression Once the plate is cut into a circle (using a circular cutter, laser, plasma or other methods), the resulting plate is formed under the press and will be crowned with the plate by multiple impacts on the whole surface. In order to make different types and diameters of disc ends, a disc press must be equipped with a set of molds with different radii. The serving process is quite slow. Depending on the size and material of the plate, it usually takes several hours. This process can be automated by using a CNC manipulator. It is possible to find a press with CNC, which can handle more than 10 shafts and can run automatically for several hours. In addition to automation, another important factor in the disk making process is speed. The two speed press can greatly increase the output. The punch presses the workpiece continuously. This means that the structure of disc press is easily affected by material fatigue; Therefore, the life of the press designed to save cost may be very short, showing the first crack of the structure in a very short time. The press designed with HPT has better fatigue resistance. This design consists of four main parts: upper beam, lower beam and two columns. The two beams are connected with the column through the hydraulic preload pull rod. Compared with seam welding or bolts, these tie rods can better resist continuous stress, so as to provide more elasticity to the structure. Dished multi center end A special dished end is widely used in truck can body manufacturers: multi center dished end. These disc-shaped ends are usually made of aluminum or stainless steel and are usually made of thin plates up to 6 mm. This thickness allows the formation of multi center dished ends using a technique called hydroforming.

Product name: Titanium Elliptical Dish Tank Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Titanium Elliptical Dish Tank Head The Elliptical Dish Tank Head is the lid of the pressure vessel and the main bearing part of the pressure vessel. Its function is to seal. One is an upper and lower pressure vessel consisting of a tank, and the other end is a pipe, which does not extend forward, and is then welded to seal the pipe in the form of a header. The head of the product acts like a blind and a lid, but both can be removed. And the head can not be removed after welding. With support pressure vessels, pipes, flanges, elbows, tees, stone products. The quality of Elliptical Dish Tank Head /dish head is directly related to the long-term safe and reliable operation of pressure vessel. Diameter 300 mm to 2000 mm Shape Round Thickness 1 to 16 mm Process Industrial use Material grade CP4 - level; CP3 - secondary; Titanium contact international.like apply SSDS - level 3; CP1 - level 4; Seven; ; Grade 11 -CP ti-0.15pd; Grade 5 - Titanium 6Al-4V; Grade 6 -- Titanium 5Al-2.5Sn; Grade 9 - Titanium 3Al-2.5V; 12-0.8 Ni Ti - 0.3 - Mo -; Grade 19 - Titanium βC; Grade 23 - Titanium 6Al-4V ELI; 6, 6 v - 2 sn; 6 al zr - 2-2 sn - 4 mo; 6 al zr - 2 sn - 4-6 mo; Mo 8 al - 1-1 v. Fe 10 v - 2-3 al; 15 v - 3 cr - 3 sn - 3 al; Alpha alloy; Beta alloy; Alpha beta alloy Purpose Forging Features Solid construction Smooth Finish High quality Type of disk head/endcaps/head: Ellipsoidal head This is also known as a 2:1 oval head. This head shape is more economical because the height of the head is only a quarter of its diameter. Its radius varies between the major axis and the minor axis. Hemispherical head A sphere is the ideal shape for the head because the pressure in the container is evenly distributed over the surface of the head. The head radius (R) is equal to the radius of the cylindrical part of the container. Torispherical head These have a disc head with a fixed radius (CR), the size of which depends on the type of spherical head. The transition between the cylinder and the plate is called the knuckle. The steering knuckle is circular. Klopper head This is a spherical head. The radius of the plate is equal to the diameter of the cylinder to which it is attached. The radius of the knuckle is equal to one tenth of the diameter of the cylinder. Korbbogen head This is a hemispherical head, also known as a hemispherical head (DIN 28013). The radius of the disk is 80% of the diameter of the cylinder (CR=0.8 x D0.). The radius of the knuckle is (KR= 0.154x D0).

Product name:Titanium Elliptical Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Hemispherical Dish Head Brand name LHTi Product name Titanium Hemispherical Dish Head Material Titanium & titanium alloy (Grade 1 Grade 2 Grade 7 Grade 12 etc.) Size DN - 100mm : 6000mm (customized size avaliable) Wall Thickness 3mm ~ 300mm (customized thickness available) Process Type Hot pressing, cold pressing, cold spinning Connection Type Butt-welded or threaded Edge Type Bevel, Plain or as required Process of depression Once the plate is cut into a circle (using a circular cutter, laser, plasma or other methods), the resulting plate is formed under the press and will be crowned with the plate by multiple impacts on the whole surface. In order to make different types and diameters of disc ends, a disc press must be equipped with a set of molds with different radii. The serving process is quite slow. Depending on the size and material of the plate, it usually takes several hours. This process can be automated by using a CNC manipulator. It is possible to find a press with CNC, which can handle more than 10 shafts and can run automatically for several hours. In addition to automation, another important factor in the disk making process is speed. The two speed press can greatly increase the output. The punch presses the workpiece continuously. This means that the structure of disc press is easily affected by material fatigue; Therefore, the life of the press designed to save cost may be very short, showing the first crack of the structure in a very short time. The press designed with HPT has better fatigue resistance. This design consists of four main parts: upper beam, lower beam and two columns. The two beams are connected with the column through the hydraulic preload pull rod. Compared with seam welding or bolts, these tie rods can better resist continuous stress, so as to provide more elasticity to the structure. Dished multi center end A special dished end is widely used in truck can body manufacturers: multi center dished end. These disc-shaped ends are usually made of aluminum or stainless steel and are usually made of thin plates up to 6 mm. This thickness allows the formation of multi center dished ends using a technique called hydroforming.

Porduct name : Titanium clad Tubesheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad tubesheet Product Name Titanium clad tubesheet Base Metal All types of steel and stainless steel ,sopper etc. Clad Metal Titanium GR2 Gr7 Gr9 Gr12 etc. Dimension Customized Standard ASTM Shape Round Certificates ISO9001, Mill Test Report, Certificate 3.1, EN, Ultrasonic Certificate Applied Equipment Pressure Vessels, Boilers, Containers Application Power Generation, Industry Refrigeration, Oil&Gas, Chemical&Petrochemical Exported Countries USA, Australia, Russia, Bahrain, Venezuela, Greece, Korea, Indonesia etc. Explosive Welding Technical Advantage: →no limits of materials shape, thickness and area; →metallurgical bonding with high strength; →high performance of machining process; →improving the materials performance after bonding; →realizing multilayer materials clad;

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Hemispherical heads Titanium Spherical Heads ,aso called Titanium dish head,Titanium Elliptical Heads.It is a kind of boiler part in pressure vessel. It is usually used at both ends of pressure vessels. Then there is a welding pipe fitting product used for plugging at the end of the pipe. There are many forms. The head is a part of the container and is welded to the barrel. According to the different geometric shapes, it can be divided into spherical, elliptical, disc, spherical crown, cone shell and cover, among which spherical, elliptical, disc and spherical crown head are collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head. Used in various vessels and equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc. Products Processing Standard Grade Size Titanium Elliptical & Spherical Heads According to ASME VIII-I Standard or DIN28013 GR1, GR2, GR7, GR12, etc. Process: Cold forming and hot forming Inspection: 100% Ultrasonic Test and PT test after forming. (As per requirement.) Applications Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military. (Titanium dish head )DIN28013: D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s 300 4-10 3.5 78 1,0 1550 5-15 483 403 22.5 350 4-10 5.6 91 1.3 1600 5-15 532 416 23.9 400 4-10 8.3 104 1,7 1650 5-15 585 429 25,4 450 4-10 11.8 117 2,1 1700 5-15 640 442 27.0 500 4-10 16.1 130 2.6 1750 5-15 700 455 28.5 550 3-12 21,6 143 3,1 1800 5-15 760 468 30 600 3-12 28,0 156 3.6 1850 5-15 825 481 31.5 650 3-12 36.0 169 4,2 1900 5-15 890 494 33 700 3-12 44,5 182 4,8 1950 5-15 965 507 36 750 3-12 54.5 195 5,5 2000 6-15 1040 520 37 800 3-13 66.5 203 6.2 2050 6-15 1120 533 38.5 850 3-13 79,5 221 7,0 2100 6-15 1200 546 40.5 900 3-13 94 234 乙8 2150 6-15 1290 559 42,5 950 3-13 111 247 8.6 2200 6-15 1380 572 44.5 1000 4-16 130 260 9.5 2250 6-15 1480 685 46.5 1050 4-13 150 273 10,4 2300 6-15 1580 598 46 5 1100 4-13 173 286 11,1 2350 6-15 1690 611 51 1150 4-13 198 299 12.5 2400 6-15 1800 624 53 1200 4-13 225 312 13.6 2450 6-15 1910 637 55 1250 4-13 254 325 14,7 2500 6-15 2030 660 57

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr5 Titanium Dish Head Product Information Titanium dish head refers to the element used to close the end of the container to isolate the internal and external media, also known as end caps.
