Product name:Titanium Elliptical Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Hemispherical Dish Head Brand name LHTi Product name Titanium Hemispherical Dish Head Material Titanium & titanium alloy (Grade 1 Grade 2 Grade 7 Grade 12 etc.) Size DN - 100mm : 6000mm (customized size avaliable) Wall Thickness 3mm ~ 300mm (customized thickness available) Process Type Hot pressing, cold pressing, cold spinning Connection Type Butt-welded or threaded Edge Type Bevel, Plain or as required Process of depression Once the plate is cut into a circle (using a circular cutter, laser, plasma or other methods), the resulting plate is formed under the press and will be crowned with the plate by multiple impacts on the whole surface. In order to make different types and diameters of disc ends, a disc press must be equipped with a set of molds with different radii. The serving process is quite slow. Depending on the size and material of the plate, it usually takes several hours. This process can be automated by using a CNC manipulator. It is possible to find a press with CNC, which can handle more than 10 shafts and can run automatically for several hours. In addition to automation, another important factor in the disk making process is speed. The two speed press can greatly increase the output. The punch presses the workpiece continuously. This means that the structure of disc press is easily affected by material fatigue; Therefore, the life of the press designed to save cost may be very short, showing the first crack of the structure in a very short time. The press designed with HPT has better fatigue resistance. This design consists of four main parts: upper beam, lower beam and two columns. The two beams are connected with the column through the hydraulic preload pull rod. Compared with seam welding or bolts, these tie rods can better resist continuous stress, so as to provide more elasticity to the structure. Dished multi center end A special dished end is widely used in truck can body manufacturers: multi center dished end. These disc-shaped ends are usually made of aluminum or stainless steel and are usually made of thin plates up to 6 mm. This thickness allows the formation of multi center dished ends using a technique called hydroforming.

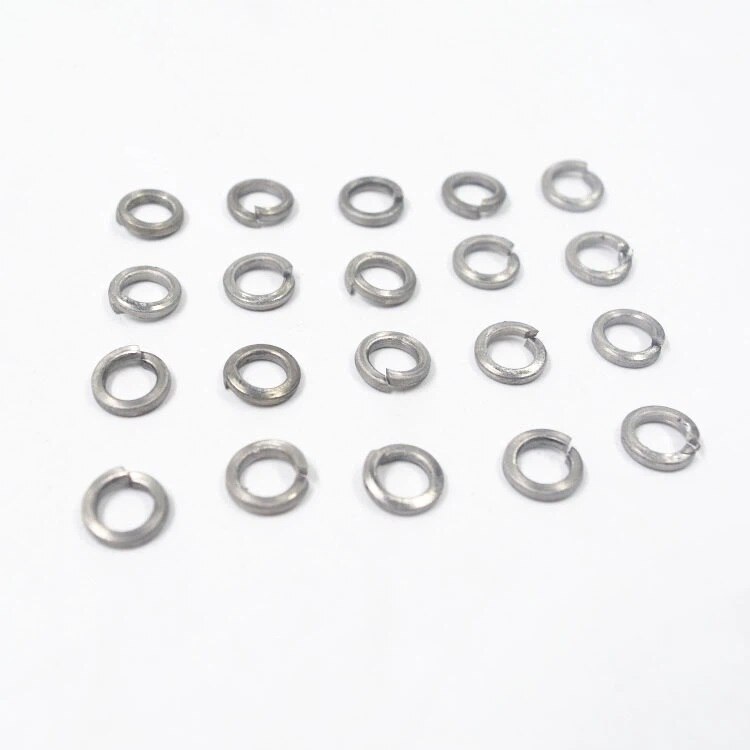

Standard: DIN127 Material: Gr5 Size: M2-M52 Surface: Polished Gr5 Titanium Spring Lock Washer DIN127 Titanium spring lock washer is the most commonly used part to prevent assembly components from loosening. They apply greater bolt tension per unit of applied torque, and provide protection against loosening resulting from vibration and corrosion. Product Information of Gr5 Titanium Spring Lock Washer DIN127 Material: GR2 GR5 Standard: DIN127 Technique: CNC/Forged Surface: Polished Size: M2-M52 Titanium grade 5 is the commonly used titanium alloy that is accounting about 50% of usage throughout the globe. This material is covering 6% aluminum and 4% of vanadium. This material is a good combination of various properties like corrosion-resistant, lightweight, high strength. This alloy is stronger in addition to having thermal properties and stiffness. Among its advantages, this alloy is heat treatable. Also, this grade possesses good weldability and fabricability.

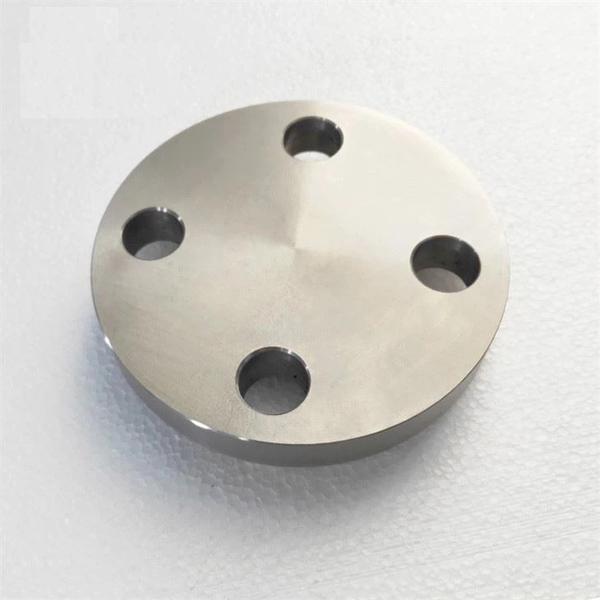

Product Name: Gr2 Titanium blind Flange Standard: ANSI B16.5 / ASTM B16.5 ,JIS B2220, DIN2627-2628,ASME,GB/T 9116 Material: Gr2 Unit Price: $15usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) Pressure: 150#-2500# (PN6-PN250) Surface: CNC machined polished Technique: Forged and CNC Machined

Titanium blind flanges Material: GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12) Standard:ANSI B16.5,ANSI B16.47A, ANSI B16.47 Size:1/2"~80" Class 150 class 300 class 600 class 900 class 1500 Technique:Forged, CNC machined

Product name: 35mm titanium bar Material: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23 Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. Size: Dia 5mm-300mm (0.2"-12"), Length 50mm-6000mm (2.0"-236") Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished Titanium bars are mainly used in mechanical equipment, electroplating equipment, chemical equipment, petroleum coking zinc production equipment, medical, various precision parts and other industries. According to titanium rod wear-resisting, corrosion resistance, high temperature resistance, non-magnetic and other characteristics, is often used as the main parts of equipment, shaft body, fastener, stirring shaft, etc., due to the non-toxic, pollution-free and other characteristics, made titanium rod filter element and widely used. In addition, titanium bar is characterized by high strength, good toughness, low elastic modulus and compatibility with human body, which is unmatched by other metal bars. It has been widely used in the medical industry. Product 35mm Titanium bar Size Dia.: 5mm-300mm (0.2"-12"), , Length: 50mm-6000mm (2.0"-236") Material Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, etc. Standard ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. Surface Polished, bright Shape Round Product Size(mm) Condition Grade Specification Titanium bars/ rods Dia30*400*L<=5000mm Forged bars Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, etc. ASTM B348, ASTM F136,ASTM F67, AMS 4928, etc. Dia8-*460*L<=4000mm Rolled bars

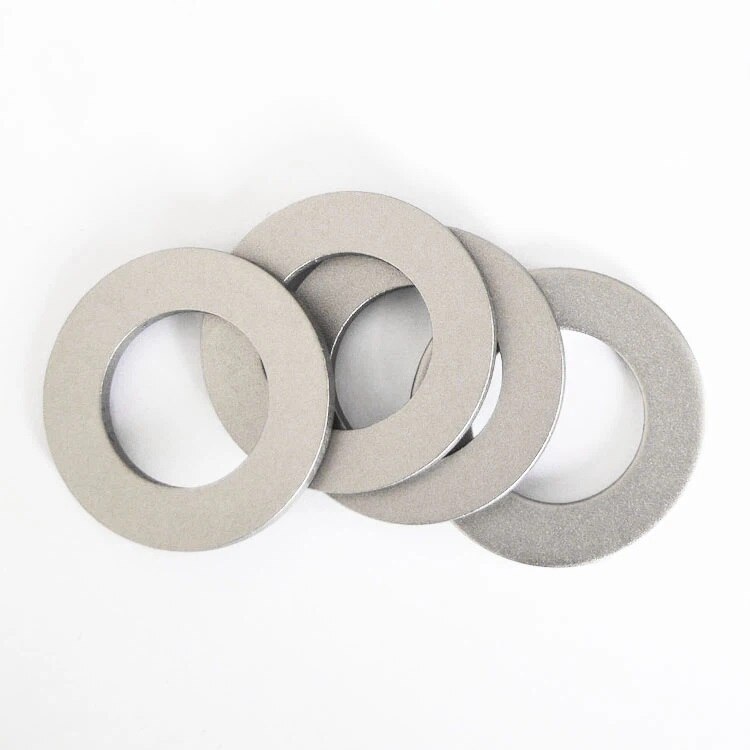

Standard: DIN125 Material: Gr2, Gr5 Size: M1.6-M52 Surface: Polished Product Introduction Product Information of Titanium Gasket Flat Washer Material: GR2 GR5 Standard: DIN125 Technique: CNC/Forged Surface: Polished Size: M1.6-M52 Advantages Light weight High strength Excellent corrosion resistance Good resistance to high temperature Good resistance to low temperature High melting point Low density Non-magnetic Low modulus of elasticity

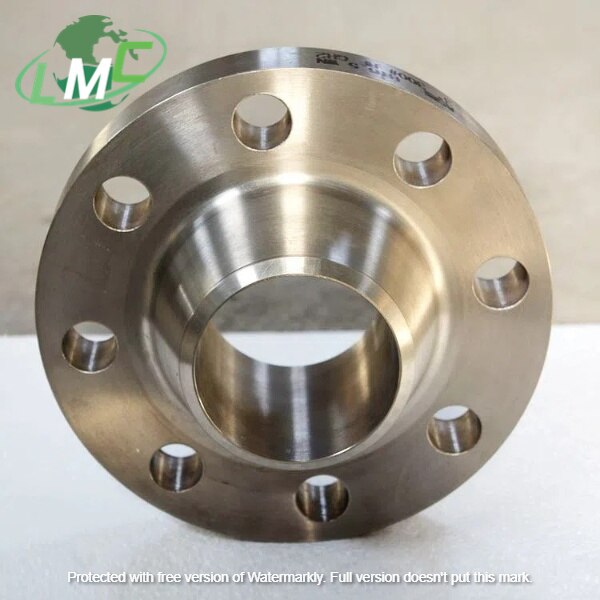

Product Name: Gr2 Titanium weld neck flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc.

Gr2 Titanium Blind Flanges Material: GR2(F2) Standard:ANSI B16.5,ANSI B16.47A, ANSI B16.47 Size:1/2"~80" Class 150 class 300 class 600 class 900 class 1500 Technique:Forged, CNC machined titanium flanges function The flange, gasket and bolt are connected to each other as a detachable connection of a combined sealing structures. Flange connection is an important connection method for pipeline construction. The flange connection is easy to use and can withstand great pressure.

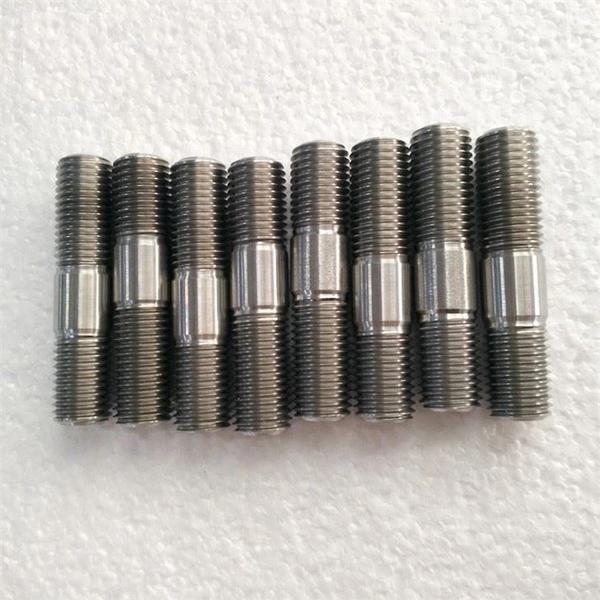

Product:Titanium stud m8 Material: Gr2 Gr5 Size: M3-M52*Length, or as customers' drawings Surface: Polished Technique: CNC Machined, Forged Titanium bolts are widely used in various industries such as automobiles,chemical industry. Different from welding and riveting, the biggest feature of bolts is that they can be easily removed even after tightening and can be reused by re-tightening Item name: Titanium Stud Bolt Material: GR2 GR5 Size: M3-M52 Pitch: 1.25/1.5mm Length: total length 5-300mm, the length of thread at both ends is based on your requirements Technique: CNC/Forged Surface: Polished Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Al V Bal Grade2 0.3 0.25 0.03 0.1 0.015 - - Ti Grade 5 0.3 0.2 0.05 0.08 0.015 5.5-6.75 3.5-4.5 Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 35A -CP1 58 400 40 275 20 Grade 5 Ti6Al4V 130 895 120 825 10
