Product Name: Titanium rod grade 23 Standard: ASTM F136 Material: Gr23 (Gr5 ELI) Unit Price: $30.5 usd/kg- $52.5 usd/kg Application: Medical use Shape: Round Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc. Length: 1000mm, 3000mm, 6000mm or as per your request Surface: Bright Product Introduction Product name:Titanium rod grade 23 Material: GR23 Standard: ASTM F136 Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc. Length: 1000mm, 3000mm, 6000mm or as per your request Surface: Polishing,Bright Third-Party Tests: BV, SGS, TUV etc. Grade 23 is a higher purity version of Ti 6Al-4V. It can be made into coils, strands, wires or flat wires and is the first choice for any occasion that requires a combination of high strength, light weight, good corrosion resistance and high toughness. It has excellenct damage resistance superior to other alloys. These advantages make Ti 6AL-4V ELI the final dental and medical titanium grade product. Due to its biocompatibility, good fatigue strength and lo mdulus, it can be used in biomedical applications such as implantable parts. Grade 23 can also be used in detailed surgical procedures, such as: • Orthopedic pins and screws • Orthopedic cables • Ligation needles • Surgical staples • Springs • Orthodontic appliances • Joint replacements • Cryogenic containers • Bone fixators Mechanical Properties: Grade Tensile strength, MPa (min) Yield strength, MPa (min) Elongation, %(min) Reduction of Area, %(min) Gr23 828 759 10 15 Chemical Component (ASTM B348) Grade Ti Al V N, max C, max H, max Fe, max O, max Residuals Max each Max total Gr23 Main 5.5-6.5 3.5-4.5 0.03 0.08 0.0125 0.25 0.13 0.1 0.4

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

Product Name: Grade 12 Titanium alloy Bar 30mm Standard: ASTM B348 Material: GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Unit price:$21.5-$34.9/kg Product Description Product Grade 12 Titanium Alloy Bar 30mm Technique Rolled, Forged Grade GR12 titanium Russian Grade BT1-00,BT1-0,BT1-2 Standard ASTM B348, AMS 4928 Shape Round, Square, Flat, Hex Diameter 3-350mm Length up to 6000mm Surface Bright Product Certificate En10204/3.1 Company certificate ISO 9001:2015 gr12 titanium bar Other grade titanium bar: Gr1 titanium bar/rod Gr2 titanium bar/rod Gr3 titanium bar/rod Gr4 titanium bar/rod Gr5 titanium bar/rod Gr7 titanium bar/rod etc.

Product Name: 10mm Titanium Round Rod Standard: ASTM B348 ASTM F136 ASTM F67 AMS 4928 Material: GR1, GR2, GR3,GR4,GR5, GR7, GR12,GR23 etc. Shape: Round, Square, Flat, Hex Diameter: 6-200mm Length: Max 6000mm Surface: Bright Application:Chemical industry,machinery, ocean, aviation, military industry etc. Advantages: 1. Equipments:we have milling machine, annealing furnace, straightening machine, rolling mill, cutting machine, punching machine, sand blasting machine, etc. 2. Price:with more than 15 years of production and export experience in the titanium industry, we know this market well. Under the premise of quality assurance, to customers the most competitive price 3. Quality: Our titanium rods have been exported to many regions and countries in North America, Europe, Southeast Asia and so on, and the satisfaction rate has reached 99.95%. We accept any third party testing, such as SGS, TUV,BV, etc. Physical properties of titanium bars: Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18 Grade 23 125 860 115 790 10

Product name:Titanium sheet for knife making Grades: Gr5(Ti6Al4V) Standard: ASTM B265/ASME B265 Dimension： Thickness*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case Usually, the titanium alloy plate used for knife is Grade 5 (Ti6Al4V). This grade titanium material is one of the most widely used materials in titanium alloys. It has the same advantages as pure titanium: corrosion resistance, non-toxic, light weight, etc. There are also many of other advantages over pure titanium: higher hardness, tensile strength, yield strength and elongation. Can meet the needs of making knife. Titanium is a good material for knives if your main concern is light weight and corrosion resistance. Titanium knives are ideal for anyone who spends a lot of time around water or performs jobs that require frequent blade cleaning. Product name:Titanium sheet for knife making Grades: Gr5(Ti6Al4V) Standard: ASTM B265/ASME B265 Dimension： Thickness1-150mm*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case. MTC: EN10204.3.1 certificate MOQ : 10kgs Titanium plate applications

Product Name: Titanium Gr 2 flanges Standard: ASME B16.5 Material: Gr2 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Grade 2 titanium is the most commonly requested in the pipeline valve and fittings industry, with high strength and corrosion resistance. Titanium is generally used in applications that require high temperature and high pressure service but are lighter in weight. Some good examples are components in the aerospace industry (airframe frames) and state-of-the-art equipment in the military. Given its excellent corrosion resistance in marine and chloride applications, titanium flanges are also popular as offshore drilling components and heat exchanger components. When you need a metal with good overall formability and workability, please choose titanium. It has the capability of hot or cold forming while maintaining its excellent mechanical properties. For transportation to your work site, it is good to know that titanium is much lighter than regular steel (about 40-45% lighter). Although not as light as aluminum, our titanium flanges and fittings are easier to handle during welding and installation. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 64 440 46 320 18

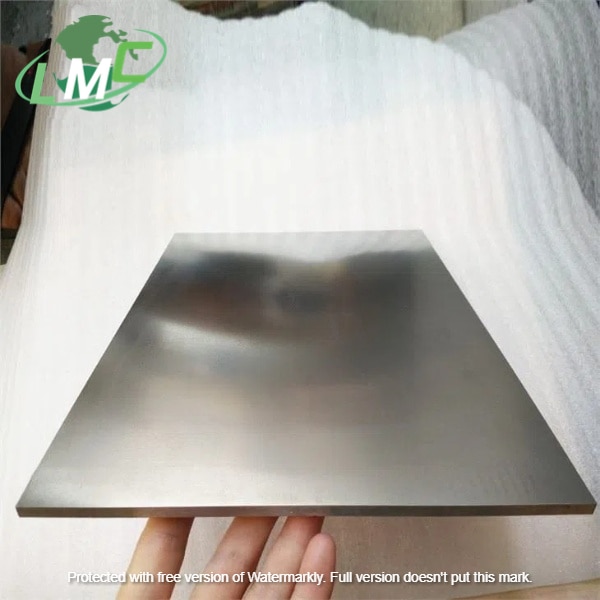

Name: Titanium plate Standard: ASTM B265 Grade: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Thickness: 8mm Titanium sheet has found favour in industries such as aerospace, power generation, petrochemical and automotive. Offering extra-high strength and low weight, the alloys high tensile strength combined with low heat transfer make it highly suitable for a range of engineering applications. Titanium sheet is an excellent material for high-volume production of components by stamping or waterjet cutting. However, the alloy must be cold cut if chemical characteristics are to be maintained since titanium is reactive to heat.

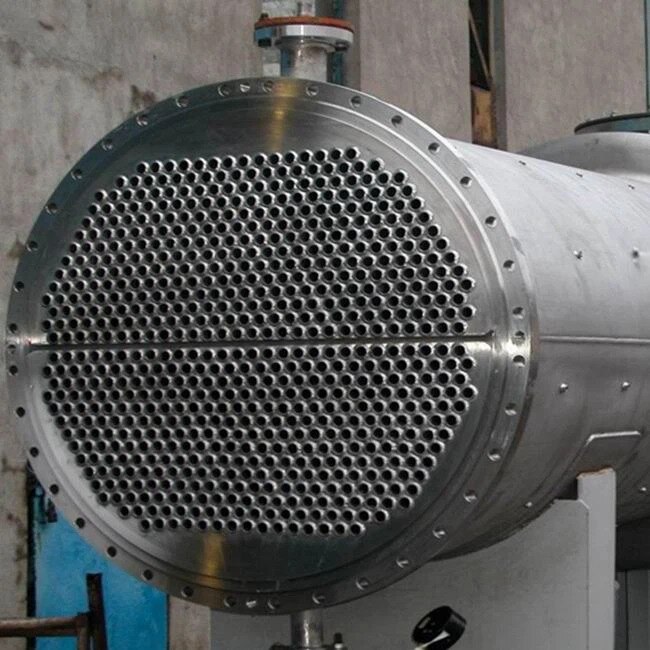

Product Name: Shell And Tube Type Gr2 Titanium tube Heat Exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Gr2 Titanium tube Heat Exchanger Titanium heat exchanger is a kind of heat exchanger made of titanium tube, which transfers part of the heat of hot fluid to cold fluid. It has many advantages of industrial pure titanium. It is a common equipment in many industrial departments such as chemical industry, petroleum, electric power, food and so on. Product Name Industrial Titanium tube heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Competitive Advantage 1.ISO9001:2008 2.Timely delivery rate is 99.8%,sometimes in advance. 3.Excellent after sale service. 4.Rapid enquiry reply, within 2 hours. 5.Fair payment term 6.Proffessional technical adviser 7.Material certificate 8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process, surface treatment, inspectation and testing).

Porduct name : Gr 1 Titanium Tube Sheet Material: Gr1 Titanium +steel,Gr1 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr 1 Titanium Tube Sheet U-shaped expansion joint is commonly used in fixed tubesheet heat exchanger. It has the advantages of compact and simple structure, good compensation and low price. With the large-scale of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with diameter of 4m-5m is very common. Large tubesheet is characterized by large number of tube holes, dense, small diameter, deep, high precision and finish requirements.
