Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet Product Information Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tube Plate for Heat Exchanger Product Description Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet. Grade: GR1, GR2, GR5, GR7, GR12 etc. OD: 150-2500mm Thickness: 30-250mm Physical Properties

Porduct name : Titanium clad stainless steel tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad stainless steel tube sheet Titanium composite steel plate tube-sheet is a single or double-sided composite plate made of ordinary grade TA1 or TA2 (composite metal) and carbon steel or alloy steel by explosion, explosion + rolling or hot rolling. Titanium metal has excellent corrosion resistance, widely used in flue gas desulfurization equipment, power plant chimneys, chemical reactors, heat exchangers, pressure vessels, etc. But its disadvantage is high cost, titanium composite steel plate tubesheet has the corrosion resistance of titanium metal and the structural strength of steel, can greatly reduce the project cost. At present, the production method of titanium composite steel tubesheet is as follows: 1. Weld compound 2. Rolling compound 3. Explosive welding 4. Explosive welding + rolling Baoji Lihua uses explosive welding and rolling and combines the two processes. This method can overcome the disadvantages of small area and complex rolling process of explosive composite plate, give full play to their respective advantages, and produce titanium steel composite plate with large area and small thickness. It is more efficient and cheaper. Technological parameters and shear strength of explosive welding of Titanium clad stainless steel plate tube sheet 1 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 293 200 392 179 266 The substrate is generally polished. σf 247 208 113 92 165 σt 447 530 460 441 444 The substrate is polished. σf 403 200 363 322 σt 139 105 203 205 163 The substrate is generally polished. σf 231 345 286 287 285 σt 407 410 263 407 372 The substrate is polished. σf 498 571 513 527 Losive welding of Titanium clad stainless steel plate tube sheet 2 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 392 87 240 18 The substrate is generally polished. σf 345 92 157 12 σt 530 279 402 5 The substrate is polished. σf 403 200 321 3 σt 339 60 230 18 The substrate is generally polished. σf 287 149 233 11 σt 571 513 541 2 The substrate is polished.

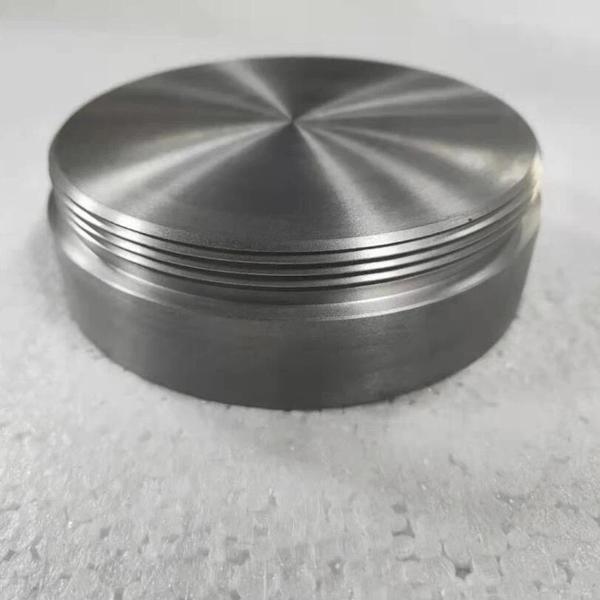

Product name: Titanium Sputtering Target Material: Titanium (Gr1, Gr2, Gr5, Gr7,GR12) Alloy target: Ti-Al, Ti-Cr, Ti-Zr etc. Other materials: Chrome,zirconium,copper ,tungsten etc. Shape:Round target Size:Ø30--2000mm, thickness 3.0mm--300mm; Or as customers' drawings Baoji Lihua Nonferrous Metals Co., Ltd. specializes in producing high-purity titanium and titanium alloy sputtering targets for vacuum coating. There are many types of targets: multi-arc sputtering target 100*40, rotating sputtering target: 70*56, large diameter sputtering target: 152*125.

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting MOQ:50kgs Product Information Baoji Lihua is a world-renowned manufacturer of Grade 5 Titanium Sheets, providing high quality Grade 5 Titanium Sheets to customers worldwide. Grade 5 Titanium is the most commonly used titanium grade of all titanium alloy sheets due to its ability to withstand extreme temperatures, good corrosion resistance and thermal stability. Material: GR1, GR2, GR4, GR5, GR7, GR12 Russia Grade: BT1-100,BT1-0,BT6 etc. Standard: ASTM B265 Thickness: 0.5-100mm The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require. Surface: Pickling, Polishing, Sand blasting etc. Type: Sheet, plate, foil; Straight & roll State: R/Y/M Chemical compositions(weight%,<=) Ti Al V Fe C Reminder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 825 10 25

Product Name: titanium grade 2 elbows Standard: ASME B16.9 Material: Titanium Gr2 Unit Price: $10usd/pc-$200usd/pc Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded Description Titanium grade 2 elbows An elbow is a pipe fitting used at the turn of a pipe. Among all the pipe fittings used in the pipeline system, the proportion is the largest, about 80%. Generally, different forming processes are selected for elbows with different materials or wall thickness. PRODUCT TYPE Long radious elbow(LR elbow), short radious elbow(SR elbow), seamless elbow, butt welding elbow, carbon steel elbow(CS elbow), mild steel elbow(MS elbow), alloy steel elbow(AS elbow),stainless steel elbow(SS elbow), ( 15deg, 30deg, 45deg, 90deg, 180deg) SIZE NPS1/2”-120”(DN15-3000) WALL THICKNESS SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP……. MATERIAL Titanium Gr2 STANDARD ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 etc… We can also produce according to drawing by customers. SURFACE TREATMENT Pickled PACKING plywood cases, pallets, nylon bags or according to the customers' requirements TRADE TERM FOB, CNF&CFR, CIF APPLICATION Chemical industry, petroleum industry, construction industry, power industry, gas industry, shipbuilding ,domestic installation and other CERTIFICATES ISO-9001:2015 ORIGIN Baoji, Shaanxi, China Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
