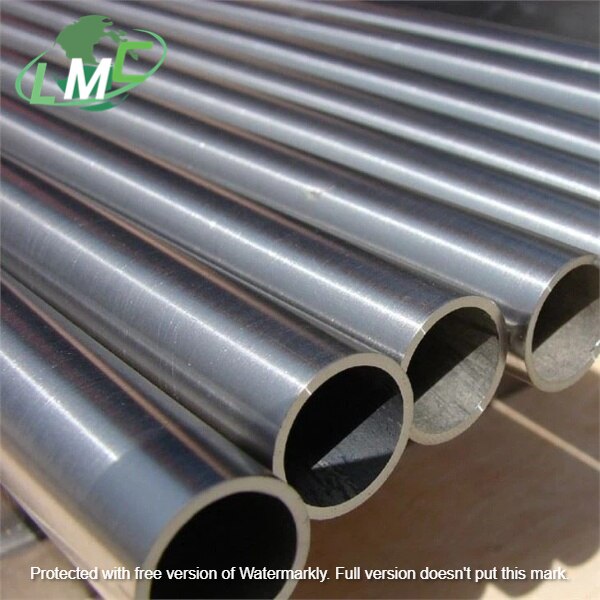

Product name: ASTM B338 titanium Seamless Tubes for Condensers Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled ASTM B338 titanium Seamless Tubes for Condensers ASTM B338 Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers ASTM B338 covers 28 grades of seamless and welded titanium alloy tubes for surface condensers, evaporators, and heat exchangers. Standard ASTM B338, ASME SB338 Regular Grade Grade 1 Grade 2 Outer Diameter 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc. Wall thickness 0.9mm/1.0mm/1.2mm/1.5mm Length 3000 - 6000mm or other economical lengths Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF Form Straight titanium Pipe, Coiled titanium tube Type Seamless, ERW, EFW, Welded, Fabricated End Plain End, Beveled End, Treaded Marking Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.) Application Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger Value Added Service Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. Test Certificate Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2 Precautions for titanium pipe processing: During the deformation process, titanium pipe will gradually reduce wall and diameter with the rotation and feeding of the rolling mill. The pipe size required by the process can be obtained only after 5 ~ 10 rolling and finishing in one rolling pass. The cold rolling pipe mill can carry out large diameter reduction and wall reduction, but the dimensional accuracy is low after rolling, and the pipe end is prone to cracking, uneven concave convex and other phenomena. The cracking phenomenon can be solved mainly by grinding and leveling before pipe blank processing; For the uneven pipe end, similar to the "fish mouth" phenomenon, flat head treatment is required in the subsequent processing process, otherwise it will cause the plug stuffy accident. Therefore, this paper analyzes from the aspects of process, tooling and equipment, in order to find out the causes of uneven concave convex of pipe end and take effective measures to solve it. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product name: ASTM B338 titanium Seamless Tubes for Condensers Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled ASTM B338 titanium Seamless Tubes for Condensers ASTM B338 Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers ASTM B338 covers 28 grades of seamless and welded titanium alloy tubes for surface condensers, evaporators, and heat exchangers. Standard: ASTM B338, ASME SB338 Regular Grade: Grade 1 Grade 2 Outer Diameter: 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc. Wall thickness: 0.9mm/1.0mm/1.2mm/1.5mm Length: 3000 - 6000mm or other economical lengths Finish: Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF Form: Straight titanium Pipe, Coiled titanium tube Type: Seamless, ERW, EFW, Welded, Fabricated End: Plain End, Beveled End, Treaded Marking: Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.) Application: Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger Value Added Service: Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. Test Certificate: Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2 Precautions for titanium pipe processing: During the deformation process, titanium pipe will gradually reduce wall and diameter with the rotation and feeding of the rolling mill. The pipe size required by the process can be obtained only after 5 ~ 10 rolling and finishing in one rolling pass. The cold rolling pipe mill can carry out large diameter reduction and wall reduction, but the dimensional accuracy is low after rolling, and the pipe end is prone to cracking, uneven concave convex and other phenomena. The cracking phenomenon can be solved mainly by grinding and leveling before pipe blank processing; For the uneven pipe end, similar to the "fish mouth" phenomenon, flat head treatment is required in the subsequent processing process, otherwise it will cause the plug stuffy accident. Therefore, this paper analyzes from the aspects of process, tooling and equipment, in order to find out the causes of uneven concave convex of pipe end and take effective measures to solve it. LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

Product Name: Titanium seamless pipe for heat exchanger Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless Shape: Round Outer Diameter: 21.3mm-609.6mm etc. Wall Thickness: 1.24-30mm Length: Max 16000mm Surface: Bright Titanium seamless pipe for heat exchanger The grade 2 titanium tube consists of commercial pure titanium or Unalloyed titanium. The oxygen content of grade 2 is standard. ASTM b861 GR 2 pipes can be easily welded. It also has excellent strength and ductility. The natural strength of metal is used for applications requiring very high strength, and the corrosion resistance is used for long-term appliances. Although most use cases are in industrial standards, titanium grade 2 seamless pipes can also be used in aesthetic and home applications. Due to the cost of raw materials and production costs, the cost is very high. The content of titanium in commercial pure CP grade 2 titanium welded pipe exceeds 99%. It can be cold drawn into titanium seamless pipe or hot rolled into welded pipe. They are used in high temperature applications, such as titanium 2-stage exhaust pipes, which can maintain their shape due to their high thermal conductivity, low thermal expansion and high oxidation resistance at high temperatures.

Product name: Gr1 Titanium seamless tube Standard:ASTM B338 Material:Grade 1 titanium Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr1 Titanium seamless tube The production process of titanium seamless pipe is complex. Three roll or multi roll rolling mill and drawing machine are usually used to roll or draw a certain specification of pipe blank through multiple passes, and finally produce seamless pipe after reducing diameter and wall. The production efficiency and yield of this process are low. Titanium seamless pipe from sponge titanium to pipe, through rolling or drawing, the material waste is large, the yield is only about 50%, and can not achieve mass production, and the production cycle is relatively long. Product name Titanium seamless tube Standard ASTM B861, ASTM B337, ASTM B338 Size OD5.0-114.0mmxWT0.5-7.0mmx1000-12000mm OD55mm-914mmxWT1.0-10.0mmx1000-6000mm Or according customer’s requirement. Material Titanium(Gr1, Gr2, Gr5, Gr7,Gr9,GR12) Technique Rolled Status Annealled Surface Acid wash,bright Application Exhaust pipe; exhaust pipe, petroleum pipeline;Sea farming; electroplating equipment;Fluid Transportation Piping etc. Certificate ISO9001:2008, TUV, EN10204.3.1 Types Out diameter Sizes Length NB Sizes (in stock) .0035” ~ 8” 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6" Cut to length Titanium Seamless Tube (Custom Sizes) 6.35 mm OD To 101.6 mm OD As per requirement Cut to length Titanium seamless pipe features: 1. The thicker the wall thickness is, the more economical and practical it is. The thinner the wall thickness is, the higher its processing cost will be 2. The process of titanium seamless pipe determines its limited performance. Generally, the precision of seamless steel pipe is low, the wall thickness is uneven, the brightness of the inner and outer surface of the pipe is low, the sizing cost is high, and there are pockmarks and black spots on the inner and outer surface, which are not easy to remove 3. Its detection and shaping must be processed offline. Therefore, it embodies its advantages in high pressure, high strength and mechanical structure materials.

Product Name: Gr12 Titanium Seamless Tube Standard: ASTM B337,ASTM B338,ASTM B861, ASTM B862 Material: Titanium Gr12 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 3-508mm Wall Thickness: 0.1-20mm Length: Max 12000mm Surface: Bright Gr12 Titanium Seamless Tube Titanium tubes have been widely used in chemical, petroleum, petrochemical, vacuum salt making, preparation, marine engineering, electric power and other industries. Titanium is widely used in corrosive media due to its good corrosion resistance, such as ionic membrane caustic soda, propylene oxide, etc. titanium materials are widely used in equipment and pipelines. Product media are also used in formic acid, methane chloride and other projects to solve pipeline corrosion problems. Place of Origin:Shaanxi, China Material:ASTM B337,ASTM B338,ASTM B861, ASTM B862 Outer Diameter:3-508mm Wall Thickness:0.2-20mm Length:Max 15Meter Standard:ASTM B861 Application:Industrial Technique:Seamless Grade:Titanium Alloy Key Words:titanium tube Type:Titanium Round Tube Certificates:SO9001:2015 Processing:Drawing Surface:Bright Finished Shape:Round.square.Rectangle Package:plywood Case Titanium grade 12 pipe (Ti-0.3Mo-0.8Ni) Chemical compositions(weight%,<=) Mo Ni Fe C N 0.2-0.4 0.6-0.9 0.30 0.08 0.03 H O Ti Others Total 0.015 0.25 Remainder 0.10 0.40 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 440 345 18 ------- Titanium is widely used in chemical industry because of its high strength, light weight, good heat transfer performance and corrosion resistance. These characteristics of titanium make it a relatively economic method to solve engineering problems related to chemical industry. Although the investment cost of titanium is higher than that of general performance materials, titanium has been widely used in the chemical industry. According to the life cycle analysis, using it can reduce the production cost by reducing maintenance, shortening downtime, increasing product quality and increasing product life.

Product name: Gr2 titanium tubes 19mm Standard:ASTM B338 Material:Titanium Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc. Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 titanium tubes 19mm Titanium tube has been widely used in chemical industry, petroleum, petrochemical, vacuum salt, preparation, ocean engineering, electric power and other industries. Titanium is widely used in corrosive media due to its good corrosion resistance, such as ionic membrane caustic soda, propylene oxide and so on. Titanium materials have been widely used in equipment and pipelines. Product media are also used in formic acid, methane chloride and other projects to solve the problem of pipeline corrosion. Product Name Titanium tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc Size(mm) Diameter 5-914*Wall thcikness 0.5*10mm*L max 16000mm Section shape Round Certification ISO9001 Surface Treatment Pickling, polished, bright finish Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity Corrosion of titanium tubes is a serious destructive factor in industrial development. According to relevant media reports, the annual steel loss caused by corrosion is more than 10,000 tons, and the product transportation has damage and corrosive media, with dangerous factors. Therefore, the higher the requirements for titanium alloy pipe fittings. Titanium has the advantages of high strength, light weight, good heat transfer performance and corrosion resistance, and has been widely used in chemical industry. Titanium of these features make it a solution to the problem of chemical related engineering relative economic method, although the investment cost is higher than the general performance of titanium material, but titanium has been widely used in the field of chemical industry, based on life cycle analysis, can use it by reducing maintenance, shorten downtime, increase product quality and increase the product life to reduce the cost of production. Chemical Composition Grade N C H Fe O Al V Pa Mo Ni Ti Gr1 0.03 0.08 0.015 0.2 0.18 / / / / / bal Gr2 0.03 0.08 0.015 0.3 0.25 / / / / / bal Gr3 0.05 0.08 0.015 0.3 0.35 / / / / / bal Gr4 0.05 0.08 0.015 0.5 0.4 / / / / / Gr5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal Gr7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal Gr12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 bal

Product name: Gr2 Titanium Tubes 25.4mm Standard:ASTM B338 Material:Titanium Gr2 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium Tubes 25.4mm Titanium pipe/titanium alloy pipe has excellent strength, hardness, small density, light weight, high temperature resistance, low temperature resistance, good machining performance, excellent corrosion resistance, non-magnetic non-toxic, good heat exchange performance. It also has memory and superconductivity. Hydrogen storage performance is very outstanding, the products are widely used in: navigation, aerospace, vacuum salt, automotive industry, medical sports, paper and textile industry, electric power industry, metallurgy industry, chlor-alkali industry, chemical fertilizer industry, seawater desalination industry. 1.Shape: round tube, square tube, spiral tube, coil tube, 2. Standard: ASTM B337, ASTM B338, ASTM B861, ASTM B862 3. Srand: Titanium GR2 4. Specifications: ф (3-159) x (0.2-10.0) x L(500-9000) ф (30-1000) x (0.5-12.0) x L(500-15000) Extruded tube (M state) ф (45-219) x (5.0-30.0) x L 5. Production method: cold rolling, extrusion 6. Testing: ultrasonic testing, eddy current testing, water pressure testing, airtight testing Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa

Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Grade 7 Titanium Tubes Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Dimension and Tolerance of titanium tube Outside diameter, in.(mm) Diameter tolerance, in.(mm) Permissible variations , wall thinckness, t, % in.(mm) <1 (25.4) ±0.004( ± 0.012) ±10 1-1½(25.4-38.1) ±0.005( ±0.127 ) ±10 1½-2(38.1-50.8) ±0.006( ± 0.152) ±10 2-2½(50.8-63.5) ±0.007( ± 0.178) ±10 2½-3½(63.5-88.9) ±0.010( ± 0.254) ±10 Grade 7 (Ti-0.2Pd) titanium tube Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25 The density of titanium alloy is generally about 4.51g/ cubic centimeter, only 60 of steel, the strength of pure titanium is close to the strength of ordinary steel, some high strength titanium alloy exceeds the strength of many alloy structural steel. Therefore, the specific strength (strength/density) of titanium alloy is much higher than that of other metal structural materials, as shown in Table 7-1. It can produce components with high unit strength, good rigidity and light weight. At present, titanium alloy is used for engine components, skeleton, skin, fasteners and landing gear. High thermal strength The use temperature is several hundred degrees higher than aluminum alloy, can still maintain the required strength at moderate temperature, can work for a long time at 450500 temperature these two titanium alloys still have high specific strength in the range of 150500, and aluminum alloy at 150 than the strength decreased significantly. Titanium alloys operate at temperatures up to 500, while aluminum alloys operate below 200. Good resistance to corrosion The corrosion resistance of titanium alloy is much better than that of stainless steel when working in humid atmosphere and seawater medium. Resistance to pitting corrosion, acid corrosion, stress corrosion is particularly strong; Excellent corrosion resistance to alkali, chloride, chlorine organic articles, nitric acid, sulfuric acid and so on. But titanium has poor corrosion resistance to reducing oxygen and chromite medium. Good low temperature performance Titanium alloy can keep its mechanical properties at low temperature and ultra low temperature. Titanium alloys with good low temperature performance and very low gap elements, such as TA7, can maintain certain plasticity at -253. Therefore, titanium alloy is also an important low temperature structural material.

Product name: Titanium alloy Tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Because stainless steel and other materials are inefficient in many cases, titanium tubes are increasingly used in various occasions. A common titanium grinding product is titanium tube. Because of its superior corrosion resistance and strength weight ratio, titanium tube is used in various products. The development of many different alloys has expanded the application of titanium in industry, chemical processing and power generation. Commodity Titanium Alloy Tube /Pipe/Tubing,titanium alloy seamless tube/pipe,titanium alloy welded tube pipe,ASTM B338 titanium tube,Titanium pipe price per kg Tube Shape Round Square Flat Coil Material Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7,Gr9,Gr11,Gr12,Gr23(Ti-6Al-4V Eli) Standard ASTM B337 ASTM B338 ASTM B861 ASTM B862 Type Seamless Welded ERW Fabricated OD 5-914mm or as customized Wall Thickness 0.5-50mm or as customized Length Max 16000mm End Plain End, Beveled End, Threaded Certificate EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc Application Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry Titanium alloy tubes can be divided into three categories according to phase composition: α Alloy（ α+β) Alloy and β alloy 1. α Stability of alloy containing a certain amount α The element of phase, in equilibrium, is mainly composed of α Phase composition. α The alloy has small specific gravity, good thermal strength, good weldability and excellent corrosion resistance. Its disadvantage is low strength at room temperature. It is usually used as heat-resistant and corrosion-resistant materials. α Alloys can usually be divided into complete alloys α Alloy (Gr7), near α Alloy (ti-8al-1mo-1v) and alloy with a small amount of compounds α Alloy (Ti-2.5Cu). 2. ( α+β) Stability of alloy containing a certain amount α Phase harmony β Phase elements, and the microstructure of the alloy in equilibrium is α Phase harmony β Phase. ( α+β) The alloy has medium strength and can be strengthened by heat treatment, but its weldability is poor. ( α+ β) Alloys are widely used, and the output of Ti-6Al-4V Alloy accounts for more than half of all titanium materials. 3. β The alloy contains a large amount of stable β Phase elements can be used at high temperature β All phases were retained to room temperature. β Alloys can usually be divided into heat treatable alloys β Alloy (metastable) β Alloy and near metastable β Alloy) and thermal stability β Alloy. Heat treatable β The alloy has excellent plasticity in quenched state, and the tensile strength can reach 130 ~ 140kgf / mm2 by aging treatment. β Alloys are usually used as high strength and high toughness materials. The disadvantages are large ratio, high cost, poor welding performance and difficult machining.
