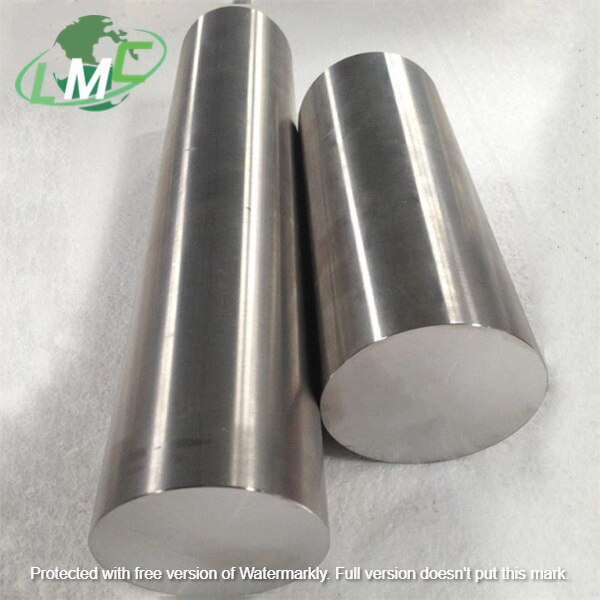

Product Name: 10mm Titanium Round Rod Standard: ASTM B348 ASTM F136 ASTM F67 AMS 4928 Material: GR1, GR2, GR3,GR4,GR5, GR7, GR12,GR23 etc. Shape: Round, Square, Flat, Hex Diameter: 6-200mm Length: Max 6000mm Surface: Bright Application:Chemical industry,machinery, ocean, aviation, military industry etc. Advantages: 1. Equipments:we have milling machine, annealing furnace, straightening machine, rolling mill, cutting machine, punching machine, sand blasting machine, etc. 2. Price:with more than 15 years of production and export experience in the titanium industry, we know this market well. Under the premise of quality assurance, to customers the most competitive price 3. Quality: Our titanium rods have been exported to many regions and countries in North America, Europe, Southeast Asia and so on, and the satisfaction rate has reached 99.95%. We accept any third party testing, such as SGS, TUV,BV, etc. Physical properties of titanium bars: Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18 Grade 23 125 860 115 790 10

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright

Product name: Gr2 Titanium welded Tube Standard:ASTM B338 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube Titanium welded pipe is produced by automatic continuous production line, using titanium strip coil with uniform wall thickness through cold bending forming, welding, online heat treatment, sizing straightening, non-destructive testing and air tightness test and other procedures. From sponge titanium to welded pipe, the material utilization rate is usually about 80%, if the titanium strip coil as the raw material, its material utilization rate is more than 95%. With the rapid development of titanium industry and mature welding technology, the titanium tube welding will also greatly enhance production efficiency, quality stability, consistency, and the production efficiency will be higher, can according to customer request length cut into the required length, short delivery time, high material utilization, cost per unit is seamless tube will be lower. Product name: Gr2 Titanium welded Tube Standard:ASTM B338 ASTMB 862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled MOQ:100kgs Titanium welded pipe production process: titanium with open book - shearing butt - looping the loading - titanium belt cleaning - type pipe forming and welding to eddy current flaw detection, the predetermined diameter - online annealing - pure sizing/straightening to eddy current flaw detection, laser caliper - online printing - scale cutting and ultrasonic testing to fine scale/flat head, air tightness test to the finished product inspection, packaging warehousing.

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright Characteristics Sufficient mechanical strength Good electrical conductivity Light weight Sturdiness and durability Convenient loading and unloading of parts Appropriate loading

Product Name: Gr12 Titanium Seamless Tube Standard: ASTM B337,ASTM B338,ASTM B861, ASTM B862 Material: Titanium Gr12 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 3-508mm Wall Thickness: 0.1-20mm Length: Max 12000mm Surface: Bright Gr12 Titanium Seamless Tube Titanium tubes have been widely used in chemical, petroleum, petrochemical, vacuum salt making, preparation, marine engineering, electric power and other industries. Titanium is widely used in corrosive media due to its good corrosion resistance, such as ionic membrane caustic soda, propylene oxide, etc. titanium materials are widely used in equipment and pipelines. Product media are also used in formic acid, methane chloride and other projects to solve pipeline corrosion problems. Place of Origin:Shaanxi, China Material:ASTM B337,ASTM B338,ASTM B861, ASTM B862 Outer Diameter:3-508mm Wall Thickness:0.2-20mm Length:Max 15Meter Standard:ASTM B861 Application:Industrial Technique:Seamless Grade:Titanium Alloy Key Words:titanium tube Type:Titanium Round Tube Certificates:SO9001:2015 Processing:Drawing Surface:Bright Finished Shape:Round.square.Rectangle Package:plywood Case Titanium grade 12 pipe (Ti-0.3Mo-0.8Ni) Chemical compositions(weight%,<=) Mo Ni Fe C N 0.2-0.4 0.6-0.9 0.30 0.08 0.03 H O Ti Others Total 0.015 0.25 Remainder 0.10 0.40 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 440 345 18 ------- Titanium is widely used in chemical industry because of its high strength, light weight, good heat transfer performance and corrosion resistance. These characteristics of titanium make it a relatively economic method to solve engineering problems related to chemical industry. Although the investment cost of titanium is higher than that of general performance materials, titanium has been widely used in the chemical industry. According to the life cycle analysis, using it can reduce the production cost by reducing maintenance, shortening downtime, increasing product quality and increasing product life.

Product name: Gr2 titanium tubes 19mm Standard:ASTM B338 Material:Titanium Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc. Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 titanium tubes 19mm Titanium tube has been widely used in chemical industry, petroleum, petrochemical, vacuum salt, preparation, ocean engineering, electric power and other industries. Titanium is widely used in corrosive media due to its good corrosion resistance, such as ionic membrane caustic soda, propylene oxide and so on. Titanium materials have been widely used in equipment and pipelines. Product media are also used in formic acid, methane chloride and other projects to solve the problem of pipeline corrosion. Product Name Titanium tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc Size(mm) Diameter 5-914*Wall thcikness 0.5*10mm*L max 16000mm Section shape Round Certification ISO9001 Surface Treatment Pickling, polished, bright finish Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity Corrosion of titanium tubes is a serious destructive factor in industrial development. According to relevant media reports, the annual steel loss caused by corrosion is more than 10,000 tons, and the product transportation has damage and corrosive media, with dangerous factors. Therefore, the higher the requirements for titanium alloy pipe fittings. Titanium has the advantages of high strength, light weight, good heat transfer performance and corrosion resistance, and has been widely used in chemical industry. Titanium of these features make it a solution to the problem of chemical related engineering relative economic method, although the investment cost is higher than the general performance of titanium material, but titanium has been widely used in the field of chemical industry, based on life cycle analysis, can use it by reducing maintenance, shorten downtime, increase product quality and increase the product life to reduce the cost of production. Chemical Composition Grade N C H Fe O Al V Pa Mo Ni Ti Gr1 0.03 0.08 0.015 0.2 0.18 / / / / / bal Gr2 0.03 0.08 0.015 0.3 0.25 / / / / / bal Gr3 0.05 0.08 0.015 0.3 0.35 / / / / / bal Gr4 0.05 0.08 0.015 0.5 0.4 / / / / / Gr5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal Gr7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal Gr12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 bal

Product name: Titanium alloy Tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Because stainless steel and other materials are inefficient in many cases, titanium tubes are increasingly used in various occasions. A common titanium grinding product is titanium tube. Because of its superior corrosion resistance and strength weight ratio, titanium tube is used in various products. The development of many different alloys has expanded the application of titanium in industry, chemical processing and power generation. Commodity Titanium Alloy Tube /Pipe/Tubing,titanium alloy seamless tube/pipe,titanium alloy welded tube pipe,ASTM B338 titanium tube,Titanium pipe price per kg Tube Shape Round Square Flat Coil Material Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7,Gr9,Gr11,Gr12,Gr23(Ti-6Al-4V Eli) Standard ASTM B337 ASTM B338 ASTM B861 ASTM B862 Type Seamless Welded ERW Fabricated OD 5-914mm or as customized Wall Thickness 0.5-50mm or as customized Length Max 16000mm End Plain End, Beveled End, Threaded Certificate EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc Application Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry Titanium alloy tubes can be divided into three categories according to phase composition: α Alloy（ α+β) Alloy and β alloy 1. α Stability of alloy containing a certain amount α The element of phase, in equilibrium, is mainly composed of α Phase composition. α The alloy has small specific gravity, good thermal strength, good weldability and excellent corrosion resistance. Its disadvantage is low strength at room temperature. It is usually used as heat-resistant and corrosion-resistant materials. α Alloys can usually be divided into complete alloys α Alloy (Gr7), near α Alloy (ti-8al-1mo-1v) and alloy with a small amount of compounds α Alloy (Ti-2.5Cu). 2. ( α+β) Stability of alloy containing a certain amount α Phase harmony β Phase elements, and the microstructure of the alloy in equilibrium is α Phase harmony β Phase. ( α+β) The alloy has medium strength and can be strengthened by heat treatment, but its weldability is poor. ( α+ β) Alloys are widely used, and the output of Ti-6Al-4V Alloy accounts for more than half of all titanium materials. 3. β The alloy contains a large amount of stable β Phase elements can be used at high temperature β All phases were retained to room temperature. β Alloys can usually be divided into heat treatable alloys β Alloy (metastable) β Alloy and near metastable β Alloy) and thermal stability β Alloy. Heat treatable β The alloy has excellent plasticity in quenched state, and the tensile strength can reach 130 ~ 140kgf / mm2 by aging treatment. β Alloys are usually used as high strength and high toughness materials. The disadvantages are large ratio, high cost, poor welding performance and difficult machining.

Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Grade 7 Titanium Tubes Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Dimension and Tolerance of titanium tube Outside diameter, in.(mm) Diameter tolerance, in.(mm) Permissible variations , wall thinckness, t, % in.(mm) <1 (25.4) ±0.004( ± 0.012) ±10 1-1½(25.4-38.1) ±0.005( ±0.127 ) ±10 1½-2(38.1-50.8) ±0.006( ± 0.152) ±10 2-2½(50.8-63.5) ±0.007( ± 0.178) ±10 2½-3½(63.5-88.9) ±0.010( ± 0.254) ±10 Grade 7 (Ti-0.2Pd) titanium tube Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25 The density of titanium alloy is generally about 4.51g/ cubic centimeter, only 60 of steel, the strength of pure titanium is close to the strength of ordinary steel, some high strength titanium alloy exceeds the strength of many alloy structural steel. Therefore, the specific strength (strength/density) of titanium alloy is much higher than that of other metal structural materials, as shown in Table 7-1. It can produce components with high unit strength, good rigidity and light weight. At present, titanium alloy is used for engine components, skeleton, skin, fasteners and landing gear. High thermal strength The use temperature is several hundred degrees higher than aluminum alloy, can still maintain the required strength at moderate temperature, can work for a long time at 450500 temperature these two titanium alloys still have high specific strength in the range of 150500, and aluminum alloy at 150 than the strength decreased significantly. Titanium alloys operate at temperatures up to 500, while aluminum alloys operate below 200. Good resistance to corrosion The corrosion resistance of titanium alloy is much better than that of stainless steel when working in humid atmosphere and seawater medium. Resistance to pitting corrosion, acid corrosion, stress corrosion is particularly strong; Excellent corrosion resistance to alkali, chloride, chlorine organic articles, nitric acid, sulfuric acid and so on. But titanium has poor corrosion resistance to reducing oxygen and chromite medium. Good low temperature performance Titanium alloy can keep its mechanical properties at low temperature and ultra low temperature. Titanium alloys with good low temperature performance and very low gap elements, such as TA7, can maintain certain plasticity at -253. Therefore, titanium alloy is also an important low temperature structural material.

Titanium jigs for plating Any project to anodize requires a reliable hanger/jig/rack, first to prevent it from falling to the bottom of the anodizing tank, and second to allow the current to be safely transferred from the jig to the workpiece. Anodic oxidation clamps are usually made of aluminum or titanium. Aluminum fixtures must of course be anodized and must be chemically stripped. Continuous anodizing and stripping can result in short service life, so there is no need to strip titanium after the anodizing process. Item Name: titanium jig for coating Size:Customized size is welcomed Material: Titanium Gr1, Gr2 Application,Electroplating industry Surface:Sand Blasting, Acid Washing Parameter:Current density≤2000A/M2 Temperature:<65°C PH: 0.1~14 Max content of Fluoride ion is 200PPM Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
