Product name:Gr2 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr2 Titanium Hemispherical Head Hemispherical Head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy, food and pharmaceutical industries. Diameter: 250mm-3000mm Thickness: 2mm-20mm Height: 30mm --- 50mm Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Generally, molding and spinning are used for processing. The bottom flatness of molded flat bottom head is high, the blanking size is large and the cost is high, which is suitable for equipment with high requirements; With the spinning process, the flat bottom of the produced flat bottom head is slightly worse, the blanking size is smaller, and the cost is lower, but it does not affect the use of general equipment. The characteristics of spinning head are: a large workpiece can be formed with a small deformation force; The use of equipment is relatively simple, small and medium-sized sheet metal parts can be spun by ordinary lathe; The mold is simple, only one core mold is needed, and the material requirements are low. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa

Product name:Gr12 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr12 Titanium Hemispherical Head Hemispherical head refers to the head composed of half spherical shell and straight edge (cylindrical short joint). The radius of curvature of the spherical shell is equal everywhere and the force is uniform. Compared with other heads, hemispherical heads require the smallest wall thickness under the same internal pressure. At the connection between the spherical shell and the cylinder with the same thickness, the edge stress caused by the change of curvature radius is only 3.1% of the overall membrane stress of the cylinder, which can be ignored. Therefore, the mechanical properties of hemispherical head are the best and the materials used are the most economical. Product name:Gr12 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR12 Size: Customized MOQ:1PC Spherical head, also known as spherical crown head, is a head formed by the spherical crown part of the spherical shell, including hemispherical head and non folded spherical head. The spherical head has excellent forging, smooth surface, acid and alkali resistance, high temperature resistance, beautiful appearance and strong texture performance. The applicable medium of spherical head is gas, liquid and steam. Spherical heads are used in petroleum, electronics, chemical industry, medicine, textile, food, machinery, construction, nuclear power, aerospace, military and other industries. Precautions for use of spherical head: 1. Carbon steel spherical head will crack in nitrate, ammonia, alkaline sodium and other environments. Explain to eliminate residual stress when ordering head. 2. Stress corrosion cracking of austenitic stainless steel will occur in the specific environment with chloride ions. Select appropriate materials when designing spherical head. 3. For carbon steel vessels requiring hot galvanizing or aluminizing, heat treatment shall be carried out first to remove residual stress Titanium grade 12 pipe (Ti-0.3Mo-0.8Ni) Chemical compositions(weight%,<=) Mo Ni Fe C N 0.2-0.4 0.6-0.9 0.30 0.08 0.03 H O Ti Others Total 0.015 0.25 Remainder 0.10 0.40 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 440 345 18

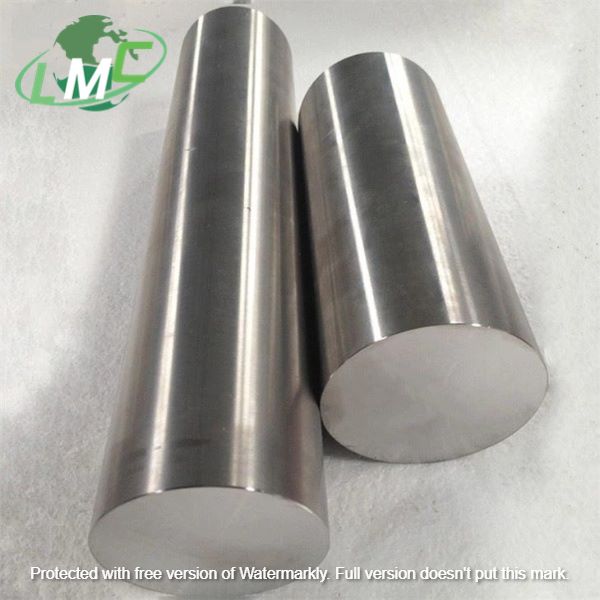

Product name: Hot selling gr2 titanium bar Standard : ASTM B348 Size: Dia 5--200mm * Max L6000mm Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished MOQ : 10kgs Feature : low density, special strong strength, excellent corrosive resistance

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Features of Gr1 titanium pipe: 1. Gr1 titanium pipe has plasticity. The elongation rate of the high-purity titanium pipe can reach 50-60%, and the reduction of area can reach 70-80%. Although the strength of high-purity titanium pipe is low, the pure industrial titanium contains a small amount of impurities and the addition of alloying elements can significantly strengthen its mechanical properties, making its strength comparable to high strength. This means that as long as the industrial pure titanium pipe contains a small amount of interstitial impurities and other metal impurities, it can make it have both high strength and appropriate plasticity. 2. The specific strength (strength to weight ratio) of industrial pure titanium pipe is very high in metal structural materials. Its strength is equivalent to steel, but its weight is only 57% of steel. 3. Gr1 titanium pipe has strong heat resistance, and can still maintain good strength and stability in the atmosphere at 500°C. 4. Titanium pipe also has good low temperature resistance. Even at the ultra-low temperature of -250℃, it still has high impact strength and can withstand high pressure and vibration. 5. Strong corrosion resistance, this is because it has a particularly large affinity for oxygen, and can form a dense oxide film on its surface, which can protect titanium from corrosion by the medium. Therefore, titanium has good stability in acidic, alkaline, neutral salt solutions and oxidizing media, and has better corrosion resistance than existing stainless steel and other non-ferrous metals. Chemical Composition (Wt%) ASTMNo. Femax O max Nmax Cmax Hmax Pd Al Bal Grade1 0.2 0.18 0.03 0.1 0.015 - - Ti Physical Properties(Min) ASTMGrade AlloyComposition TensileStrength YieldStrength Elongation min % ksi Mpa ksi Mpa Grade 1 UnalloyedTi("Pure")35A-CP1 35 240 20 138 24

Half Round Tube Shield Half Round Tube Shields by Ladhani Metal Corporation are precision-formed protective components used to shield exposed tubes in boilers, heat exchangers, and high-temperature piping systems. Designed to withstand harsh environments, they provide long-term protection against corrosion, erosion, and thermal damage, significantly improving the operational life and reliability of industrial systems. SS 316 Half Round Tube Shield The SS 316 Half Round Tube Shield is a semi-cylindrical cover made from austenitic stainless steel grade 316. Known for its superior corrosion resistance and mechanical strength, SS 316 is especially effective in chloride-rich environments such as marine, chemical, and coastal processing industries. The shield is engineered to fit over existing tubes, acting as a barrier against high-temperature gases, steam erosion, and corrosive media. Its molybdenum-enriched composition enhances pitting and crevice corrosion resistance, making it ideal for aggressive applications. Chemical Composition of SS 316 – Austenitic Stainless Steel • Carbon (C): ≤ 0.08% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 16.0 – 18.0% • Nickel (Ni): 10.0 – 14.0% • Molybdenum (Mo): 2.0 – 3.0% • Iron (Fe): Balance Uses • Boiler Tube Protection – Provides a robust shield against corrosive flue gases, preventing tube thinning and extending service intervals in industrial boilers. • Heat Exchanger Tube Protection – Reduces erosion and scaling in process systems exposed to fluctuating temperatures and aggressive fluids. • Marine and Coastal Applications – Ideal for protecting piping and steam lines in saltwater environments where chloride-induced corrosion is a major concern. • Chemical Process Tubing – Shields tubes exposed to acidic or caustic compounds, minimizing localized corrosion and chemical wear. • Pharmaceutical and Food Plants – Protects steam and utility tubes while maintaining hygiene and resistance to cleaning agents and sanitizers. Features • Excellent Corrosion Resistance – Molybdenum addition enhances resistance to pitting, crevice corrosion, and chemical attack. • High Strength and Durability – Withstands mechanical stress and thermal cycling without deformation or degradation. • Precision Fit – Half-round profile allows easy installation and secure fitting over tubes with minimal disruption to system performance. • Hygienic Material – Non-reactive and easy to clean, suitable for environments requiring sanitary conditions. • Customizable – Available in a variety of wall thicknesses, diameters, lengths, and mounting styles to meet specific operational needs. • Optional Finishes – Pickled, passivated, and bright annealed surface finishes available for improved appearance and added protection. Applications • Power Generation Boilers – Used in high-pressure steam systems to shield tubes from gas erosion and oxidation. • Chemical Processing Units – Protects tubes in acidic, alkaline, and oxidizing environments across chemical plants and refineries. • Marine Boilers and Engines – Installed on tubes and exhaust lines in marine vessels to resist chloride-induced corrosion. • Pharmaceutical Facilities – Suitable for clean steam systems and sterile environments requiring high resistance to chemical sanitizers. • Food and Beverage Industry – Used in pasteurization, CIP lines, and steam piping where corrosion resistance and cleanliness are essential. • Desalination Plants – Guards tubing systems in brine and saltwater processing units against aggressive corrosion and scaling. Conclusion The SS 316 Half Round Tube Shield by Ladhani Metal Corporation is an advanced protective solution for critical tubing systems operating in corrosive and high-temperature environments. Its enhanced chemical resistance, mechanical strength, and adaptability to sanitary and marine conditions make it an ideal choice for industries requiring long-term reliability and safety. Designed with precision and manufactured to meet strict industrial standards, these shields ensure prolonged tube life, reduced downtime, and improved system performance. Custom-fabricated to match your application, Ladhani Metal Corporation provides dependable shielding solutions trusted across industries worldwide. For detailed specifications, inquiries, or custom orders, please contact Ladhani Metal Corporation.

DIN 2633 Inconel flanges PN 16 are precision-engineered weld neck flanges manufactured to the DIN 2633 standard, specifically designed for use in high-temperature and highly corrosive industrial environments. These flanges offer secure, pressure-resistant connections for pipeline systems operating at up to 16 bar (232 psi). Fabricated from premium Inconel alloys such as 600, 625, and 718, they provide excellent resistance to oxidation, thermal stress, and corrosive chemicals, making them ideal for extreme service conditions across various industries. Ladhani Metal Corporation is a trusted global supplier and manufacturer of Inconel flanges, known for its commitment to material integrity, precision engineering, and strict compliance with international quality standards. Each flange is subjected to thorough inspections to meet performance, safety, and durability expectations. Pressure Rating: • PN 16 (16 bar / 232 psi): Suitable for high-performance pipeline systems requiring resistance to thermal cycling, corrosion, and pressure fluctuation. Flange Type: • Weld Neck Flanges Long tapered hub design ensures smooth fluid transitions and reduces mechanical stress at the base, offering strong and vibration-resistant joints. • Flat Face (FF) Flanges Promotes even gasket loading and is compatible with soft or cast-mating components, enhancing sealing efficiency and system longevity. Inconel Grades and Full Composition: Inconel 600 • Nickel (Ni): ≥ 72.0% • Chromium (Cr): 14.0 – 17.0% • Iron (Fe): 6.0 – 10.0% • Carbon (C): ≤ 0.15% • Manganese (Mn): ≤ 1.0% • Silicon (Si): ≤ 0.5% • Sulfur (S): ≤ 0.015% Applications: Ideal for high-temperature furnace components, chemical processing, and food equipment exposed to acidic and alkaline environments. Inconel 625 • Nickel (Ni): 58.0% min • Chromium (Cr): 20.0 – 23.0% • Molybdenum (Mo): 8.0 – 10.0% • Niobium (Nb) + Tantalum (Ta): 3.15 – 4.15% • Iron (Fe): ≤ 5.0% • Carbon (C): ≤ 0.10% • Manganese (Mn): ≤ 0.5% • Silicon (Si): ≤ 0.5% Applications: Suitable for seawater systems, offshore oil and gas equipment, aerospace ducting, and high-strength chemical processing. Inconel 718 • Nickel (Ni): 50.0 – 55.0% • Chromium (Cr): 17.0 – 21.0% • Iron (Fe): Balance • Niobium (Nb) + Tantalum (Ta): 4.75 – 5.5% • Molybdenum (Mo): 2.8 – 3.3% • Titanium (Ti): 0.65 – 1.15% • Aluminum (Al): 0.2 – 0.8% • Carbon (C): ≤ 0.08% Applications: Extensively used in aerospace engines, turbine components, cryogenic storage tanks, and high-strength fasteners due to excellent fatigue, creep, and rupture resistance. Applications of DIN 2633 Inconel Flanges PN 16: • Petrochemical and Refining Industries Withstands exposure to high-temperature hydrocarbons, acids, and corrosive gases. • Marine and Offshore Installations Corrosion-resistant in saltwater and high-pressure environments, ideal for subsea and topside systems. • Aerospace and Power Generation Used in turbine and exhaust systems where strength retention at elevated temperatures is critical. • Chemical Processing Plants Stable under acidic, oxidizing, and reducing agents in continuous and batch processing systems. • Heat Exchangers and Reactors Reliable performance in thermal cycling and aggressive fluid handling applications. Key Features: • Designed in accordance with DIN 2633 specifications • Rated PN 16 for secure medium-pressure operation • Weld neck design improves alignment and minimizes mechanical stress • Available in Inconel grades 600, 625, and 718 • Exceptional resistance to high-temperature oxidation and corrosion • High tensile strength and fatigue resistance under mechanical loads • Tailored dimensions, surface finishes, and specifications available upon request Conclusion: DIN 2633 Inconel Flanges PN 16 from Ladhani Metal Corporation are engineered to meet the toughest demands of modern industry. Offering excellent resistance to high-temperature and corrosive environments, these flanges made from Inconel 600, 625, and 718 are ideal for critical applications across aerospace, petrochemical, marine, and power generation sectors. For detailed product options, technical support, or a customized quote, contact Ladhani Metal Corporation today.

DIN 2633 Monel flanges PN 16 are precision-engineered weld neck flanges manufactured in accordance with the DIN 2633 standard. Designed for pipeline systems operating at pressures up to 16 bar (232 psi), these flanges provide exceptional resistance to corrosive environments, including seawater, acids, and alkalis. Manufactured from high-performance Monel alloys such as Monel 400 and Monel K500, they combine outstanding mechanical strength with excellent corrosion resistance, making them suitable for demanding industrial and marine applications. Ladhani Metal Corporation is a trusted global manufacturer and supplier of Monel flanges, known for superior material quality, dimensional accuracy, and strict compliance with international standards. Each flange undergoes rigorous quality checks and testing to ensure consistent performance in critical service conditions. Pressure Rating: • PN 16 (16 bar / 232 psi): Suitable for medium-pressure systems requiring corrosion resistance and structural reliability. Flange Type: • Weld Neck Flanges Designed with a long tapered hub to ensure smooth flow transitions, proper pipe alignment, and minimized stress concentration for high-integrity connections. • Flat Face (FF) Flanges Provides a uniform sealing surface ideal for systems with soft gasket materials or cast mating components, ensuring optimal gasket compression. Monel Grades and Full Composition: Monel 400 • Nickel (Ni): ≥ 63.0% • Copper (Cu): 28.0 – 34.0% • Iron (Fe): ≤ 2.5% • Manganese (Mn): ≤ 2.0% • Silicon (Si): ≤ 0.5% • Carbon (C): ≤ 0.3% Applications: Widely used in marine engineering, chemical processing, pump and valve components, and environments exposed to hydrofluoric and sulfuric acids. Monel K500 • Nickel (Ni): ≥ 63.0% • Copper (Cu): 27.0 – 33.0% • Aluminum (Al): 2.3 – 3.15% • Titanium (Ti): 0.35 – 0.85% • Iron (Fe): ≤ 2.0% • Carbon (C): ≤ 0.25% Applications: Suitable for high-strength applications in marine, oil and gas, and sour gas service environments. Offers improved mechanical properties over Monel 400 while retaining excellent corrosion resistance. Applications of DIN 2633 Monel Flanges PN 16: • Marine and Offshore Systems Ideal for saltwater piping, desalination systems, and submerged components due to excellent resistance to chloride stress corrosion. • Chemical Processing Industries Used in systems handling strong acids, alkalis, and organic solvents, especially hydrofluoric acid. • Oil and Gas Exploration Resistant to sour gas environments, high pressures, and corrosive drilling fluids. • Heat Exchangers and Condensers Monel flanges are preferred for their stability under fluctuating thermal loads and corrosive fluids. • Power Generation Used in cooling water and fuel handling systems where reliability under stress and corrosion is essential. Key Features: • Manufactured to DIN 2633 specifications • PN 16 rating for medium-pressure pipelines • Weld neck design for stress-distributed, leak-proof connections • Available in Monel 400 and K500 grades for tailored performance • Excellent resistance to corrosion in marine, acidic, and alkaline environments • High tensile strength and resistance to mechanical fatigue • Custom sizes, pressure classes, and finishes available on request Conclusion: DIN 2633 Monel Flanges PN 16 from Ladhani Metal Corporation offer robust performance in highly corrosive and pressure-sensitive applications. With superior resistance to seawater, acids, and harsh industrial chemicals, these flanges are engineered for longevity and strength in marine, chemical, and oil and gas systems. For custom configurations, technical advice, or pricing details, contact Ladhani Metal Corporation today.

DIN 2628 Duplex steel flanges PN 250 are high-strength weld neck flanges designed according to the DIN 2628 standard for use in high-pressure systems up to 250 bar (3625 psi). Fabricated from Duplex stainless steels, these flanges offer an ideal balance of strength and corrosion resistance, combining the beneficial properties of both austenitic and ferritic stainless steels. Their robust mechanical performance, excellent resistance to stress corrosion cracking, and superior weldability make them well-suited for critical applications in aggressive service environments. Ladhani Metal Corporation manufactures and exports premium-grade Duplex steel flanges that meet stringent international standards for quality, reliability, and performance. Our DIN 2628 PN 250 Duplex steel weld neck flanges are widely used in sectors such as oil and gas, desalination, petrochemical processing, pulp and paper, and marine industries. With precision engineering and consistent quality, these flanges are designed to withstand high pressure, corrosive media, and mechanical stress. Pressure Rating: • PN 250 (250 bar / 3625 psi): Suitable for high-pressure systems requiring excellent structural integrity, corrosion resistance, and reliable sealing in dynamic conditions. Flange Type: • Weld Neck Flanges These flanges feature a tapered neck, offering high fatigue resistance by reducing stress concentration at the weld area. Ideal for applications with high pressure, high temperature, or repeated thermal cycling. • Flat Face (FF) Flanges Flat face design provides uniform gasket loading, minimizing the risk of flange deformation. Suitable for systems using brittle materials or low-pressure cast components. Duplex Steel Grades and Composition: Duplex 2205 (UNS S32205 / S31803) • Chromium (Cr): 21.0 – 23.0% • Nickel (Ni): 4.5 – 6.5% • Molybdenum (Mo): 2.5 – 3.5% • Nitrogen (N): 0.14 – 0.20% • Iron (Fe): Balance • Manganese (Mn): ≤ 2.0% • Silicon (Si): ≤ 1.0% • Carbon (C): ≤ 0.03% Applications: Offers excellent corrosion resistance, particularly to chloride-induced stress corrosion cracking and pitting. Commonly used in offshore oil rigs, chemical tanks, heat exchangers, and pressure vessels. Applications of DIN 2628 Duplex Steel Flanges PN 250: • Oil and Gas Exploration Resistant to sour gas, chloride attack, and high mechanical loads in subsea and topside environments. • Chemical Processing Plants Used in aggressive chemical systems, reactors, and storage vessels requiring high corrosion resistance. • Marine and Offshore Structures Reliable in saltwater applications, such as ballast systems, risers, and flowlines. • Pulp and Paper Industry Withstands acidic and alkaline process chemicals used in bleaching and pulping operations. • Water Treatment and Desalination Ideal for handling brine and high-chloride content fluids in RO and thermal desalination systems. Key Features: • Conforms to DIN 2628 standards • PN 250 pressure rating for high-pressure, heavy-duty systems • Weld neck configuration for excellent mechanical support and minimal stress concentration • Flat face variant ensures even gasket loading and leak-proof operation • Available in Duplex 2205 and Super Duplex 2507 grades • Excellent resistance to chloride stress corrosion, pitting, and crevice corrosion • High tensile and yield strength for demanding industrial conditions • Custom sizes, pressure ratings, and surface finishes available upon request Conclusion: DIN 2628 Duplex Steel Flanges PN 250 from Ladhani Metal Corporation are the optimal solution for applications requiring superior corrosion resistance, high mechanical strength, and reliable sealing performance under extreme pressure. Available in Duplex 2205 and Super Duplex 2507, these flanges offer outstanding performance across various aggressive industrial environments. For detailed technical specifications or to request a customized quotation, please contact Ladhani Metal Corporation.

DIN 2627 Super Duplex Steel flanges PN 400 are robust, high-performance blind flanges engineered for extremely demanding applications requiring exceptional strength, corrosion resistance, and reliability under ultra-high-pressure conditions. Designed according to the DIN 2627 standard, these flanges are primarily used to isolate sections of piping systems, especially in environments that involve aggressive media such as seawater, acidic chemicals, and high-temperature fluids. With a PN 400 pressure rating (400 bar / 5800 psi), these flanges are suitable for critical systems where both mechanical strength and corrosion resistance are vital. Ladhani Metal Corporation is a globally recognized supplier and exporter of Super Duplex DIN flanges, offering products that meet or exceed international quality, safety, and performance standards for extreme-service applications. Pressure Rating: • PN 400 (400 bar / 5800 psi): Designed for high-pressure operations in chemically aggressive and mechanically demanding environments. Flange Type: • Blind Flanges Flat, solid flanges without a bore used to seal the end of piping systems. Ideal for temporary shutdowns, pressure testing, or future system expansion. • Flat Face (FF) Flanges Feature a flat sealing surface, suitable for use with full-face gaskets and flat mating components to ensure consistent and effective sealing under pressure. Super Duplex Steel Grades and Composition: Super Duplex 2507 (UNS S32750) • Chromium (Cr): 24 – 26% • Nickel (Ni): 6 – 8% • Molybdenum (Mo): 3 – 5% • Nitrogen (N): 0.24 – 0.32% • Iron (Fe): Balance Applications: Exceptional corrosion resistance in seawater, brines, and acidic environments. Commonly used in offshore structures, desalination plants, and chemical processing systems. Applications of DIN 2627 Super Duplex Flanges PN 400: • Offshore Oil and Gas Platforms Used in topside and subsea installations exposed to high salinity, pressure, and harsh chemical environments. • Desalination and Water Treatment Plants Resistant to chloride-induced corrosion and fouling in seawater intake and brine discharge systems. • Chemical and Petrochemical Processing Ideal for aggressive process media such as chlorides, sulfur compounds, and acids at high temperatures and pressures. • Marine Engineering and Shipbuilding Excellent corrosion resistance in marine atmospheres, making them suitable for seawater cooling, ballast systems, and structural piping. • Pulp and Paper Industry Deployed in bleaching plants and alkaline recovery lines where strength and corrosion resistance are essential. • Power Generation and Nuclear Facilities Reliable under high-temperature and pressure cycles in superheated steam, feedwater, and condenser systems. Key Features: • Manufactured to DIN 2627 standard • PN 400 pressure class for ultra-high-pressure environments • Blind flange design for secure pipe end sealing or access closure • Flat face type for even gasket compression and leak-free performance • Available in Super Duplex 2507 (UNS S32750) and S32760 • Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking • Twice the strength of conventional stainless steels • Widely used in offshore, marine, petrochemical, and water treatment industries • Custom options available: sizes, pressure ratings, face types, and finishes Conclusion: DIN 2627 Super Duplex Steel Flanges PN 400 by Ladhani Metal Corporation are designed to withstand the harshest industrial environments, providing unmatched corrosion resistance, mechanical strength, and sealing reliability. These flanges are ideal for mission-critical applications in offshore, marine, chemical, and energy industries. For technical assistance, custom fabrication, or detailed product specifications, contact Ladhani Metal Corporation and ensure your systems are protected by industry-leading flange solutions.
