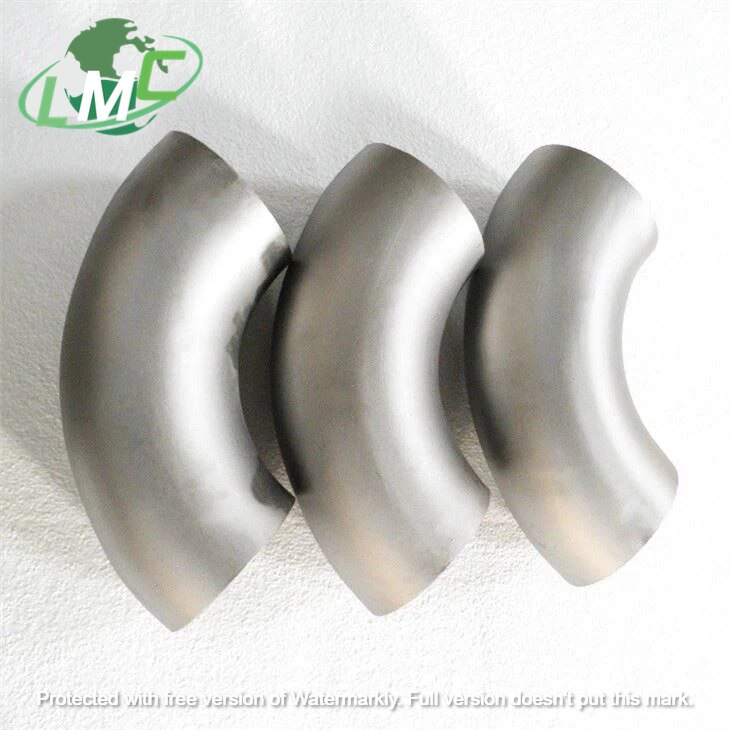

Product name: Gr2 titanium elbow 90 degree Degree:45 degree,90 degree , 180 degree Type:Short radius and long radius Grade: Gr2 Standard: ANSI / ASME B363, ANSI / ASME B16.9 Specifications(size): DN15-1200 (NPS: 1 / 2-36 inches) Wall thickness: 1-18mm (Sch 5s to Sch 80s) Gr2 titanium elbow 90 degree The proportion of titanium in titanium elbow is 1 / 2 of that of iron, but it can withstand hammering and drawing like copper. In a lower temperature world, titanium will become harder and have the performance of conductor, while steel will become fragile and incompetent. Titanium has strong acid and alkali corrosion resistance. It does not rust after immersion in seawater for 5 years, and steel will corrode and deteriorate in seawater. The hull of a ship is made of titanium alloy, which cannot be corroded by sea water. The "titanium submarine" made of titanium alloy can dive into 4500 meters of deep water. Generally, steel submarines are easy to be crushed by water pressure when they are more than 300 meters.

Product name: Gr7 Titanium Elbow 90 degree Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363 Material grade: Grade 7 OD: 1/2"-36" Wall thickness: 1.0-18mm Type: Seamless ,welded Surface: Pickled, polished,sand-blasting Gr7 Titanium Elbow 90 degree Titanium elbow in pipeline, elbow is a pipe fitting that changes the direction of pipeline. According to the angle, there are three commonly used angles: 45 ° and 90 ° 180 °. In addition, according to the needs of the project, it also includes 60 ° and other abnormal angle elbows. The materials of elbows include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics. The connection methods with pipes include: direct welding (more commonly used) flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc. Product Titanium elbow Application pipe connection Material Gr7 titanium alloy Standard ANSI B16.5,JIS B2220,DIN2627-2628,ASME OD 1/2"-36" Wall Thickness Sch 5s - Sch 160 Certificate TUV, ISO9001 Materials Titanium Grade 7 Quality control PMI,100% ULTRASONIC TEST etc Grade 7 (Ti-0.2Pd) titanium Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

Ladhani Metal Corporation offers high-performance SS 310 Outer Half Round 90 Degree Bend Tube Shields engineered to protect the outer curvature of 90-degree bends and U-bend tubes in boilers, superheaters, heat exchangers, and reheaters. Manufactured from austenitic stainless steel grade SS 310, these shields exhibit excellent resistance to oxidation, scaling, and high-temperature corrosion. Designed for extreme service environments, they safeguard vulnerable bend sections from flue gas erosion, fly ash impingement, and thermal cycling. The precisely formed semi-cylindrical profile ensures secure fitting on outer tube bends, enhancing operational reliability and extending tube life under severe conditions. Ladhani Metal Corporation is a trusted manufacturer, supplier, and exporter of SS 310 Outer Half Round 90 Degree Bend Tube Shields, delivering custom-fabricated shielding solutions to suit diverse industrial boiler geometries and performance needs. SS 310 Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.25% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.50% • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 19.0 – 22.0% • Iron (Fe): Balance Applications: Designed for use in thermal power plants, WHRBs, and industrial boilers where return bends are exposed to high heat, ash impact, and corrosive gases. Uses • Protection of 90-degree return bends in superheaters, reheaters, and boilers • Shields for U-bend tubes in heat recovery steam generators (HRSGs) and waste heat boilers • Ideal for applications in petrochemical plants and thermal processing units • Guards tube bends against scaling, thermal fatigue, and soot-blower wear Features • Exceptional high-temperature strength – SS 310 maintains stability and strength at elevated temperatures • Oxidation and scaling resistance – Performs reliably in oxidizing environments up to 1100°C • Long service life – Resists cracking, erosion, and corrosion in demanding flue gas atmospheres • Precision bent – Custom-formed to align with the radius of tube bends for optimal protection • Installation flexibility – Can be installed using clamping, welding, or banding methods • Configurable design – Available in various lengths, thicknesses, and bend radii to match boiler specifications Applications • Thermal power plants – Shields U-bend and elbow tubes in high-heat boiler zones • HRSGs and WHRBs – Protects curved sections in exhaust gas recovery systems • Chemical plants and refineries – Resists aggressive corrosion in reformers and heaters • Cement and pulp industries – Minimizes wear from abrasive particles and corrosive fumes Conclusion The SS 310 Outer Half Round 90 Degree Bend Tube Shield by Ladhani Metal Corporation offers robust thermal and corrosion protection for curved boiler tube sections operating in extreme environments. With its high-temperature resistance and precision fit, this shielding solution ensures reduced maintenance and extended equipment life. For custom sizing, material selection, or technical specifications, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #halftubeshield #utypehalftubeshield #tubeshieldexporter

Product Name: Titanium elbows 90° Standard: ASME B16.9 Material: Gr1, Gr2, Gr7, Gr12 Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded Titanium elbows 90° In a piping system, a bend is a pipe that changes the direction of the pipe. According to the Angle, there are 45° and 90°180° three most commonly used Titanium Elbow Material: Titanium Gr1, Gr2, Gr7, Gr12 Standard: Ansi/asme b16.9 Titanium elbow: 90 degree/45 degree Wall thickness: 1.0mm/.039"/2mm/3mm Technical: Pressing,welded, seamless Inspection for welding lines: X-Ray Tests or Dye Penetrate Tests Press Test: Hydrostatic Tests Material Test Report: EN10204.3.1,Chemical Composion And Physical Properties Product Marking: All products are marked by laser after they are finished Application: Exhuast system The process of titanium elbow is: first welding a polygonal polygonal polygonal ring shell or closed at both ends of the polygonal fan shell, the internal pressure is filled with the medium, the internal pressure, under the action of internal pressure, the cross section from polygon gradually become round, and finally become a circular ring shell. As required, one circular shell can be cut into 4 90° elbows or 6 60° elbows or other sizes. This process is suitable for manufacturing any large size elbows with the ratio of middle diameter to inner diameter of elbows greater than 1.5 times. It is an ideal manufacturing method for large titanium elbows. The advantages of the titanium elbow production process are mainly shown in the following aspects: (1) Without tube blank as raw material, the cost of tube making equipment and mould can be saved, and titanium elbow with arbitrary large diameter and relatively thin wall thickness can be obtained. (2) The blank is flat or developable surface, so the feeding is simple, the accuracy is easy to ensure, and the assembly and welding are convenient. (3) Due to the above two reasons, the manufacturing cycle can be shortened and the production cost greatly reduced. (4) Titanium elbow is suitable for pipeline series in oil, natural gas, chemical, hydropower, construction and boiler industries. LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

Ladhani Metal Corporation offers 1Cr13 Outer Half Round 90 Degree Bend Tube Shields engineered to provide robust protection for the outer arc of U-bends and 90-degree tube turns in boilers, heat exchangers, superheaters, reheaters, and industrial furnaces. The semi-cylindrical profile is precisely formed to conform to the curvature of return tube bends, acting as a physical shield against flue gas erosion, soot blower impact, and ash particle abrasion. These shields are well-suited for use in thermal power plants, utility boilers, waste heat recovery systems, and industrial heaters where mechanical protection is critical. Ladhani Metal Corporation is a dependable manufacturer, supplier, and exporter of 1Cr13 Outer Half Round 90 Degree Bend Tube Shields, offering custom-made options to meet specific plant and system requirements. 1Cr13 Grade Chemical Composition – Martensitic Stainless Steel • Carbon (C): 0.15 – 0.20% • Manganese (Mn): ≤ 1.00% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 12.0 – 14.0% • Nickel (Ni): ≤ 0.60% • Iron (Fe): Balance Applications: Ideal for dry flue gas systems, high-velocity ducting, and thermal processing equipment where resistance to wear and moderate oxidation is essential. Uses • Protects 90-degree bends in superheaters and reheaters from mechanical erosion • Applied in WHRBs, HRSGs, and industrial furnaces under dry service conditions • Shields tube curves from flue gas abrasion, ash particle impact, and soot blower blasts • Used in exhaust systems and ducting where moderate corrosion resistance is sufficient Features • High wear resistance – Withstands mechanical damage from ash and particulate flow • Moderate oxidation resistance – Performs well in dry, non-aggressive gas environments • Structural strength – Maintains rigidity and protection under high mechanical stress • Precision fit – Formed to match exact bend radii for effective coverage • Easy to install – Can be clamped, tack welded, or banded based on operational needs • Size flexibility – Available in a range of lengths, thicknesses, and diameters for tailored application Applications • Power and utility boilers – Shields return bends from soot erosion and surface damage • Waste heat recovery units – Protects tube bends in clean and dry gas systems • Industrial furnaces – Applied in zones with high particulate flow and moderate heat exposure • Petrochemical and cement plants – Guards high-wear tube bends from abrasive gas streams Conclusion The 1Cr13 Outer Half Round 90 Degree Bend Tube Shield by Ladhani Metal Corporation offers durable and cost-effective protection for tube bends operating in dry, high-velocity, and mildly corrosive environments. Its mechanical strength and resistance to erosion make it a practical solution for extending the service life of critical tube components. For tailored solutions, technical consultation, or sizing requirements, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #halftubeshield #utypehalftubeshield #tubeshieldexporter

Ladhani Metal Corporation offers 1Cr20Ni14Si2 Outer Half Round 90 Degree Bend Tube Shields designed to protect the outer curvature of U-bends and 90-degree tube turns in high-temperature and moderately corrosive service environments. The half-round shields are precision-formed to fit the external radius of return bends, offering direct protection against erosion, scaling, and impact from soot blowing and ash-laden gas flow. 1Cr20Ni14Si2 shields are suitable for use in thermal power stations, waste heat recovery boilers, incinerators, and petrochemical plants operating at elevated temperatures. Ladhani Metal Corporation is a leading manufacturer, supplier, and exporter of 1Cr20Ni14Si2 Outer Half Round 90 Degree Bend Tube Shields, offering customizable sizes and configurations to meet the demands of varied industrial applications. 1Cr20Ni14Si2 Grade Chemical Composition – Austenitic Heat-Resistant Steel • Carbon (C): ≤ 0.15% • Manganese (Mn): ≤ 1.50% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.030% • Silicon (Si): 1.50 – 2.50% • Chromium (Cr): 19.0 – 21.0% • Nickel (Ni): 13.0 – 15.0% • Iron (Fe): Balance Uses • Protects 90-degree bends in superheater and reheater tubes in power generation systems • Used in WHRBs and HRSGs exposed to oxidizing and dry gas flow • Shields heat exchanger and furnace tubing from scale formation and high-velocity gas erosion • Suitable for return bends in chemical and thermal processing units requiring heat durability Features • High oxidation resistance – Enhanced by silicon for long-term performance at elevated temperatures • Excellent heat stability – Resists deformation, fatigue, and creep during prolonged thermal cycling • Mechanical durability – Maintains structural integrity in harsh operating conditions • Precision-formed fit – Matches tube curvature for optimal surface coverage and protection • Adaptable installation – Can be welded, banded, or clamped to suit on-site assembly methods • Broad availability – Offered in a range of diameters, wall thicknesses, and arc lengths Applications • Thermal power plants – Shields superheater and reheater bends from erosion and surface scaling • Petrochemical and chemical processing – Protects tubing in high-temperature reaction and heating zones • Waste incineration and heat recovery – Guards bends in units subjected to corrosive and abrasive gas streams • Cement and metallurgy industries – Applied in tube shields for high-heat rotary kilns and preheater units Conclusion The 1Cr20Ni14Si2 Outer Half Round 90 Degree Bend Tube Shield by Ladhani Metal Corporation offers dependable protection for tube bends in high-temperature and oxidizing environments. With enhanced thermal and oxidation resistance, these shields extend the life of heat-exposed tubing while maintaining mechanical reliability. For product customization, material selection, or technical specifications, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #halftubeshield #utypehalftubeshield #tubeshieldexporter

Ladhani Metal Corporation offers Cr23Ni13 Outer Half Round 90 Degree Bend Tube Shields designed to protect the outer arc of U-bends and 90-degree curved tubes used in high-temperature and mildly corrosive environments. The semi-cylindrical design is precision-formed to match the curvature of return bends in boiler and furnace tubing, creating a durable barrier against erosion from high-velocity flue gases, ash abrasion, and soot blower jets. These shields are widely applied in boilers, heat recovery systems, and process heaters where thermal protection and resistance to surface degradation are critical. Ladhani Metal Corporation is a reliable manufacturer, supplier, and exporter of Cr23Ni13 Outer Half Round 90 Degree Bend Tube Shields, offering custom solutions to suit various tube sizes and system configurations. Cr23Ni13 Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.12% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 22.0 – 24.0% • Nickel (Ni): 12.0 – 14.0% • Iron (Fe): Balance Uses • Protection of 90-degree return bends in superheaters and reheaters exposed to clean or moderately corrosive flue gas • Applied in WHRB and HRSG systems in power generation and industrial processing • Shields tube curves from oxidation, scaling, and erosive gas flow • Used in high-temperature furnaces and exhaust systems requiring heat resistance and structural stability Features • Reliable heat resistance – Performs effectively under sustained high-temperature exposure • Good corrosion performance – Withstands oxidizing environments and dry gas corrosion • Stable under thermal stress – Resists deformation and fatigue during repeated heating cycles • Precision fit – Manufactured to match specified bend radii for seamless tube coverage • Installation flexibility – Can be clamped, tack welded, or banded for secure placement • Variety of configurations – Available in multiple sizes, thicknesses, and arc lengths Applications • Power and utility boilers – Protects tubing bends in elevated heat zones from surface wear • Petrochemical industry – Used in tube shields for fired heaters and process heat exchangers • Cement and metallurgical plants – Guards heat exchange coils from oxidation and abrasive particles • Industrial thermal systems – Ensures longevity of tubing in dry, high-temperature flue gas environments Conclusion The Cr23Ni13 Outer Half Round 90 Degree Bend Tube Shield by Ladhani Metal Corporation provides dependable thermal and corrosion protection for tube bends in high-temperature systems. With its austenitic composition and balanced alloy content, this shield is ideal for applications requiring durability, thermal reliability, and moderate corrosion resistance. For product customization, technical support, or material inquiries, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #halftubeshield #utypehalftubeshield #tubeshieldexporter

Ladhani Metal Corporation offers 1Cr25Ni20Si2 Outer Half Round 90 Degree Bend Tube Shields specifically designed to protect the outer curvature of U-bends and 90-degree turns in high-temperature tubes used in boilers, superheaters, reheaters, heat exchangers, and industrial furnaces. Made from high-alloy austenitic stainless steel grade 1Cr25Ni20Si2, these shields provide excellent resistance to oxidation, high-temperature corrosion, and thermal fatigue. The added silicon content enhances the steel’s oxidation resistance and structural stability in severe thermal environments. The semi-cylindrical design is precisely formed to contour the bend radius of return tubes, creating an effective barrier against particulate erosion, ash impact, and high-velocity gas flow. 1Cr25Ni20Si2 shields are ideal for thermal power generation and industrial systems exposed to oxidizing, carburizing, and dry corrosive atmospheres. Ladhani Metal Corporation is a trusted manufacturer, supplier, and exporter of 1Cr25Ni20Si2 Outer Half Round 90 Degree Bend Tube Shields, offering tailored configurations to meet diverse thermal protection requirements. 1Cr25Ni20Si2 Grade Chemical Composition – Austenitic Heat-Resistant Steel • Carbon (C): ≤ 0.15% • Manganese (Mn): ≤ 1.50% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.030% • Silicon (Si): 1.50 – 2.50% • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 19.0 – 22.0% • Iron (Fe): Balance Applications: Suitable for high-temperature systems in boilers, reheaters, thermal incinerators, and petrochemical furnaces where resistance to oxidation, scaling, and heat-induced deformation is critical. Uses • Shields 90-degree curved tube sections in superheaters, reheaters, and economizers • Applied in high-temperature HRSG and WHRB coils exposed to harsh flue gases • Protects against scaling, oxidation, and high-velocity particulate erosion • Used in industrial furnaces, reformers, and exhaust gas boilers requiring thermal durability Features • Superior oxidation resistance – Silicon addition enhances resistance to scale formation at elevated temperatures • High-temperature performance – Withstands sustained thermal stress and cyclic heating • Structural stability – Maintains mechanical integrity during long-term high-temperature exposure • Accurate form – Manufactured to match specific bend radii and pipe sizes for full coverage • Flexible mounting – Can be installed using welding, banding, or mechanical clamps • Custom availability – Offered in various wall thicknesses, bend angles, lengths, and diameters Applications • Thermal power plants – Guards steam tubing and return bends from thermal wear and surface damage • Waste heat recovery units – Shields tube bends from high-temperature gas erosion • Petrochemical furnaces – Used in radiant coils and transfer lines operating at extreme temperatures • Metallurgical and cement industries – Protects heat exchange tubes exposed to oxidizing and abrasive conditions Conclusion The 1Cr25Ni20Si2 Outer Half Round 90 Degree Bend Tube Shield by Ladhani Metal Corporation provides high-performance protection in extreme heat environments where oxidation, scaling, and erosion pose critical challenges. Engineered for longevity and thermal resilience, these shields are ideal for demanding industrial applications. For specialized configurations, technical guidance, or material selection support, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering

Ladhani Metal Corporation offers Cr25Ni20 Outer Half Round 90 Degree Bend Tube Shields engineered to safeguard the outer arc of U-bends and 90-degree curved tubes in high-temperature industrial systems such as boilers, heat exchangers, superheaters, and reheaters. The half-round shield is precision-formed to match the curvature of return tube bends, creating a robust physical barrier against erosive flue gas, particulate impact, and mechanical wear from soot blowing. Cr25Ni20 shields are especially suited for utility boilers, incinerators, petrochemical heaters, and waste heat recovery units operating under aggressive thermal and oxidizing conditions. Ladhani Metal Corporation is a reputed manufacturer, supplier, and exporter of Cr25Ni20 Outer Half Round 90 Degree Bend Tube Shields, offering customized configurations for optimal fit and performance. Cr25Ni20 Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.10% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.50% • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 19.0 – 22.0% • Iron (Fe): Balance Uses • Shields 90-degree return bends in radiant sections of superheaters and reheaters • Applied in HRSGs, waste heat boilers, and incinerators under severe temperature conditions • Guards against metal loss due to flue gas erosion and thermal cycling • Suitable for tube bends in high-temperature reformers, furnaces, and gas processing units Features • Outstanding heat resistance – Performs reliably at sustained temperatures above 1000°C • Excellent oxidation and scaling resistance – Protects metal surfaces in oxidizing and carburizing atmospheres • Long service life – High alloy content ensures resistance to metal fatigue and thermal stress • Tailored fit – Fabricated to match various tube bend radii and dimensions • Flexible installation – Can be clamped, tack welded, or banded based on site requirements • Wide availability – Offered in diverse lengths, wall thicknesses, and bend angles Applications • Power plants – Protects reheater and superheater tube bends in extreme heat zones • Waste incineration plants – Shields tubes from ash erosion and corrosive gas attack • Petrochemical and refinery sectors – Applied in high-temperature fired heaters and steam reformers • Metal and glass industries – Protects furnace coils and curved tubes from high-temperature damage Conclusion The Cr25Ni20 Outer Half Round 90 Degree Bend Tube Shield by Ladhani Metal Corporation offers superior protection for tube bends exposed to intense heat, oxidation, and thermal cycling. With high alloy stability and long-term performance in extreme environments, these shields are ideal for critical thermal processing systems. For custom dimensions, application-specific material advice, or product inquiries, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #halftubeshield #utypehalftubeshield #tubeshieldexporter
