Porduct name : Titanium clad Tubesheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad tubesheet Product Name Titanium clad tubesheet Base Metal All types of steel and stainless steel ,sopper etc. Clad Metal Titanium GR2 Gr7 Gr9 Gr12 etc. Dimension Customized Standard ASTM Shape Round Certificates ISO9001, Mill Test Report, Certificate 3.1, EN, Ultrasonic Certificate Applied Equipment Pressure Vessels, Boilers, Containers Application Power Generation, Industry Refrigeration, Oil&Gas, Chemical&Petrochemical Exported Countries USA, Australia, Russia, Bahrain, Venezuela, Greece, Korea, Indonesia etc. Explosive Welding Technical Advantage: →no limits of materials shape, thickness and area; →metallurgical bonding with high strength; →high performance of machining process; →improving the materials performance after bonding; →realizing multilayer materials clad;

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Dish End Product Information Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc. Grade: GR1, GR2, GR5, GR7, GR12 OD: 300-2500mm Thickness: 2-300mm Production Process: Cold Forming, Hot Forming Surface Treatment: Sand Blasting, Pickling, Coating etc. Applications: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc. Mechanical Properties ASTM Grade Tensile Strength Yield Strength Elongation % ksi Mpa ksi Mpa Gr1 35 240 25 170 24 Gr2 50 345 40 275 20 Gr5 130 895 120 828 10E Gr7 50 345 40 275 20 Gr12 70 485 50 345 18

Product name:Gr2 Titanium Hemispherical Heads Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr2 Titanium Hemispherical heads The dish head refers to the element used to close the end of the container so that the internal and external media are isolated, also known as hemispherical heads/dish end/ Elliptical Dish End. The head of a cylindrical container is usually a revolving case. According to the shape of the head surface, it can be divided into convex shape, conical shape, flat shape and combination shape. Convex heads refer to heads with convex outer surface shape, such as hemispherical, oval, disc and unflanged spherical heads. Some gas cylinders use convex inward combined bottom head, which can not only ensure strength, but also meet the needs of safe use. A head is a part of a container that is welded to the cylinder. (As shown below) According to different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, cone shell and cap, among which spherical, oval, disc and spherical crown heads are collectively referred to as convex heads. In the welding is divided into butt welding head, socket welding head. Used for all kinds of container equipment, such as storage tank, heat exchanger, tower, reactor, boiler and separation equipment, etc.

Product name: Titanium heating coil Spiral Pipe Standards: ASTM B338 Grades: Gr1, Gr2 Dimention:OD 6-108mm*WT1-5mm*L Technique:Rolled Titanium heating coil Spiral Pipe Titanium tube coil is widely used in Evaporator, Condenser, Refrigeration compressor, Heat exchanger tube,Heating tube. titanium coil is also used to produce titanium white, glycine, nitrate amino phenol chemical industry, pesticide intermediates, pesticides, fuel, cyanuric acid, dichloro cyanuric acid, acetone cyanuric acid, etc. Name:ASME B338 Grade 2 Titanium coil tube for heater for condenser Material:Gr2 Titanium Standard:ASME B338 OD:12.7mm-50mm Wall thickness:0.55mm----3.0mm(normal use) Length:0.55mm----3.0mm(normal use) Applications: Coiling pipe; petroleum pipeline, Fluid Transportation Piping, Water tank, boiler, heat exchanger unit, Heat exchanger; Condenser, Sea farming; electroplating equipment etc. Quality control : Seamless Tube: Ultrasonic or eddy current inspection. Welding Pipe: 100% surface penetration inspection; 100% X-ray inspection. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product name:Titanium Elliptical Dished Head Standard: ASME VIII-I, DIN28013 Material: Titanium GR1, GR2 Size: Customized Titanium Hemispherical Dish Head Brand name LHTi Product name Titanium Hemispherical Dish Head Material Titanium & titanium alloy (Grade 1 Grade 2 Grade 7 Grade 12 etc.) Size DN - 100mm : 6000mm (customized size avaliable) Wall Thickness 3mm ~ 300mm (customized thickness available) Process Type Hot pressing, cold pressing, cold spinning Connection Type Butt-welded or threaded Edge Type Bevel, Plain or as required Process of depression Once the plate is cut into a circle (using a circular cutter, laser, plasma or other methods), the resulting plate is formed under the press and will be crowned with the plate by multiple impacts on the whole surface. In order to make different types and diameters of disc ends, a disc press must be equipped with a set of molds with different radii. The serving process is quite slow. Depending on the size and material of the plate, it usually takes several hours. This process can be automated by using a CNC manipulator. It is possible to find a press with CNC, which can handle more than 10 shafts and can run automatically for several hours. In addition to automation, another important factor in the disk making process is speed. The two speed press can greatly increase the output. The punch presses the workpiece continuously. This means that the structure of disc press is easily affected by material fatigue; Therefore, the life of the press designed to save cost may be very short, showing the first crack of the structure in a very short time. The press designed with HPT has better fatigue resistance. This design consists of four main parts: upper beam, lower beam and two columns. The two beams are connected with the column through the hydraulic preload pull rod. Compared with seam welding or bolts, these tie rods can better resist continuous stress, so as to provide more elasticity to the structure. Dished multi center end A special dished end is widely used in truck can body manufacturers: multi center dished end. These disc-shaped ends are usually made of aluminum or stainless steel and are usually made of thin plates up to 6 mm. This thickness allows the formation of multi center dished ends using a technique called hydroforming.

Product name:Gr12 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr12 Titanium Hemispherical Head Hemispherical head refers to the head composed of half spherical shell and straight edge (cylindrical short joint). The radius of curvature of the spherical shell is equal everywhere and the force is uniform. Compared with other heads, hemispherical heads require the smallest wall thickness under the same internal pressure. At the connection between the spherical shell and the cylinder with the same thickness, the edge stress caused by the change of curvature radius is only 3.1% of the overall membrane stress of the cylinder, which can be ignored. Therefore, the mechanical properties of hemispherical head are the best and the materials used are the most economical. Product name:Gr12 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR12 Size: Customized MOQ:1PC Spherical head, also known as spherical crown head, is a head formed by the spherical crown part of the spherical shell, including hemispherical head and non folded spherical head. The spherical head has excellent forging, smooth surface, acid and alkali resistance, high temperature resistance, beautiful appearance and strong texture performance. The applicable medium of spherical head is gas, liquid and steam. Spherical heads are used in petroleum, electronics, chemical industry, medicine, textile, food, machinery, construction, nuclear power, aerospace, military and other industries. Precautions for use of spherical head: 1. Carbon steel spherical head will crack in nitrate, ammonia, alkaline sodium and other environments. Explain to eliminate residual stress when ordering head. 2. Stress corrosion cracking of austenitic stainless steel will occur in the specific environment with chloride ions. Select appropriate materials when designing spherical head. 3. For carbon steel vessels requiring hot galvanizing or aluminizing, heat treatment shall be carried out first to remove residual stress Titanium grade 12 pipe (Ti-0.3Mo-0.8Ni) Chemical compositions(weight%,<=) Mo Ni Fe C N 0.2-0.4 0.6-0.9 0.30 0.08 0.03 H O Ti Others Total 0.015 0.25 Remainder 0.10 0.40 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 440 345 18

Product name:Titanium grade 7 welding wire Standard : AWS a5.16 , ASME SFA 5.16 Grade : GR7 (ErTi-7,Ti-0.2Pd ) Diameter : 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm etc. Shape : Coil,spool,straight. Surface : Pickling surface/bright surface Application :Welding Description Gr7 Titanium Welding Wire Product Gr7 titanium welding wire/ gr7 titanium tig wire Size Straight: Dia.: 1.0mm-5.0mm (0.04"-0.02", tolerance: +/-0.05mm, +/-0.002") 3000mm (118") max length Coiled: Dia.: 0.5mm-5.0mm (0.02", tolerance: +/-0.05mm, +/-0.002") Spool diameter: around 300mm (12") Material Grade 7 titanium Standard AWS 5.16, etc. Surface Black, Pickled, Polished (for dia. >1mm) Shape Straight or Coiled Grade 7 (Ti-0.2Pd) titanium wire Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

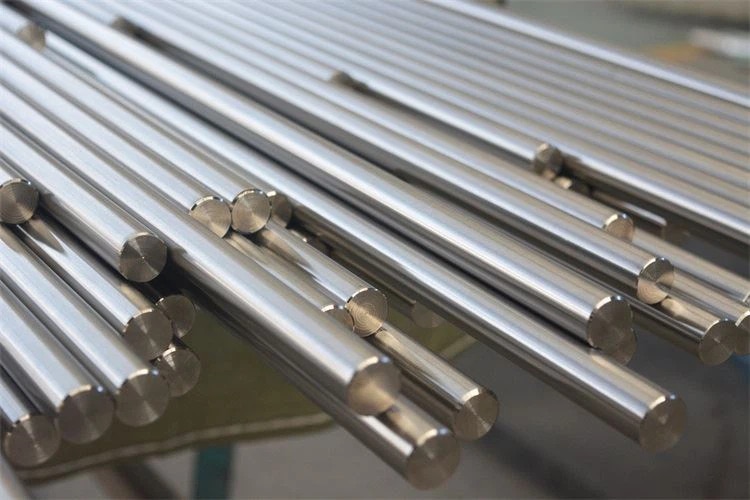

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Titanium Round Bar 25mm Product Information: Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc. Russian Grade: BT1-100,BT1-0,BT6 etc. Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: R/M/Y LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

Product name: 4mm titanium bar Material: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23 Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. Size: Dia 5mm-300mm (0.2"-12"), Length 50mm-6000mm (2.0"-236")
