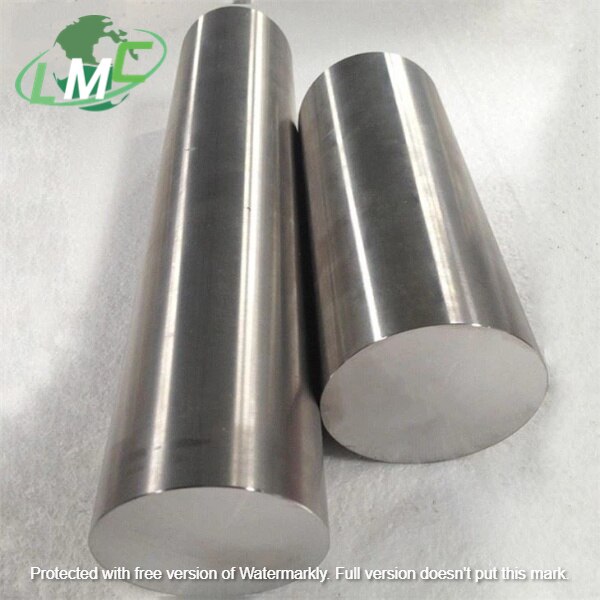

Product name: 35mm titanium bar Material: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23 Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. Size: Dia 5mm-300mm (0.2"-12"), Length 50mm-6000mm (2.0"-236") Applications :Industrial

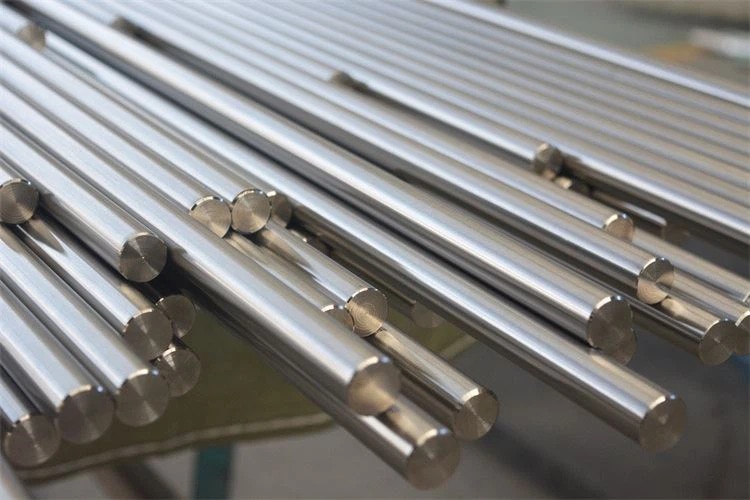

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg- $30usd/kg Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright

Product Name: Grade 12 Titanium alloy Bar 30mm Standard: ASTM B348 Material: GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Unit price:$21.5-$34.9/kg Product Description Product Grade 12 Titanium Alloy Bar 30mm Technique Rolled, Forged Grade GR12 titanium Russian Grade BT1-00,BT1-0,BT1-2 Standard ASTM B348, AMS 4928 Shape Round, Square, Flat, Hex Diameter 3-350mm Length up to 6000mm Surface Bright Product Certificate En10204/3.1 Company certificate ISO 9001:2015 gr12 titanium bar Other grade titanium bar: Gr1 titanium bar/rod Gr2 titanium bar/rod Gr3 titanium bar/rod Gr4 titanium bar/rod Gr5 titanium bar/rod Gr7 titanium bar/rod etc.

Product Name: Medical Titanium Bars Standard: ASTM F136/ ISO 5832-3 Material: Grade 5/Gr23 Unit Price: $25.5usd/kg- $55.5usd/kg Shape: Round Diameter: 3-350mm Length: Max 6000mm Surface: Bright Condition: Annealed Application:Medical,surgical implant(Bone nail implant, dentistry etc.) Medical titanium material has excellent corrosion resistance, elastic modulus close to natural bone, and good biocompatibility. Medical pure titanium is a single-phase structure, which can not be strengthened by heat treatment. It can be used as internal bone plate, bone screw, dental implant, etc. it can also be used as artificial skull, artificial heart valve, pacemaker and titanium alloy for radiother.

Product name: Gr.5 titanium alloy bar Material: Ti6al4v (grade 5) Standard : ASTM B348 AMS 4928 ASTM F136 Size: Dia 5--200mm * Max L6000mm Grade 5 titanium rod belongs to α - β alloy, which is the most widely used titanium alloy material. GR5 titanium has good mechanical properties and hardness. Its density is the same with pure titanium: 4.51g/cm3, and its corrosion resistance is as good as that of pure titanium. Widely used in aerospace industry, marine industry, power generation, oil and natural gas, etc. The diameter of titanium rod ranges from 5mm to 500mm, and the length from 50mm to 6000mm. The size can also be customized according to the needs of customers. In addition to the round titanium rod, we also improved other shapes, such as flat titanium rod, square titanium rod and hexagonal titanium rod.

Product Name: 10mm Titanium Round Rod Standard: ASTM B348 ASTM F136 ASTM F67 AMS 4928 Material: GR1, GR2, GR3,GR4,GR5, GR7, GR12,GR23 etc. Shape: Round, Square, Flat, Hex Diameter: 6-200mm Length: Max 6000mm Surface: Bright Application:Chemical industry,machinery, ocean, aviation, military industry etc. Advantages: 1. Equipments:we have milling machine, annealing furnace, straightening machine, rolling mill, cutting machine, punching machine, sand blasting machine, etc. 2. Price:with more than 15 years of production and export experience in the titanium industry, we know this market well. Under the premise of quality assurance, to customers the most competitive price 3. Quality: Our titanium rods have been exported to many regions and countries in North America, Europe, Southeast Asia and so on, and the satisfaction rate has reached 99.95%. We accept any third party testing, such as SGS, TUV,BV, etc. Physical properties of titanium bars: Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18 Grade 23 125 860 115 790 10

Porduct name : Gr 1 Titanium Tube Sheet Material: Gr1 Titanium +steel,Gr1 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr 1 Titanium Tube Sheet U-shaped expansion joint is commonly used in fixed tubesheet heat exchanger. It has the advantages of compact and simple structure, good compensation and low price. With the large-scale of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with diameter of 4m-5m is very common. Large tubesheet is characterized by large number of tube holes, dense, small diameter, deep, high precision and finish requirements.

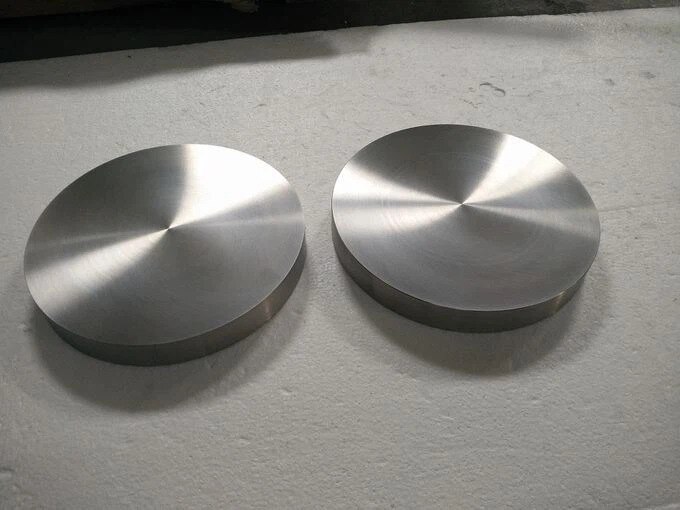

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing
