DIN 2569 Duplex Steel Flanges PN 100 are precision-engineered welding neck flanges manufactured from high-performance duplex stainless steel, designed to ensure superior strength, corrosion resistance, and reliability in high-pressure and aggressive industrial environments. Built to DIN 2569 standards, these flanges offer excellent mechanical strength, stress corrosion cracking resistance, and thermal stability, making them ideal for use in industries such as oil and gas, offshore platforms, petrochemical, chemical processing, and marine engineering. Ladhani Metal Corporation is a reputable manufacturer and exporter of duplex steel flanges, providing products that conform to stringent global standards. The welding neck design allows for permanent and high-integrity pipe connections, making these flanges particularly suitable for applications subject to pressure fluctuations, corrosive media, and thermal cycling. Pressure Rating: • PN 100 (100 bar / 1450 psi): Specifically designed for high-pressure systems that demand robust sealing, mechanical resilience, and corrosion resistance in chemically aggressive environments. Flange Types: • Welding Neck Flanges Provide a tapered hub for stress distribution, ideal for high-pressure and corrosive piping systems. • Raised Face (RF) Flanges Facilitates effective gasket compression and sealing under elevated pressure and temperature. • Flat Face (FF) Flanges Used for connections with flat-faced components or non-metallic sealing materials. • Forged Welding Neck Flanges Offer enhanced strength, dimensional precision, and pressure resistance. • Custom-Machined Flanges Available in a wide range of sizes, pressure classes, and duplex steel grades to meet specific project requirements. Duplex Steel Grades and Composition: 1. ASTM A182 F51 (UNS S31803) Composition: • Chromium (Cr): 21.0–23.0% • Nickel (Ni): 4.5–6.5% • Molybdenum (Mo): 2.5–3.5% • Nitrogen (N): 0.10–0.22% • Manganese (Mn): ≤ 2.00% • Carbon (C): ≤ 0.030% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.020% Applications: Widely used in chemical plants, desalination equipment, marine structures, and oil and gas platforms due to its excellent pitting and crevice corrosion resistance. 2. ASTM A182 F53 (UNS S32750) Composition: • Chromium (Cr): 24.0–26.0% • Nickel (Ni): 6.0–8.0% • Molybdenum (Mo): 3.0–5.0% • Nitrogen (N): 0.24–0.32% • Manganese (Mn): ≤ 1.20% • Carbon (C): ≤ 0.030% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.020% Applications: Ideal for applications in offshore platforms, chemical tankers, and seawater systems, where high chloride resistance and strength are essential. 3. ASTM A182 F55 (UNS S32760) Composition: • Chromium (Cr): 24.0–26.0% • Nickel (Ni): 6.0–8.0% • Molybdenum (Mo): 3.0–4.0% • Copper (Cu): 0.5–1.0% • Tungsten (W): 0.5–1.0% • Nitrogen (N): 0.20–0.30% • Carbon (C): ≤ 0.030% • Manganese (Mn): ≤ 1.00% Applications: Used in demanding environments such as chemical processing, seawater handling systems, pulp and paper industries, and aggressive brine systems. Applications of DIN 2569 Duplex Steel Flanges: • Oil and Gas Pipelines: Used in high-pressure and corrosive media transport systems such as offshore and subsea pipelines. • Offshore and Marine Engineering: Installed in seawater cooling, ballast, and firefighting systems due to chloride resistance. • Petrochemical and Chemical Plants: Applied in aggressive media handling, reactors, and process lines. • Desalination and Water Treatment: Used in brine concentrators, high-pressure RO systems, and intake piping. • Pulp and Paper Industry: Employed in bleach plant and digester systems under high stress and chemical exposure. Key Features: • Manufactured to DIN 2569 standard • Available in PN 100 pressure rating • Excellent corrosion resistance and mechanical performance • High strength-to-weight ratio • Resistant to pitting, crevice corrosion, and stress corrosion cracking • Supplied with test certificates, quality assurance documents, and traceability • Optional surface finishes available, including pickling, passivation, and shot blasting Conclusion: DIN 2569 Duplex Steel Flanges PN 100 from Ladhani Metal Corporation are engineered to deliver superior strength, durability, and corrosion resistance in challenging industrial environments. Suitable for a wide range of applications across offshore, petrochemical, and marine sectors, these flanges are available in customizable sizes and duplex material grades. For detailed specifications, bulk inquiries, or technical support, contact Ladhani Metal Corporation today.

DIN 2568 Super Duplex Steel Flanges PN 64 are premium-grade threaded flanges manufactured from high-performance super duplex stainless steel, designed to withstand extreme mechanical loads and highly corrosive environments. In compliance with DIN 2568 standards, these flanges offer exceptional strength, superior resistance to pitting and crevice corrosion, and excellent performance under high pressure and temperature variations, making them ideal for demanding applications in offshore, petrochemical, marine, and desalination industries. Ladhani Metal Corporation is a renowned manufacturer and exporter of super duplex flanges, supplying components that meet stringent global standards for quality, precision, and reliability. The threaded design ensures weld-free, easy installation and removal, making these flanges highly suitable for systems requiring quick assembly and periodic maintenance. Pressure Rating: • PN 64 (64 bar / 928 psi): Engineered for high-pressure and aggressive service conditions where material integrity and corrosion resistance are critical. Flange Types: • Threaded (Screwed) Flanges Facilitates rapid, weld-free assembly and disassembly, particularly in maintenance-intensive systems. • Raised Face (RF) Flanges Improves sealing effectiveness in high-pressure applications by concentrating gasket compression. • Flat Face (FF) Flanges Ideal for systems with flat mating surfaces, especially where non-metallic or brittle materials are used. • Forged Threaded Flanges Manufactured for enhanced strength, dimensional accuracy, and resilience in corrosive environments. • Custom-Machined Flanges Available in various sizes, sealing types, and super duplex grades, tailored to meet specific project requirements. Available Super Duplex Grades and Composition: 1. Super Duplex Steel Composition: • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 6.0 – 8.0% • Molybdenum (Mo): 3.0 – 4.0% • Tungsten (W): 0.5 – 1.0% • Nitrogen (N): 0.20 – 0.30% • Carbon (C): ≤ 0.030% Applications: Used in highly corrosive environments such as seawater systems, desalination plants, and chemical reactors where maximum corrosion protection and mechanical strength are required. Applications of DIN 2568 Super Duplex Flanges: • Offshore and Subsea Engineering: Designed for long-term performance in saltwater, high-pressure, and submerged environments. • Oil and Gas Sector: Used in sour service, high-pressure pipelines, separators, and riser systems. • Chemical and Petrochemical Plants: Resistant to aggressive media such as chlorides, acids, and organic solvents. • Desalination and Water Treatment: Ideal for use in reverse osmosis systems, brine handling, and filtration modules. • Power Generation and Marine Infrastructure: Installed in heat exchangers, cooling systems, and seawater intake structures. Key Features: • Manufactured according to DIN 2568 specifications • Rated for PN 64 high-pressure service • Outstanding resistance to corrosion, pitting, and chloride-induced stress cracking • High yield strength and fatigue resistance • Threaded connection allows for easy, non-permanent assembly • Supplied with test certificates, MTCs, and full material traceability • Surface finish and machining available as per customer requirement Conclusion: DIN 2568 Super Duplex Flanges PN 64 from Ladhani Metal Corporation represent the ideal solution for high-pressure, highly corrosive, and mechanically challenging environments. With exceptional durability, corrosion protection, and installation efficiency, these flanges are engineered for performance and reliability. For custom dimensions, technical support, or grade selection, contact Ladhani Metal Corporation today

Product Name: Titanium U-tube heat exchanger Material:Gr1 Gr2 Gr7 Gr12 titanium Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Titanium U-tube heat exchanger U-shaped tube heat exchanger, is a shell and tube heat exchanger, it is composed of tube-plate, shell, tube bundle and other parts. Under the same diameter, the heat transfer area of u-tube heat exchanger is the largest. It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and lowest cost under high temperature and high pressure; U-tube heat exchanger has only one tube plate, good thermal compensation performance, strong bearing capacity, suitable for high temperature and high pressure operating conditions. Name: Titanium U-tube heat exchanger Material: Gr1 Gr2 Gr7 Gr12 titanium Structure: tube box, barrel, head, heat exchange tube, etc Advantages: simple structure, low cost Disadvantages: High rejection rate Application: Suitable for high temperature and high pressure corrosive fluid Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

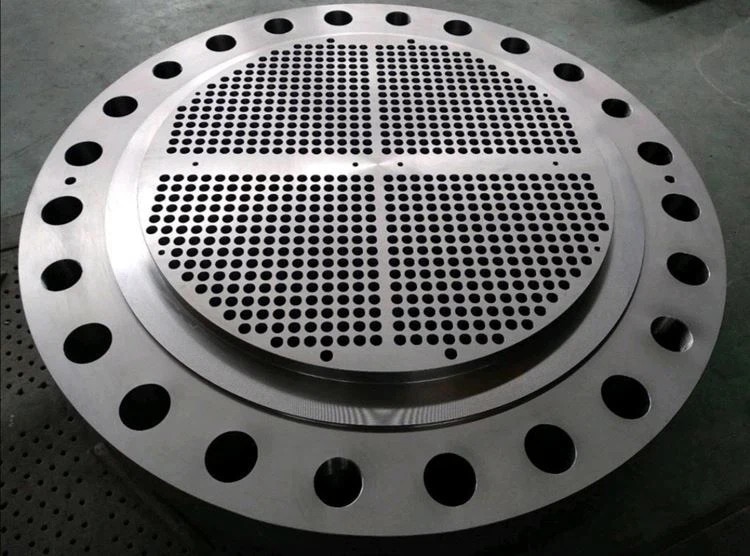

Porduct name : Titanium steel clad tube sheet for hear exchanger Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium steel clad tube sheet for hear exchanger Porduct name : Gr2 titanium tube plate Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Tube plate material: according to the need to use different environment, the use of different materials, carbon steel material generally use Q345R container plate, such as first and second pressure vessels, no corrosive medium flow, the use of carbon steel composite plate. In the case of strong acid, high pressure and high temperature, nuclear energy and other environments, stainless steel, 16 manganese, titanium alloy and other corrosion-resistant materials are needed. The application of new synthetic materials brings new vitality to tube-sheet products. With high pressure environment, but also to the case of corrosion resistance, considering the use of cost, generally choose high strength steel and corrosion resistant materials of composite material structure.

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium pipe is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium pipes as standard pipes for their units

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Features of Gr1 titanium pipe: 1. Gr1 titanium pipe has plasticity. The elongation rate of the high-purity titanium pipe can reach 50-60%, and the reduction of area can reach 70-80%. Although the strength of high-purity titanium pipe is low, the pure industrial titanium contains a small amount of impurities and the addition of alloying elements can significantly strengthen its mechanical properties, making its strength comparable to high strength. This means that as long as the industrial pure titanium pipe contains a small amount of interstitial impurities and other metal impurities, it can make it have both high strength and appropriate plasticity. 2. The specific strength (strength to weight ratio) of industrial pure titanium pipe is very high in metal structural materials. Its strength is equivalent to steel, but its weight is only 57% of steel. 3. Gr1 titanium pipe has strong heat resistance, and can still maintain good strength and stability in the atmosphere at 500°C. 4. Titanium pipe also has good low temperature resistance. Even at the ultra-low temperature of -250℃, it still has high impact strength and can withstand high pressure and vibration. 5. Strong corrosion resistance, this is because it has a particularly large affinity for oxygen, and can form a dense oxide film on its surface, which can protect titanium from corrosion by the medium. Therefore, titanium has good stability in acidic, alkaline, neutral salt solutions and oxidizing media, and has better corrosion resistance than existing stainless steel and other non-ferrous metals. Chemical Composition (Wt%) ASTMNo. Femax O max Nmax Cmax Hmax Pd Al Bal Grade1 0.2 0.18 0.03 0.1 0.015 - - Ti Physical Properties(Min) ASTMGrade AlloyComposition TensileStrength YieldStrength Elongation min % ksi Mpa ksi Mpa Grade 1 UnalloyedTi("Pure")35A-CP1 35 240 20 138 24

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Wall thickness tolerance: +/- 10% Length tolerance: +3.2mm Surface: Bright Although the investment cost of titanium welded tube is higher than that of common fluid transportation pipelines, its cost is lower than that of titanium seamless tubes. Based on the analysis of the service life and maintenance cycle of titanium welded tubes, the investment cost of titanium welded tubes can be compensated in use. , The use of titanium welded tubes in piping systems can reduce production costs by reducing the number of regular maintenance, reducing downtime, improving product quality, and increasing pipeline life. Advantages of titanium welded tube over titanium seamless tube 1. The mechanical properties of titanium welded tube and titanium seamless tube are basically the same. 2. The appearance and quality of titanium welded tube are better than titanium seamless tube 3. The cost and environmental protection advantages of titanium welded tubes are outstanding Common Sizes OD WT L 12.7 1.0 4000 15.9 0.5 6000 15.9 0.7 3000 19.1 0.7 6000 19.1 0.7 7000 19.1 1.2 4000 19.1 1.4 5500 19.1 1.4 6000 19.1 1.4 4000 19.1 1.5 4000 21.7 3.0 4000 25.4 0.5 6000 25.4 1.0 4000 25.4 1.2 4000 25.4 2.0 4000 27.2 2.0 4000 31.75 1.2 6000 34.0 2.0 4000

Porduct name : Titanium Explosive Clad Steel Plate / Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Explosive Clad Steel Plate / Sheet Tube plate in different working environment have different application material, general tube plate use Q345R container board, this is, of course, in the absence of corrosive medium under the condition of flow and pressure, and in some high pressure high temperature corrosion environment we will recommend that users use stainless steel when tubesheet machining, 16 mn or titanium alloy wear resistant material. EXPLOSIVE CLAD PLATES : Description Clad material Base Material Size(mm) Standard Application Titanium Steel clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) 516GR-70 A216 A210-C (1-10/5-120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chemical, chloral-alkali, food, fertilizer, wet metallurgy, Electroplating, Vacuum Salting Making Titanium Stainless steel clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) SUS410 SUS304 (1-6/5120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chloral-alkali, aerospace, aviation, low temperature, food, light industry, medicine Titanium Aluminum clad material GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) L, Ly, LF (1-10/5-50)thk ×(≤2000)width ×(≤8000)length ASTMB-898 aerospace, cookware, chemical, industry, ship, special brazing filler Titanium Copper clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) T1, T2, T3, T4 (1-10/5-50)thk ×(≤2000)width ×(≤8000)length ASTMB-432 Power plant, electrolysis, cook ware, wet metallurgy Titanium Nickel clad material GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) N2, N4, N6 (1-10/5-50)thk ×(≤2000)width ×(≤8000)length Reference to ASTMB-898 Metallurgy Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 170-310 240 Grade 2 0.3 0.25 0.03 0.1 0.015 20 275-450 345-480 Grade 3 0.25 0.3 0.05 0.1 0.015 18 360-480 480-700 Grade 4 0.5 0.4 0.05 0.1 0.015 15 500-530 600-680 Grade 5 0.4 0.2 0.05 0.1 0.015 5.5-6.7 10 800-1100 890-1400 Grade 6 0.1 16 780-820 820-860 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 275-450** 345 Grade 9 0.25 0.15 0.02 0.05 0.015 2,5-3,05 15 550 650 Grade 11 0.2 0.18 0.03 0.1 0.015 0.12-0.25 24 170-310** 240 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 25 414-460 499-600
