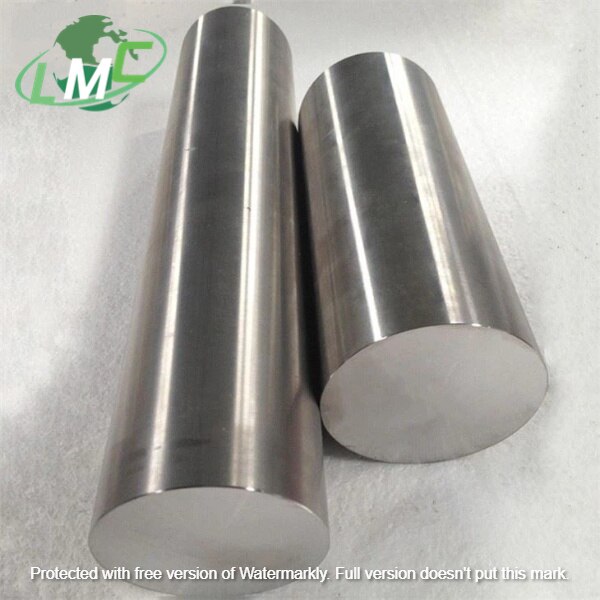

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

Product Name: Grade 2 titanium bar stock Standard: ASTM B348 Material: GR2 Unit Price: $15usd/kg- $30usd/kg Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Pure titanium bar in stock,grade 2 titaium bar, grade 1 titanium bar, grade 3 titanium bar, grade 4 titanium bar;China titanium bar factory,Titanium bar manufacturer,Titanium bar price. Grade: GR1, GR2, GR3, GR4 Standard: ASTM B348, ASTM F67 Shape: Round, Square, Flat, Hex Diameter: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm ...Max 500mm Length: Max 6000mm , Can be cut as customer's request length. Tolerance: As standard, or as per your requirements Surface: Polished Condition: R/M/Y Application:Chemical, industry,medical etc. Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Chemical composition N C H Fe O Al V Pd Mo Ni Ti Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal Grade 2 0.03 0.08 0.015 0.30 0.25 / / / / / Bal Grade 3 0.05 0.08 0.015 0.30 0.35 / / / / / Bal Grade 4 0.05 0.08 0.015 0.50 0.40 / / / / / /

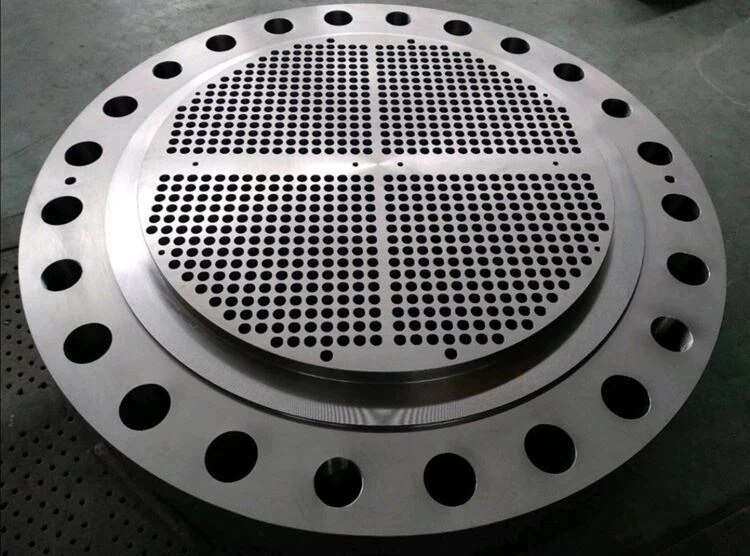

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr1 Titanium Tubesheet Product Description The precision of titanium tubesheet processing, especially the tube hole spacing and tube diameter tolerance, verticality, and smoothness greatly affect the assembly and use performance of the chemical equipment listed above. With the enlargement of chemical equipment and power stations, titanium tubesheet diameter has become larger and larger, and titanium tubesheets with a diameter of 4m-5m are very common. The characteristics of the large-scale tubesheet are the large number of tube holes, denseness, small diameter, deepness, high precision and smoothness requirements

Porduct name : Titanium steel clad tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium steel clad tube sheet The tubesheet is in contact with both fluids and must therefore be corrosion-resistant and have metal-metallurgical and electrochemical properties suitable for fluid and velocity. Titanium is a good material to meet this, it has a good corrosion resistance to salt water and chromic acid. Tubesheet is widely used in tubular heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other industries. Tubeplate is mainly used in chemical vessels, such as tubular heat exchanger, pressure vessel, boiler, condenser, central air conditioning, evaporator, seawater desalination, to support the role of fixed tube, metal material makes it not only has strong rigidity, but also has great heat conduction performance.

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright
