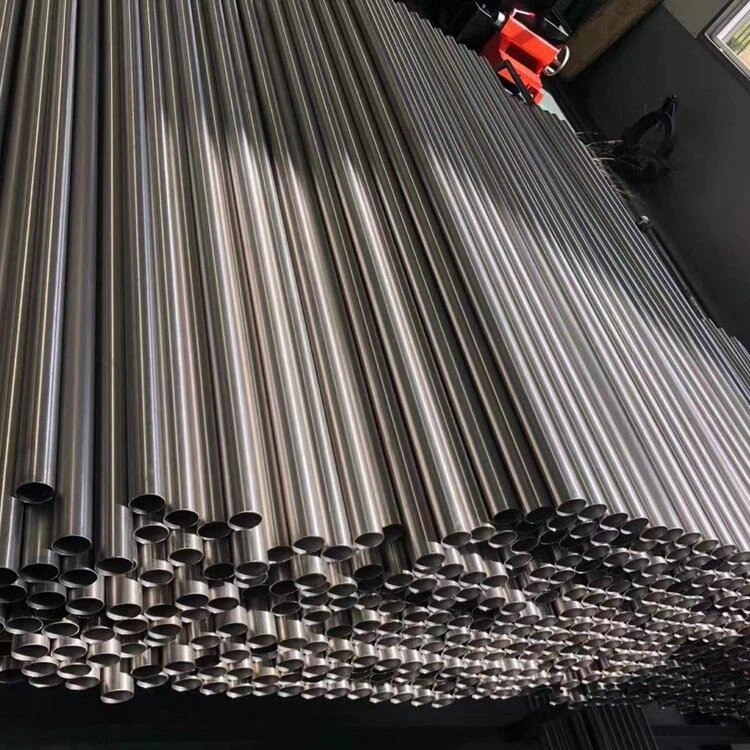

Product Name: Titanium seamless pipe for heat exchanger Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless Shape: Round Outer Diameter: 21.3mm-609.6mm etc. Wall Thickness: 1.24-30mm Length: Max 16000mm Surface: Bright Titanium seamless pipe for heat exchanger The grade 2 titanium tube consists of commercial pure titanium or Unalloyed titanium. The oxygen content of grade 2 is standard. ASTM b861 GR 2 pipes can be easily welded. It also has excellent strength and ductility. The natural strength of metal is used for applications requiring very high strength, and the corrosion resistance is used for long-term appliances. Although most use cases are in industrial standards, titanium grade 2 seamless pipes can also be used in aesthetic and home applications. Due to the cost of raw materials and production costs, the cost is very high. The content of titanium in commercial pure CP grade 2 titanium welded pipe exceeds 99%. It can be cold drawn into titanium seamless pipe or hot rolled into welded pipe. They are used in high temperature applications, such as titanium 2-stage exhaust pipes, which can maintain their shape due to their high thermal conductivity, low thermal expansion and high oxidation resistance at high temperatures.

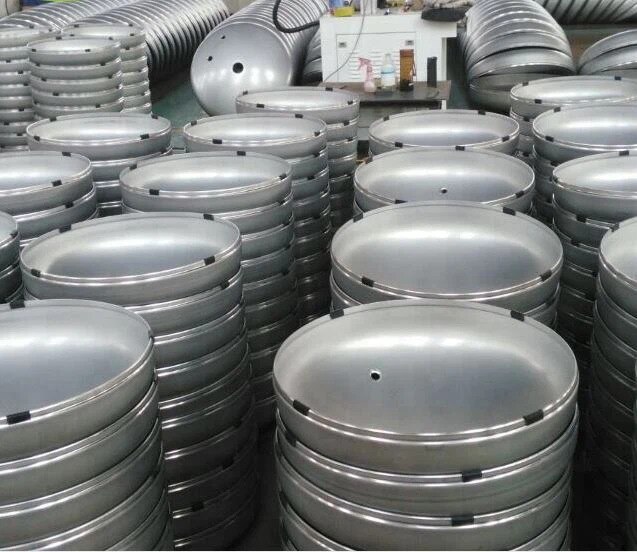

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Dish Head Product Information Other Names: Titanium Elliptical Head, Titanium Spherical Head, Titanium Elliptical End, Titanium Elliptical Cap, Titanium Dished Elliptical Head, Titanium Spherical End, Titanium Elliptical Cap, Titanium Dished Spherical Head etc. Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc. Grade: GR1, GR2, GR5, GR7, GR12 OD: 300-2500mm Thickness: 2-300mm Production Process: Cold Forming, Hot Forming Surface Treatment: Sand Blasting, Pickling, Coating etc. Application: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet for Heat Exchanger Product Information Tubesheet is a circular plate drilled with holes of the same diameter as the pipe. It is used for the heat exchanger to fix the pipe. An accessory that accomplishes this by passing a pipe through and welding it in place. The precision of tubesheet processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, have a great impact on the assembly and performance of the above-mentioned chemical equipment. With the enlargement of chemical equipment and power stations, the diameter of tubesheets has become larger and larger. Tubesheet with a diameter of 4m-5m is very common. The characteristics of large tubesheet are many tube holes, compactness, small hole diameter, deepness, high precision, and high finish requirements.

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr5 Titanium Dish Head Product Information Titanium dish head refers to the element used to close the end of the container to isolate the internal and external media, also known as end caps.

Product name: Titanium heating coil Spiral Pipe Standards: ASTM B338 Grades: Gr1, Gr2 Dimention:OD 6-108mm*WT1-5mm*L Technique:Rolled Titanium heating coil Spiral Pipe Titanium tube coil is widely used in Evaporator, Condenser, Refrigeration compressor, Heat exchanger tube,Heating tube. titanium coil is also used to produce titanium white, glycine, nitrate amino phenol chemical industry, pesticide intermediates, pesticides, fuel, cyanuric acid, dichloro cyanuric acid, acetone cyanuric acid, etc. Name:ASME B338 Grade 2 Titanium coil tube for heater for condenser Material:Gr2 Titanium Standard:ASME B338 OD:12.7mm-50mm Wall thickness:0.55mm----3.0mm(normal use) Length:0.55mm----3.0mm(normal use) Applications: Coiling pipe; petroleum pipeline, Fluid Transportation Piping, Water tank, boiler, heat exchanger unit, Heat exchanger; Condenser, Sea farming; electroplating equipment etc. Quality control : Seamless Tube: Ultrasonic or eddy current inspection. Welding Pipe: 100% surface penetration inspection; 100% X-ray inspection. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Porduct name : Gr 1 Titanium Tube Sheet Material: Gr1 Titanium +steel,Gr1 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Gr 1 Titanium Tube Sheet U-shaped expansion joint is commonly used in fixed tubesheet heat exchanger. It has the advantages of compact and simple structure, good compensation and low price. With the large-scale of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with diameter of 4m-5m is very common. Large tubesheet is characterized by large number of tube holes, dense, small diameter, deep, high precision and finish requirements.

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

Product Name: Grade 2 titanium bar stock Standard: ASTM B348 Material: GR2 Unit Price: $15usd/kg- $30usd/kg Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright
