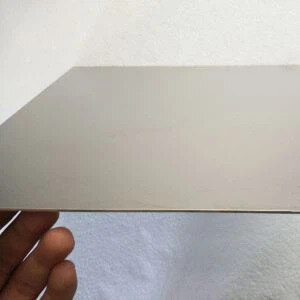

Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Product Introduction Titaniu plates and titanium alloy plates are mainly used to manufacture various containers, reactors, heat exchangers, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as a titanium cathode and condenser in power stations, as well as environmental pollution control devices. The hardness of steel is higher than that of titanium plate, but the specific strength or tensile strength of titanium alloy is higher than that of high-quality steel. Titanium alloy has good heat resistance, low temperature toughness and fracture toughness, so it is mostly used as aircraft engine parts and rocket and missile structural parts. Titanium alloy can also be used as fuel and oxidant storage tanks and high-pressure vessels. There are already automatic rifles, mortar seat plates and recoilless gun launch tubes made of titanium alloy. Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Thickness: 0.5-60mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Status and specifications of titanium plates Grade Technique Status Thickness Gr1 Gr2 Gr3 Gr4 (pure titanium plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.3-4mm Gr5 Gr7 Gr12 etc. (Titanium alloy plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.8-4.0mm

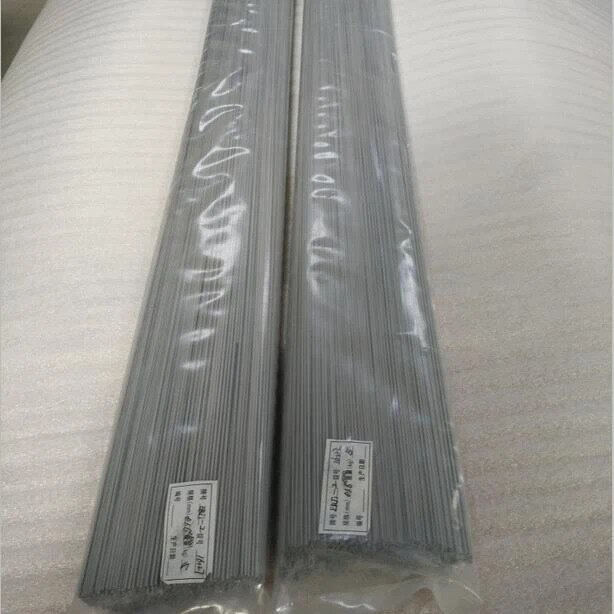

Product Name: Titanium mig welding wire Standard: AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing

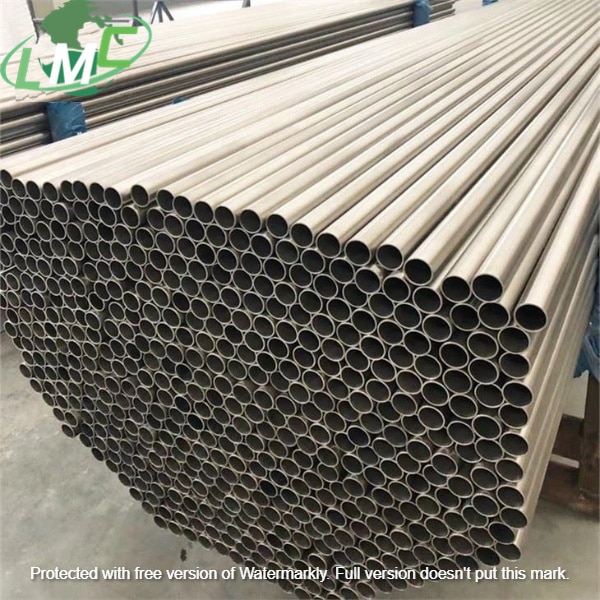

Product name: Gr2 Titanium Tubes 25.4mm Standard:ASTM B338 Material:Titanium Gr2 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium Tubes 25.4mm Titanium pipe/titanium alloy pipe has excellent strength, hardness, small density, light weight, high temperature resistance, low temperature resistance, good machining performance, excellent corrosion resistance, non-magnetic non-toxic, good heat exchange performance. It also has memory and superconductivity. Hydrogen storage performance is very outstanding, the products are widely used in: navigation, aerospace, vacuum salt, automotive industry, medical sports, paper and textile industry, electric power industry, metallurgy industry, chlor-alkali industry, chemical fertilizer industry, seawater desalination industry. 1.Shape: round tube, square tube, spiral tube, coil tube, 2. Standard: ASTM B337, ASTM B338, ASTM B861, ASTM B862 3. Srand: Titanium GR2 4. Specifications: ф (3-159) x (0.2-10.0) x L(500-9000) ф (30-1000) x (0.5-12.0) x L(500-15000) Extruded tube (M state) ф (45-219) x (5.0-30.0) x L 5. Production method: cold rolling, extrusion 6. Testing: ultrasonic testing, eddy current testing, water pressure testing, airtight testing Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa

Titanium jigs for plating Any project to anodize requires a reliable hanger/jig/rack, first to prevent it from falling to the bottom of the anodizing tank, and second to allow the current to be safely transferred from the jig to the workpiece. Anodic oxidation clamps are usually made of aluminum or titanium. Aluminum fixtures must of course be anodized and must be chemically stripped. Continuous anodizing and stripping can result in short service life, so there is no need to strip titanium after the anodizing process. Item Name: titanium jig for coating Size:Customized size is welcomed Material: Titanium Gr1, Gr2 Application,Electroplating industry Surface:Sand Blasting, Acid Washing Parameter:Current density≤2000A/M2 Temperature:<65°C PH: 0.1~14 Max content of Fluoride ion is 200PPM Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

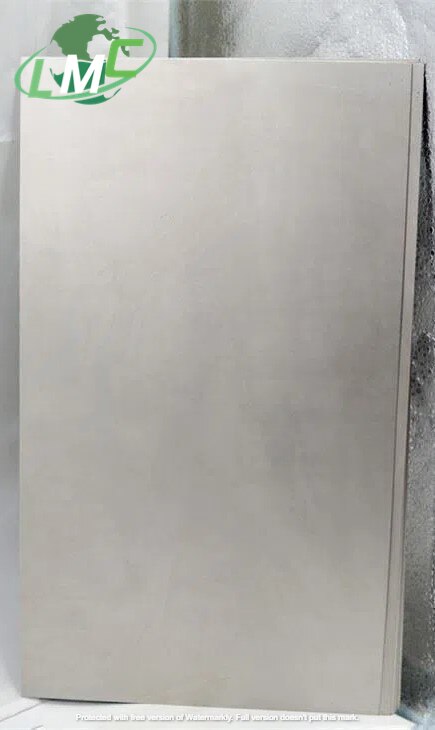

Name: Titanium sheet Standard: ASTM B265 Grade: Gr3

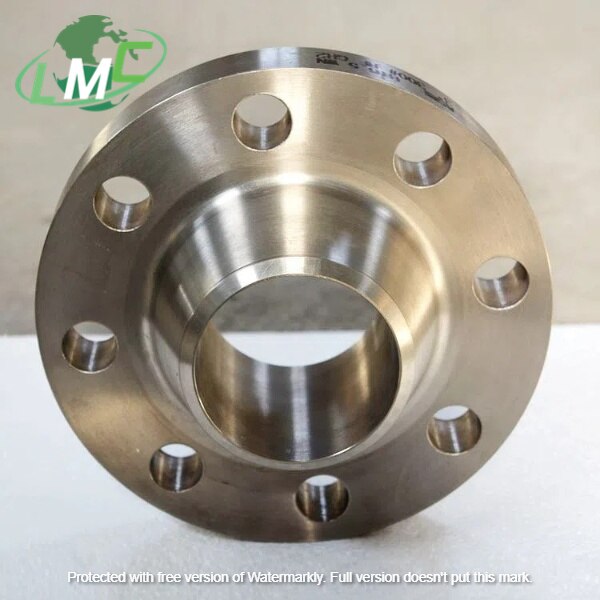

Product Name: Gr2 Titanium weld neck flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc.

Product Name: Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Bright Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25 Features of our company's titanium welding wire: 　　1. Manufactured by a non-oxidized roll mold cold drawing process 　　2, the welding wire has uniform structure and fine grains 　　3, high dimensional accuracy, no defects, excellent follow-up processing performance 　　4, the composition of various elements in the material and the mechanical properties of the material can be effectively controlled

Product Name: Titanium 6al4v plate Standard: ASTM B265 , AMS 4911 , ASTM F136 Material: Gr5 Unit Price: $19.5usd/kg-$48usd/kg Thickness: 0.3-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting There are several advantages to using titanium sheet metal: 1. High strength-to-weight ratio: Titanium is known for its high strength-to-weight ratio, which means that it is strong but lightweight. This makes it ideal for use in applications where weight is a concern, such as aerospace and sports equipment. 2. Corrosion resistance: Titanium is highly resistant to corrosion, making it suitable for use in harsh environments where other metals would quickly deteriorate. This makes it ideal for use in marine and chemical processing applications. 3. Biocompatibility: Titanium is biocompatible, meaning that it is not harmful to living tissue. This makes it ideal for use in medical implants and prosthetics. 4. High melting point: Titanium has a high melting point, making it suitable for use in high-temperature applications such as jet engines. 5. Ductility: Titanium is highly ductile, meaning that it can be easily formed into a variety of shapes and sizes without breaking. This makes it ideal for use in complex designs and applications. Applications: Widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, food, and used to complete vulcanization, nitration, hydrogenation, polymerization, condensation and other technical processes. Such as reverberator, reverberation kettle, differentiation pot, polymerization kettle. Titanium 6al4v plate Chemical compositions(weight%,<=) Ti Al V Fe C Remainder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 830 8-12 18-30 Titanium 6al4v plates in stock: Thickness: 1mm 2mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 20mm 25mm Size: 1000*2000mm 3000*6000mm The production process of titanium plate: 1. Hot forging:casting skills above the metal recrystallization temperature; 2. Hot rolling:the rolling process performed at a temperature higher than the recrystallization temperature; 3. Cold rolling:the rolling process where the plastic deformation temperature is lower than the recovery temperature; 4. Annealing: slowly heating the metal to a certain temperature, insisting on meeting the time, and then cooling at an appropriate speed a metal heat treatment technology; 5. Pickling: immersing the parts in an aqueous solution such as sulfuric acid to remove the oxide and other thin films on the metal surface. It is the pretreatment or process treatment of electroplating, enamel, rolling and other skills.

Product Name: WN Titanium Flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. WN Titanium Flanges The titanium flange is a part made of pure titanium or titanium alloy, which connects the pipe to the pipe, and to the end of the pipe. Product Name: WN Titanium Flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Differences between Weld neck titanium flange and slip on titanium flange 1. Different welding forms: The welding form of neck flat welded titanium flange pipe and titanium flange is fillet welding, while the welding form of the neck butt welded flange and pipe is girth welding; 2. Different materials: the material of the necked flat welding flange is made of ordinary titanium plate with a thickness that meets the requirements, while the material of the necked butt welding flange is mostly machined from titanium forgings; 3. the nominal pressure is different: the nominal pressure of the necked flat welding flange is: 0.6---4.0MPa, and the nominal pressure of the necked butt welding flange is: 1--25MPa; 4. Another point is that the welding seam between the necked butt-welded flange and the connection pipe belongs to type B seam, and the welding seam between the necked flat-welded flange and the connection pipe belongs to type C seam. And the non-destructive testing after welding is different; 5. The necked flat welding flange and the necked butt welding flange cannot be replaced at will. From a manufacturing perspective, the necked flat welding flange (SO is the abbreviation of Slip On) has a large inner diameter, which means that the weight is light and the cost is low. Neck butt welding flanges (WN is the abbreviation of Welding Neck) with a nominal diameter greater than 250mm need to be tested, and SO flanges do not need to be tested, so the cost is low.
