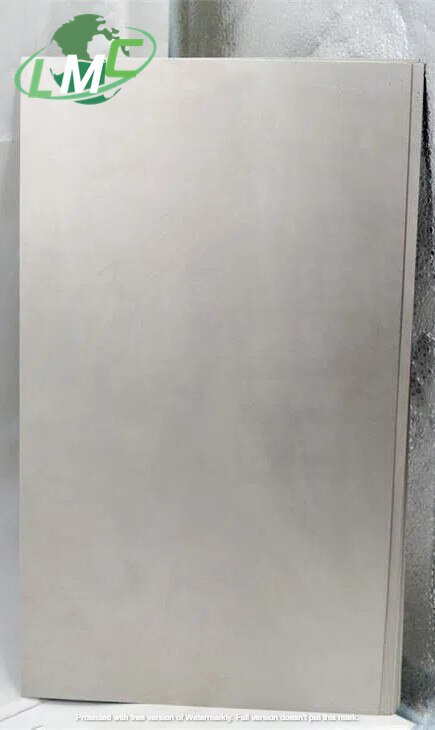

Product name:Titanium sheet Grades: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Standard: ASTM B265/ASME B265 AMS 4911 ASTM F67 ASTM F136 Dimension： Thickness*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case. MTC: EN10204.3.1 certificate There is Grade 1, Grade 2, Grade 3, Grade4, Grade5, Grade 7, Grade 12 titanium plates in stock. Titanium plate is widely used in various fields, including metallurgy, electronics, medical, chemical, petroleum, medicine, aerospace, etc.. We offer competitive prices online, available incutting size as customers' requets. 1, Specifications Thickness range: 0.5mm-200mm Titanium coil plate/titanium coil strip: 0.1mm-0.5mm thick *1m/1.2m/1.5m wide. Standard plate: 0.5mm-20mm thick *1m*2m. Cold rolled plate: 1mm-4mm*1m*2m hot rolled plate: above 4mm thick wide and thick plate: above 5mm *2m*6m is a common specification, and specific specifications can also be customized according to customer requirements. 2, Material TA1 (Grade 1), TA2 (Grade 2), TA9 (Grade 7), TA10 (Grade 12), TA18 TC4 (Grade 5), TC6 and TC11 3.Standard dimension in stock: 1000 mm Width * 2000 mm Length 1500 mm Width* 6000 mm Length 2000 mm Width* 6000 mm Length 4,Surface:Pickled, polished, sand-blasted

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Pure titanium bar in stock,grade 2 titaium bar, grade 1 titanium bar, grade 3 titanium bar, grade 4 titanium bar;China titanium bar factory,Titanium bar manufacturer,Titanium bar price. Grade: GR1, GR2, GR3, GR4 Standard: ASTM B348, ASTM F67 Shape: Round, Square, Flat, Hex Diameter: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm ...Max 500mm Length: Max 6000mm , Can be cut as customer's request length. Tolerance: As standard, or as per your requirements Surface: Polished Condition: R/M/Y Application:Chemical, industry,medical etc. Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Chemical composition N C H Fe O Al V Pd Mo Ni Ti Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal Grade 2 0.03 0.08 0.015 0.30 0.25 / / / / / Bal Grade 3 0.05 0.08 0.015 0.30 0.35 / / / / / Bal Grade 4 0.05 0.08 0.015 0.50 0.40 / / / / / /

Product name: 25mm Titanium Bar Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard : ASTM B348,ASTM B381, ASTM F136, ASTM F67,AMS 4928 Size: Dia 5--200mm * Max L6000mm Applications :Industry, aviation, military etc. Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished MOQ : 10kgs Feature : low density, special strong strength, excellent corrosive resistance 25mm gr5 Titanium Bar Titanium bar has many advantages: 1.Titanium Bright Bar has a low thermal expansion, which puts it at 1/3rd that of aluminium. 2.Titanium Alloy Round Rod is light in weight, which would put the specific gravity of this metal at about 1.7 times that of aluminium. and about 60% of specific gravity of steel. 3.Titanium Alloy Hexagon Bars tend to be non-magnetic in nature. 4.The heat conductivity of Titanium Alloy Square Bar is low, and is nearly the same as grade 18-8 stainless steel. Similarly, the electric conductivity of the alloy is low and the electric conductivity of titanium Cold Finished Bar about 3% of copper. 5.Titanium Polished Bar has high flexibility i.e. its Longitudinal elastic modulus. Which means that the flexibility of ASTM B348 Ti Alloy Hex Bar is one half of iron or stainless steel and it is the same as copper. Product name 25mm Titanium Bar,grade 2 titanium bar , grade 5 titanium bar ,grade 7 titanium bar,titanium bar price per kg Material Titanium, pure titanium Standard ASTM B348, ASTM F136, ASTM F67, ASTM F136, ISO-5832-2(3), AMS4928 etc. Titanium Grade Round Bar Sizes Minimum diameter: 0.040 inch or 1.00 mm Maximum diameter: 14.000 inch or 400.00 mm Type Ti square bar, Ti round bar, Ti hexagonal bar, Ti flat bar, Titanium Alloy Bars, Ti Billets, Forgings, and Forging Stock Condition R/M /Y ASTM B348 Ti Alloy Hex Bar size 2-100mm A/F Titanium Alloy Flat bar size Thickness: 2 -100mm Width: 10 to 500mm Pure Titanium Square bar size 4 to 100mm AMS Specificaton of Titanium Round Bar ASTM B348 (Grade 5), ASTM B348 (Grade 2), ASTM B348 (Grade 4), ASTM B348 (Grade 23), ASTM F67 (Grade 2), ASTM F67 (Grade 4), ASTM F136, ASTM F1472, MIL-T-9047 (6AL-4V), MIL-T-9047 (6AL-4V ELI), MIL-T-9047 (6AL-6V-2SN), MIL-T-9047 (CP-70 GR.4), AMS 6935, AMS 6936, AMS-T-9047 (6AL-4V), AMS-T-9047 (6AL-4V ELI), AMS-T-9047 (6AL-6V-2SN), AMS-T-9047 (CP-70 GR.4), DMS 1570, DMS 1583, AMS 4971, AMS 4921, AMS 4928, AMS 4930, AMS 4965, AMS 4967, AMS 4978, AMS 4979, AMS 6930, AMS 6931 and More. Titanium Angle bar size (in mm) 3*20*20~12*100*100 ASTM B348 Titanium Section 3.0 to 12.0mm thickness Titanium ASTM B348 Channel Bar (in mm) 80 x 40 to 150 x 75 section; 5.0 to 6.0 thickness Pure Titanium Hollow Bar (in mm) 32 OD x 16 ID to 250 OD x 200 ID) Titanium Alloy Billet Size 1/2" to 495mm Diameter ASTM B348 Ti Alloy Rectangles Size 33 x 30mm to 295 x 1066mm ASTM B348 Ti Alloy Round Bar Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black ASTM B348 Ti Round Bar Surface Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline Titanium Round Bar Uses chemical industry, Industrial, medical industry, military industry etc Titanium round bar Condition Hardened & tempered, annealed ASTM B348 Ti Alloy Bar Technique Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod Titanium Alloy Round Bar Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements Alloy Titanium Bar Processing Bar cutting to 650mm Standard Specification : ASTM B348 / ASME SB348 UNS grade Products Grade 1 - UNS R50250Grade 2 - UNS R50400Grade 5 - UNS R56400 Grade 7 - UNS R52400 Grade 9 - UNS R56320 Grade 12 - UNS R53400 Titanium Round Bar Titanium Rod Titanium Hex Bar Titanium Flat Bar Titanium Rods Titanium Square Bar Type SIZES (mm) SIZES (Inches) ISO Tolerance Titanium Alloy Cold Drawn and Polish Round Bar 3.00 – 75.00 1/8" – 3.00" h8-h9-h10-h11 Titanium Cold Drawn and Ground Bar 10.00 – 75.00 5/6" – 2.50" h8-h9-h10-h11 ASTM B348 Ti Alloy Peeled and Polished Round Bar 40.00 – 150.00 1.50" – 6.00" h11, h11-DIN 1013 Titanium Alloy Peeled and Ground Bar 20.00 – 50.00 3/4″ – 2.00" h9-h10-h11 Titanium Alloy Bars Standard lengths of 2000 mm up to 6010 mm. Cut to size on request (tolerance +2/-0 mm).

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr1 Titanium Tubesheet Product Description The precision of titanium tubesheet processing, especially the tube hole spacing and tube diameter tolerance, verticality, and smoothness greatly affect the assembly and use performance of the chemical equipment listed above. With the enlargement of chemical equipment and power stations, titanium tubesheet diameter has become larger and larger, and titanium tubesheets with a diameter of 4m-5m are very common. The characteristics of the large-scale tubesheet are the large number of tube holes, denseness, small diameter, deepness, high precision and smoothness requirements

Product Name: Titanium floating head heat exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc. Titanium Tubular heat exchanger One tubeplate of the heat exchanger is connected to the shell with a flange, and the other tubeplate is not connected to the shell, so that the tube is free to expand when heated or cooled. But this tube-plate is connected with a top cover called a floating head. "So this heat exchanger is called a floating head heat exchanger. The advantages are: tube bundle can be pulled out for cleaning; The expansion of the tube bundle is not constrained by the shell, so when both heat transfer when the temperature difference between tube bundle and shell is large, the temperature difference stress will not occur. Its disadvantage is complex structure , high cost. Product Name Titanium floating head heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product name: ASTM B338 titanium Seamless Tubes for Condensers Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled ASTM B338 titanium Seamless Tubes for Condensers ASTM B338 Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers ASTM B338 covers 28 grades of seamless and welded titanium alloy tubes for surface condensers, evaporators, and heat exchangers. Standard ASTM B338, ASME SB338 Regular Grade Grade 1 Grade 2 Outer Diameter 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc. Wall thickness 0.9mm/1.0mm/1.2mm/1.5mm Length 3000 - 6000mm or other economical lengths Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF Form Straight titanium Pipe, Coiled titanium tube Type Seamless, ERW, EFW, Welded, Fabricated End Plain End, Beveled End, Treaded Marking Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.) Application Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger Value Added Service Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. Test Certificate Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2 Precautions for titanium pipe processing: During the deformation process, titanium pipe will gradually reduce wall and diameter with the rotation and feeding of the rolling mill. The pipe size required by the process can be obtained only after 5 ~ 10 rolling and finishing in one rolling pass. The cold rolling pipe mill can carry out large diameter reduction and wall reduction, but the dimensional accuracy is low after rolling, and the pipe end is prone to cracking, uneven concave convex and other phenomena. The cracking phenomenon can be solved mainly by grinding and leveling before pipe blank processing; For the uneven pipe end, similar to the "fish mouth" phenomenon, flat head treatment is required in the subsequent processing process, otherwise it will cause the plug stuffy accident. Therefore, this paper analyzes from the aspects of process, tooling and equipment, in order to find out the causes of uneven concave convex of pipe end and take effective measures to solve it. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Gr12 titanium rods are similar to commercially pure titanium grade 1, 2 and 3 titanium rods. Gr12 titanium is mainly used for primary forming forged products. Grade 12 titanium contains 0.3% molybdenum and 0.8% nickel. The content of nickel and molybdenum alloy provides higher strength and better corrosion resistance. While it is not as corrosion resistant as grade 7 titanium (a titanium-palladium alloy), grade 12 titanium is more cost effective.

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting MOQ:50kgs Product Information Baoji Lihua is a world-renowned manufacturer of Grade 5 Titanium Sheets, providing high quality Grade 5 Titanium Sheets to customers worldwide. Grade 5 Titanium is the most commonly used titanium grade of all titanium alloy sheets due to its ability to withstand extreme temperatures, good corrosion resistance and thermal stability. Material: GR1, GR2, GR4, GR5, GR7, GR12 Russia Grade: BT1-100,BT1-0,BT6 etc. Standard: ASTM B265 Thickness: 0.5-100mm The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require. Surface: Pickling, Polishing, Sand blasting etc. Type: Sheet, plate, foil; Straight & roll State: R/Y/M Chemical compositions(weight%,<=) Ti Al V Fe C Reminder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 825 10 25

Product name:Titanium Sheet Unit price:$15.5-$36.9/kg Material: Titanium Grade 5 (Ti6al4v) Standard: ASTM/ASME B265 AMS 4911 ASTM F136 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) MTC: EN10204.3.1 certificate MOQ : 10kgs Applications : Petroleum ,chemical industry, Marine, medical Package:Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case. Customized size welcome. Hot rolled titanium plate Titanium plate gr5 Grade 5 titanium plate titanium alloy plate Ti6al4v plate Grade 5 titanium is one of the most commonly used alloys in titanium industry, accounting for 50% of the world titanium consumption. Also known as Ti-6Al-4V (or ti6-4), this name refers to its main chemical composition of 90% titanium, 6% aluminum, 4% vanadium, 0.25% (maximum) iron and 0.2% (maximum) oxygen. It has almost the same high corrosion resistance as pure titanium, but has better strength, low elastic modulus, good weldability and heat treatment. The addition of aluminum and vanadium improves the hardness and physical and mechanical properties of the alloy. Product name:Titanium Sheet ,grade 5 titanium sheet ,titanium alloy sheet,10mm titanium sheet,5mm titanium sheet,gr5 titanium sheet,6Al4V sheet, Ti6Al4V titanium sheet,Titanium sheet plate price per kg Material: Titanium Grade 5 (Ti6al4v) Standard: ASTM/ASME B265, AMS 4911, ASTM F136 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc Technique : Rolled Status: Annealed(M) MTC: EN10204.3.1 certificate Grade 5 (Ti6Al4V) titanium sheet/plate Chemical compositions(weight%,<=) Ti Al V Fe C Remainder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 830 12 25
