Product Name: Titanium Stud Bolts Standard: DIN938 DIN939 Material: Gr2 Gr5 Size: M3-M52 Surface: Polished

Product Name: Titanium rod grade 23 Standard: ASTM F136 Material: Gr23 (Gr5 ELI) Unit Price: $30.5 usd/kg- $52.5 usd/kg Application: Medical use Shape: Round Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc. Length: 1000mm, 3000mm, 6000mm or as per your request Surface: Bright

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg- $30usd/kg Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Grade 2 Pure Titanium Rod Product Information Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23 Russian Grade: BT1-00,BT1-0,BT1-2 Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Diameter: 3-350mm Length: up to 6000mm Surface: Polished, Pickled Features: Polished surface with no defects, no cracks and no pitting. Tolerance Diameter(mm) h7 h8 h9 h10 h11 h12 Tolerance precision (um) 3~6 12 18 30 48 75 120 6~10 15 22 36 58 90 150 10~18 18 27 43 70 110 180 "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) Advantages 1. Equipment: We have Trimming machines, milling machines, annealing furnaces, shearing machines, bending machines, straightening machines, sandblasting machines, punching machines and forging hammers etc. 2. Product: We have sufficient inventory and accept customized product. We can also provide you with samples. 3. Quality: We have exported our titanium rod to many countries, including the US, Italy, Korea, Ukraine and Chile etc. The quality of our products is widely recognized. Quality Certificate is available. Third-party testing is also accepted, like TUV, SGS, BV etc. 4. Price: As a leading manufacturer of titanium products for more than 16 years, we know the market very well. We can provide you with competitive prices. 5. Payment: Flexible payment terms. TT, LC, Western Union, Paypal etc. are all acceptable. You can choose any convenient way. 6. Packaging: Usually plywood box for export, ensuring that the goods will not get damaged during the shipment. 7. Shipment: Various shipping methods. EXW, FOB, CIF etc. are all ok for us. 8. Service: Professional team. We have set up a service department.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Grade 7 Titanium Round Bar Product Information Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21 Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22 Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: Annealed Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Chemical Composition Element Titanium Grade 7 Pd 0.12-0.25 Ti Bal Fe 0.30 max C 0.08 max N 0.05 max H 0.015 max O 0.2 max Mechanical Properties Element Titanium Grade 7 Density 4.51g/cm³ Melting Point 1668 ℃ Tensile Strength(Mpa) 370 Yield Strength(Mpa) 250 Elongation(%) 20 Reduction of area(%) 25

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Our machined titanium round bar is in accordance with ASTM B348. Such as Ti-6Al-4V, Ti-0.2PD grade 7, Ti-15V-3Cr-3Sn-3Al bar. Titanium is a synonym for titanium alloy products with high tensile strength, lightweight and excellent corrosion resistance. Our machined titanium round bar used in a variety of high-tech and high-performance applications. Chemical, aerospace, racing and automobile all benefit from the unique chemical and mechanical properties provided by titanium. We provide a comprehensive rod blanking service internally. We cut your titanium rod products to precise lengths or into manageable blanks. Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21 Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22 Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: Annealed Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21 Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22 Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Feature: Not any defects free from cracks no pitting.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Grade 4 titanium bar is stronger than grade 2 and 3. It can be cold formed, but is less ductile. It has excellent corrosion resistance in a variety of environments. Grade 4 titanium bars are commonly used in aerospace, industrial and medical applications where high strength is required.

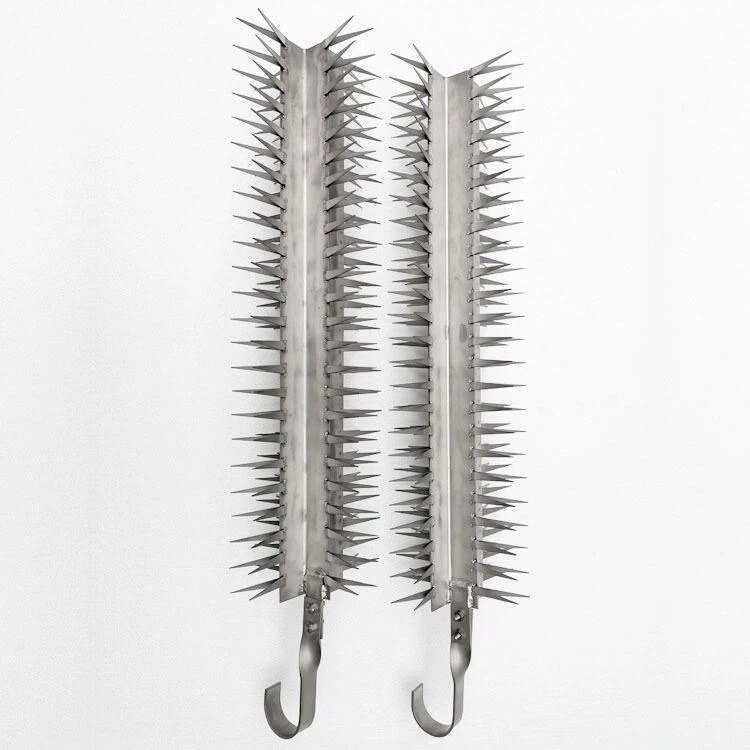

Product Name: Titanium Finger Jigs Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished We can provide various customized titanium hangers made of high-quality pure titanium (GR1, Gr2). The titanium jigs/racks produced by our factory has good elasticity and strong corrosion resistance. It adopts precision welding technology, and the welded junction is closely and firmly combined. We can recommend to customers according to the products we have made before, also can produce them according to customers' drawings! Product Name:Titanium Jig Rack For Anodizing Material: Pure titanium Gr1, Gr2 Size: Customized Surface: Polished Number of hanging teeth:customized Application: Electroplating, anodizing etc. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

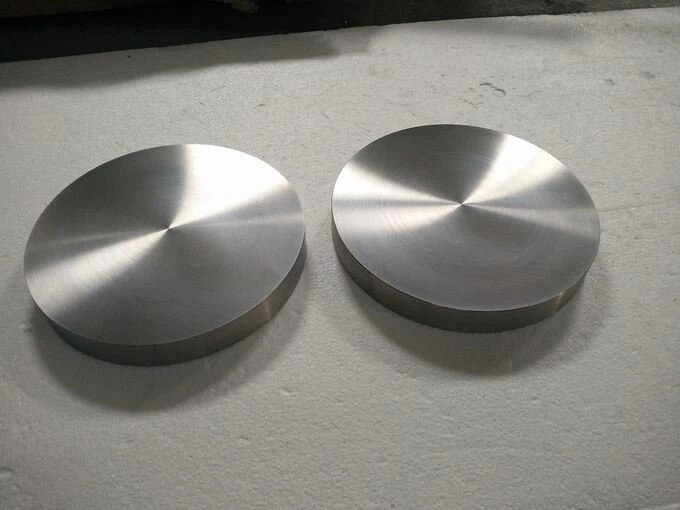

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing Product Information Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Standard: ASTM / ASME SB381 Shape: Round or according to your requirements Technique: Forged, CNC Machined Available Sizes: Diameter:50-200mm*Height 2-140mm Diameter:200-400mm*Height 25-150mm Diameter:400-600*Height 30-110mm Tolerance Diameter or Thickness Allowable Deviation(mm) Hot forged disc Titanium disc is forged, as the standard of ASTM B381 >7~15 —— >15~25 —— >25~40 0, +0.5 >40~60 0, +0.5 >60~90 0, +0.5 >90~120 0, +0.8 >120~160 0, +1.0 >160~200 0, +1.2 >200~230 0, +1.5 Deviation of length(mm): L<500, +1max; L>500, +2max
