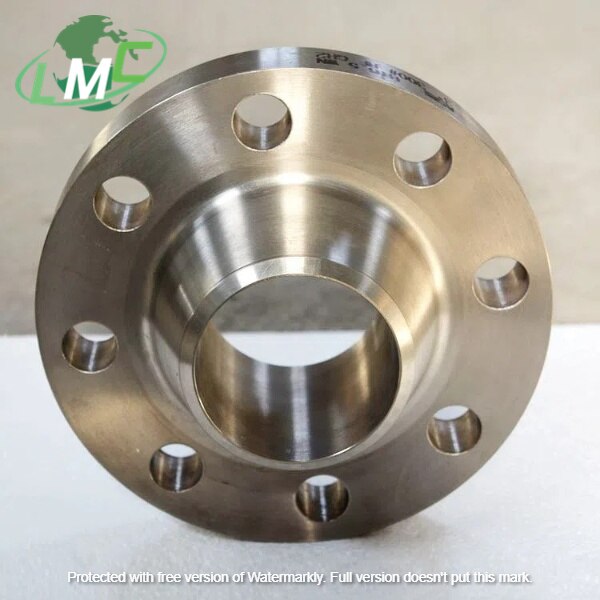

Product Name: WN Titanium Flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. WN Titanium Flanges The titanium flange is a part made of pure titanium or titanium alloy, which connects the pipe to the pipe, and to the end of the pipe. Product Name: WN Titanium Flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Differences between Weld neck titanium flange and slip on titanium flange 1. Different welding forms: The welding form of neck flat welded titanium flange pipe and titanium flange is fillet welding, while the welding form of the neck butt welded flange and pipe is girth welding; 2. Different materials: the material of the necked flat welding flange is made of ordinary titanium plate with a thickness that meets the requirements, while the material of the necked butt welding flange is mostly machined from titanium forgings; 3. the nominal pressure is different: the nominal pressure of the necked flat welding flange is: 0.6---4.0MPa, and the nominal pressure of the necked butt welding flange is: 1--25MPa; 4. Another point is that the welding seam between the necked butt-welded flange and the connection pipe belongs to type B seam, and the welding seam between the necked flat-welded flange and the connection pipe belongs to type C seam. And the non-destructive testing after welding is different; 5. The necked flat welding flange and the necked butt welding flange cannot be replaced at will. From a manufacturing perspective, the necked flat welding flange (SO is the abbreviation of Slip On) has a large inner diameter, which means that the weight is light and the cost is low. Neck butt welding flanges (WN is the abbreviation of Welding Neck) with a nominal diameter greater than 250mm need to be tested, and SO flanges do not need to be tested, so the cost is low.

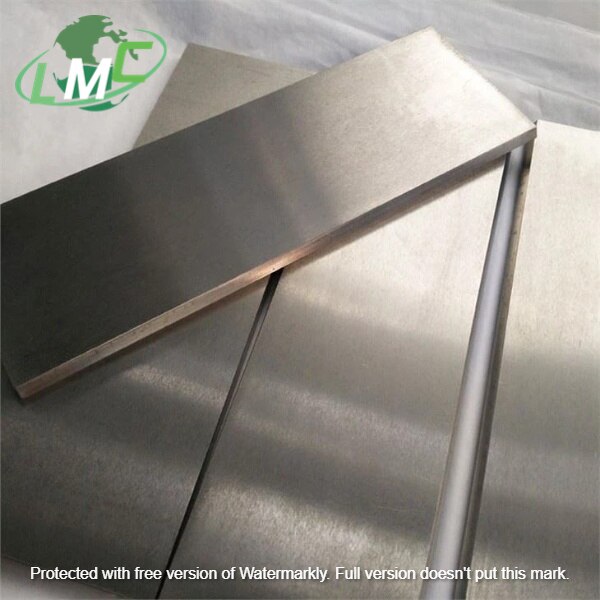

Product name:Grade 12 Titanium plate Unit price:$15.5-$36.9/kg Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM/ASME B265 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) GR12 is a titanium alloy containing molybdenum and nickel (Ti-0.3Mo-0.8Ni).Grade 12 titanium plate is high quality and weldability. It is a titanium alloy that has always been very durable, even at high temperatures. In addition, Grade 12 titanium plates have excellent corrosion resistance in reducing and oxidizing environments, and their heat resistance is better than that of pure titanium. Grade 12 titanium sheets generally have few scratches and are not easy to scratch. Product name:Grade 12 Titanium plate Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM/ASME B265 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc Technique : Rolled Status: Annealed(M) MTC: EN10204.3.1 certificate Applications : Petroleum ,chemical industry, Marine, medical Package:Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case. Grade 12 Titanium Plate Equivalent Grades: STANDARD WERKSTOFF NO. UNS Titanium Grade 12 3.7105 R53400 Titanium ASTM B265 Gr 12 Plate Chemical Composition: Fe O C H N Mo Ni ≤0.30 ≤0.18 ≤0.08 ≤0.015 ≤0.03 0.2 - 0.4 0.6 - 0.9 Titanium Grade 12 Plate Mechanical Properties: Material Tensile Strength min Yield Strength Elongation in 2" (%) ksi Mpa Max Min ksi Mpa Ksi Mpa Titanium CP Grade12Annealed Sheet 70 483 50 345 - - 18

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium welded pipe is formed by rolling a cold-rolled titanium strip into a tube shape and then using tungsten inert gas shielded welding to weld the gap. Due to its excellent seawater corrosion resistance, it has become the first choice for various types of condensers and heat exchangers to replace stainless steel and copper tubes as heat exchange tubes since it was developed. Therefore, it has been widely used in the manufacture of coastal power plants, nuclear power plants, Condensers and heat exchangers that require sea water as a cooling medium in seawater desalination and petrochemical industries.

Product name: Titanium alloy Tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Because stainless steel and other materials are inefficient in many cases, titanium tubes are increasingly used in various occasions. A common titanium grinding product is titanium tube. Because of its superior corrosion resistance and strength weight ratio, titanium tube is used in various products. The development of many different alloys has expanded the application of titanium in industry, chemical processing and power generation. Commodity Titanium Alloy Tube /Pipe/Tubing,titanium alloy seamless tube/pipe,titanium alloy welded tube pipe,ASTM B338 titanium tube,Titanium pipe price per kg Tube Shape Round Square Flat Coil Material Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7,Gr9,Gr11,Gr12,Gr23(Ti-6Al-4V Eli) Standard ASTM B337 ASTM B338 ASTM B861 ASTM B862 Type Seamless Welded ERW Fabricated OD 5-914mm or as customized Wall Thickness 0.5-50mm or as customized Length Max 16000mm End Plain End, Beveled End, Threaded Certificate EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc Application Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry Titanium alloy tubes can be divided into three categories according to phase composition: α Alloy（ α+β) Alloy and β alloy 1. α Stability of alloy containing a certain amount α The element of phase, in equilibrium, is mainly composed of α Phase composition. α The alloy has small specific gravity, good thermal strength, good weldability and excellent corrosion resistance. Its disadvantage is low strength at room temperature. It is usually used as heat-resistant and corrosion-resistant materials. α Alloys can usually be divided into complete alloys α Alloy (Gr7), near α Alloy (ti-8al-1mo-1v) and alloy with a small amount of compounds α Alloy (Ti-2.5Cu). 2. ( α+β) Stability of alloy containing a certain amount α Phase harmony β Phase elements, and the microstructure of the alloy in equilibrium is α Phase harmony β Phase. ( α+β) The alloy has medium strength and can be strengthened by heat treatment, but its weldability is poor. ( α+ β) Alloys are widely used, and the output of Ti-6Al-4V Alloy accounts for more than half of all titanium materials. 3. β The alloy contains a large amount of stable β Phase elements can be used at high temperature β All phases were retained to room temperature. β Alloys can usually be divided into heat treatable alloys β Alloy (metastable) β Alloy and near metastable β Alloy) and thermal stability β Alloy. Heat treatable β The alloy has excellent plasticity in quenched state, and the tensile strength can reach 130 ~ 140kgf / mm2 by aging treatment. β Alloys are usually used as high strength and high toughness materials. The disadvantages are large ratio, high cost, poor welding performance and difficult machining.

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Permissible Variations in Thickness of Cold Rolled Titanium Plate Thickness(mm) Permissible thickness tolerance(mm) (3.71 to 4.76), excl 0.36 3.33 to 3.68 0.31 2.92 to 3.30 0.25 2.51 to 2.90 0.23 2.13 to 2.49 0.2 1.85 to 2.11 0.18 1.50 to 1.83 0.15 1.04 to 1.47 0.13 0.69 to 1.02 0.1 0.43 to 0.66 0.08 0.20 to 0.41 0.05 0.15 to 0.18 0.04 0.13 0.03 Permissible Variations in Width and Length of Cold Rolled Titanium Plate Specified width.in.(mm) for Thickness under3/16 in Permissible Variations in width,in.(mm) 24 to 48（610 to 1220）excl 48(1220) and over 1/16(+1.60),-0 1/8(+3.20),-0 Specified length ft(m) Permissible Variations in length,in.(mm) Up to 10(3) Over 10 to 20(3 to 6) 1/4(+6.35),-0 1/2(+12.7),-0

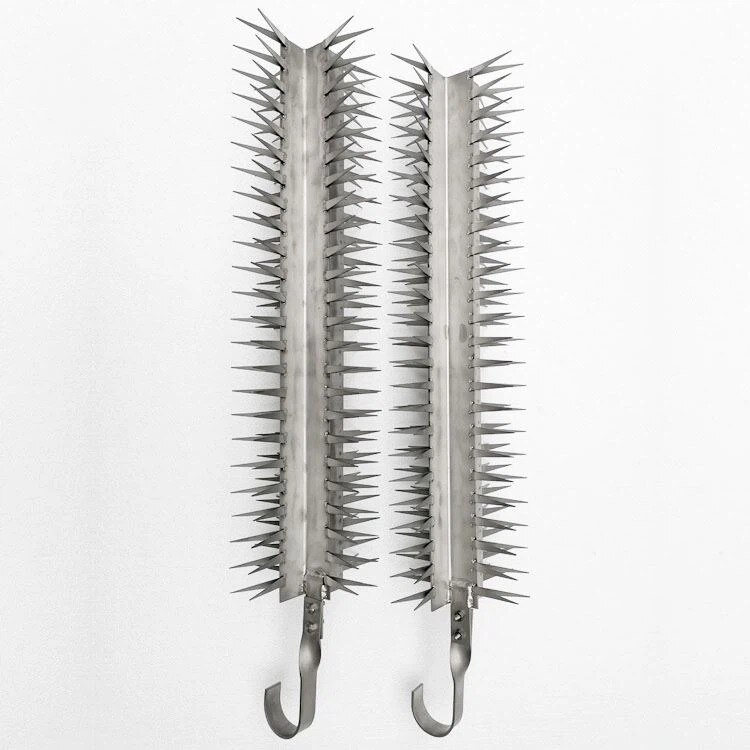

Product Name: Titanium Finger Jigs Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Plating Jigs or Racks are useful where the output is large and even for distribution of electric current. Other advantage uses are · a good deal of saving in labor, time and ensures speedy loading · increasing productivity · reducing production costs. Jigs are to be used for Electroplating, Electro polishing, Painting and Anodizing. Jigs made of Titanium are to be used for anodizing/ electro polishing. Jigs can be designed, fabricated and insulated according to customers’ requirements.

Product Name: WN Titanium Flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. WN Titanium Flanges The titanium flange is a part made of pure titanium or titanium alloy, which connects the pipe to the pipe, and to the end of the pipe. Product Name: WN Titanium Flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Differences between Weld neck titanium flange and slip on titanium flange 1. Different welding forms: The welding form of neck flat welded titanium flange pipe and titanium flange is fillet welding, while the welding form of the neck butt welded flange and pipe is girth welding; 2. Different materials: the material of the necked flat welding flange is made of ordinary titanium plate with a thickness that meets the requirements, while the material of the necked butt welding flange is mostly machined from titanium forgings; 3. the nominal pressure is different: the nominal pressure of the necked flat welding flange is: 0.6---4.0MPa, and the nominal pressure of the necked butt welding flange is: 1--25MPa; 4. Another point is that the welding seam between the necked butt-welded flange and the connection pipe belongs to type B seam, and the welding seam between the necked flat-welded flange and the connection pipe belongs to type C seam. And the non-destructive testing after welding is different; 5. The necked flat welding flange and the necked butt welding flange cannot be replaced at will. From a manufacturing perspective, the necked flat welding flange (SO is the abbreviation of Slip On) has a large inner diameter, which means that the weight is light and the cost is low. Neck butt welding flanges (WN is the abbreviation of Welding Neck) with a nominal diameter greater than 250mm need to be tested, and SO flanges do not need to be tested, so the cost is low.

Product Name: Titanium Blind Flange Standard: ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc.

Porduct name : Titanium clad stainless steel tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad stainless steel tube sheet Titanium composite steel plate tube-sheet is a single or double-sided composite plate made of ordinary grade TA1 or TA2 (composite metal) and carbon steel or alloy steel by explosion, explosion + rolling or hot rolling. Titanium metal has excellent corrosion resistance, widely used in flue gas desulfurization equipment, power plant chimneys, chemical reactors, heat exchangers, pressure vessels, etc. But its disadvantage is high cost, titanium composite steel plate tubesheet has the corrosion resistance of titanium metal and the structural strength of steel, can greatly reduce the project cost. At present, the production method of titanium composite steel tubesheet is as follows: 1. Weld compound 2. Rolling compound 3. Explosive welding 4. Explosive welding + rolling Baoji Lihua uses explosive welding and rolling and combines the two processes. This method can overcome the disadvantages of small area and complex rolling process of explosive composite plate, give full play to their respective advantages, and produce titanium steel composite plate with large area and small thickness. It is more efficient and cheaper. Technological parameters and shear strength of explosive welding of Titanium clad stainless steel plate tube sheet 1 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 293 200 392 179 266 The substrate is generally polished. σf 247 208 113 92 165 σt 447 530 460 441 444 The substrate is polished. σf 403 200 363 322 σt 139 105 203 205 163 The substrate is generally polished. σf 231 345 286 287 285 σt 407 410 263 407 372 The substrate is polished. σf 498 571 513 527 Losive welding of Titanium clad stainless steel plate tube sheet 2 Cladding materials Base materials h0/ mm Wg/ (g.cm-2) Bond strength/MPa 1 2 3 4 Average Remark Metal δ1/ mm Metal δ2/ mm Titanium 3 5 Stainless steel 18 5 6.5 1.4 1.6 σt 392 87 240 18 The substrate is generally polished. σf 345 92 157 12 σt 530 279 402 5 The substrate is polished. σf 403 200 321 3 σt 339 60 230 18 The substrate is generally polished. σf 287 149 233 11 σt 571 513 541 2 The substrate is polished.
